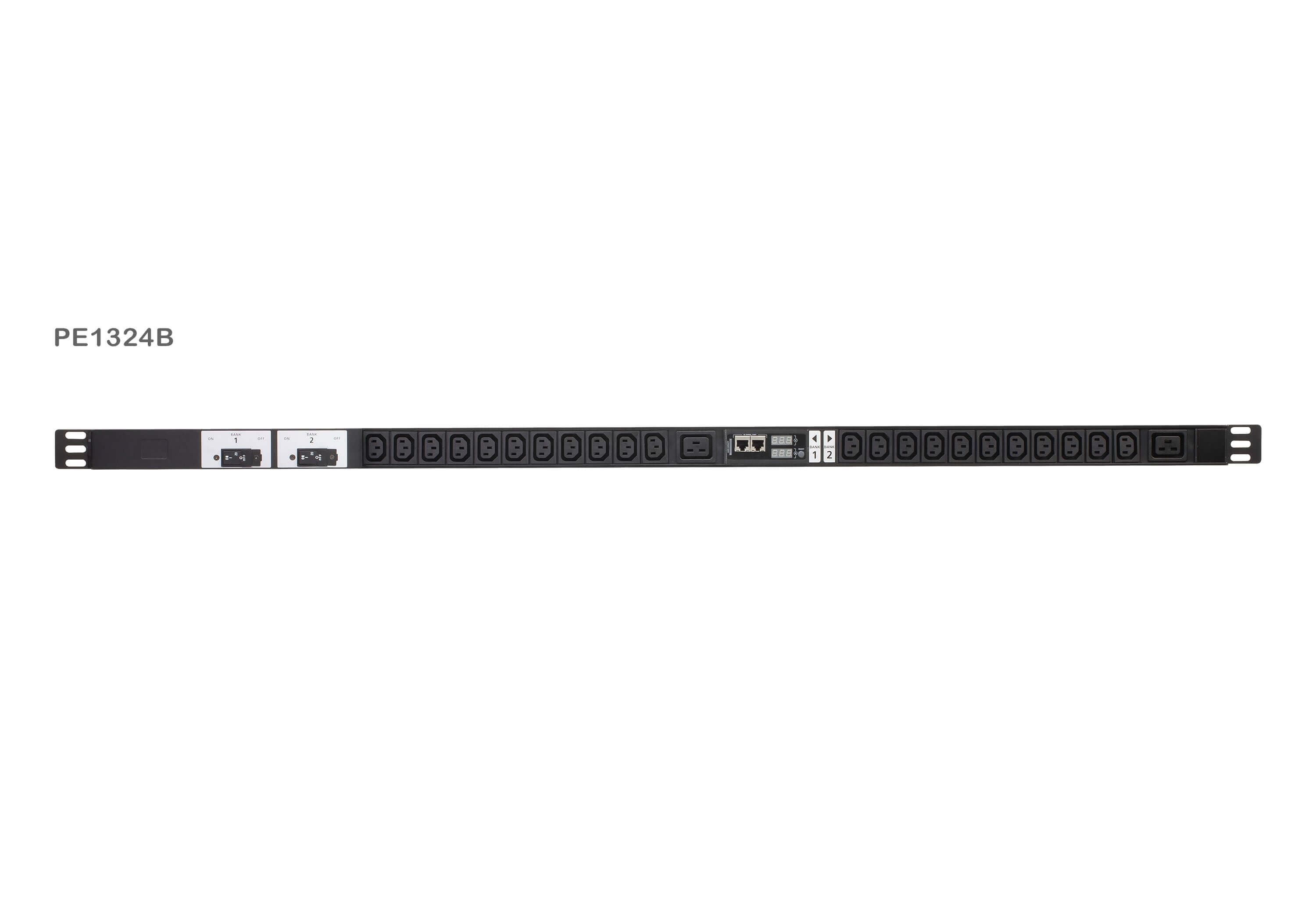

Basic Metered 0U PDU

Name: Basic Metered 0U PDU
Brand: ATEN
SKU: PE1324B

PE1324B

Metered 0U rack PDU with 22 IEC C13 and 2 C19 outlets on a 30 A, 7200 VA input; dual 3-digit displays show current and voltage.

Features

Space saving 0U rack mount design
IEC or NEMA outlet models
Dual 3-digit 7-segment displays to show current and voltage
Real-time PDU current monitoring when used in conjunction with the EC1000 Energy Box

Nominal Input Voltage: 100-240 VAC
Maximum Input Current: 30A Max (UL de-rated 24A Max)
Input Frequency: 50-60 Hz
Input Connection: NEMA L6-30P
Input Power: 7200VA(Max); 5760VA(UL de-rated)
Outlet Type: (22) IEC 320 C13, (2) IEC 320 C19
Maximum Output Current (Outlet): C13: 15A Max (UL de-rated 12A Max) C19: 20A Max (UL de-rated 16A Max)
Maximum Output Current (Bank): 20A Max (UL de-rated 16A Max)
Maximum Output Current (Total): 30A Max (UL de-rated 24A Max)
OPD(Overcurrent Protection Device): Yes

EMC Verification: FCC Class A
Safety Verification: UL, other by request
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
