Basic Metered 1U PDU with Surge Protection
PE1218S
Metered 1U rack PDU with surge protection; dual 3-digit displays report current and voltage, with IEC or NEMA outlet models and a 20 A maximum input.
Features
- Space saving 0U rack mount design
- IEC or NEMA outlet models
- Surge protection

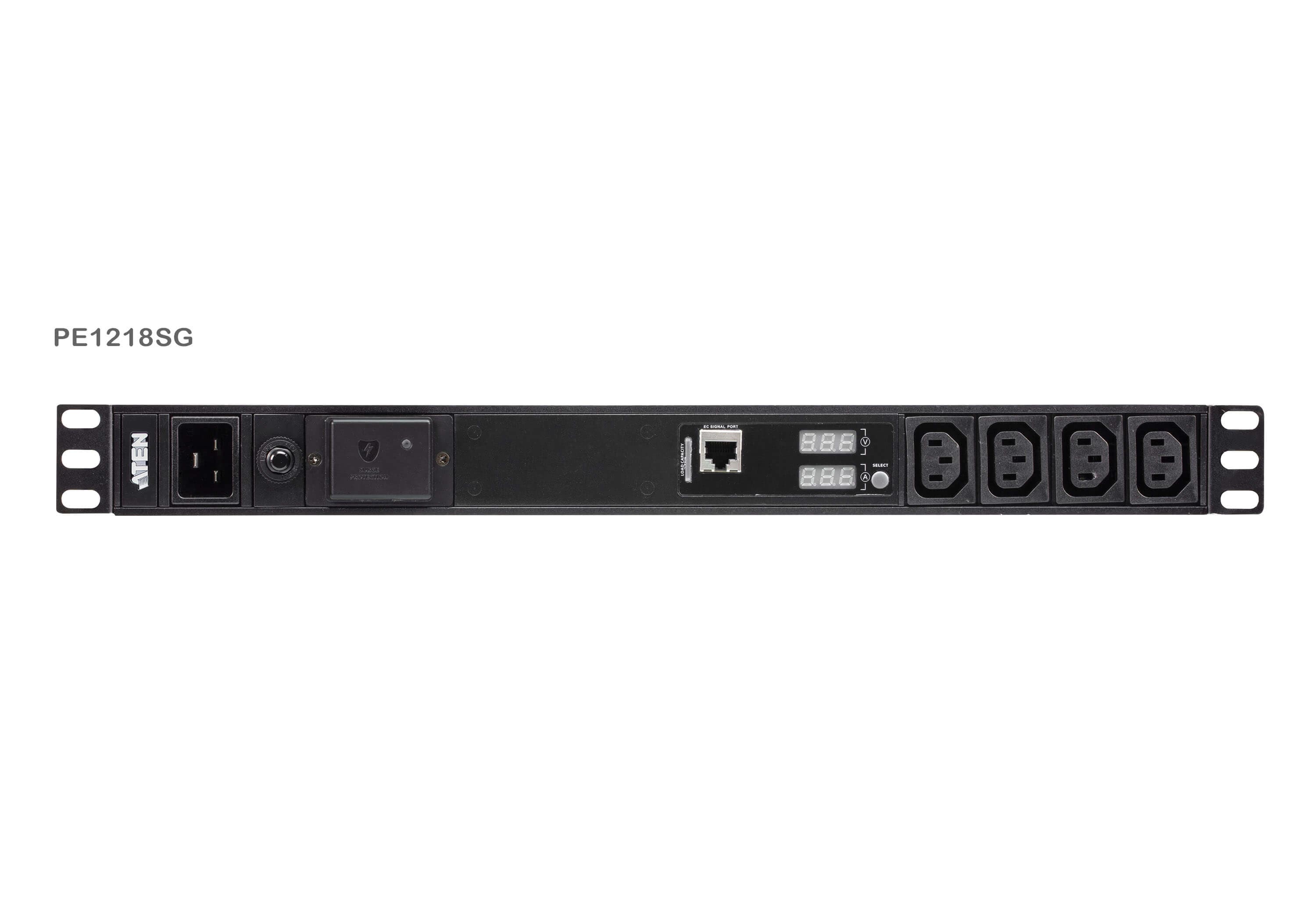

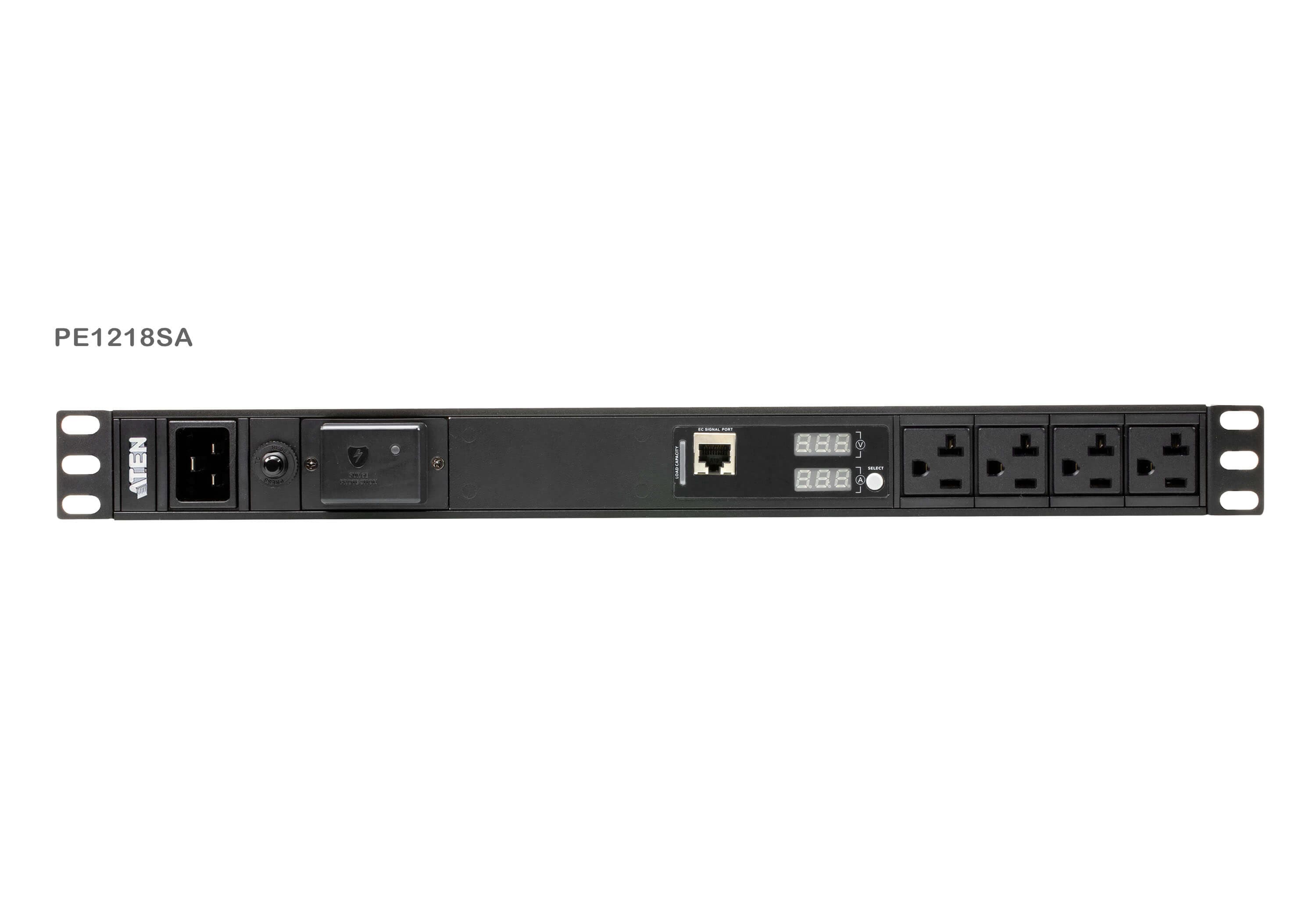

- Dual 3-digit 7-segment displays to show current and voltage
- Real-time PDU current monitoring when used in conjunction with the EC1000 Energy Box
Electrical
- Nominal Input Voltage
- 100-120 VAC
- Nominal Input Voltage
- 100-240 VAC
- Nominal Input Voltage
- 100-240 VAC
- Maximum Input Current
- 20A Max (UL derating 16A Max)
- Maximum Input Current
- 20A Max (UL derating 16A Max)
- Maximum Input Current
- 16A Max
- Input Frequency
- 50-60 Hz
- Input Frequency
- 50-60 Hz
- Input Frequency
- 50-60 Hz
- Input Connection
- For A Plug: NEMA L5-20P For A2 Plug: NEMA 5-20P
- Input Connection
- NEMA L6-20P
- Input Connection
- IEC-320 C20
- Input Power
- 2400VA(Max); 1920VA(UL de-rated)
- Input Power
- 4800VA(Max); 3840VA(UL de-rated)
- Input Power
- 3840VA(Max)
- Outlet Type

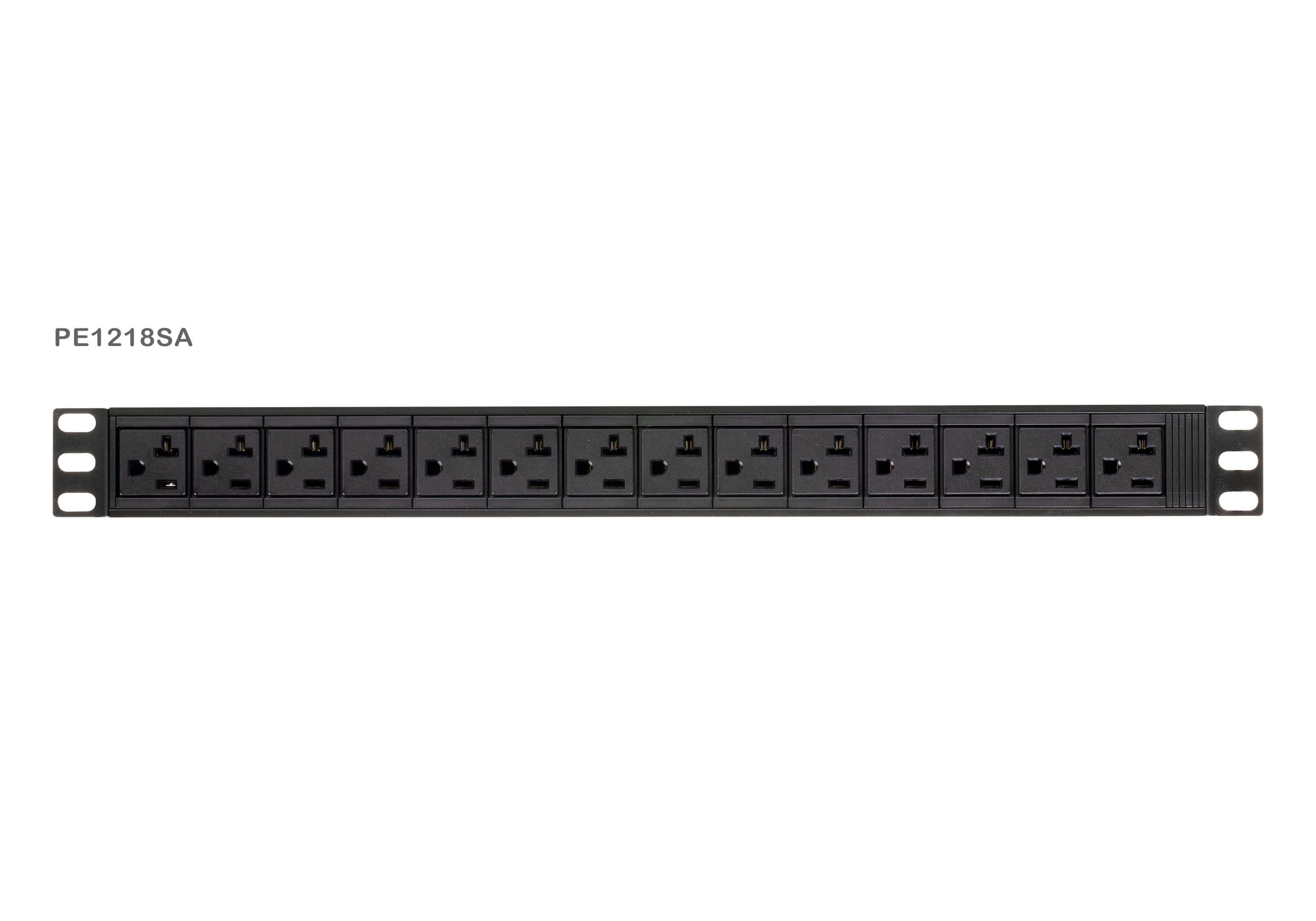

- (18) NEMA 5-20R
- Outlet Type

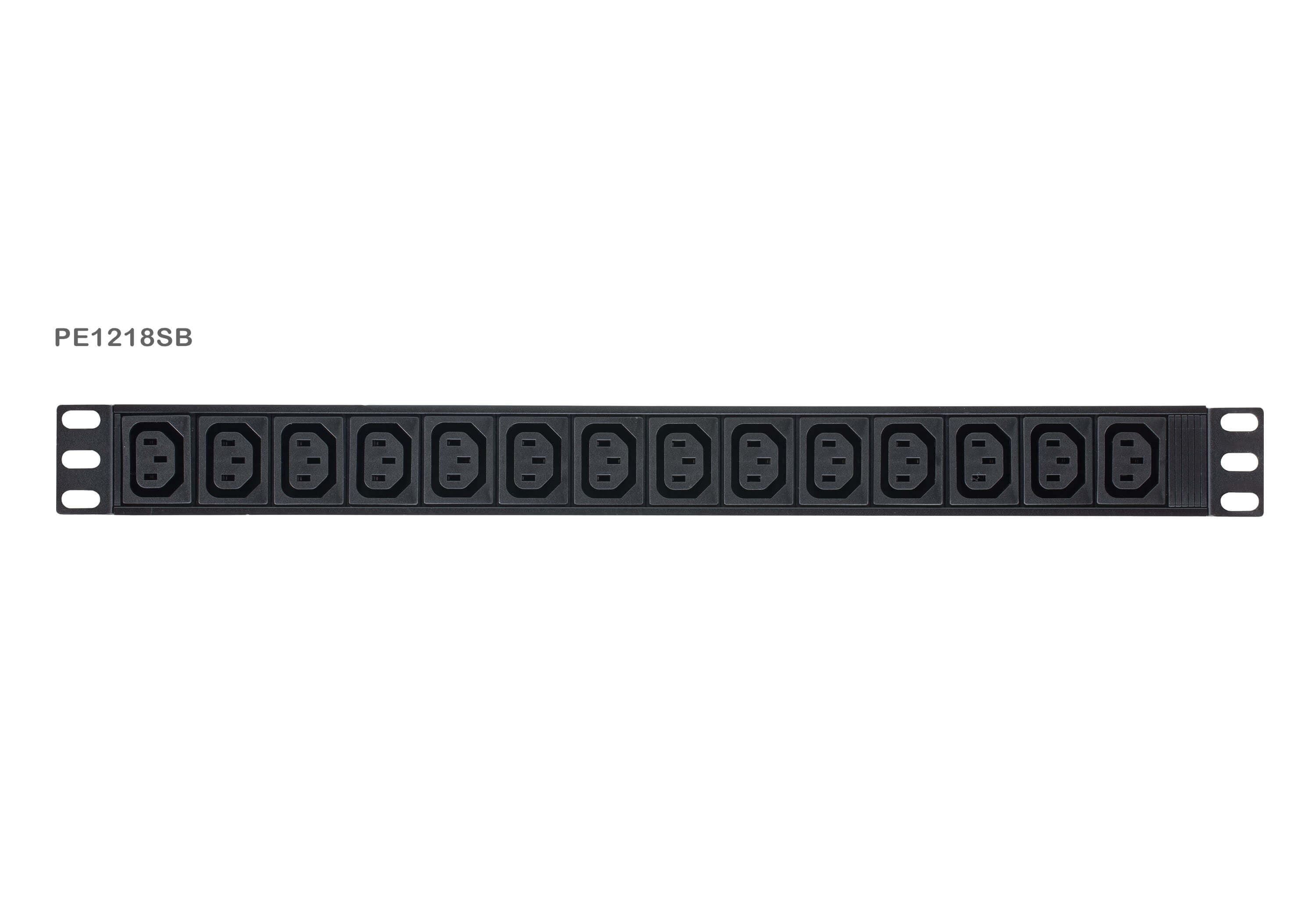

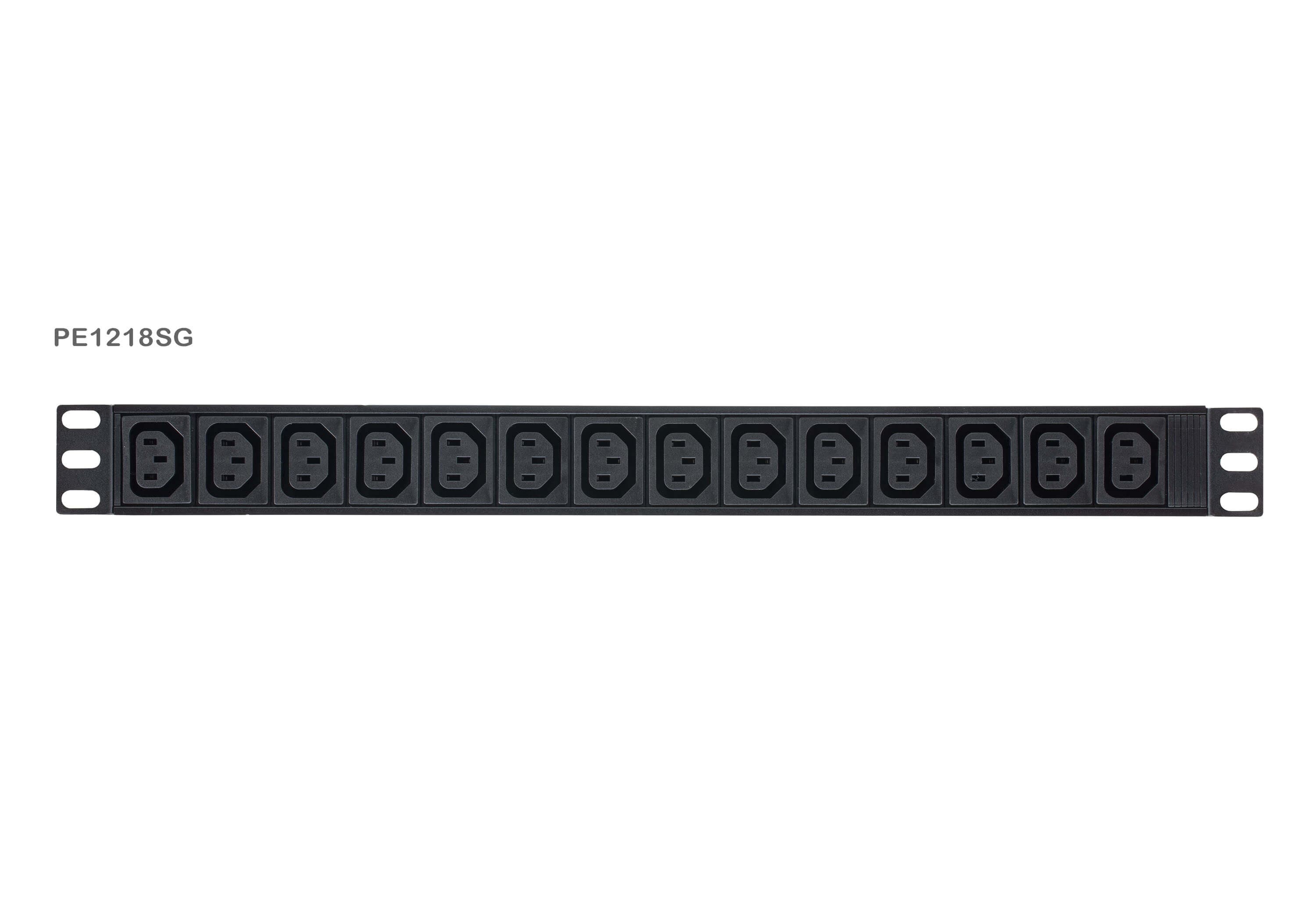

- (18) IEC 320 C13
- Outlet Type
- (18) IEC 320 C13
- Maximum Output Current (Outlet)
- 20A Max (UL derating 16A Max)
- Maximum Output Current (Outlet)
- 15A Max (UL derating 12A Max)
- Maximum Output Current (Outlet)
- 10A Max
- Maximum Output Current (Bank)
- 20A Max (UL derating 16A Max)
- Maximum Output Current (Bank)
- 20A Max (UL derating 16A Max)
- Maximum Output Current (Bank)
- 16A Max
- Maximum Output Current (Total)
- 20A Max (UL derating 16A Max)
- Maximum Output Current (Total)
- 20A Max (UL derating 16A Max)
- Maximum Output Current (Total)
- 16A Max
- OPD(Overcurrent Protection Device)
- Yes
- OPD(Overcurrent Protection Device)
- Yes
- OPD(Overcurrent Protection Device)
- Yes
Physical Properties
- Dimensions (L x W x H)
- 48.20 x 4.44 x 8.85 cm (18.98 x 1.75 x 3.48 in.)
- Dimensions (L x W x H)
- 48.20 x 4.44 x 8.85 cm (18.98 x 1.75 x 3.48 in.)
- Dimensions (L x W x H)
- 48.20 x 4.44 x 8.85 cm (18.98 x 1.75 x 3.48 in.)
- Weight
- 1.30 kg ( 2.86 lb )
- Weight
- 1.30 kg ( 2.86 lb )
- Weight
- 1.30 kg ( 2.86 lb )
- Power Cord Length
- 10ft(12#)
- Power Cord Length
- 10ft(12#)
- Power Cord Length
- 10ft(3×1.5mm2)
Environmental
- Temperature (Operating / Storage)
- 0 – 40℃ / -20 – 60℃
- Temperature (Operating / Storage)
- 0 – 40℃ / -20 – 60℃
- Temperature (Operating / Storage)
- 0 – 40℃ / -20 – 60℃
- Elevation (Operating / Storage)
- 3000m
- Elevation (Operating / Storage)
- 3000m
- Elevation (Operating / Storage)
- 3000m
Compliance
- EMC Verification
- FCC Class A
- EMC Verification
- FCC Class A
- EMC Verification
- CE Class A
- Safety Verification
- UL, other by request
- Safety Verification
- UL, other by request
- Safety Verification
- CE,LVD
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
