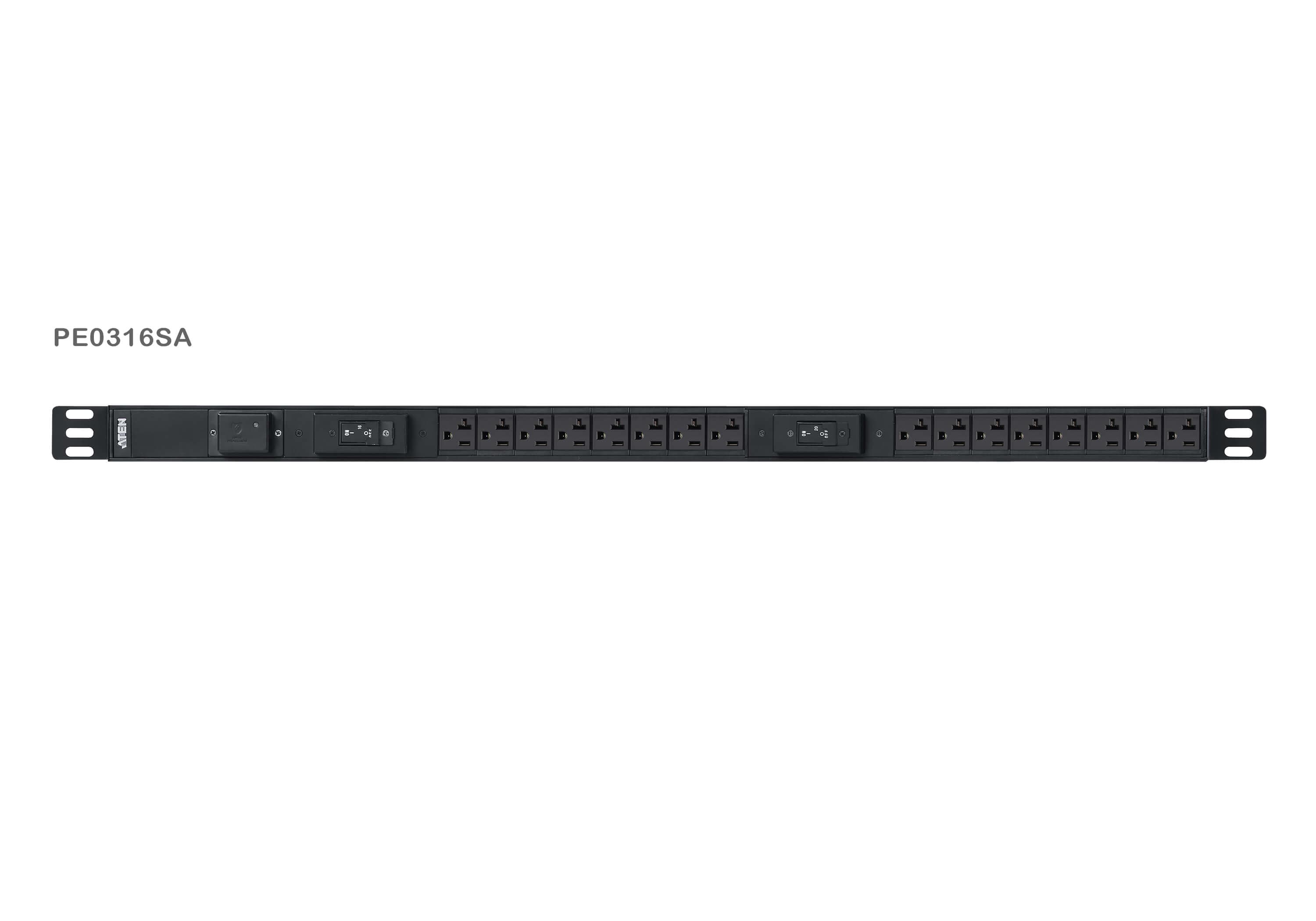

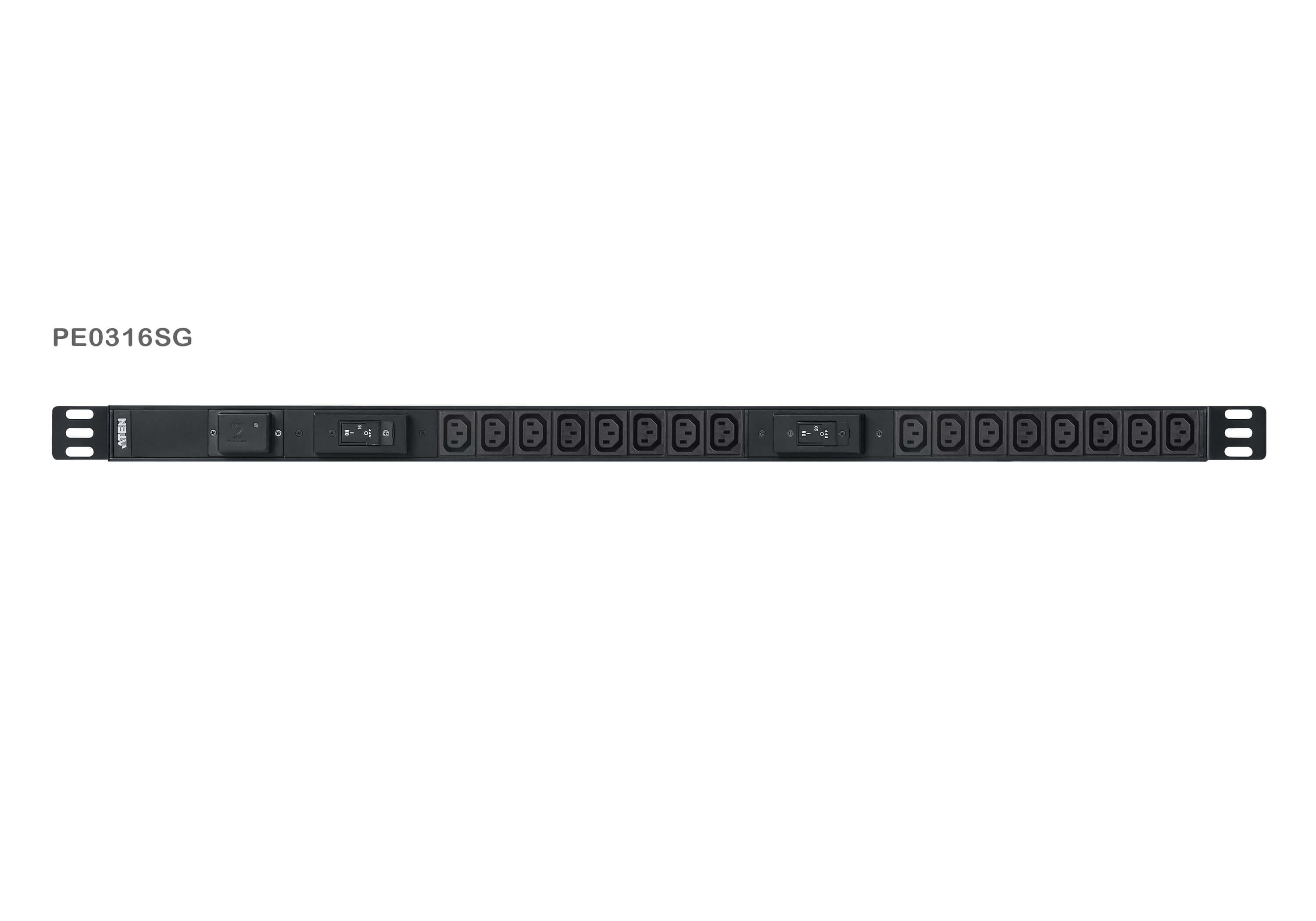

0U rack-mount power distribution unit with surge protection, mounting vertically to save rack space. Aluminum housing; available with IEC or NEMA outlets.
Features
- Space saving – 0U rack mount design
- IEC or NEMA outlet models
- Surge protection
- Aluminum material
- Works with data centers, server rooms, and telecom equipment
Electrical
- Nominal Input Voltage
- 100-120 VAC
- Nominal Input Voltage
- 100-240 VAC
- Maximum Input Current
- 30A Max (UL de-dated 24A Max)
- Maximum Input Current
- 32A Max
- Input Frequency
- 50-60 Hz
- Input Frequency
- 50-60 Hz
- Input Connection
- NEMA L5-30P
- Input Connection
- IEC 60309 32A
- Input Power
- 3600VA(Max); 2880VA(UL de-rated)
- Input Power
- 7680VA(Max)
- Outlet Type
- (16) NEMA 5-20R
- Outlet Type
- (16) IEC 320 C13
- Maximum Output Current (Outlet)
- 20 Max (UL de-dated 16A Max)
- Maximum Output Current (Outlet)
- 10A Max
- Maximum Output Current (Bank)
- 20A Max (UL de-dated 16A Max)
- Maximum Output Current (Bank)
- 16A Max
- Maximum Output Current (Total)
- 30A Max (UL de-dated 24A Max)
- Maximum Output Current (Total)
- 32A Max
- OPD(Overcurrent Protection Device)
- Yes
- OPD(Overcurrent Protection Device)
- Yes
Physical Properties
- Dimensions (L x W x H)
- 96.71 x 4.44 x 6.00 cm (38.07 x 1.75 x 2.36 in.)
- Dimensions (L x W x H)
- 96.71 x 4.44 x 6.00 cm (38.07 x 1.75 x 2.36 in.)
- Weight
- 2.10 kg ( 4.63 lb )
- Weight
- 2.10 kg ( 4.63 lb )
- Power Cord Length
- 10ft(10#)
- Power Cord Length
- 10ft(3×4mm2)
Environmental
- Temperature (Operating / Storage)
- 0 – 40℃ / -20 – 60℃
- Temperature (Operating / Storage)
- 0 – 40℃ / -20 – 60℃
- Elevation (Operating / Storage)
- 3000m
- Elevation (Operating / Storage)
- 3000m
Compliance
- EMC Verification
- FCC Class A
- EMC Verification
- CE Class A
- Safety Verification
- UL, other by request
- Safety Verification
- CE,LVD, UL
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
