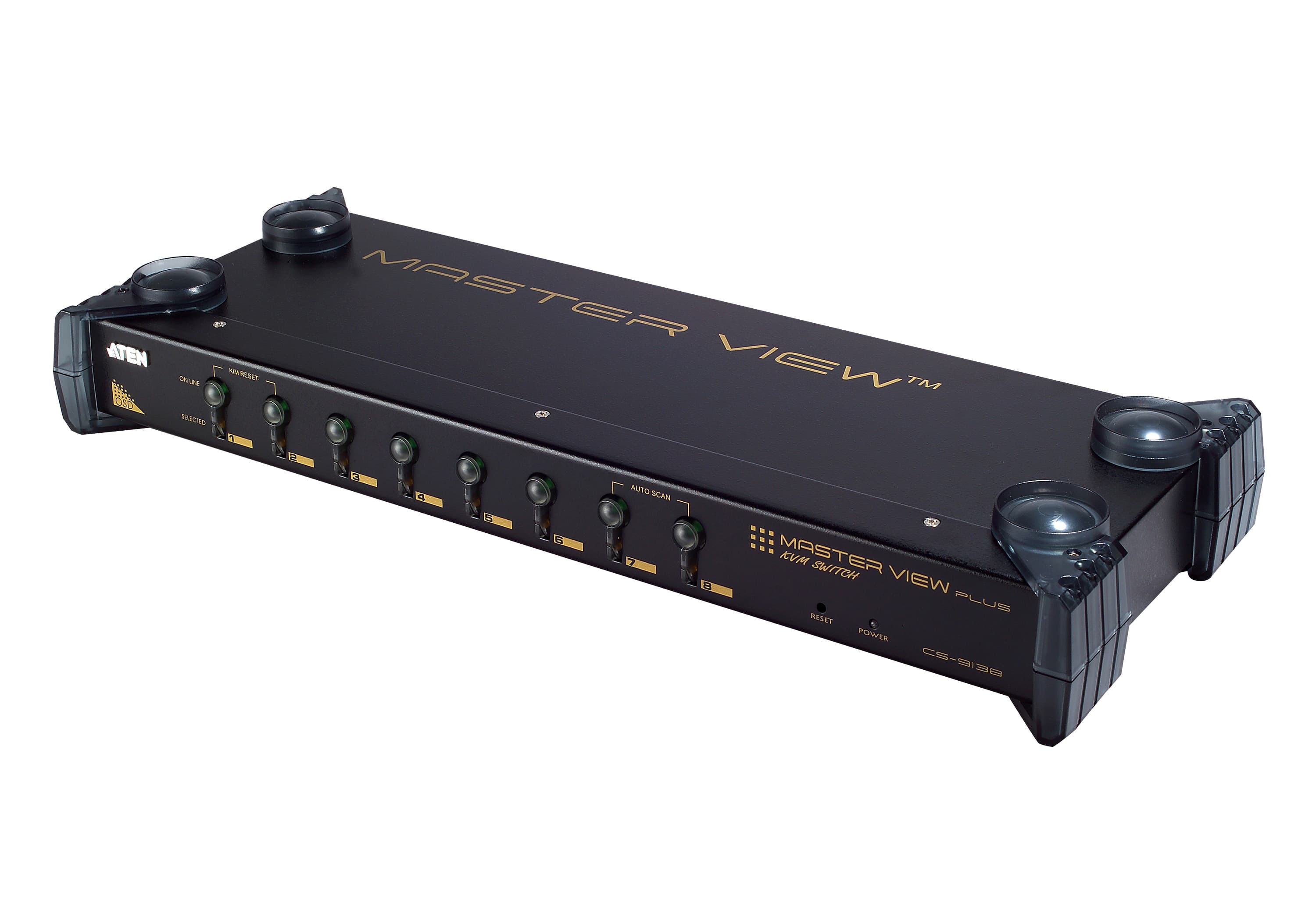

8-Port PS/2 VGA KVM Switch

Name: 8-Port PS/2 VGA KVM Switch
Brand: ATEN
SKU: CS9138

CS9138Discontinued

Request a quote Datasheet PDF Manual Quick start guide CAD drawing

CS9138 is a high-efficiency KVM Switch which provides the most efficient solution to fulfill the management needs of server networks. It is a KVM Switch with 8 ports and can

Features

One PS/2 console controls 8 computers.
Cascadable up to 3 levels - provides up to 512 computers.

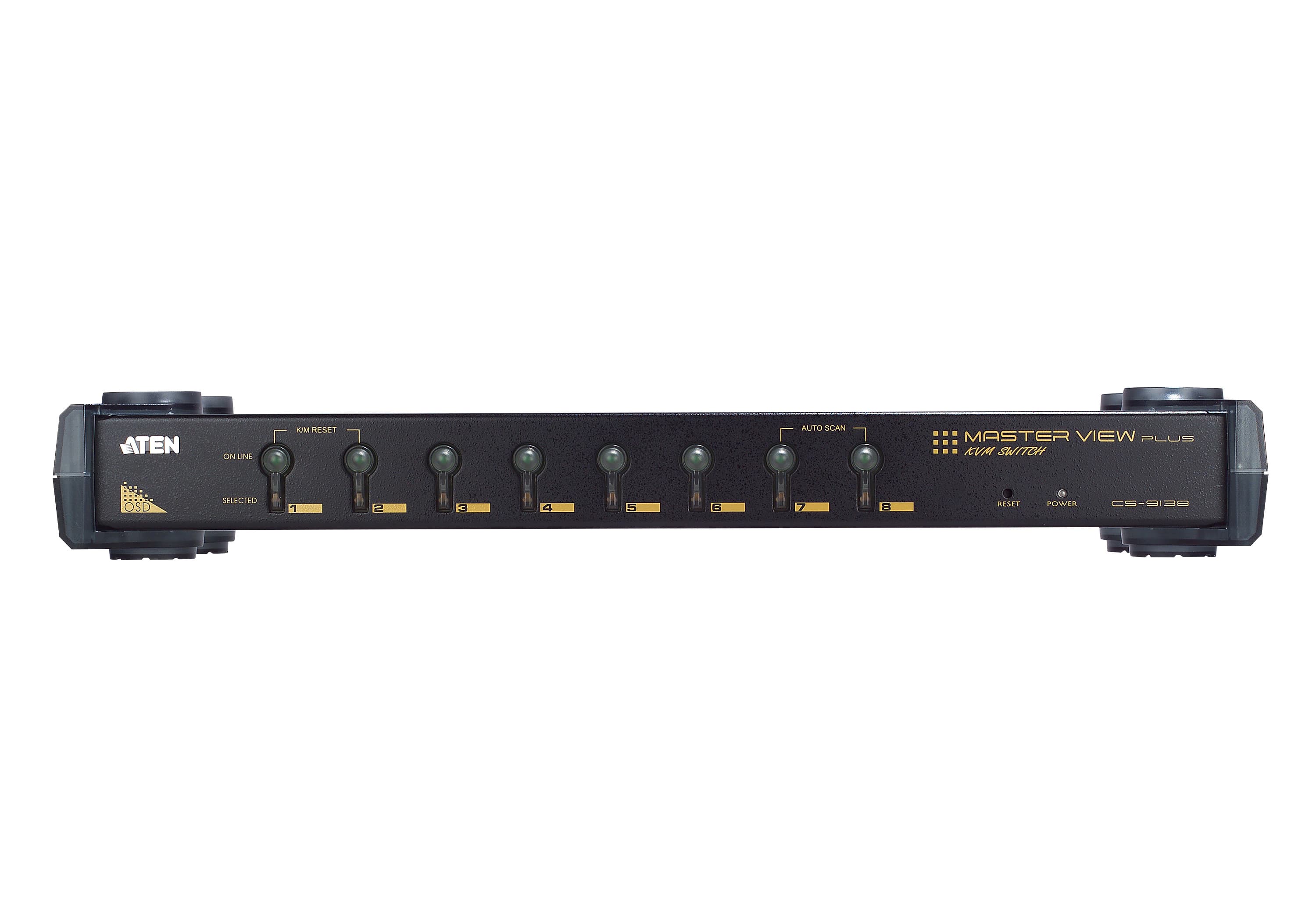

Computer selection via front panel pushbuttons, hotkeys or On Screen Display (OSD).
Keyboard and mouse emulation for error free booting.
Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse.
OSD automatically adjusts to resolution changes.
Auto Scan function to monitor computer operation.
Superior video quality: up to 1920 x 1440; DDC2B.
Available in silver and black.
Special design for easy stacking.
Rack mountable in 19" (1U) system rack.
Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD.
For more information about KVMs which can connect to CS9138, see Compatible KVM Table.

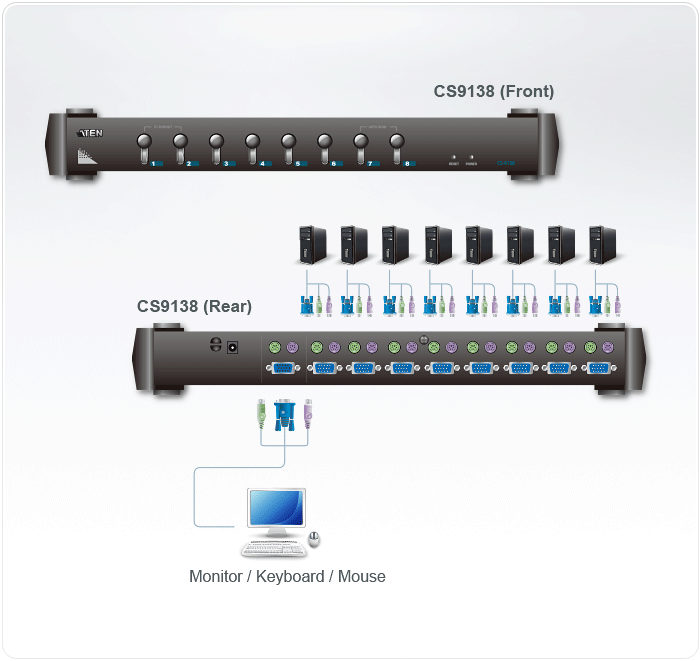

Computer Connections

Direct: 8
Maximum: 512 (via Cascade)
Port Selection: OSD, Hotkey, Pushbutton

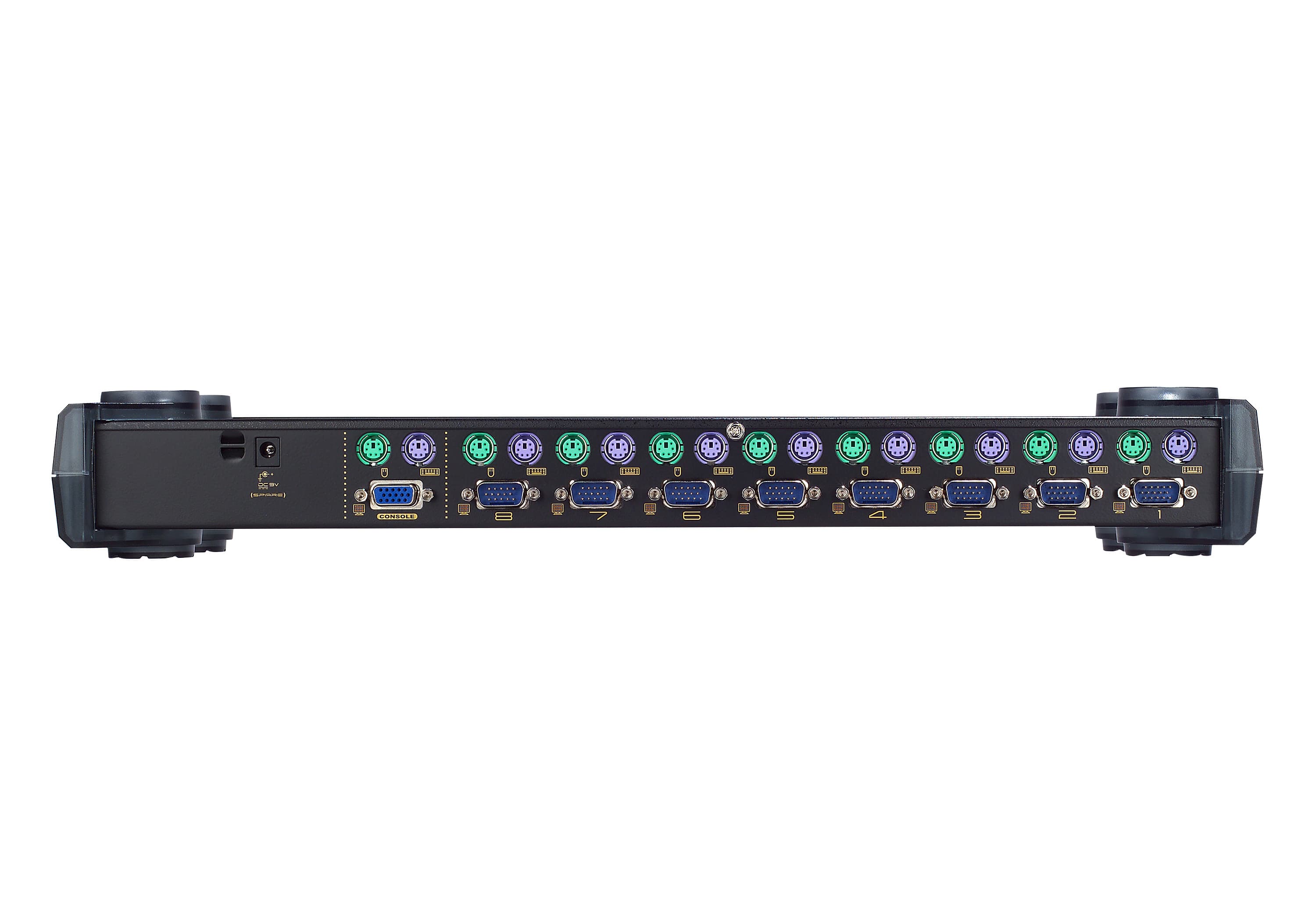

Connectors

Console Ports: 1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green)
KVM Ports: 8 x HDB-15 Male (Blue) 8 x 6-pin Mini-DIN Female (Purple) 8 x 6-pin Mini-DIN Female (Green)
Power: 1 x DC Jack (Black)

Switches

Power: 8 x Pushbutton

LEDs

Online: 8 (Green)
Selected: 8 (Orange)
Power: 1 (Blue)

Emulation

Keyboard / Mouse: PS/2
Video: 1920 x 1440; DDC2B
Scan Interval: 3, 5, 10, 15, 20, 30, 40, 60 seconds
Power Consumption: DC9V:1.5W:7BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0-50˚C
Storage Temperature: -20-60˚C
Humidity: 0-80% RH, Non-condensing

Physical Properties

Housing: Metal
Weight: 2.85 kg ( 6.28 lb )
Dimensions (L x W x H): 43.72 x 16.29 x 4.40 cm (17.21 x 6.41 x 1.73 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
