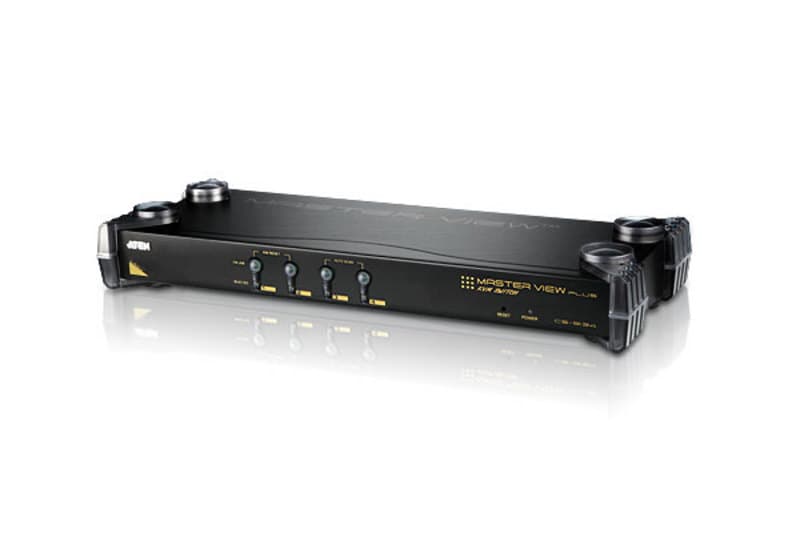

4-Port PS/2 VGA KVM Switch
CS9134Discontinued

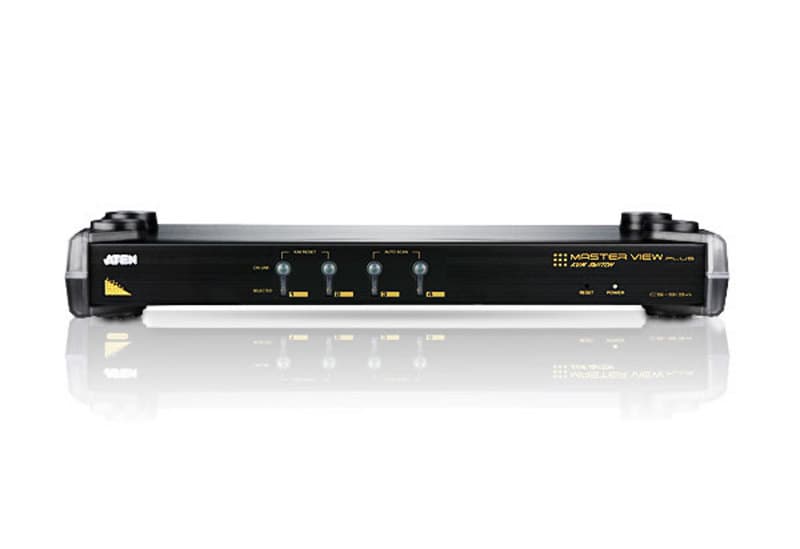

CS9134 is a KVM Switch with built-in PS/2. It can control 4 servers via a single console and allows users to switch between computers via the buttons on the front
Features
- One PS/2 console controls 4 computers.
- Cascadable up to 3 levels - provides up to 64 computers.
- Computer selection via front panel pushbuttons, hotkeys or On Screen Display (OSD).
- Keyboard and mouse emulation for error free booting.
- Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse.
- OSD automatically adjusts to resolution changes.
- Auto Scan function to monitor computer operation.
- Superior video quality: up to 1920 x 1440; DDC2B.
- Available in silver and black.
- Special design for easy stacking.
- Rack mountable in 19" (1U) system rack.
- Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD.
- For more information about KVMs which can connect to CS9134, see Compatible KVM Table.

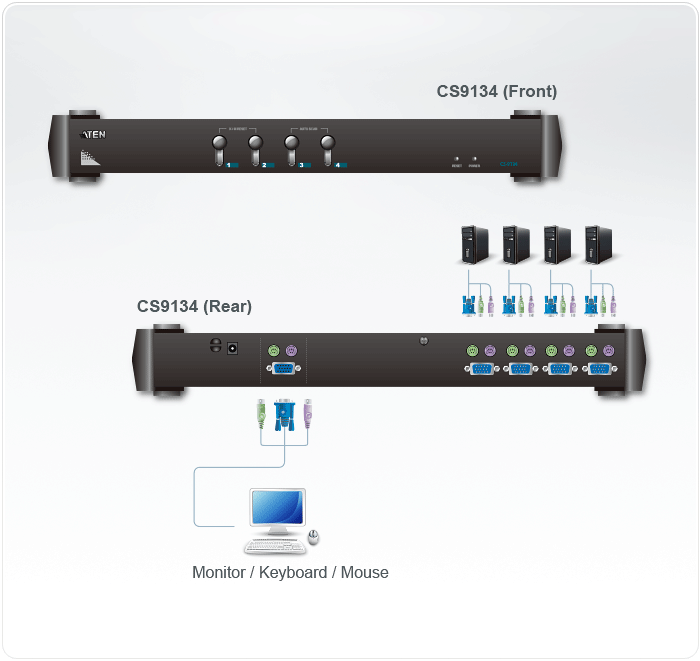

Computer Connections
- Direct
- 4
- Maximum
- 64 (via Cascade)
- Port Selection
- OSD, Hotkey, Pushbutton

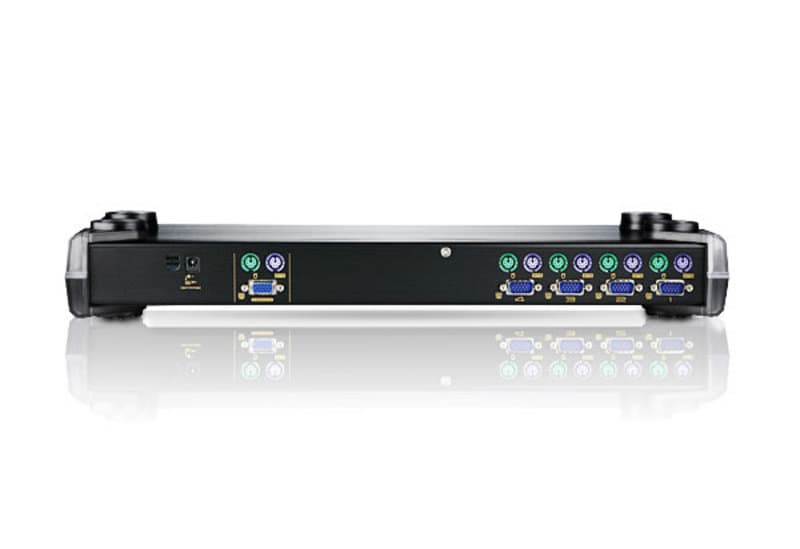

Connectors
- Console Ports
- 1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green)
- KVM Ports
- 4 x HDB-15 Male (Blue) 4 x 6-pin Mini-DIN Female (Purple) 4 x 6-pin Mini-DIN Female (Green)
- Power
- 1 x DC Jack (Black)
Switches
- Power
- 4 x Pushbutton
LEDs
- Online
- 4 (Green)
- Selected
- 4 (Orange)
- Power
- 1 (Blue)
Emulation
- Keyboard / Mouse
- PS/2
- Video
- 1920 x 1440; DDC2B
- Scan Interval
- 3 ,5, 10, 15, 20, 30, 40, 60 seconds
- Power Consumption
- DC9V: 2.07w:10BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0-50˚C
- Storage Temperature
- -20-60˚C
- Humidity
- 0-80% RH, Non-condensing
Physical Properties
- Housing
- Metal
- Weight
- 2.55 kg ( 5.62 lb )
- Dimensions (L x W x H)
- 43.72 x 16.29 x 4.40 cm (17.21 x 6.41 x 1.73 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
