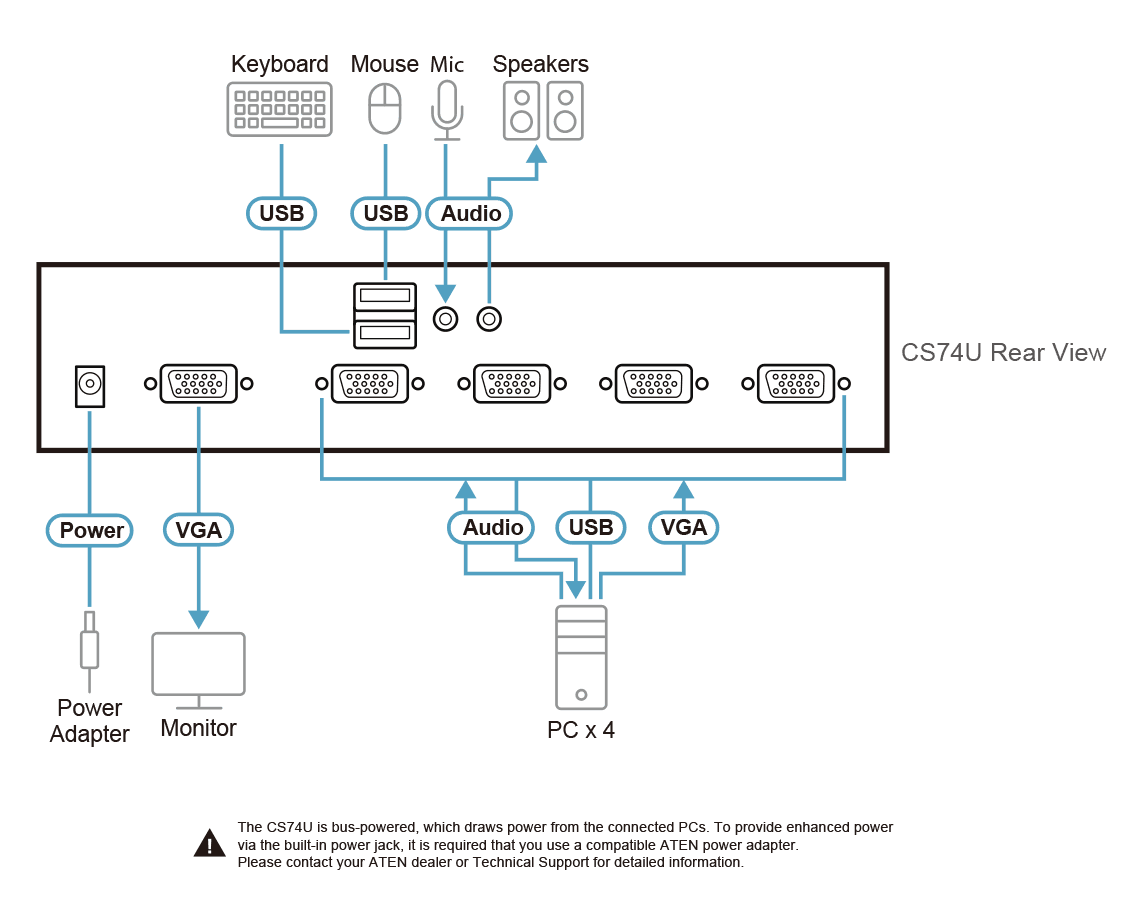

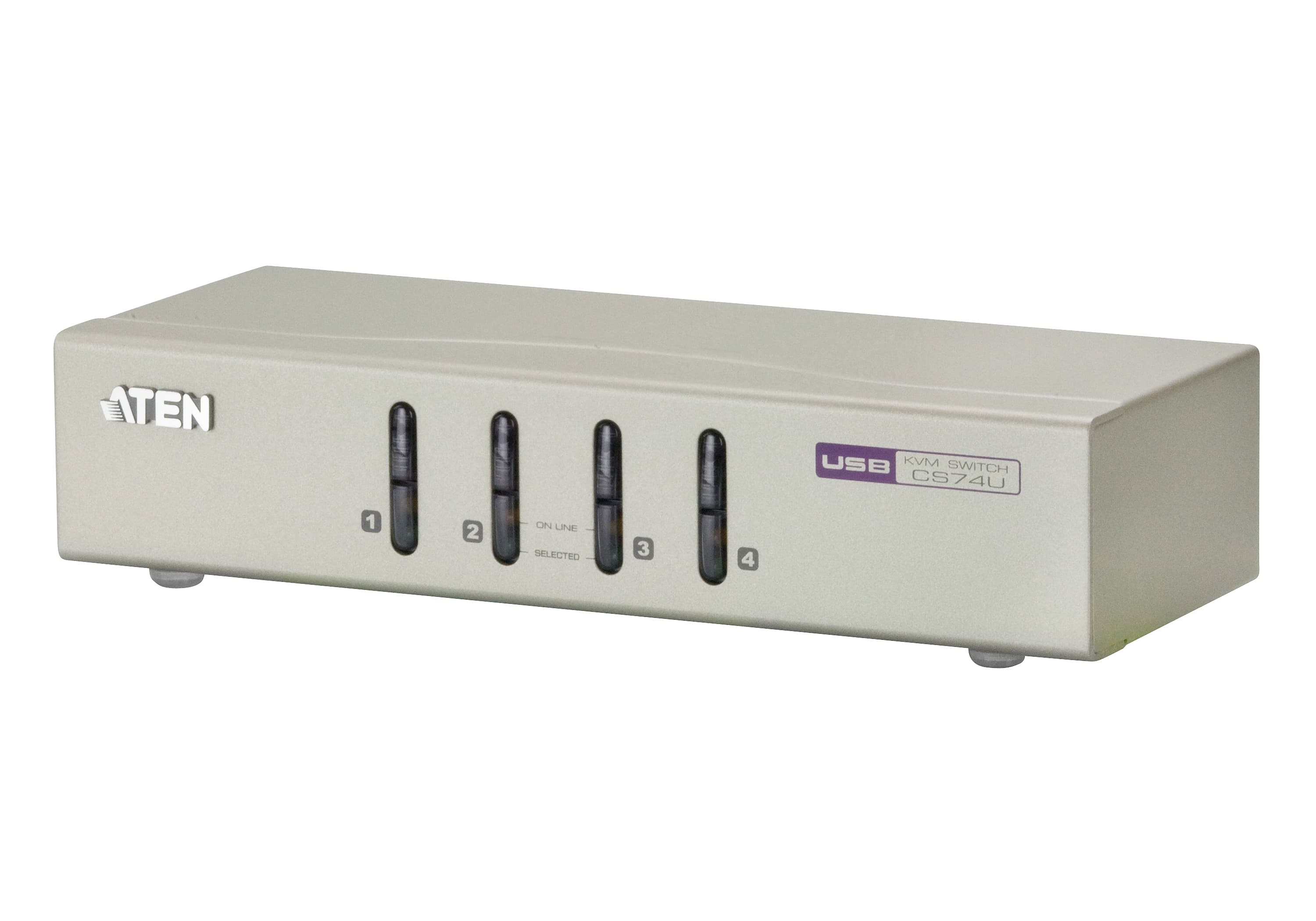

The CS74U 4-Port USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (keyboard and mouse, audio and VGA monitor).With
Features
- One VGA console controls four USB VGA interface computers

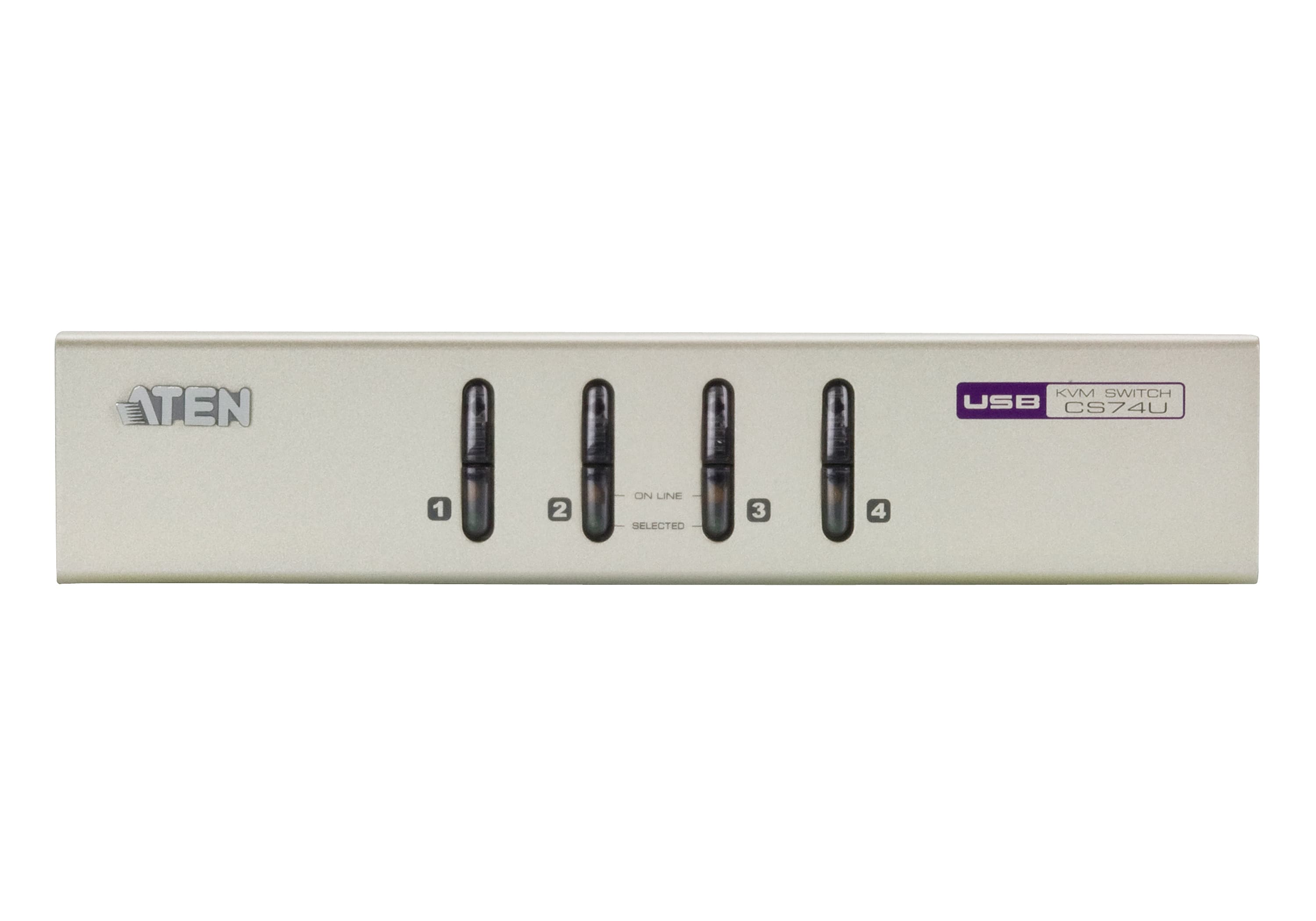

- Computer selection via front panel pushbuttons
- Multiplatform support - Windows, Linux and Mac
- Audio Enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
- Superior video quality – 2048 x 1536; DDC2B
- Supports USB hot-plugging
- Bus-Powered* *Note: The CS74U is bus-powered, which draws power from the connected PCs. To provide enhanced power via the built-in power jack, it is required that you use a compatible ATEN power adapter. Please contact your ATEN dealer or Technical Support for detailed information.
Specifications
- Computer Connections
- 4
- Port Selection
- Pushbutton

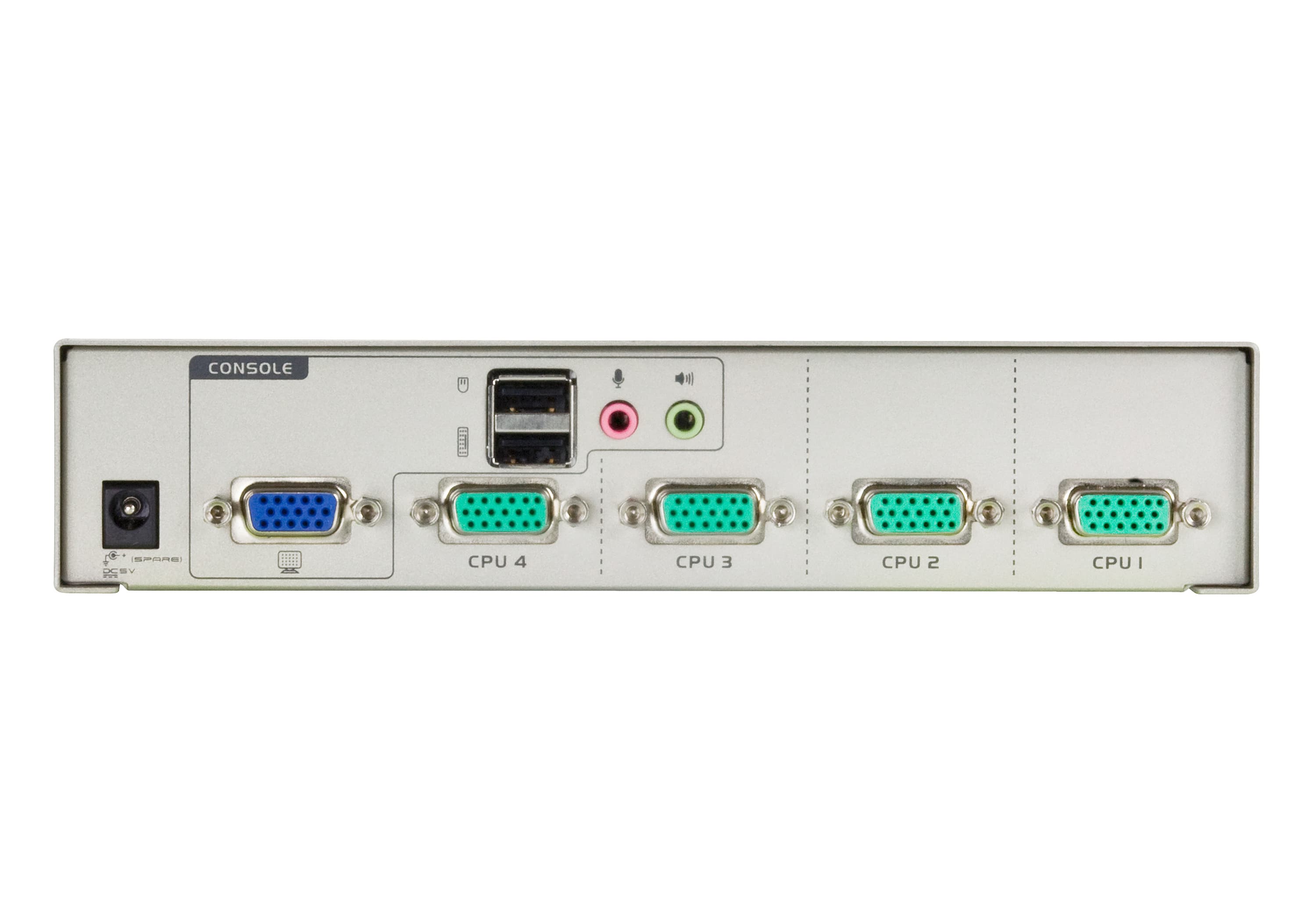

Connectors
- Console Ports
- 2 x USB Type A Female (Black) 1 x HDB-15 Female (Blue) 1 x mini stereo Jack Female (Pink) 1 x mini stereo Jack Female (Green)
- KVM Ports
- 4 x SPHD-18 Female (Green)
- Power
- 1 x DC 5V Jack Note: Please contact your ATEN dealer or Technical Support for the compatible ATEN power adapter.
LEDs
- Online
- 4 (Orange)
- Selected
- 4 (Green)
Switches
- Selected
- 4 x Pushbuttons
- Video
- 2048 x 1536 @ 60 Hz; DDC2B
- Power Consumption
- DC5V:0.177W:5BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0-50°C
- Storage Temperature
- -20-60°C
- Humidity
- 0 - 80% RH, Non-condensing
Physical Properties
- Housing
- Metal
- Weight
- 0.64 kg ( 1.41 lb )
- Dimensions (L x W x H)
- 20.00 x 7.65 x 4.40 cm (7.87 x 3.01 x 1.73 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
