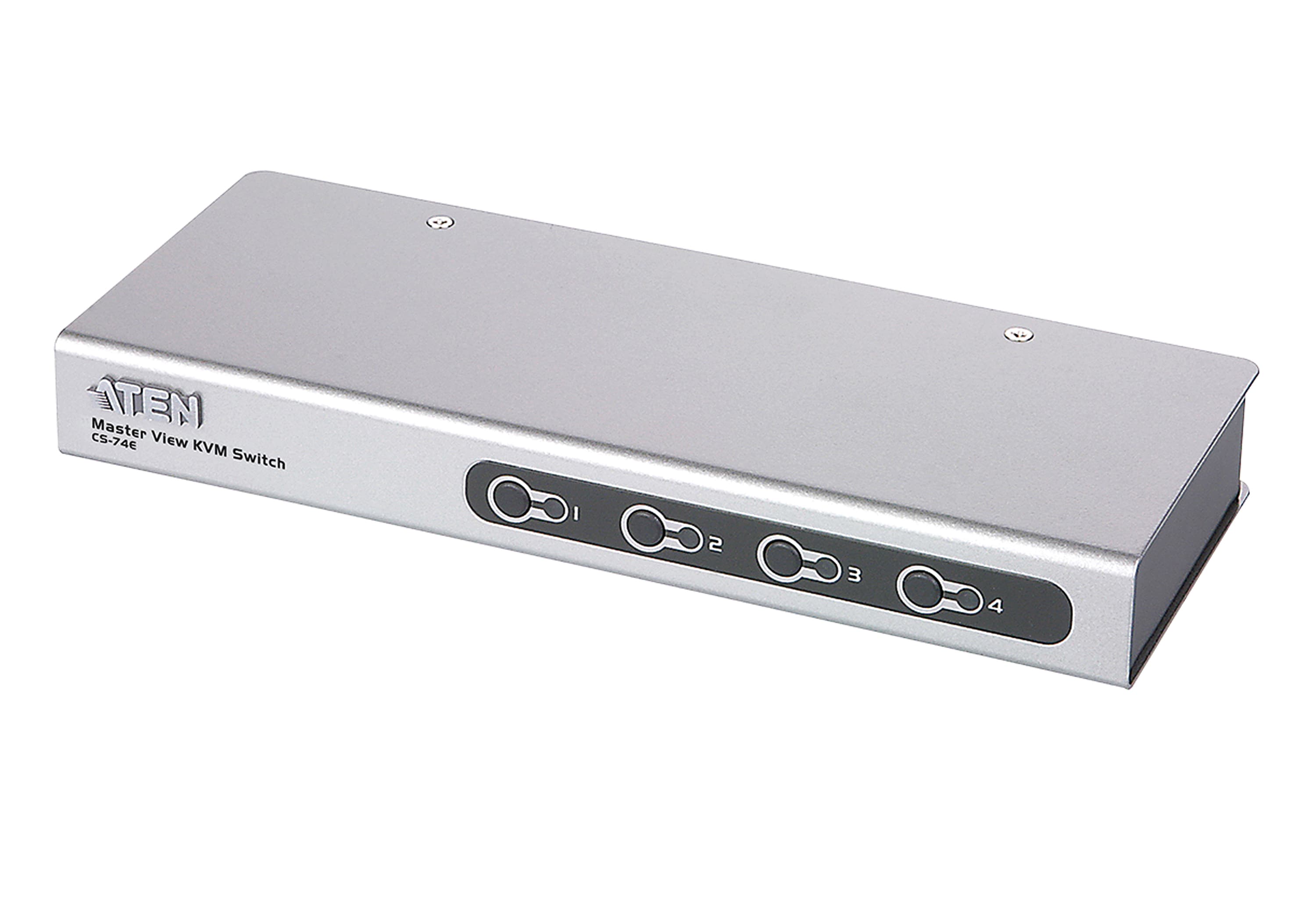

4-Port PS/2 VGA Slim KVM Switch
CS74EDiscontinued

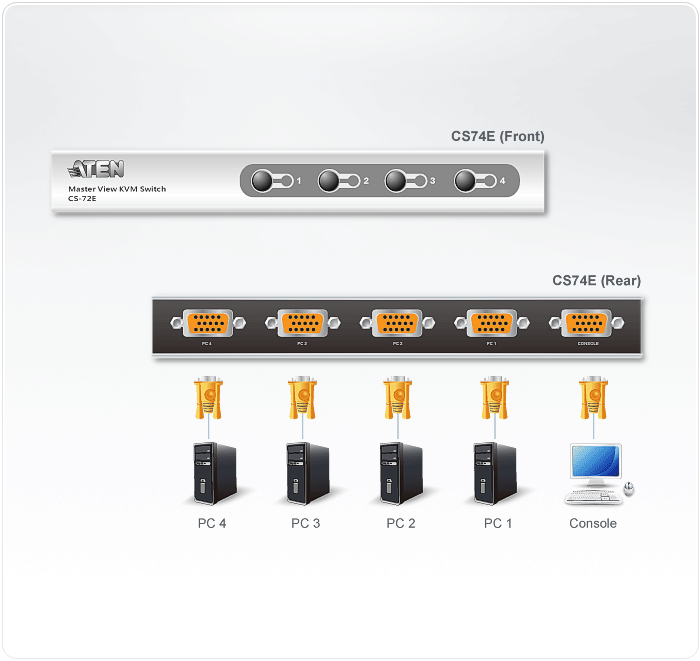

The KVM (Keyboard, Video, Mouse) switch is a control unit that allows access to four computers from a single console (keyboard, monitor, and mouse). With its custom designed connectors,
Features
- One PS/2 console controls 4 computers.
- Compact, modern case for convenient attractive placement.
- Custom connector layout.
- Power on detection - automatically switches to the first powered on port.

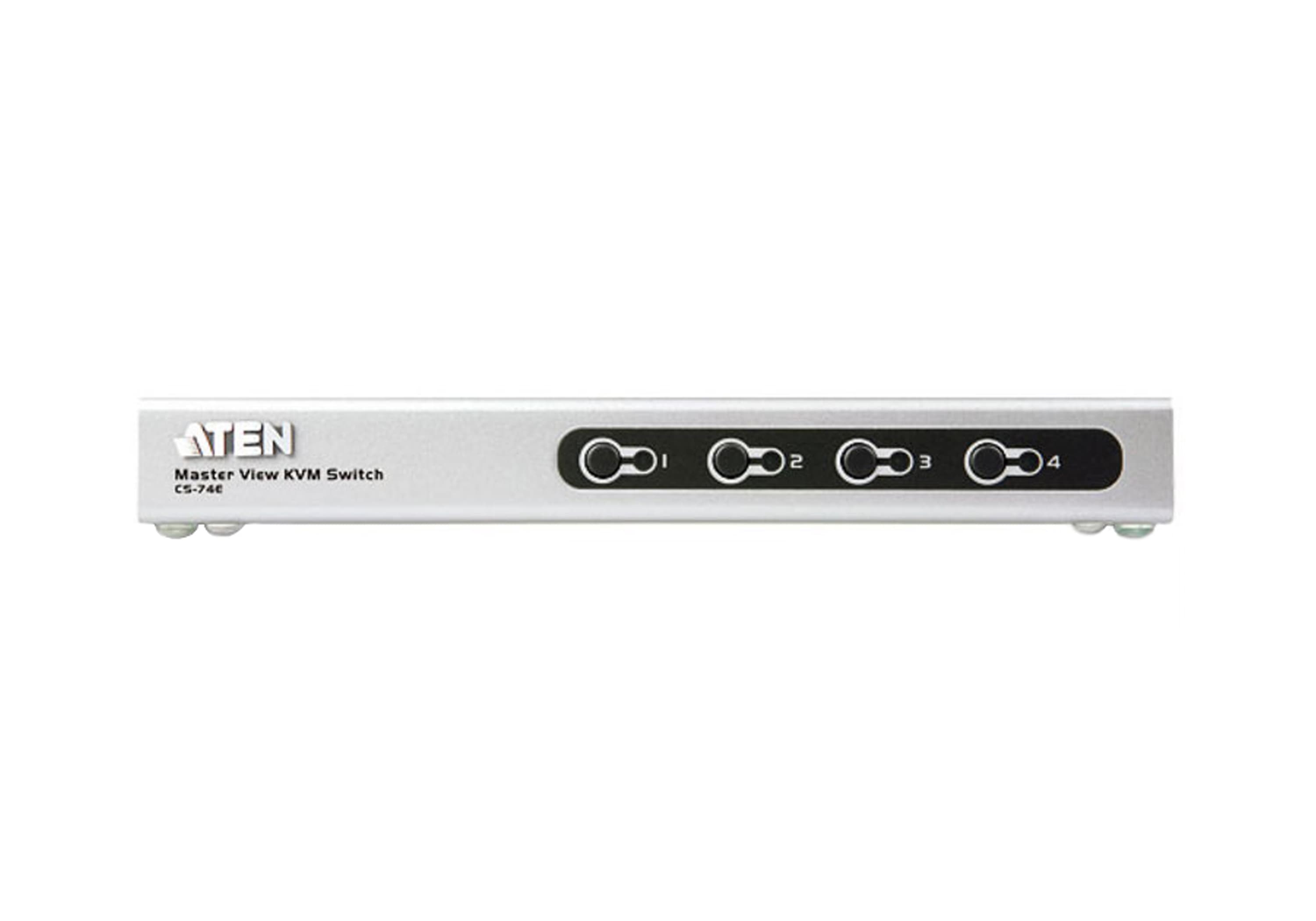

- Computer selection via front panel pushbuttons and hotkeys.
- Superior video quality - up to 2048 x 1536; DDC2B.
- Supports Microsoft IntelliMouse and the scrolling wheel on most mice.
- Auto Scan function to monitor computer operation.
- Bus-Powered.
- ATEN ASIC inside.
- OS Support:Windows 2000, Windows XP, Windows Vista, LINUX and FreeBSD
Specifications
- Computer Connections
- 4
- Port Selection
- Hotkey, Pushbutton
Connectors
- Console Ports
- 1 x SPHD-15 Male (Yellow)

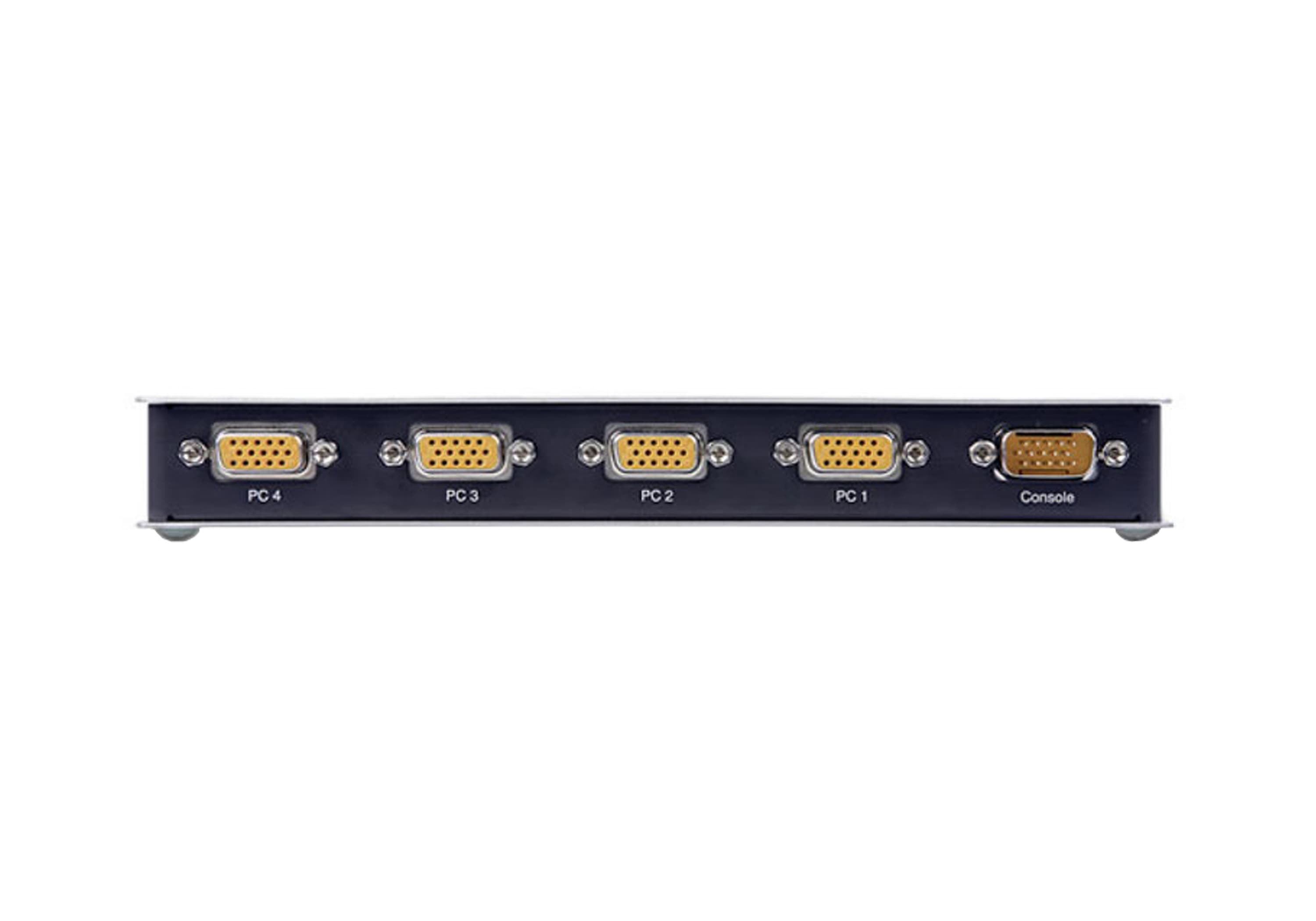

- KVM Ports
- 4 x SPHD-15 Female (Yellow)
- Power
- 1 x DC Jack
Switches
- Ports
- 4 x Pushbutton
LEDs
- Selected
- 4 (Green)
Emulation
- Keyboard / Mouse
- PS/2
- Video
- 2048 x 1536 @ 60Hz; DDC2B
- Scan Interval
- 5 seconds
- Power Consumption
- DC5V:0.39W:6BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0-50˚C
- Storage Temperature
- -20-60˚C
- Humidity
- 0~80% RH, Non-condensing
Physical Properties
- Housing
- Metal
- Weight
- 0.49 kg ( 1.08 lb )
- Dimensions (L x W x H)
- 20.00 x 8.15 x 2.50 cm (7.87 x 3.21 x 0.98 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
