4-Port USB DVI/Audio Slim KVM Switch
CS74DDiscontinued
The CS74D 4-Port USB DVI KVM Switch allows you to control four computers using one USB mouse, USB keyboard and Digital Visual Interface (DVI) monitor console. It supports digital video
Features
- Fully compliant with DVI specifi cation (Digital only)
- Supports multi-function and wireless mouse/keyboard
- Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
- Superior video quality – 1920 x 1200@60Hz
- Multiplatform support – Windows, Linux, Mac, FreeBSD and Sun
- HDCP compliant
- Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer
- Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems
- Computer selection via front panel pushbuttons, hotkeys, and mouse switching function*
- USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
- Complete keyboard emulation for error-free booting
- Firmware upgradeable
- Mac/Sun keyboard support and emulation** * Mouse port switching is only functional under mouse emulation mode and USB 3-key wheel mouse ** PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboard work only with their own computers
Specifications
- Computer Connections
- 4
- Console Connections
- 1
- Port Selection
- Hotkey, Pushbutton, Mouse

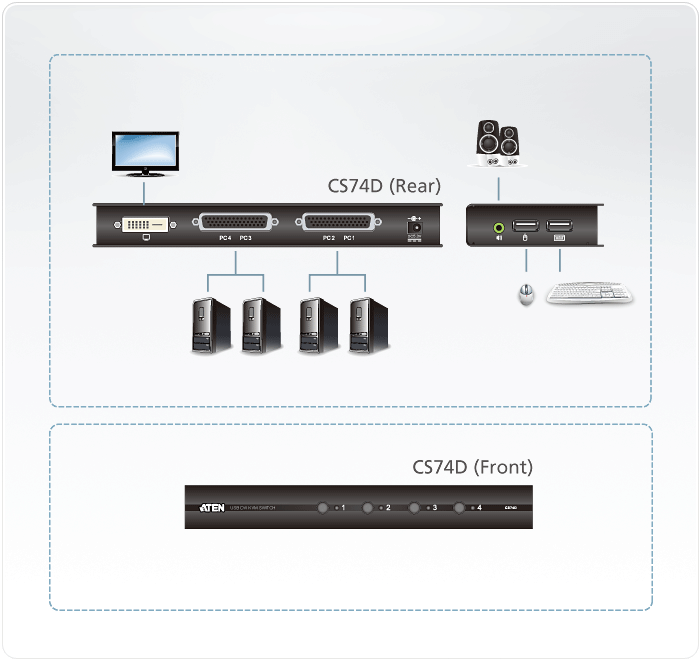

Connectors
- Console Ports
- 1 x DVI-D Female (White) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green)
- Computer Port 1
- 1 x 44-pin Connector Female
- Computer Port 2
- 1 x 44-pin Connector Female
- Power
- 1 x DC Jack
LEDs
- Selected
- 4 (Green)
- Pushbuttons
- 4
- Power Consumption
- DC5.3V:2.42W:16BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Emulation
- Keyboard / Mouse
- USB
- Video
- 1920 x 1200 @ 60Hz; 1920 x 1080 @ 60Hz
- Scan Interval
- 3, 5, 10, 20 seconds (default: 5 secs.)
Environmental
- Operating Temperature
- 0 - 50˚C
- Storage Temperature
- -20 - 60˚C
- Humidity
- 0 - 80% RH, Non-condensing
Physical Properties
- Housing
- Metal
- Weight
- 0.51 kg ( 1.12 lb )
- Dimensions (L x W x H)
- 20.00 x 8.20 x 2.50 cm (7.87 x 3.23 x 0.98 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
