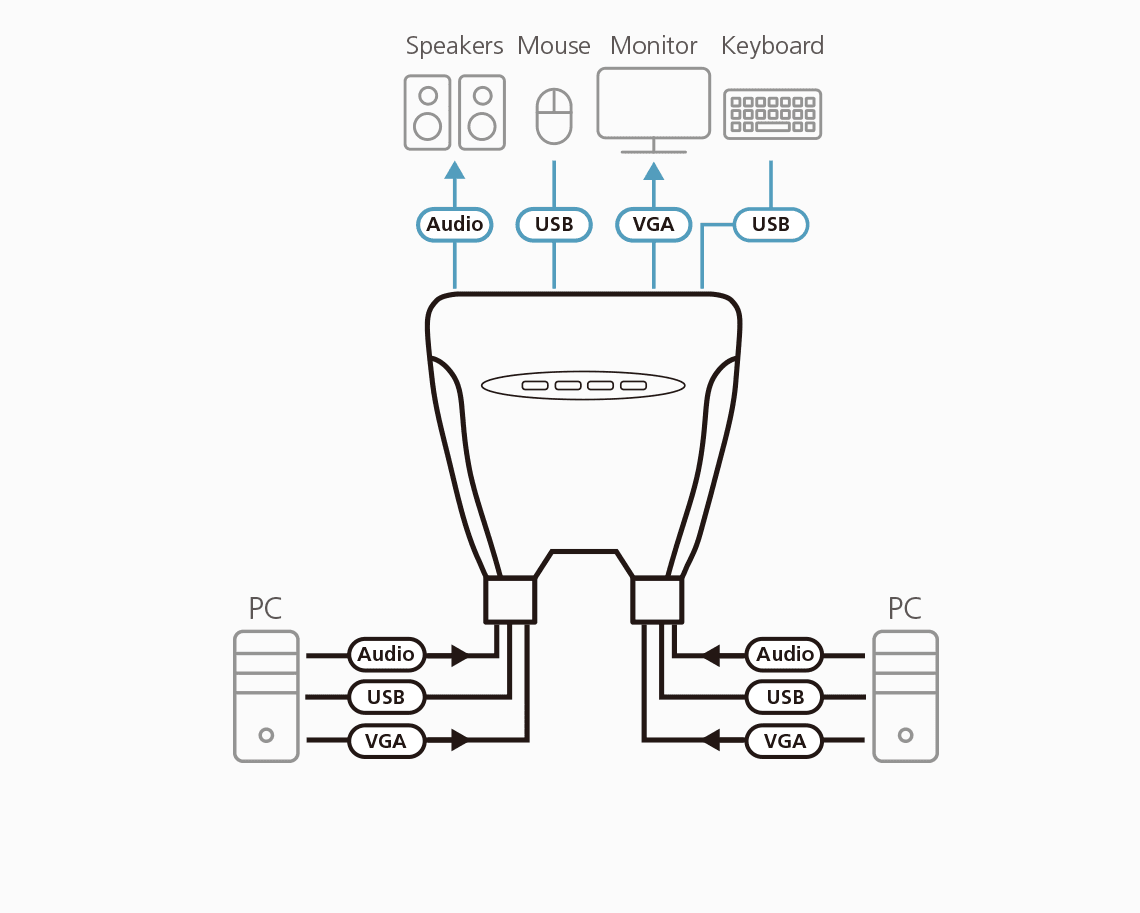

CS64U 4-Port USB KVM Switch has a handy design integrating with 6 feet of cables and built-in USB. It can control 4 servers via a single console.
Features
- One USB console controls four USB computers
- Compact design, built-in 1.8 m cables
- Hotkey selection for OS and keyboard language
- Computer Selection via hotkey
- Multiplatform support - Windows, Linux, Mac, and Sun
- Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- USB mouse port can be used for USB 1.1 hub and USB 1.1 peripheral sharing
- Supports multifunction and wireless keyboards and mice
- All-in-one design
- With speaker support
- Superior video quality – up to 2048 x 1536 @ 60 Hz ; DDC2B
- Auto Scan function to monitor computer operation
- Bus-powered
- Sun/Mac keyboard support and emulation*
- Firmware upgradable * 1. PC keyboard combinations emulate Sun/Mac keyboards 2. Sun/Mac keyboards only work with their own computers
Specifications
- Computer Connections
- 4
- Port Selection
- Hotkey
Connectors
- Console Ports
- 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green)
- KVM Ports
- 4 x HDB-15 Male (Blue) 4 x USB Type A Male 4 x 3.5mm Audio Jack Male (Green)
LEDs
- Selected
- 4 (Green)
Cable Length
- Computer
- 4 x 1.8 m
Emulation
- Keyboard / Mouse
- USB
- Video
- 2048 x 1536 @ 60Hz; DDC2B
- Scan Interval
- 1-99 seconds
- Power Consumption
- DC5V:0.9W:8BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0 – 50°C
- Storage Temperature
- -20 – 60°C
- Humidity
- 0 – 80% RH, Non-condensing
Physical Properties
- Housing
- Plastic
- Weight
- 0.73 kg ( 1.61 lb )
- Dimensions (L x W x H)
- 9.41 x 9.72 x 2.60 cm (3.7 x 3.83 x 1.02 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
