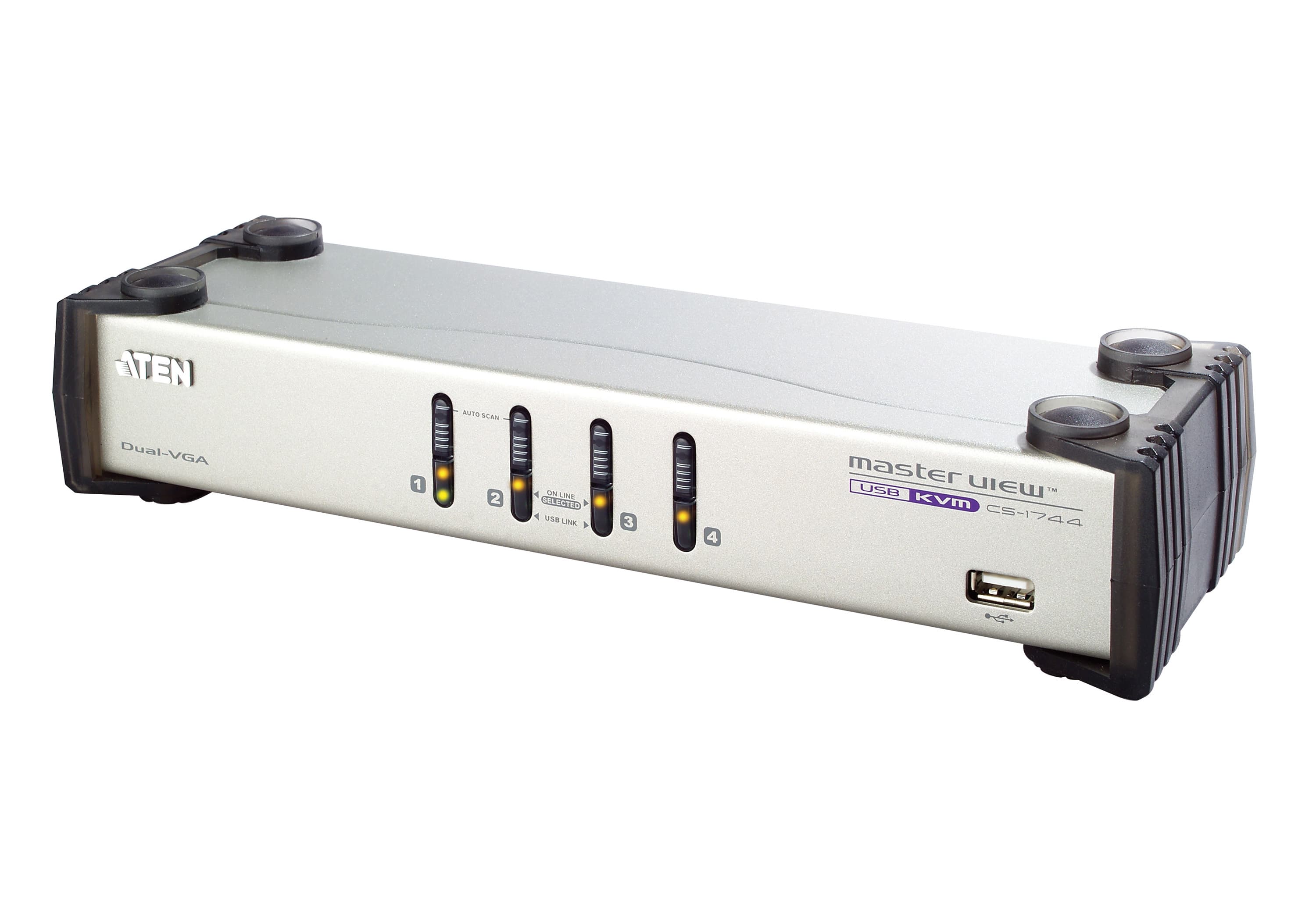

4-Port USB VGA Dual Display/Audio KVMP™ Switch
CS1744Discontinued

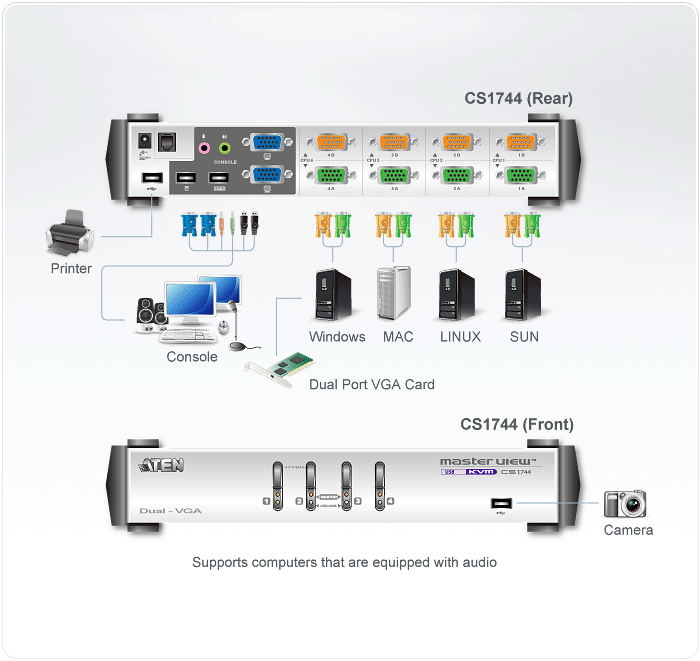

CS1744 KVM Switch integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with two VGA/SVGA/Multisync displays via a USB
Features
- Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control four dual display computers
- 2 port USB Hub built in
- Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
- With speaker and microphone support
- Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
- Buzzer On/Off via hotkey
- Keyboard and mouse emulation for error free booting

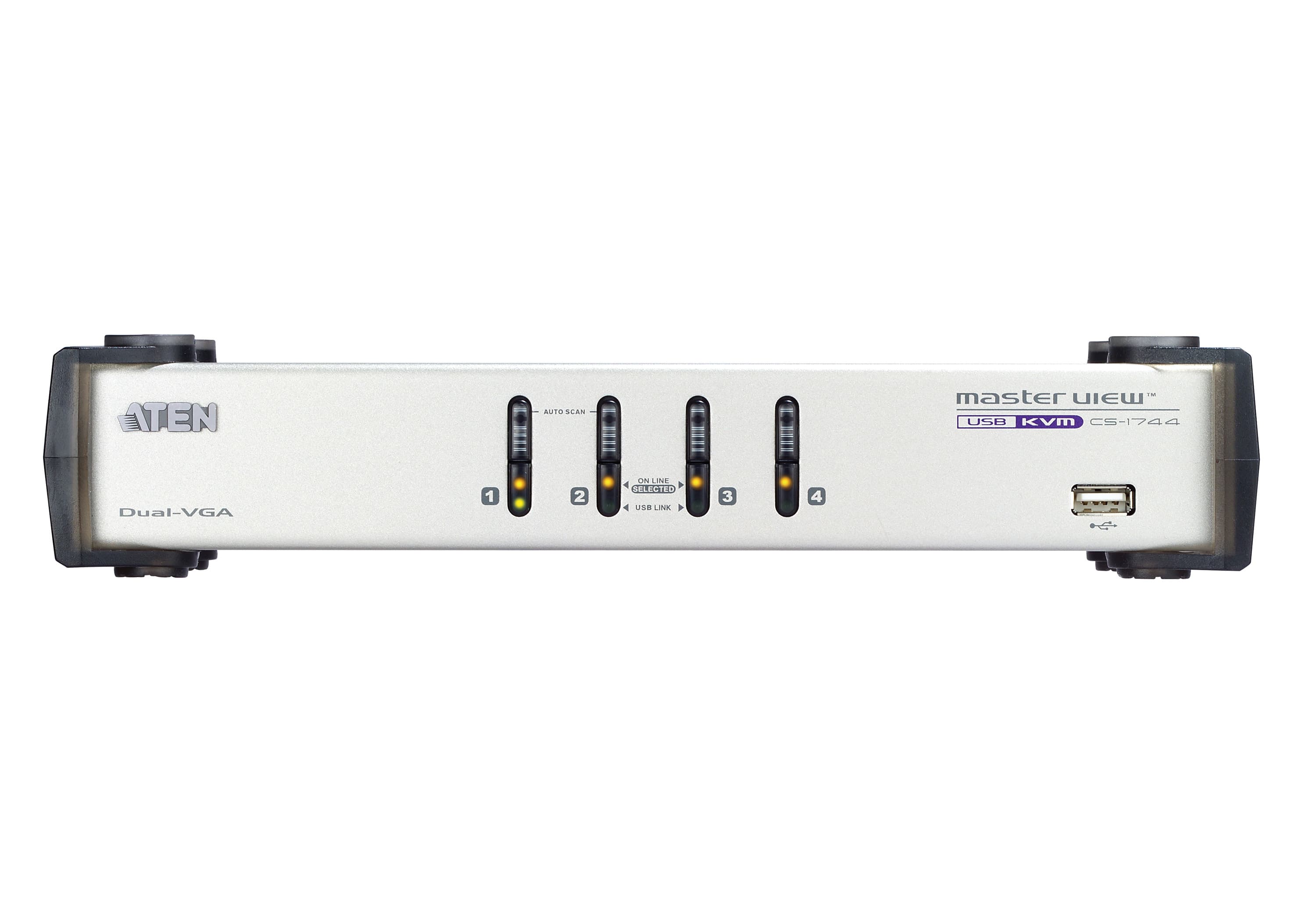

- Computer selection via front panel pushbuttons and hotkeys
- Superior video quality - up to 2048 x 1536; DDC2B
- Firmware upgradeable
- OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
- SUN/Mac keyboard support and emulation* *1.PC keyboard combinations emulate SUN/Mac keyboards. *2.SUN/Mac keyboards only work with their own computers.
Specifications
- Computer Connections
- 4
- Port Selection
- Hotkey, Pushbutton
- USB Port / Audio Port Selection
- Hotkey

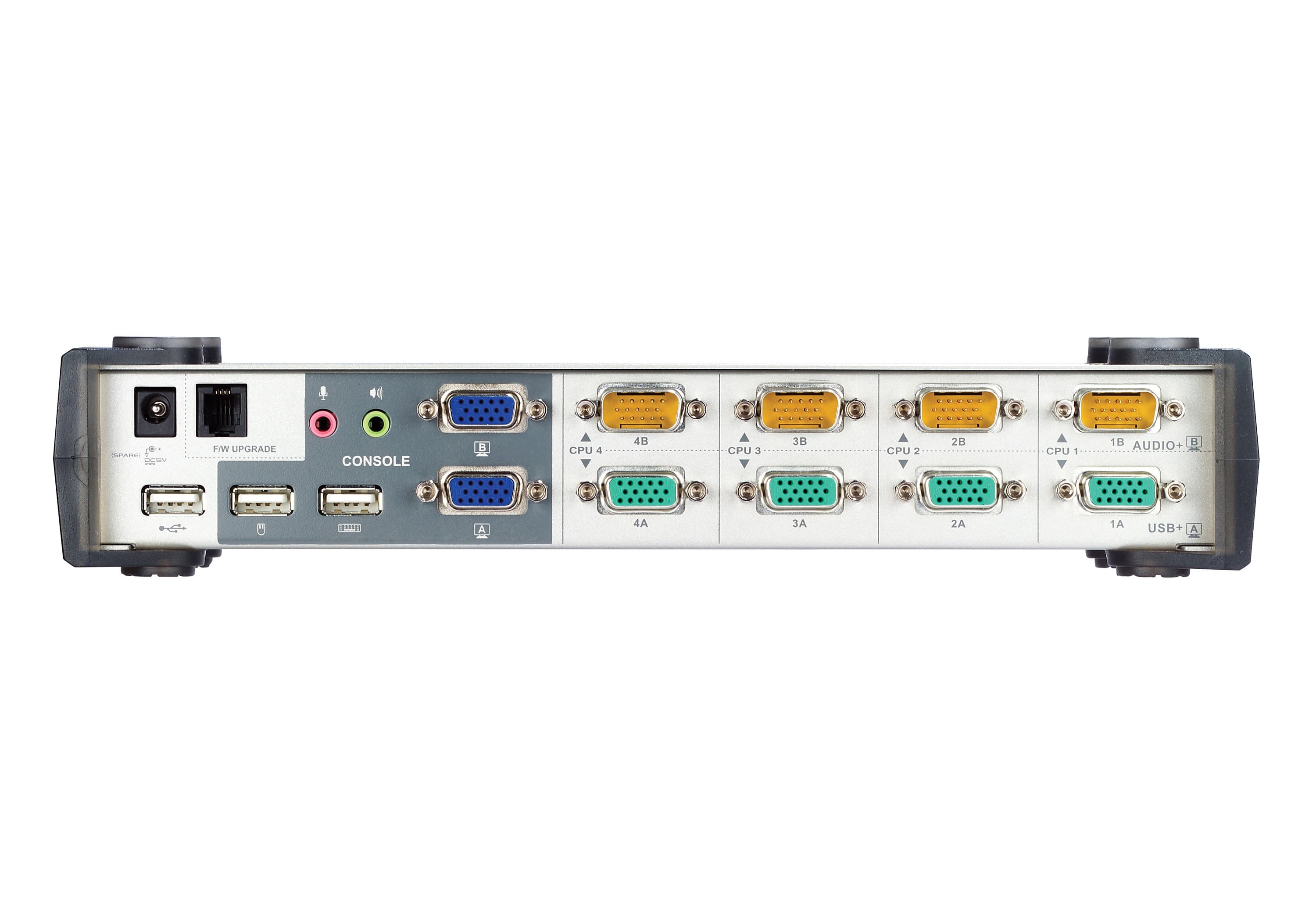

Connectors
- Console Ports
- 2 x USB Type A Female (White) 2 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
- KVM Ports
- 4 x SPHD-15 Male (Yellow) 4 x SPHD-15 Female (Green)
- USB Hub
- 2 x USB Type A Female (White)
- Firmware Upgrade
- 1 x RJ-11 Female (Black)
- Power
- 1 x DC Jack (Black)
Switches
- Selected
- 4 x Pushbutton
LEDs
- USB Link
- 4 (Green)
- On Line /Selected
- 4 (Orange)
Emulation
- Keyboard / Mouse
- USB
- Video
- 2048 x 1536; DDC2B
- Scan Interval
- 1-99 seconds
- Power Consumption
- DC5V:1.13W:31BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0-50°C
- Storage Temperature
- -20-60°C
- Humidity
- 0-80% RH, Non-condensing
Physical Properties
- Housing
- Metal
- Weight
- 1.03 kg ( 2.27 lb )
- Dimensions (L x W x H)
- 27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
