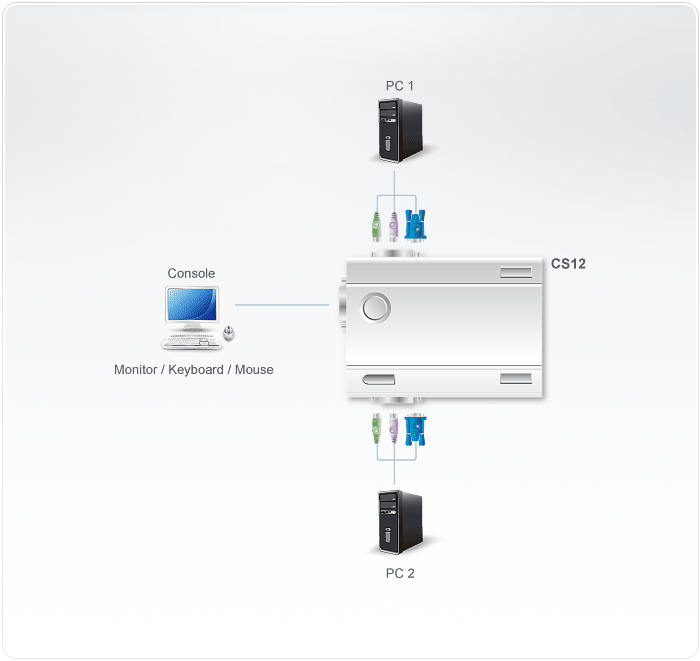

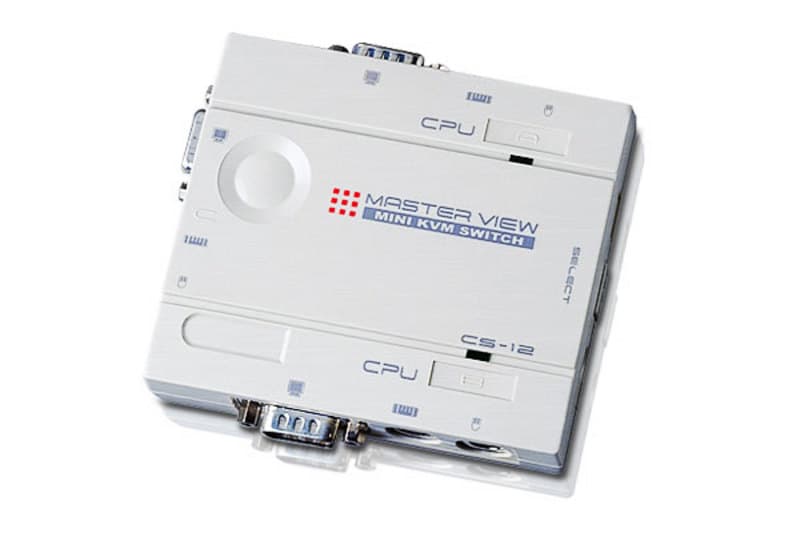

CS12 is a KVM Switch with built-in PS/2. It can control 2 servers via a single console and allows users to switch between computers via the buttons on the upper
Features
- Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse.
- Keyboard and mouse emulation for error free PC booting.
- Caps Lock, Num Lock, and Scroll Lock States are saved and restored when switching.
- Supports 1920 x 1440 resolution.
- Easy to Install - No software required
- Easy to Operate - PC selection via push button switch or hot keys - Auto scan function to monitor PC operation.
- LED display for easy status monitoring.
- Non-powered.
- Supports DDC2B (Display Data Channel).
- OS Compatibility: DOS, WIN 98/WIN ME/WIN NT/WIN 2K/WIN XP/WIN 2003,LINUX. Mac 8.6/9/10 and SUN Solaris 8/9 (with optional adapter).
Specifications
- Port Selection
- Pushbutton Switch / Hot Keys
Connectors
- Console Ports
- 1 x Mini Din-6 Female (Purple) 1 x Mini Din-6 Female (Green) 1x HDB-15 Female (Blue)
- Computers
- 2 x Mini Din-6 Female (Purple) 2 x Mini Din-6 Female (Green) 2 x HDB-15 Male (Blue)
LEDs
- Selected
- 2
Emulation
- Keyboard
- PS/2
- Mouse
- PS/2
- Video Resolution
- 1920 x 1440 ( Max.); DDC2B
- Power Consumption
- DC 9V 80mA ( Max.) Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Scan Interval
- 5 sec.
- Housing
- Plastic
Physical Properties
- Weight
- 0.14 kg
- Dimensions (L x W x H)
- 10.55x9.60x2.80cm
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
