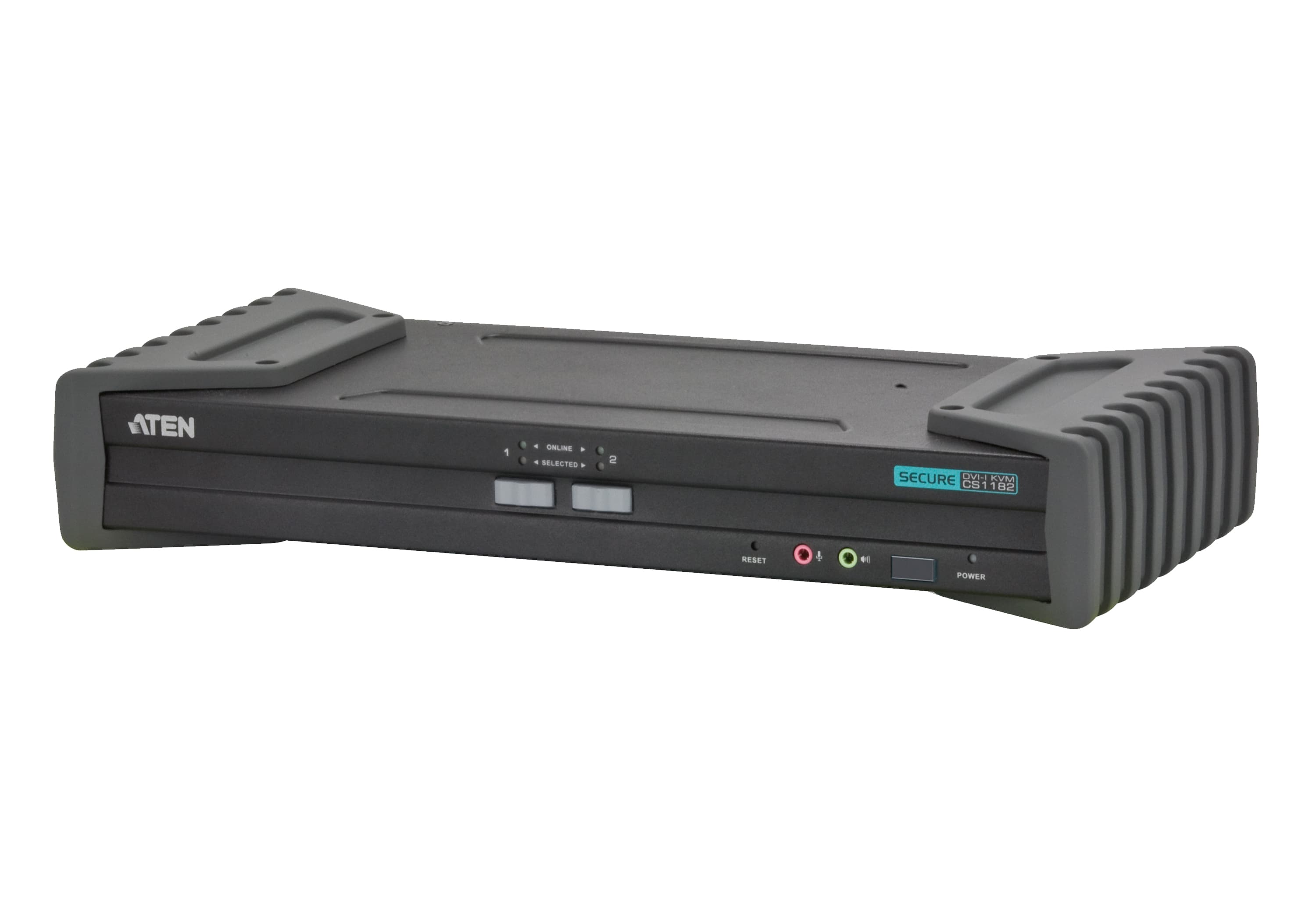

2-Port USB DVI Secure KVM Switch
CS1182Discontinued
The CS1182 is NIAP-certified and passed the Evaluation Assurance Level 2 (EAL2+) requirements for Peripheral Sharing Switch (PSS) for Human Interface Devices (HIDs) Protection Profile v2.1, satisfying the latest security
Features
- 2-port USB DVI Dual-Link Secure KVM Switch
- Port selection via Pushbutton only (OSD, hotkey methods are not allowed) to enhance security
- One USB console controls 2 secure computers
- NIAP-certified — validated to Common Criteria EAL2+ security requirements
- Restricted USB connectivity — non HIDs (Human Interface Devices) are ignored when switching

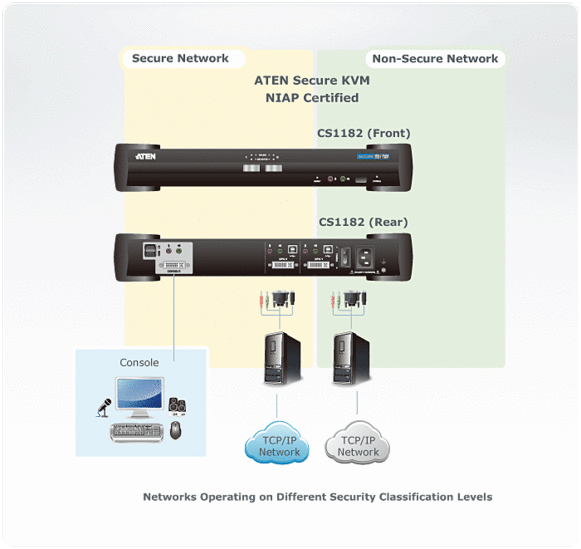

- Isolated channel per port — makes it impossible for data to be transferred between computers
- Tamper-evident tape – provides a visual indication of any attempt to gain access to the switch’s internal components
- Chassis intrusion detection — if the cover is removed from the switch, the unit becomes inoperable and the LEDs flash
- Tamper-proof hardware — all integrated circuits are soldered directly to the circuit board to prevent tampering with the components
- Non-reprogrammable ROM — prevents tampering and attempts to reprogram the switch’s firmware
- Clears keyboard buffer — keyboard data is automatically cleared after transmission to the switch
- Video DynaSync™ — stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution
- Multiplatform support — Windows, Linux, Mac, and Sun
- Superior video quality — 2560 x 1600 (DVI Dual Link); 1920 x 1200 (DVI Single Link) and 2048 x 1536 (DVI-A)
- Rugged metal enclosure
- Built-in internal power
- Speaker and microphone support
Specifications
- Computer Connections
- 2
- Port Selection
- Pushbutton
Connectors
- Console Ports
- 2 x USB Type-A Female (Black) 1 x DVI-I Dual Link Female (White) 2 x Mini Stereo Jack Female (Green;1 x front panel,1 x rear panel) 2 x Mini Stereo Jack Female (Green;1 x front panel,1 x rear panel)

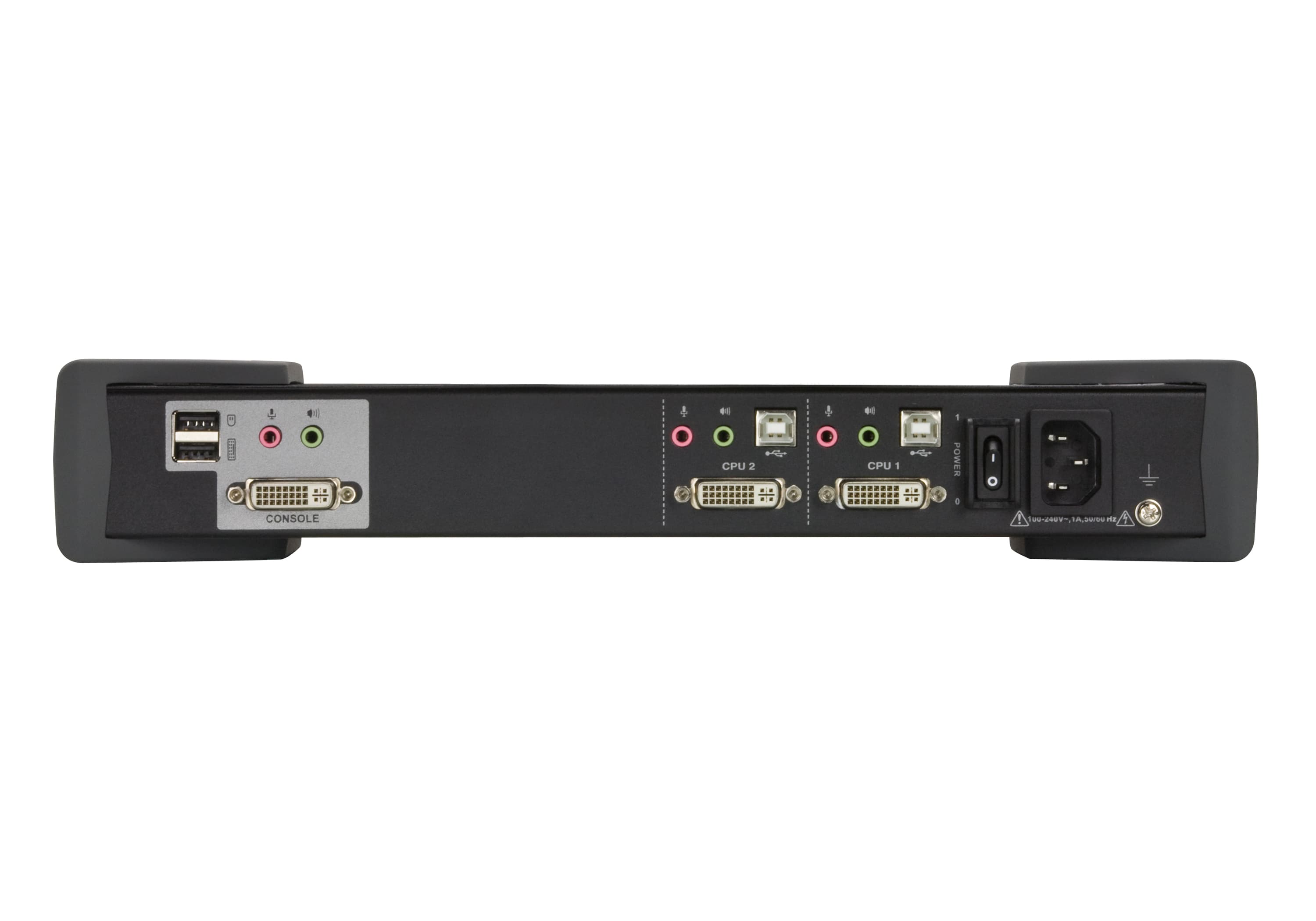

- KVM Ports
- 2 x USB Type-B Female (White) 2 x DVI-I Dual Link Female (White) 2 x Mini Stereo Jack Female (Green) 2 x Mini Stereo Jack Female (Pink)
- Power
- 1 x 3-prong AC Socket

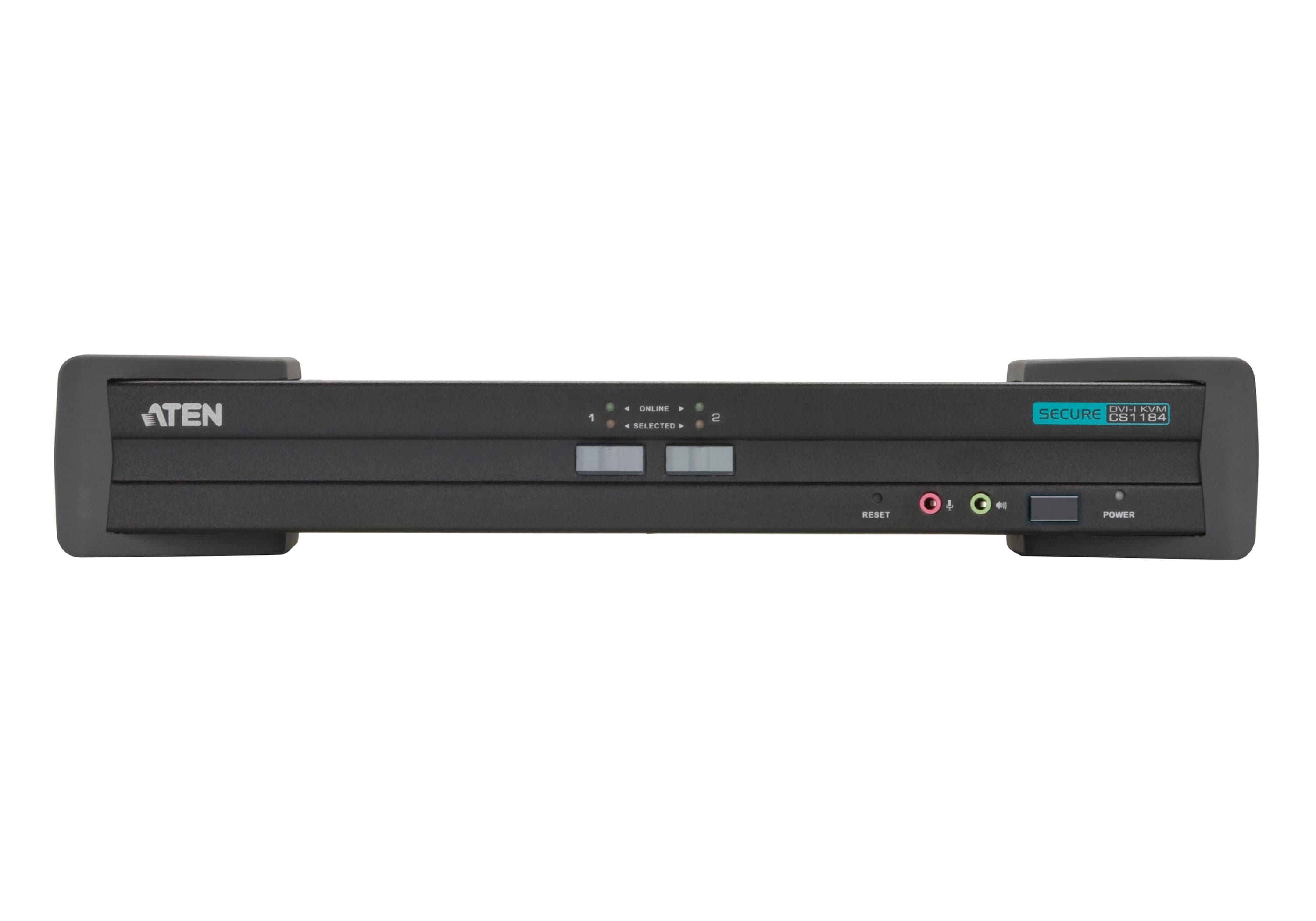

Switches
- Port Selection
- 2 x Pushbuttons
- Reset
- 1 x Semi-recessed Pushbutton
- Power
- 1 x Rocker
LEDs
- Power
- 1 (Blue)
- Online
- 2 (Green)
- Selected
- 2 (Orange)
Emulation
- Keyboard / Mouse
- USB
- Video
- DVI Dual Link: 2560x1600; DVI Single Link: 1920x1200 DVI-A: 2048x1536
- Maximum Input Power Rating
- 100–240V AC; 50/60 Hz; 0.5A
- Power Consumption
- AC110V:3.4W:31BTU/h AC220V:3.6W:32BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0-40°C
- Storage Temperature
- -20-60°C
- Humidity
- 0 - 80% RH, Non-condensing
Physical Properties
- Housing
- Metal
- Weight
- 2.06 kg ( 4.54 lb )
- Dimensions (L x W x H)
- 34.90 x 16.90 x 6.09 cm (13.74 x 6.65 x 2.4 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
