2-Port USB DisplayPort Dual Display Secure KVM Switch (PSS PP v3.0 Compliant)
CS1142DPDiscontinued

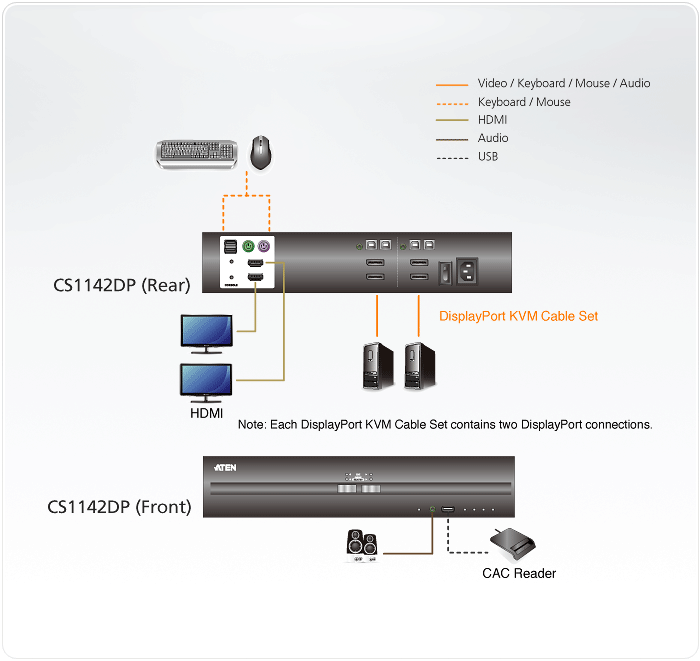

Secure KVM switch compliant with PSS PP v3.0, switching a dual-display DisplayPort console between 2 computers on separate networks; includes CAC port and tamper-evident seals.
Features
- Compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) security requirements
- Restricted USB Connectivity – non-authorized HIDs (Human Interface Devices) or non-predefined CAC devices will be rejected / ignored
- Always-on Chassis Intrusion Detection – renders the ATEN PSS PP v3.0 Secure KVM Switches inoperable when physical tampering is detected
- Tamper-Evident Seals– provides visual indication of any attempt to access the ATEN PSS PP v3.0 Secure KVM Switches’ internal components
- Non-Reprogrammable Firmware – prevents reprogramming the ATEN PSS PP v3.0 Secure KVM Switches
- Port selection via pushbuttons only to enhance security
- LED indicators for peripheral filtering and KVM security status
- Rugged metal enclosure
- Data Channel Isolation – prevents data leakage between connected computers via isolated channel per port
- Unidirectional Data Flow – ensures unidirectional data flow between the console devices and the selected computer
- ATEN PSS PP v3.0 Secure KVM Switches control and isolate data flow between the console devices and connected computers
- Supports analog audio (speaker only)*
- User Data Protection – Keyboard/Mouse data buffer is automatically purged when switching KVM port focus
- KVM Log Data – provides administrative functions for authorized administrator to audit KVM log data
- Configurable Device Filtering – USB CAC Port can be configured to allow/reject whitelisted / blacklisted devices via Admin logon function or Windows-based application
- Supports enable / disable CAC function by port
- Superior video quality – up to 4K (3840 x 2160 @ 30 Hz)**
- Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching between ports * Only analog speaker data input is supported. The ATEN PSS PP v3.0 Secure KVM Switches does not convert digital audio to analog audio. ** DisplayPort Secure KVM Switch series supports console video output resolutions up to 4K @ 30 Hz.
Specifications
- Computer Connections
- 2
- Port Selection
- Pushbutton

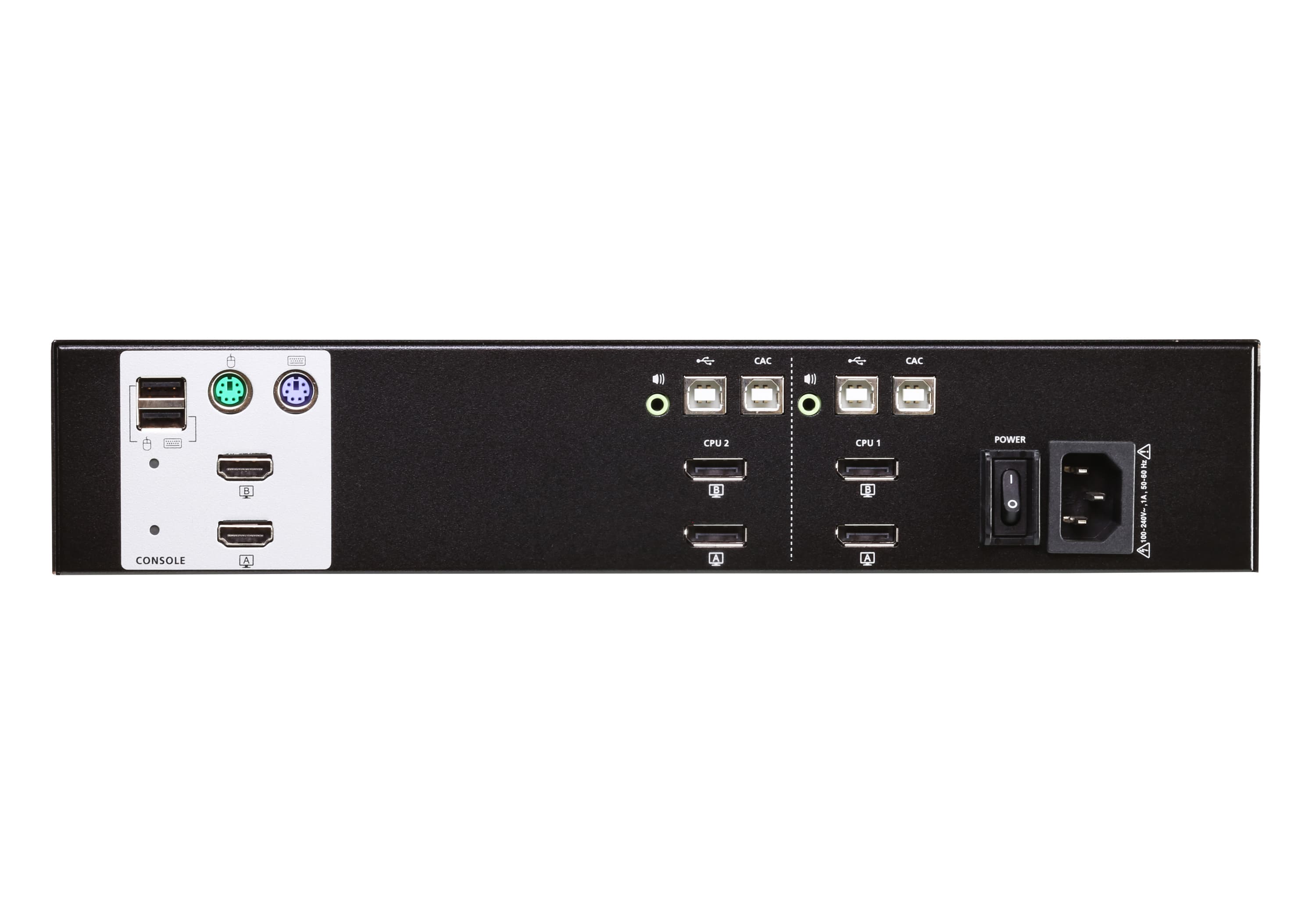

Connectors
- Console Ports
- 2 x USB Type-A Female (Black) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 2 x HDMI Female (Black) 1 x Mini Stereo Jack Female (Green; front panel)
- KVM Ports
- 4 x USB Type-B Female (White) 4 x DisplayPort Female (Black) 2 x Mini Stereo Jack Female (Green)
- Power
- 1 x 3-prong AC Socket
- USB CAC Port
- 1 x USB Type-A Female (White; front panel)
Switches
- Port Selection
- 2 x Pushbuttons
- Reset
- 1 x Semi-recessed Pushbutton
- Power
- 1 x Rocker
LEDs
- Power
- 1 (Blue)
- Online / Selected (KVM Port)
- 2 (Orange)
- Online / Selected (CAC Port)
- 2 (Green)
- Video
- 2 (Green)
- Key Lock
- 3 (Green)
Emulation
- Keyboard / Mouse
- USB
- Video
- Max. 3840 x 2160 @ 30 Hz (UHD)
- Maximum Input Power Rating
- 100–240V~; 50-60 Hz; 1A
- Power Consumption
- AC110V:5.5W:45BTU/h AC220V:5.3W:44BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0-50°C
- Storage Temperature
- -20-60°C
- Humidity
- 0 - 80% RH, Non-condensing
Physical Properties
- Housing
- Metal
- Weight
- 2.13 kg ( 4.69 lb )
- Dimensions (L x W x H)
- 33.50 x 16.39 x 6.55 cm (13.19 x 6.45 x 2.58 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
