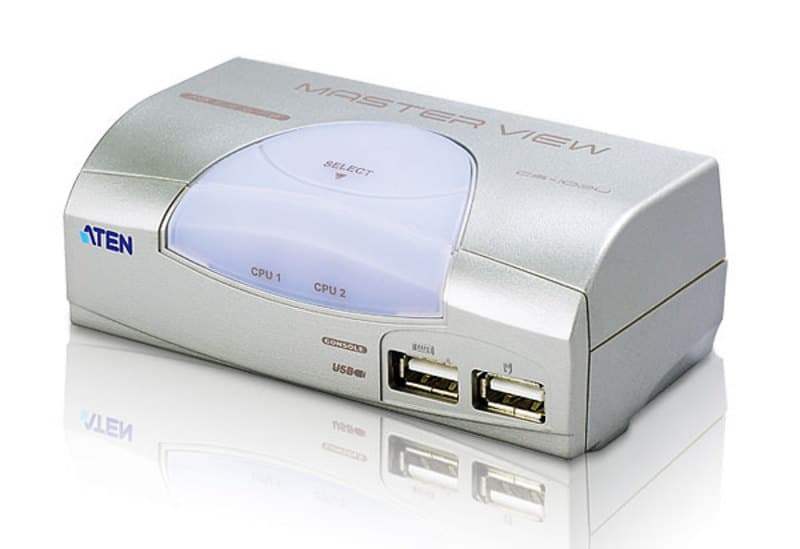

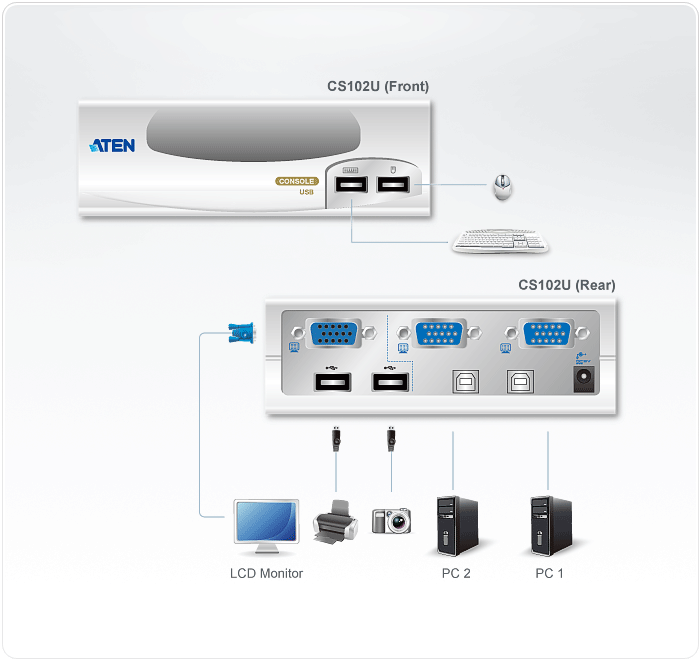

CS102U is a KVM Switch with built-in USB. It can control 2 servers via a single console and allows servers to share 2 peripheral devices via the USB ports on
Features
- One USB console controls 2 computers
- 2 port USB Hub built in
- Control a Mac and a PC at the same time
- Computer selection via front panel pushbuttons
- Superior video quality - up to 1920 x 1440; DDC2B
- Supports Microsoft IntelliMouse and the scrolling wheel on most mice
- Auto Scan function to monitor computer operation
- Non-powered
- OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac and FreeBSD
Specifications
- Computer Connections
- 2
- Port Selection
- Pushbutton

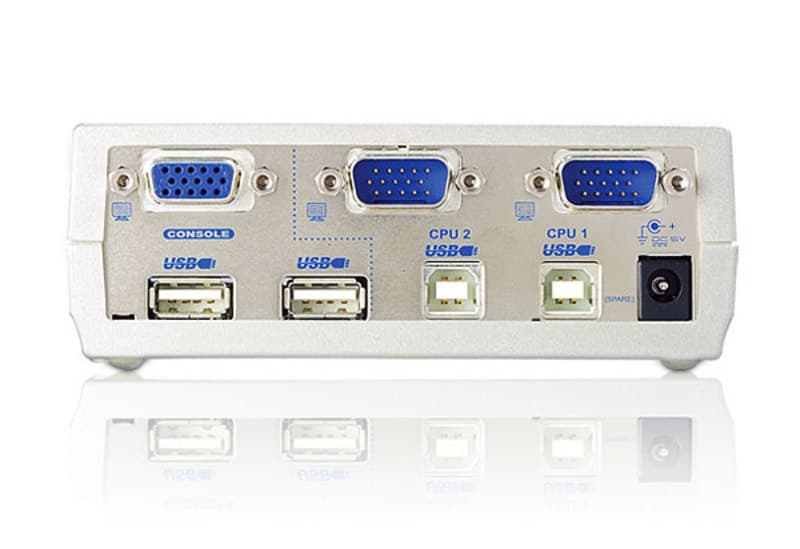

Connectors
- Console Ports
- 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue)
- KVM Ports
- 2 x USB TYPE B Female (White) 2 x HDB-15 Male ( Blue )
- USB Hub
- 2 x USB Type A Female (White)
- Power
- 1 x DC Jack (Black)
LEDs
- Online
- N/A
- Selected
- 2
- Auto Scan
- N/A
- Video
- 1920 x 1440; DDC2B
- Scan Interval
- 5 seconds
- Power Consumption
- DC5V:0.11W:26BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0~50°C
- Storage Temperature
- -20~60°C
- Humidity
- 0~80% RH, Non-condensing
Physical Properties
- Housing
- Plastic / Metal
- Weight
- 0.15 kg ( 0.33 lb )
- Dimensions (L x W x H)
- 12.00 x 6.52 x 4.40 cm (4.72 x 2.57 x 1.73 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
