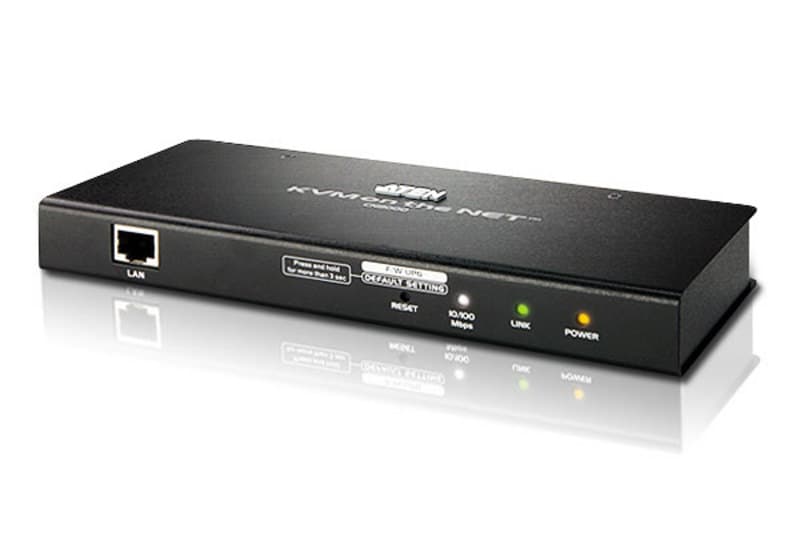

1-Local/Remote Share Access Single Port VGA KVM over IP Switch (1600 x 1200)
CN8000Discontinued

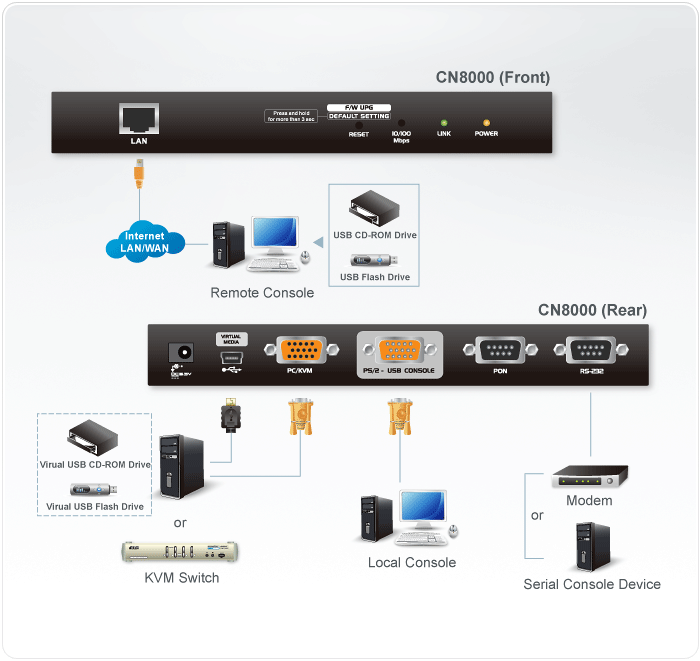

The CN8000 is a control unit that provides "over-IP" capability to KVM switches that do not have built in over-IP functionality. It allows operators to monitor and access their computers
Features
- Hardware
- Provides over-IP capability to KVM switches that do not have built in over-IP functionality 1
- Supports PS/2,USB, Sun Legacy (13W3) 2 and serial (RS-232) connectivity
- Local console provides PS/2,and USB keyboard and mouse support
- Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
- Virtual Media Support
- High video resolution – up to 1600 x 1200 @ 60Hz- 32 bit color depth for the local console; up to 1600 x 1200 @ 60Hzwith 24 bit color depth for remote sessions
- Enhanced fps (frames per second) throughput for crisp responsive video display 1 Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, CS1308, CS1316, CS1754*, CS1758*, CS1708A, CS1716A, ACS1208A, ACS1216A, CS228*, CS428*, KH0116, KH2508, KH2516, KH1508, and KH1516 -Some of the CN8000's features may not be supported, depending on the functionality of the cascaded KVM switch. (For example, some switches do not support virtual media.) -Some features found on the cascaded KVM switches may not be supported on the CN8000. (For example, the CS1754's audio.) 2 Requires CV130A converter purchase
- Management
- Up to 64 user accounts
- Up to 32 concurrent logins
- End session feature – administrators can terminate running sessions
- Event logging and Windows-based Log Server support
- Critical system events sent by email and SNMP trap; and Syslog support
- Remote Firmware upgradable
- Serial console management – serial terminal access. Access the CN8000 via a built-in serial viewer, or via third party software (such as PuTTY) for Telnet and SSH sessions
- PPP mode (modem) dial-in/dial back/dial out support for out-of-band, and low bandwidth operation
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Local/Remote Share Mode to conveniently grant shared or exclusive console privilegeNEW!
- Integration with ALTUSEN CC2000 Management software
- Power Over the NET integration for remote power control
- DDNS (Dynamic Domain Name System)
- Export/import user account and configuration settings
- Enable/disable browser operation
- IPv6 capableNEW!
- Ease-to-Use Interface
- Browser-based and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac OX X, Linux, Sun)
- Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
- Full-screen or sizable and scalable Virtual Remote Desktop
- Magic Panel
- Advanced Security
- Smart Card /CAC Reader Support
- External authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- Supports SSL 128-bit data encryption and RSA 1024-bit certificates to secure users log in from browser
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
- Support for IP/MAC Filter
- Supports password protection
- Private CA
- Virtual Media
- Virtual media enables file applications, OS patching, software installation and diagnostic testing
- Works with USB enabled servers in operating system and BIOS level
- Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
- Virtual Remote Desktop
- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full screen video display or scalable video display
- Message Board for communication among remote users
- On-screen keyboard with multilanguage support
- Mouse Dynasync
- Exit Macros support
- BIOS-level access

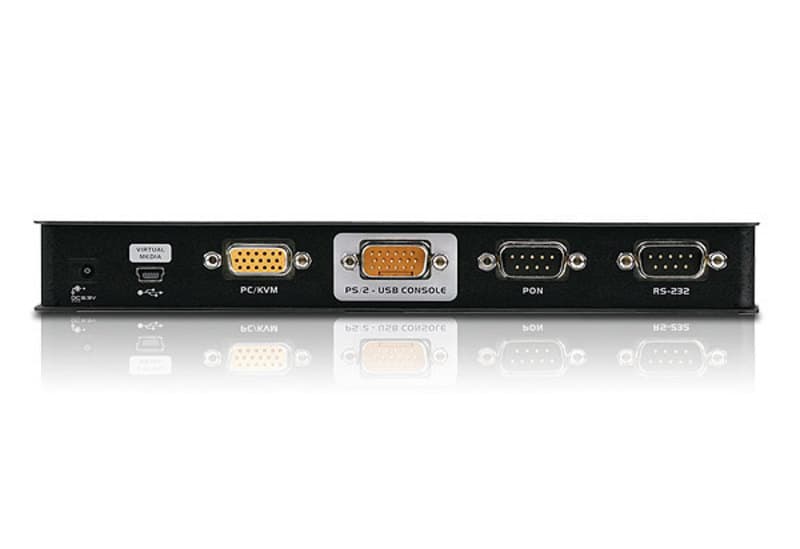

Connectors
- Console Ports
- 1 x SPHD Male (Yellow)
- KVM (Computer) Ports
- 1 x SPHD Female (Yellow)
- Virtual Media
- 1 x USB Mini-B Female
- PON
- 1 x DB-9 Male
- Modem
- 1 x DB-9 Male

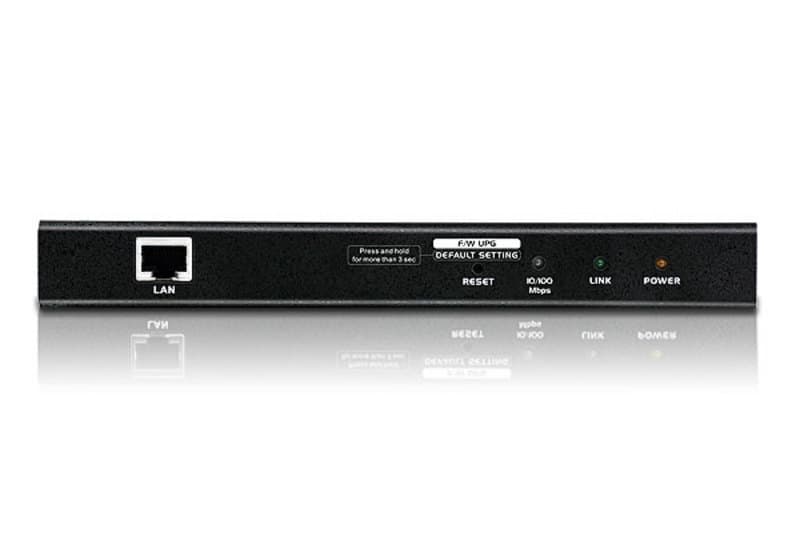

- LAN Ports
- 1 x RJ-45 Female
- Power
- 1 x DC Jack
Switches
- Reset
- 1 x Semi-recessed Pushbutton
LEDs
- Power
- 1 (Orange)
- Link
- 1 (Green)
- 10/100 Mbps
- 1 (Orange/Green)
Emulation
- Keyboard / Mouse
- USB; PS/2
- Video
- Up to 1600 x 1200 @ 60 Hz; DDC2B
- Power Consumption
- DC5.3V:6.80W:36BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0 - 50°C (CN8000) 0 - 40°C (Power Adapter)
- Storage Temperature
- -20 - 60°C
- Humidity
- 0 - 80% RH, Non-condensing
Physical Properties
- Housing
- Metal
- Weight
- 0.49 kg ( 1.08 lb )
- Dimensions (L x W x H)
- 20.20 x 8.64 x 2.50 cm (7.95 x 3.4 x 0.98 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Firmware
