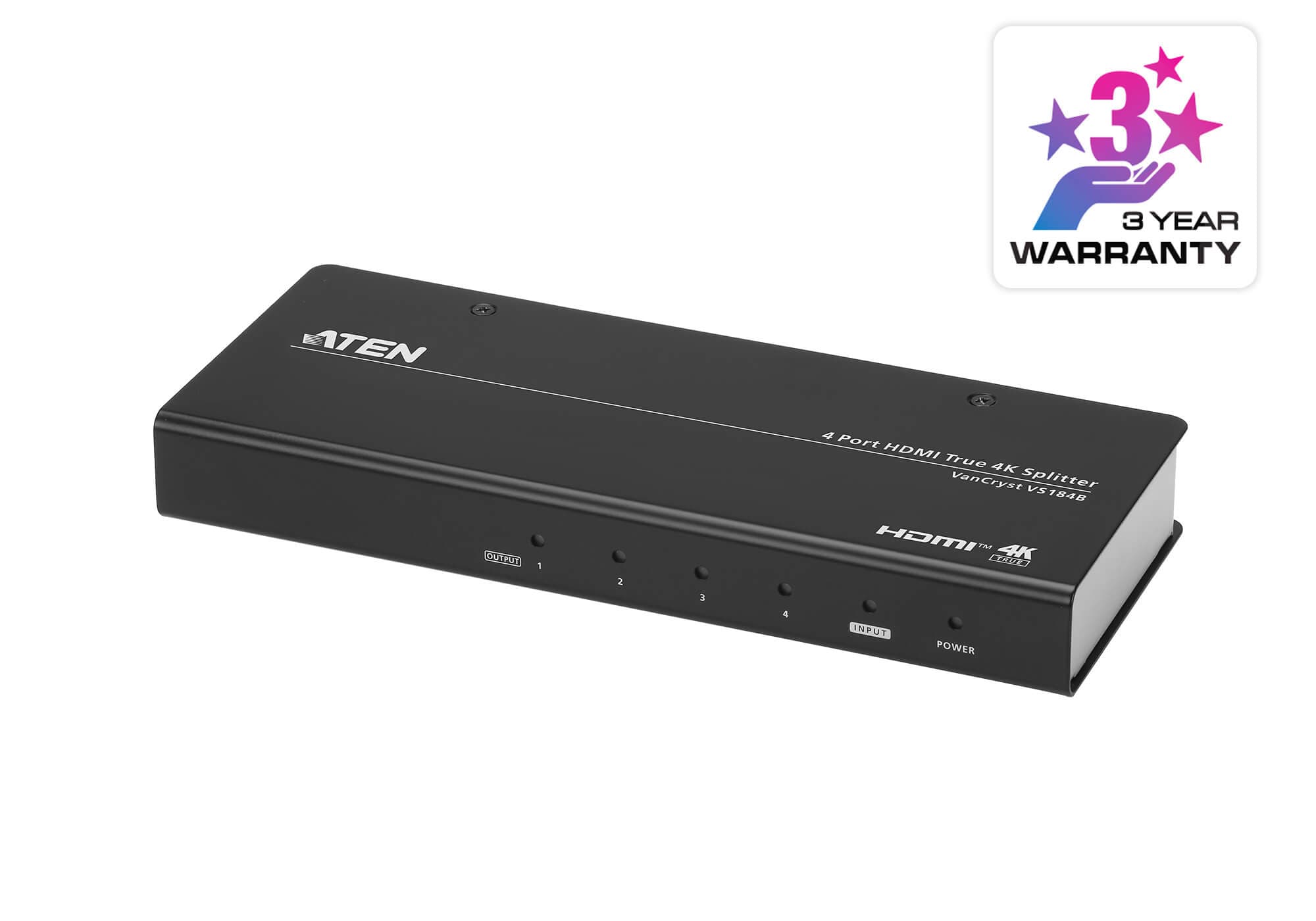

Разделя сигнала от един HDMI източник към четири дисплея едновременно при True 4K (4096x2160@60Hz 4:4:4). Поддържа HDR10+ и HDCP 2.2.
Характеристики

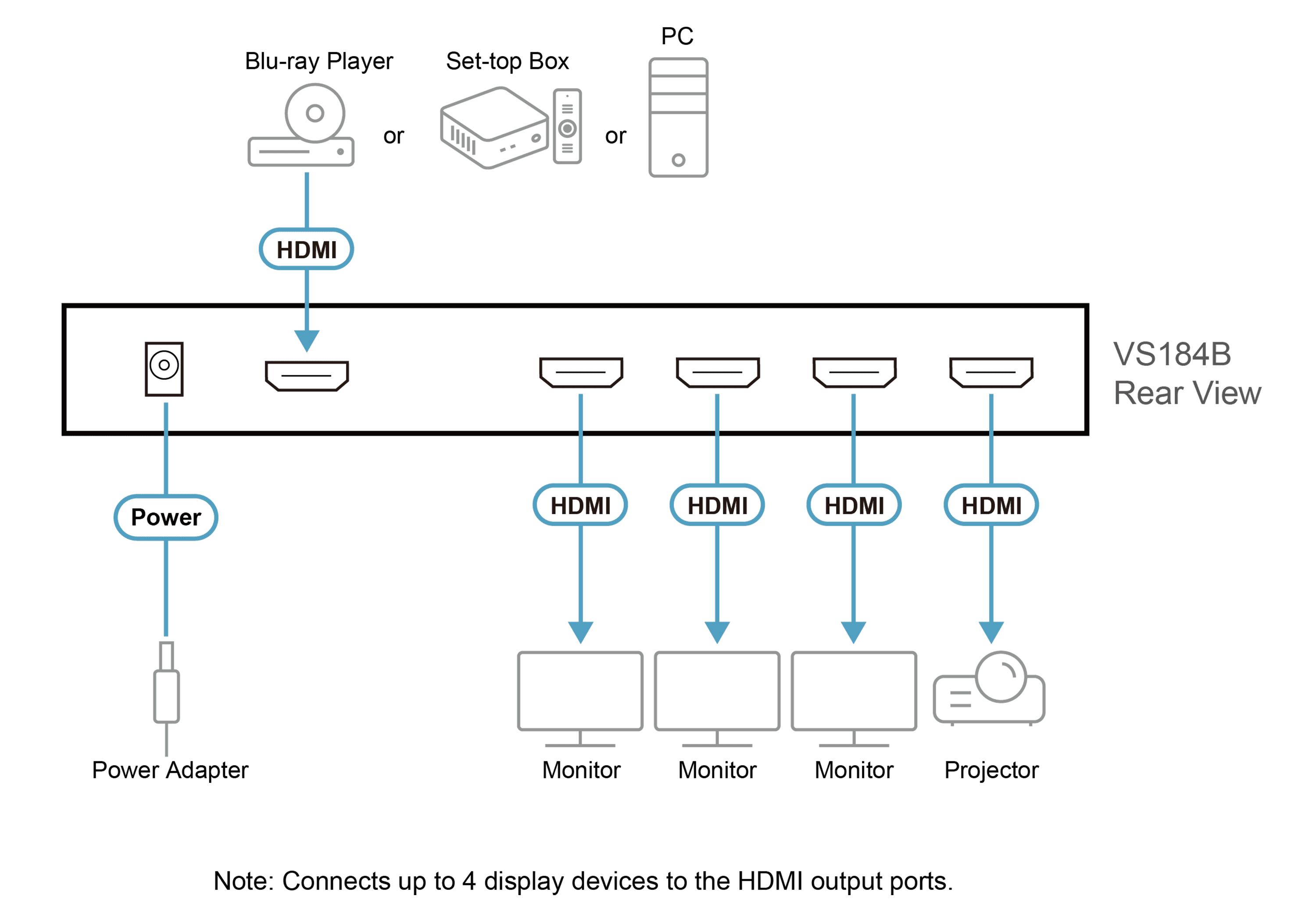

- Connects one HDMI source to four HDMI displays at the same time
- HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
- Supports HDR10+
- Supports max resolutions of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4)
- Long distance transmission- up to 15 m(1920x1200) / 5 m (True 4K)*
- Max pixel clock rate up to 600 MHz
- Max data rate up to 18 Gbps (6 Gbps per lane)

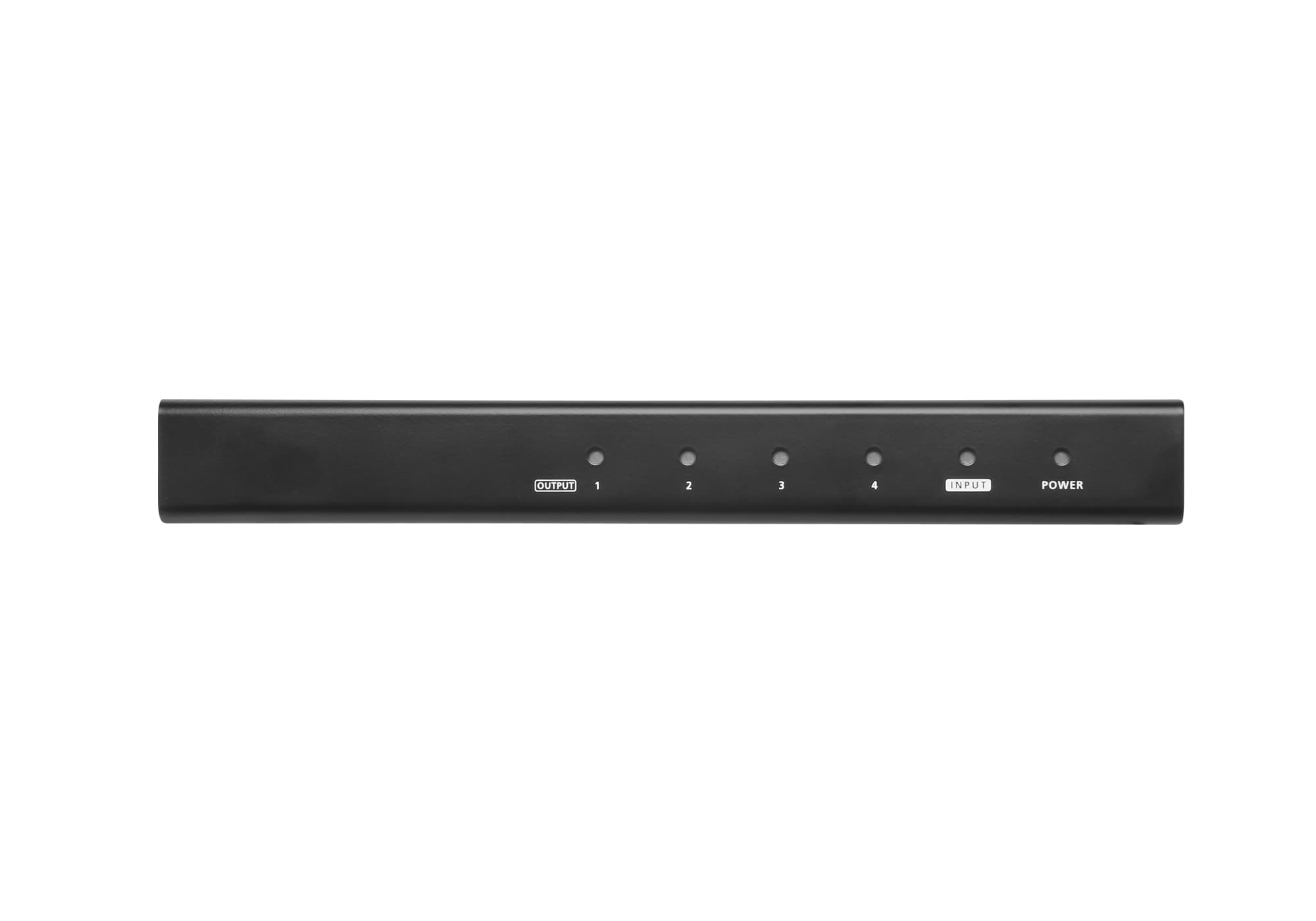

- LED indication of power status and source devices

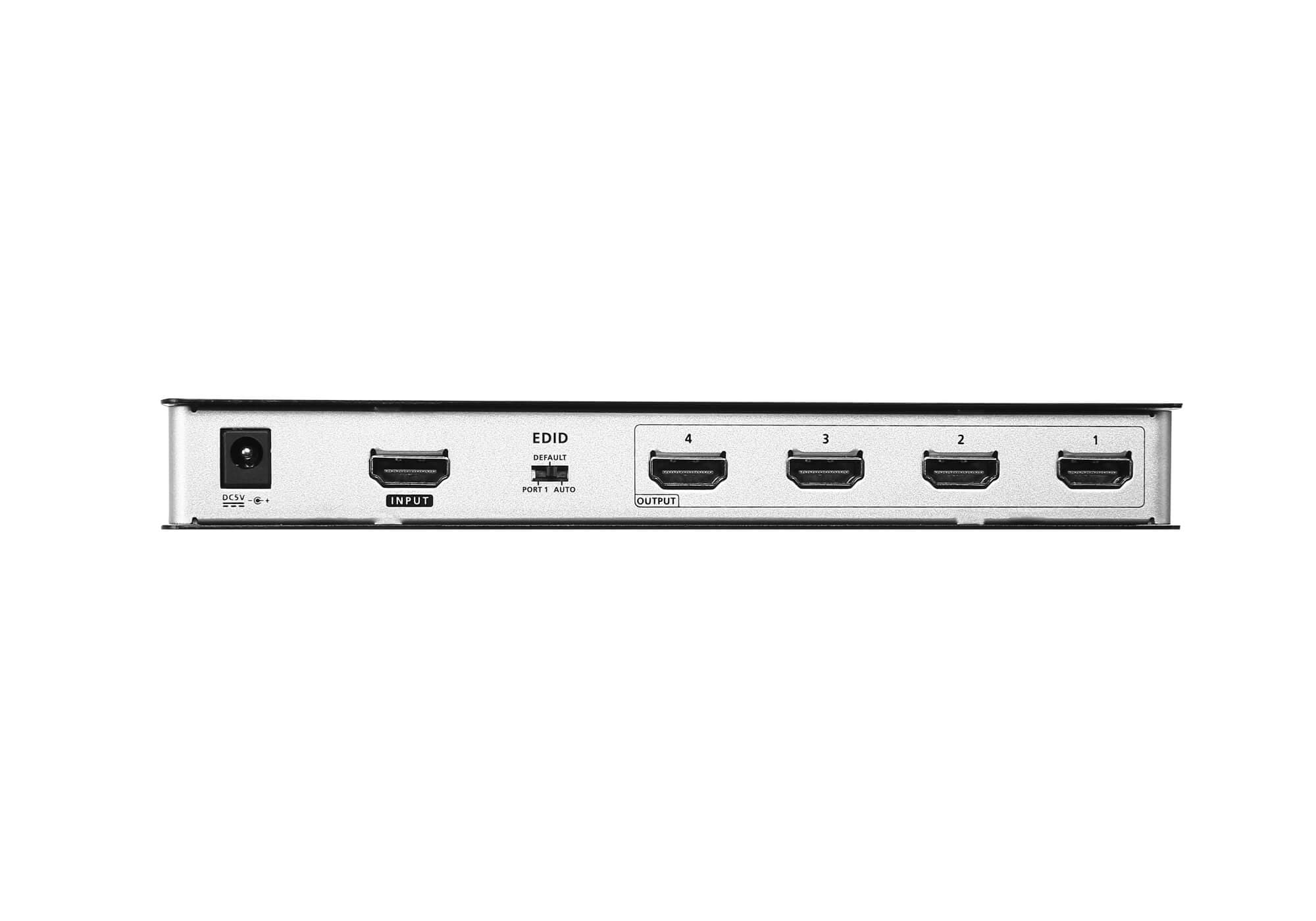

- EDID Expert™ – Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via EDID DIP Switch, allowing users to effortlessly switch among Port 1, Default, and Auto
- Plug-and-play – No software installation required *Note: Compatible with ATEN 2L-7D02H-1
Видео вход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 5m at 4K@60Hz (4:4:4)
Видео изход
- Интерфейси
- 4 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 5m at 4K@60Hz (4:4:4)
Видео
- Макс. скорост на данните
- 18Gpbs (6 Gbps Per Lane)
- Макс. пикселна честота
- 600 MHz
- Съответствие
- HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 Compatible
- Макс. резолюция
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Аудио
- Вход
- 1 x HDMI Type A Female (Black)
- Изход
- 4 x HDMI Type A Female (Black)
Конектори
- Захранване
- 1 x DC Jack
- Консумация
- DC5V:4.84W:23BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40 °C
- Температура на съхранение
- -20 - 60 °C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.48 kg ( 1.06 lb )
- Размери (Д x Ш x В)
- 20.00 x 8.00 x 2.50 cm (7.87 x 3.15 x 0.98 in.)
- Брой в кашон
- 20 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
