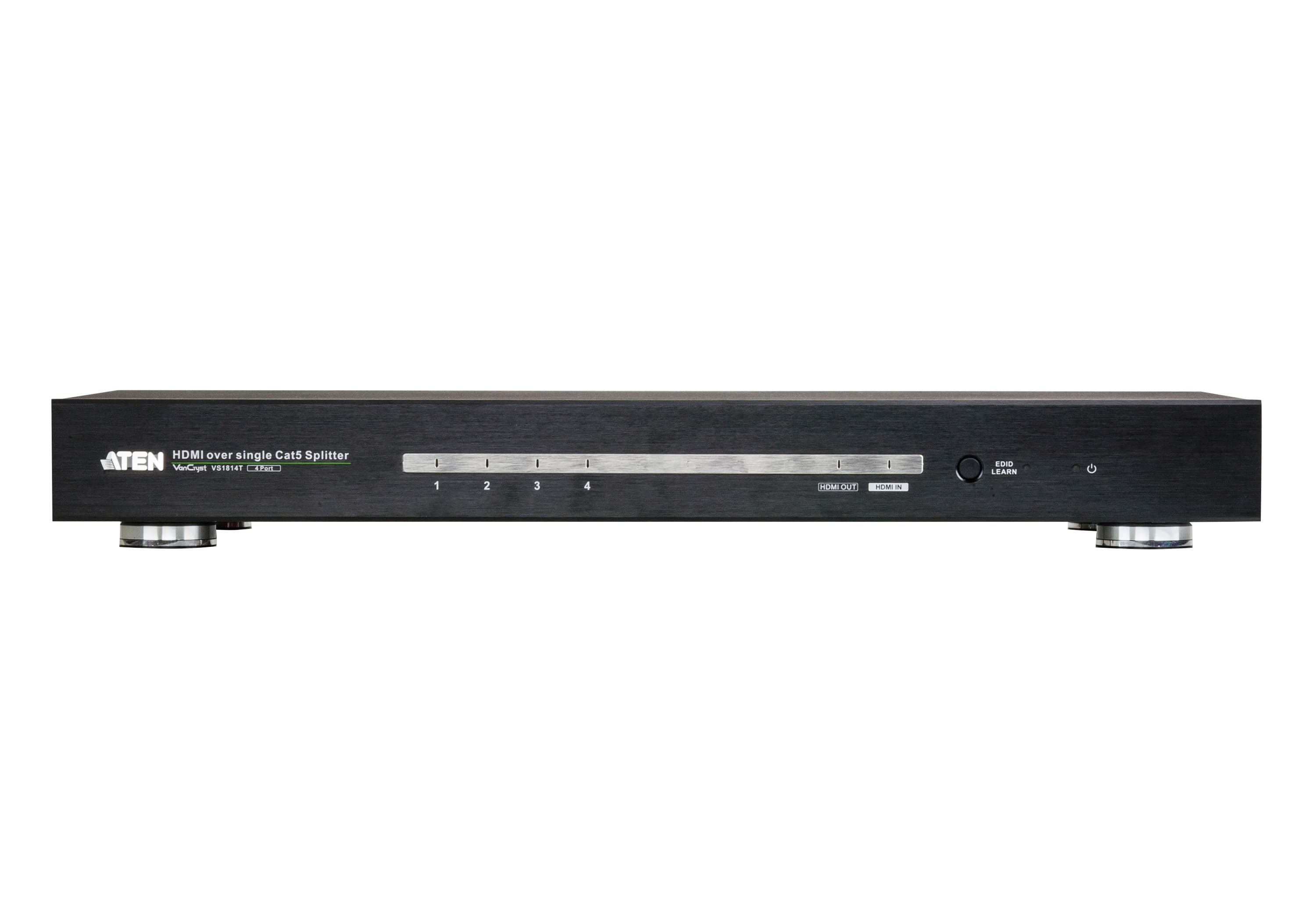

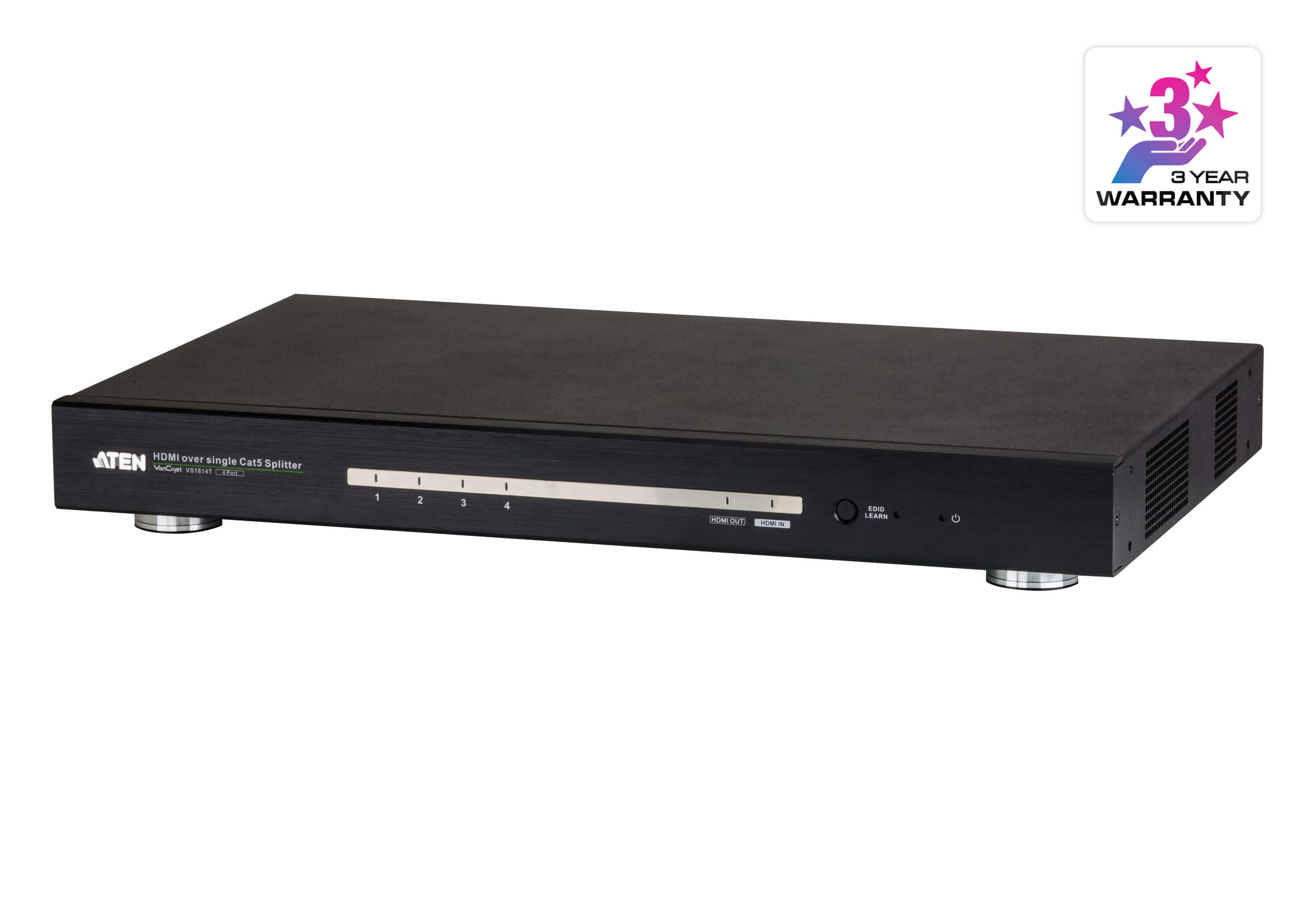

4-Port HDMI HDBaseT Splitter (HDBaseT Class A)
VS1814T

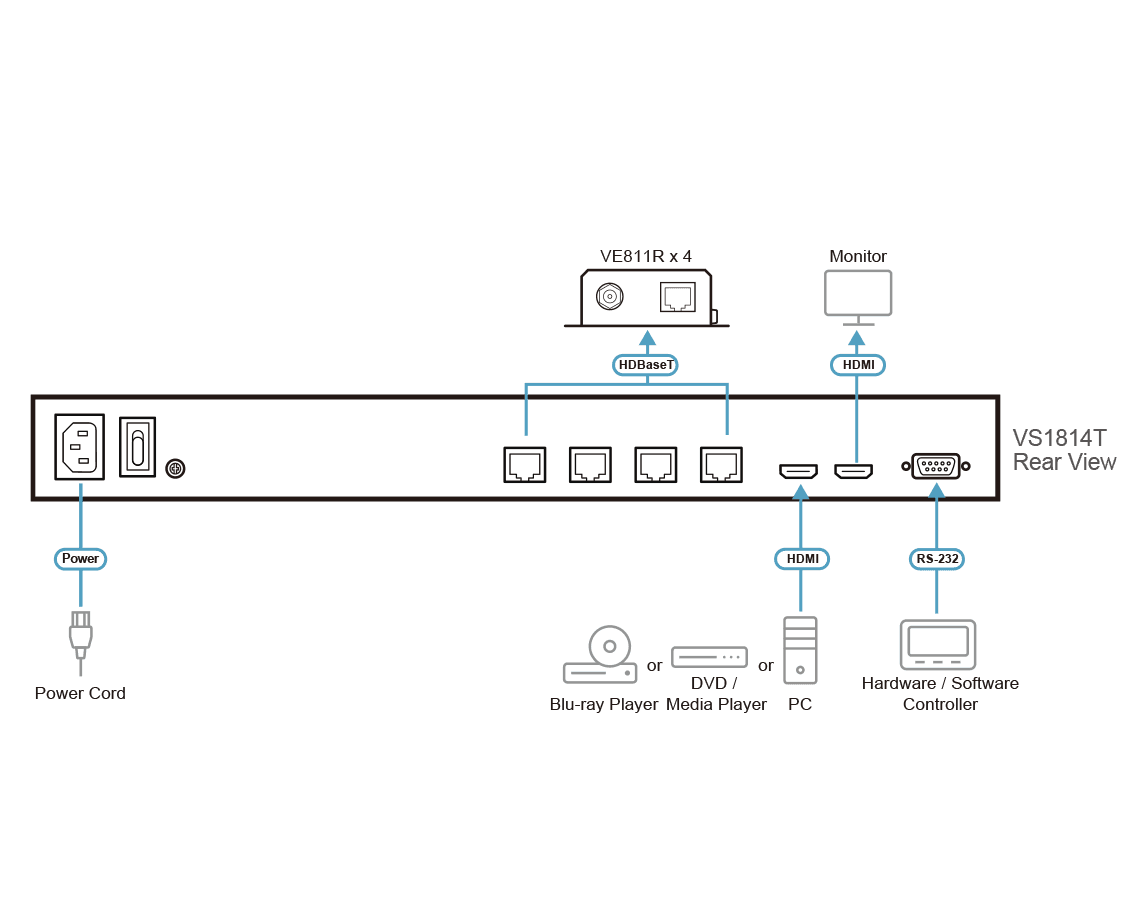

HDMI сплитер по HDBaseT (Class A) — разпределя един HDMI вход към 4 отдалечени дисплея по Cat 5e/6 кабел на до 100 m през HDBaseT приемници, с допълнителен локален HDMI изход.
Характеристики
- One HDMI input to 4 HDBaseT outputs via a Cat 5e/6 cable
- Offers local HDMI output
- Extends displays up to 100 m
- Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
- Anti-jamming - resists signal interference during high-quality video transmissions using HDBaseT technology
- HDMI (3D, Deep color, 4kx2k); HDCP 1.4 Compatible
- Supports Dolby True HD and DTS HD Master Audio
- Consumer Electronics Control (CEC) support
- Built-in bi-directional RS-232 serial remote port for high-end system control
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Supports up to 340MHz bandwidth for high performance video
- EDID mode selection
- Rack-mountable * Note: The VS1814T is compatible with the VE812R HDMIover Single Cat 5 Receiver.
Видео вход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 1.8 m
Видео изход

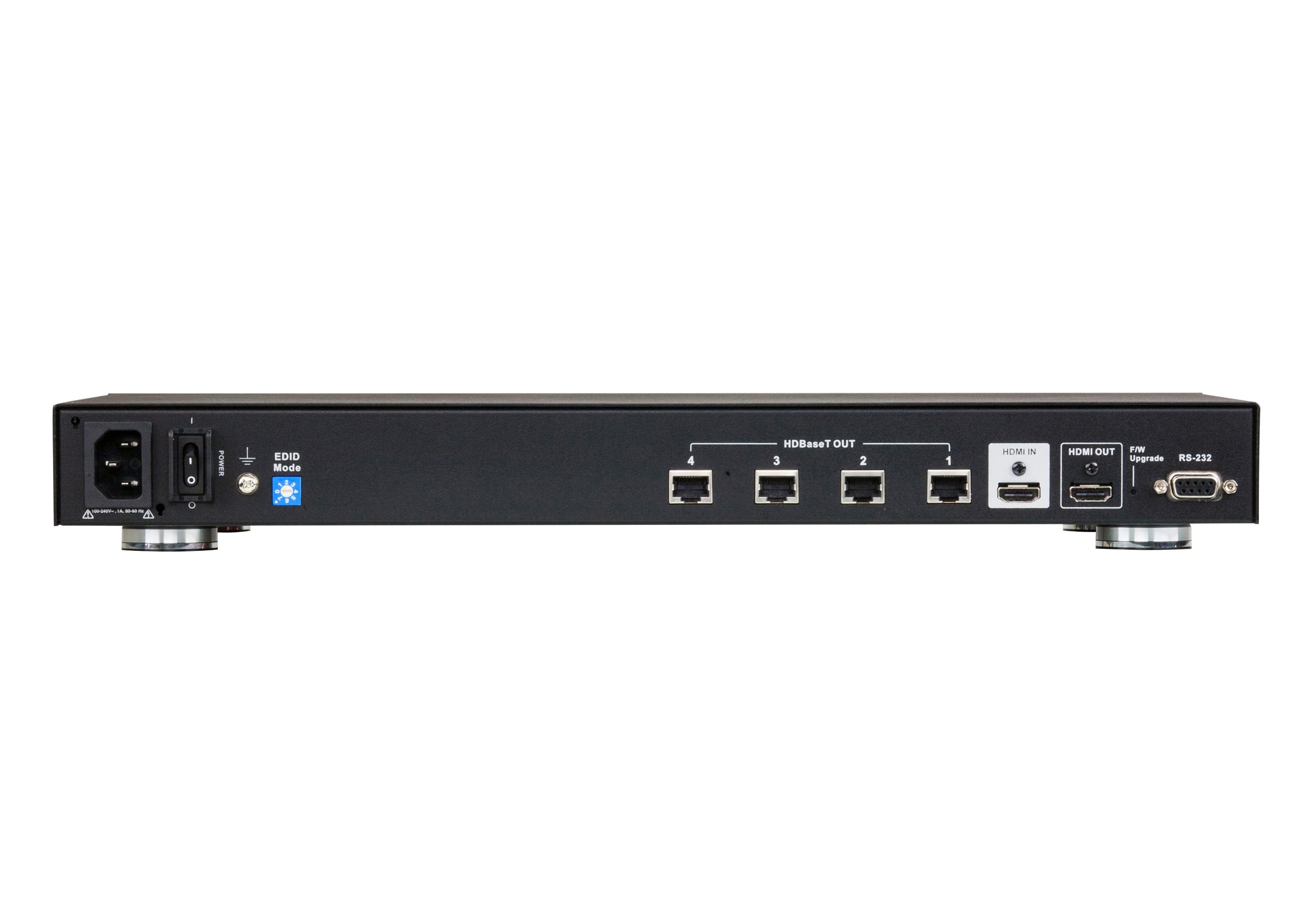

- Интерфейси
- 1 x HDMI Type A Female (Black) - Local Output 4 x RJ-45 Female
- Импеданс
- 100 Ω
Видео
- Макс. скорост на данните
- 10.2 Gbps (3.4 Gbps Per Lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC) HDBaseT Compatible
- Макс. резолюция
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) (Depends on connected receiver)
- Макс. разстояние
- Up to 100 m (Depends on connected receiver)
Аудио
- Вход
- 1 x HDMI Type A Female (Black)
- Изход
- 1 x HDMI Type A Female (Black)
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Serial Control Pin Configurations: Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- EDID настройки
- EDID Mode: Default / Port 1 / Auto / Learn
Конектори
- Захранване
- 1 x 3-Prong AC Socket (Black)
- Консумация
- AC110V:18.2W:85BTU/h AC220V:18.2W:85BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 3.47 kg ( 7.64 lb )
- Размери (Д x Ш x В)
- 43.24 x 26.11 x 4.40 cm (17.02 x 10.28 x 1.73 in.)
- Брой в кашон
- 1 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
