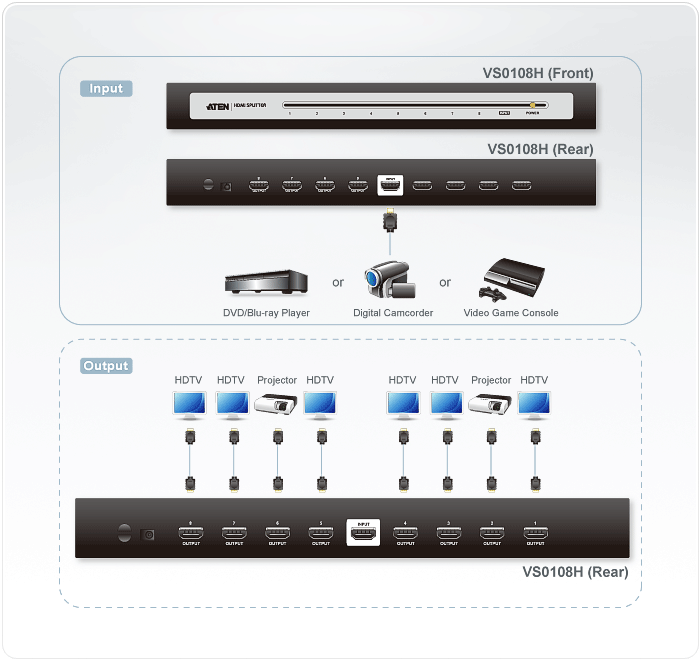

HDMI сплитер, който подава един източник едновременно към 8 дисплея; каскадира се до три нива за до 512 връзки и поддържа Dolby True HD и DTS HD Master Audio.
Характеристики
- Connects one HDMI video source to 8 HDMI displays at the same time
- Cascadable to three levels
- Supports Dolby True HD and DTS HD Master Audio
- Up to 60 Hz refresh rate
- Long distance transmission - 20 m (24 AWG)
- Superior video quality - HDTV resolution of 480p, 720p, 1080i and 1080p (1920x1080); VGA, SVGA, SXGA, UXGA and WUXGA (1920x1200)
- HDMI (Deep Color)
- DDC Compatible
- HDCP 1.1 compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- Signaling rates up to 2.25 Gbits in support of 1080p display
- Rack Mountable
Видео изход
- Макс. разстояние
- 15M @1920X1080@60 (4:4:4)
Видео вход
- Макс. разстояние
- 3M @1920X1080@60 (4:4:4)
Връзки към дисплеи
- Директно
- 8
- Максимум
- 512 (via cascade)
Конектори
- Устройство
- 1 x HDMI Type A Female (Black)
- Дисплей
- 8 x HDMI Type A Female (Black)
- Захранващ конектор
- 1 x DC Jack
Индикатори
- Захранване
- 1 (Orange)
- Вход
- 1 (Green)
- Изходи 1-8
- 8 (Green)
- Видео
- HDTV up to 1080p; Computer up to WUXGA (1920x1200)
- Консумация
- DC5.3V,9.5W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 1.74 kg
- Размери (Д x Ш x В)
- 43.20 x 15.40 x 4.40 cm
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
