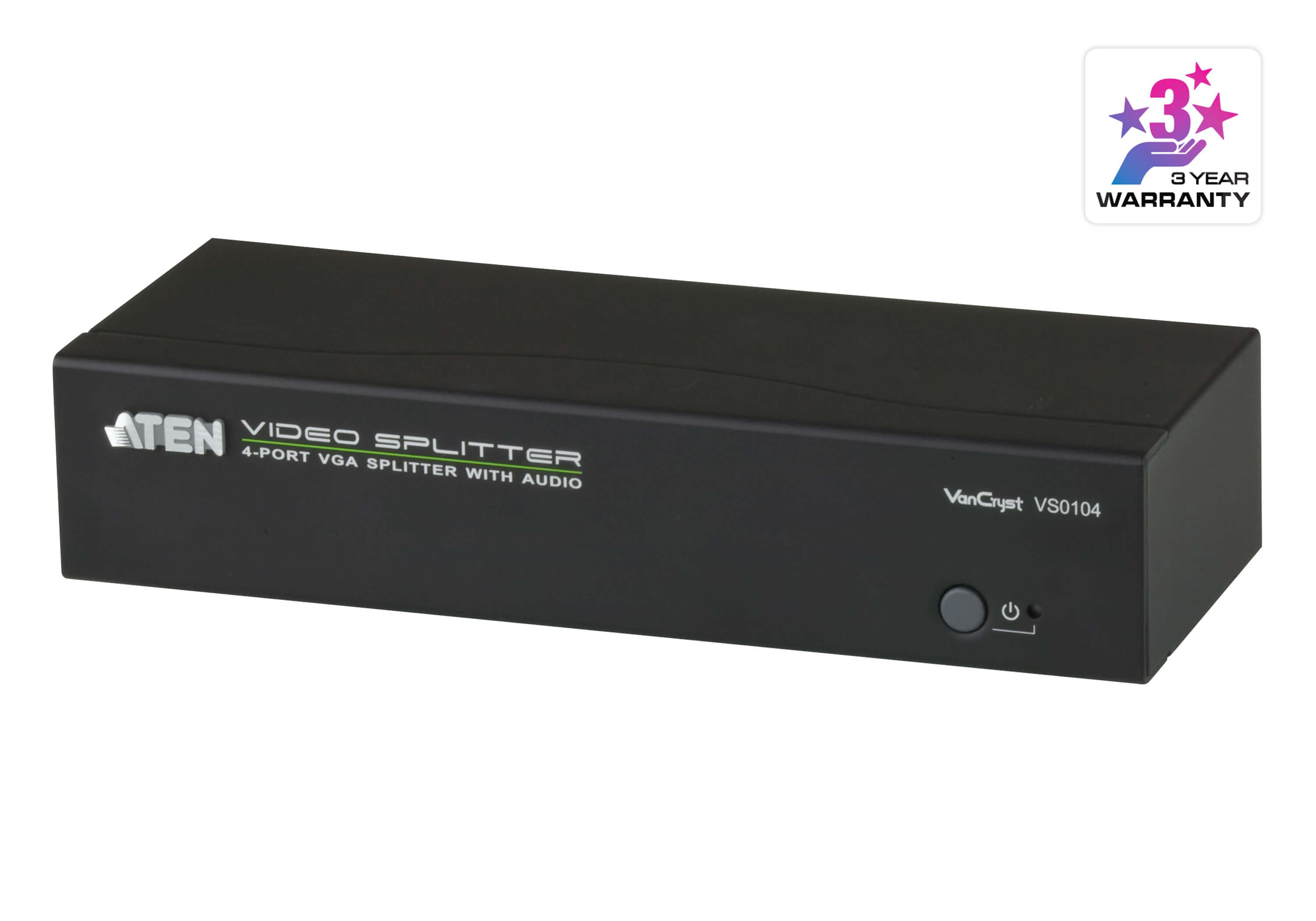

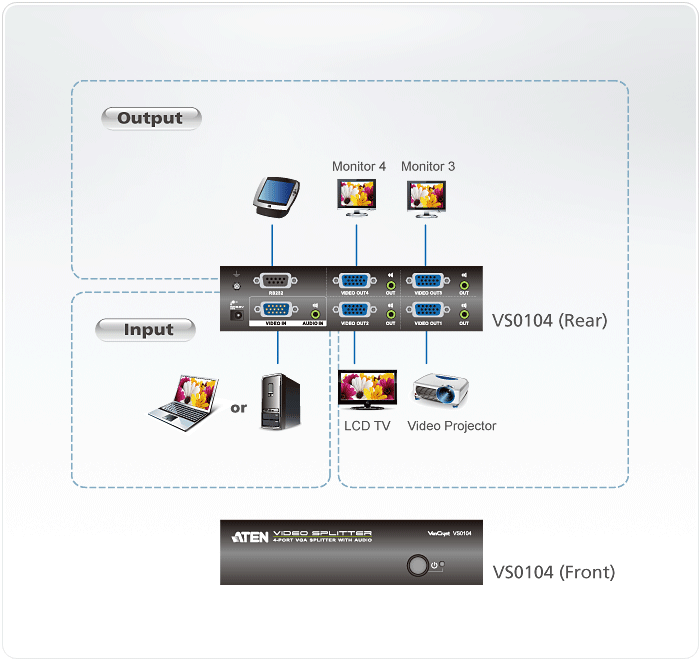

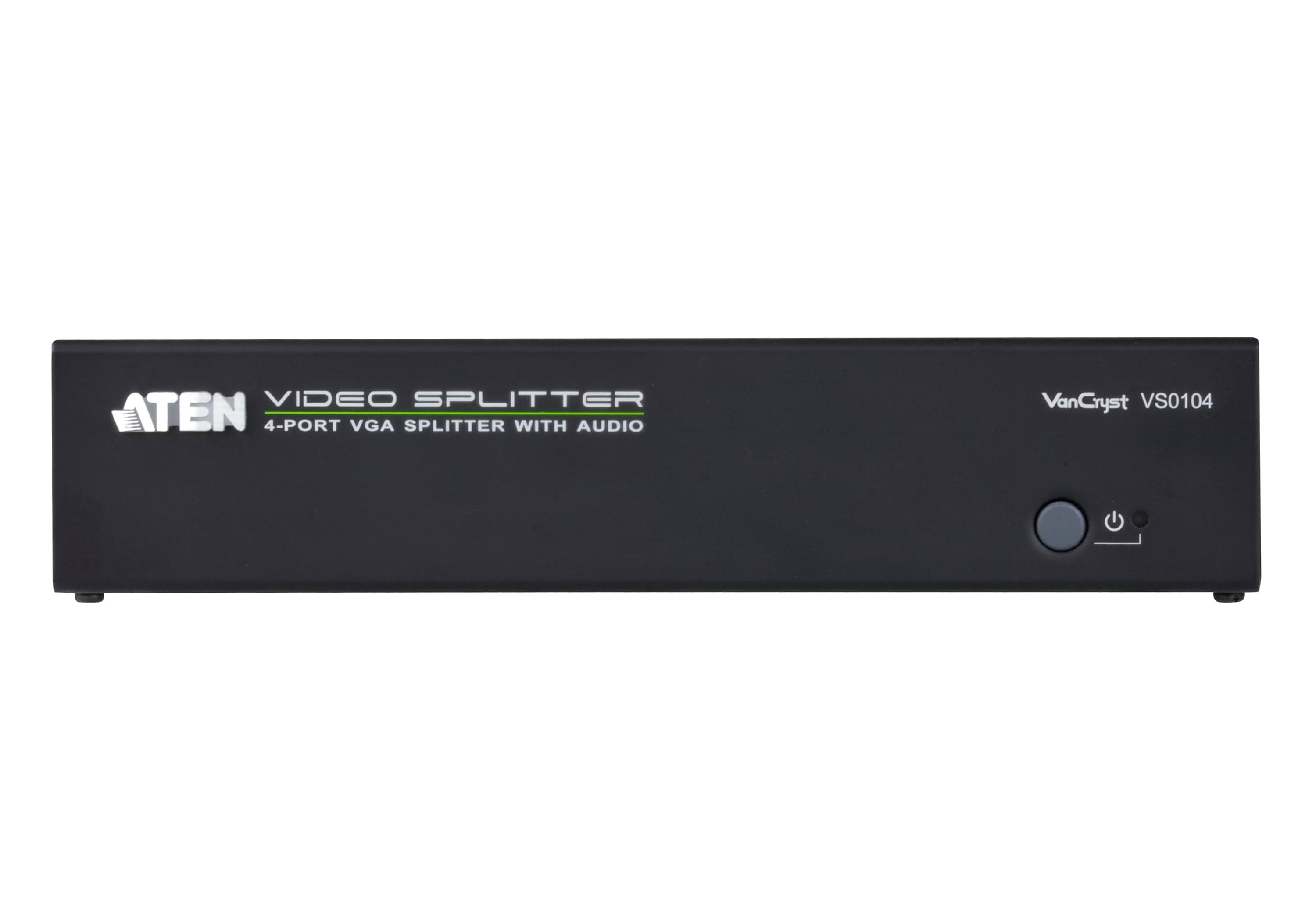

VGA сплитер с аудио, който разпределя един VGA сигнал със стерео звук към 4 дисплея. Честотна лента 450 MHz, резолюция до 1920 x 1440 @ 60 Hz.
Характеристики
- One video input to 4 video outputs
- Superior video quality – up to 1920 x 1440 @ 60Hz
- Supports up to 450MHz bandwidth for high performance video
- Long distance transmission – up to 30m *
- Supports VGA, SVGA, UXGA, WUXGA, and multisync
- EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
- Expandable – provides up to 64 video displays
- Features RS-232 serial port for command controls **
- RS-232 chain control – use RS-232 commands to control cascaded devices via VGA cable
- Supports stereo audio
- Plug-and-play – no software installation required Note: * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality ** The VS0104 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

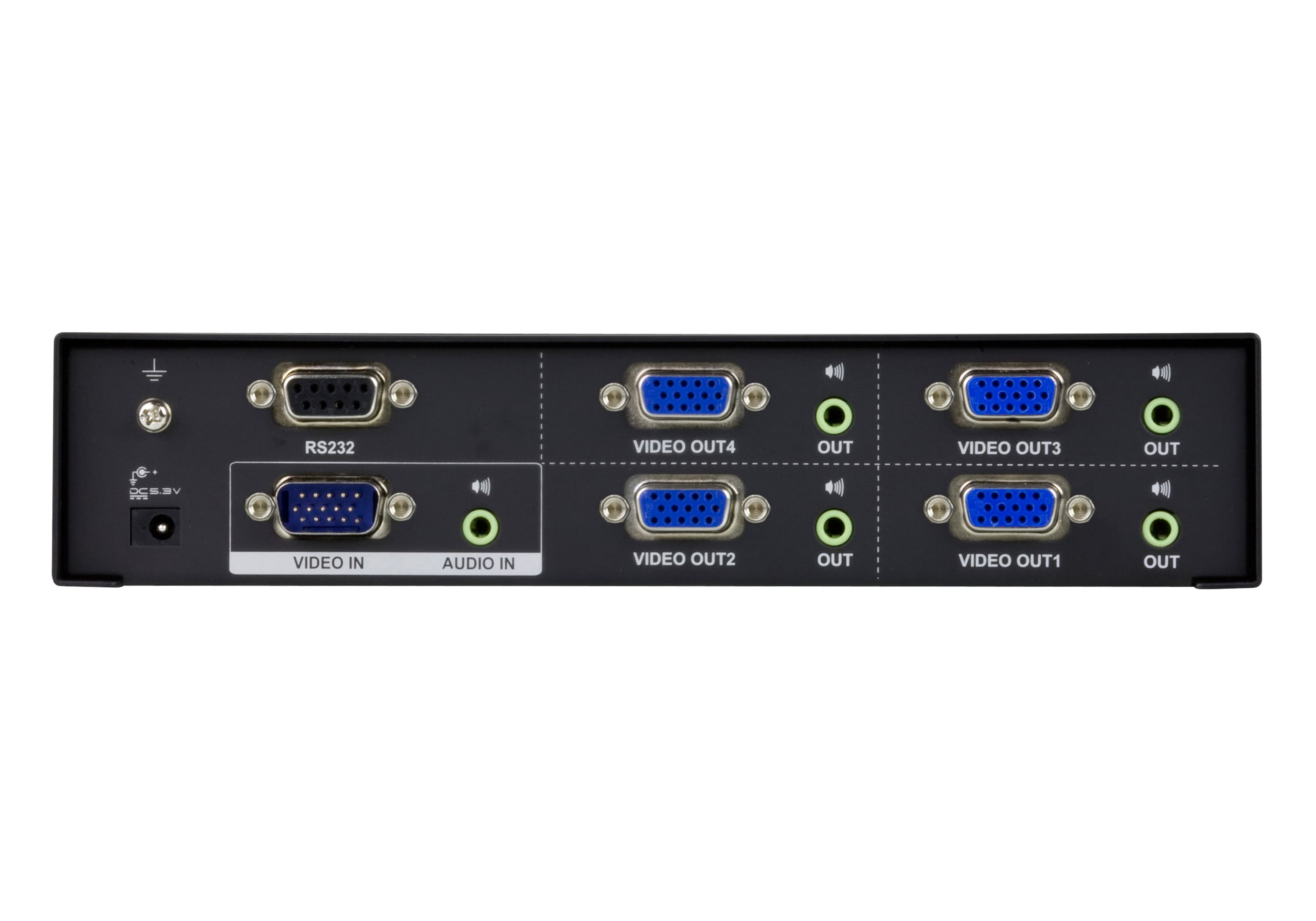

Видео вход
- Интерфейси
- 1 x HDB-15 Male (Blue)
- Импеданс
- 75 Ω
- Макс. разстояние
- 1.8 m
Видео изход
- Интерфейси
- 4 x HDB-15 Female (Blue)
- Импеданс
- 75 Ω
Видео
- Макс. честотна лента
- 450 MHz
- Макс. резолюция
- Up to 1920 x 1440
- Макс. разстояние
- Up to 30 m
Аудио
- Вход
- 1 x Mini Stereo Jack Female (Green)
- Изход
- 4 x Mini Stereo Jack Female (Green)
Управление
- RS-232
- 1 x DB-9 Female (Black)
- EDID настройки
- EDID Mode: Port 1 / Auto / Default
Конектори
- Захранване
- 1 x DC Jack
- Консумация
- DC5.3V:1.13W:5BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.68 kg ( 1.5 lb )
- Размери (Д x Ш x В)
- 20.00 x 7.61 x 4.40 cm (7.87 x 3 x 1.73 in.)
- Брой в кашон
- 10 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
