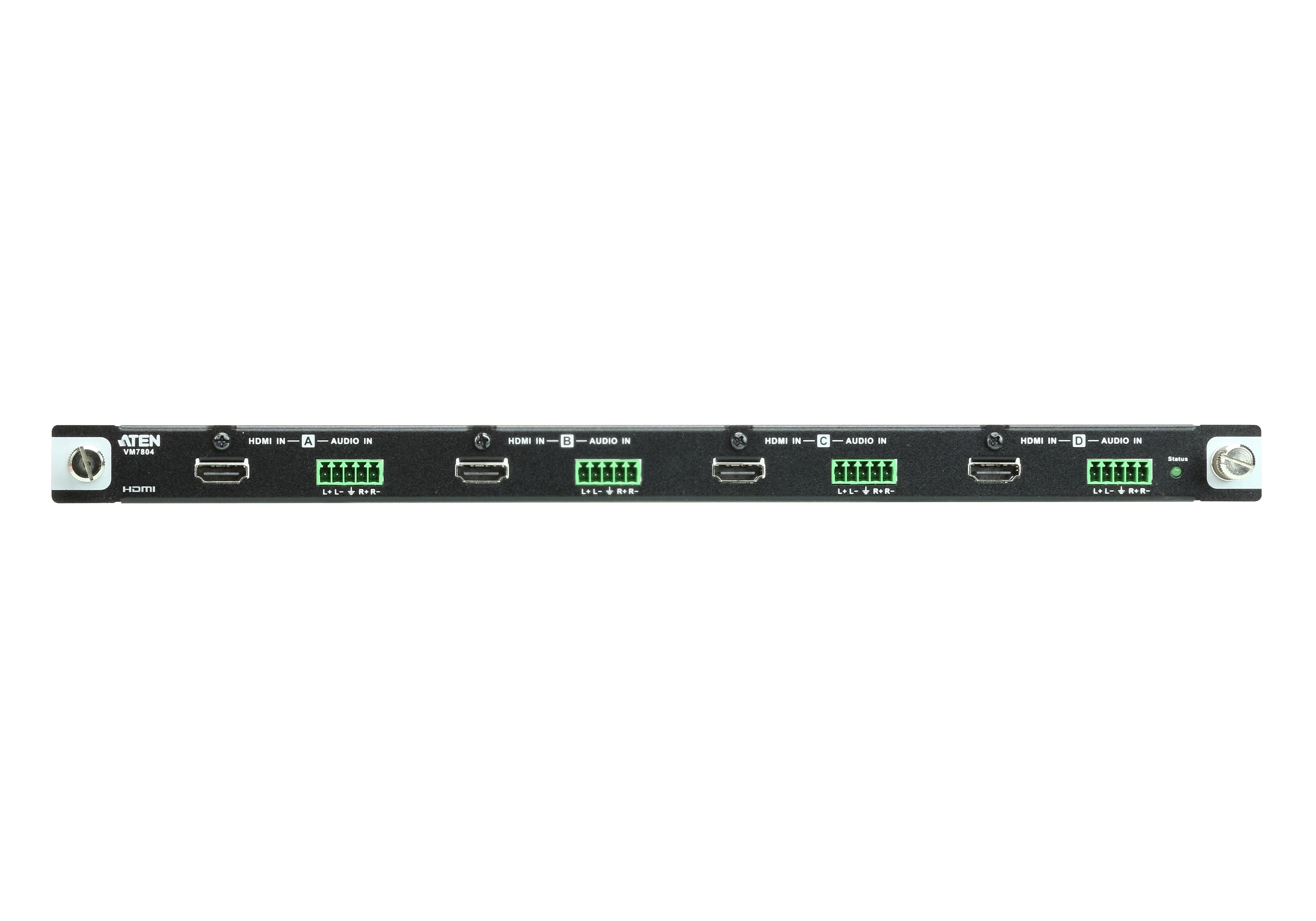

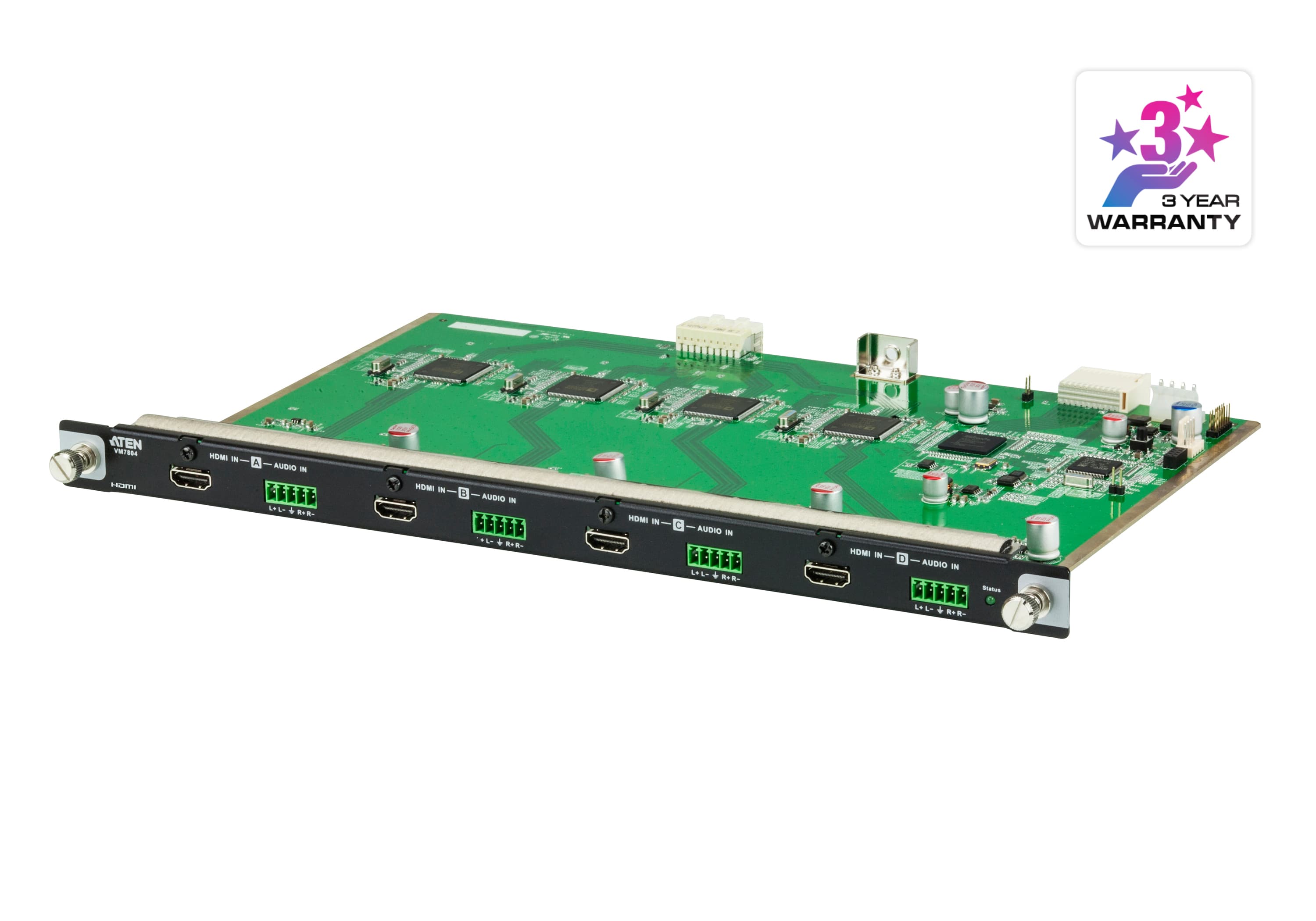

Входна платка с 4 HDMI порта за модулните матрични превключватели — свързва до 4 източника при резолюции до 1080p, с поддръжка на 3D, Deep Color и CEC.
Характеристики
- Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
- HDMI (3D, Deep Color); HDCP 1.4 Compatible
- Consumer Electronics Control (CEC) support
- EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
- Built-in EDID wizard – provides an easy way to customized EDID settings
- Hot-swappable design for easy integration of I/O boards
- Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded
Видео вход
- Интерфейси
- 4 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- Up to 5m
Видео
- Макс. скорост на данните
- 6.75 Gpbs (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC)
- Макс. резолюция
- Up to 1920 x 1080
Аудио
- Вход
- 4 x Captive Screw Connector, 5 Pole *Audio signal type: stereo, balanced/unbalanced.
- Консумация
- 7W:33BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.58 kg ( 1.28 lb )
- Размери (Д x Ш x В)
- 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.)
- Брой в кашон
- 2 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
