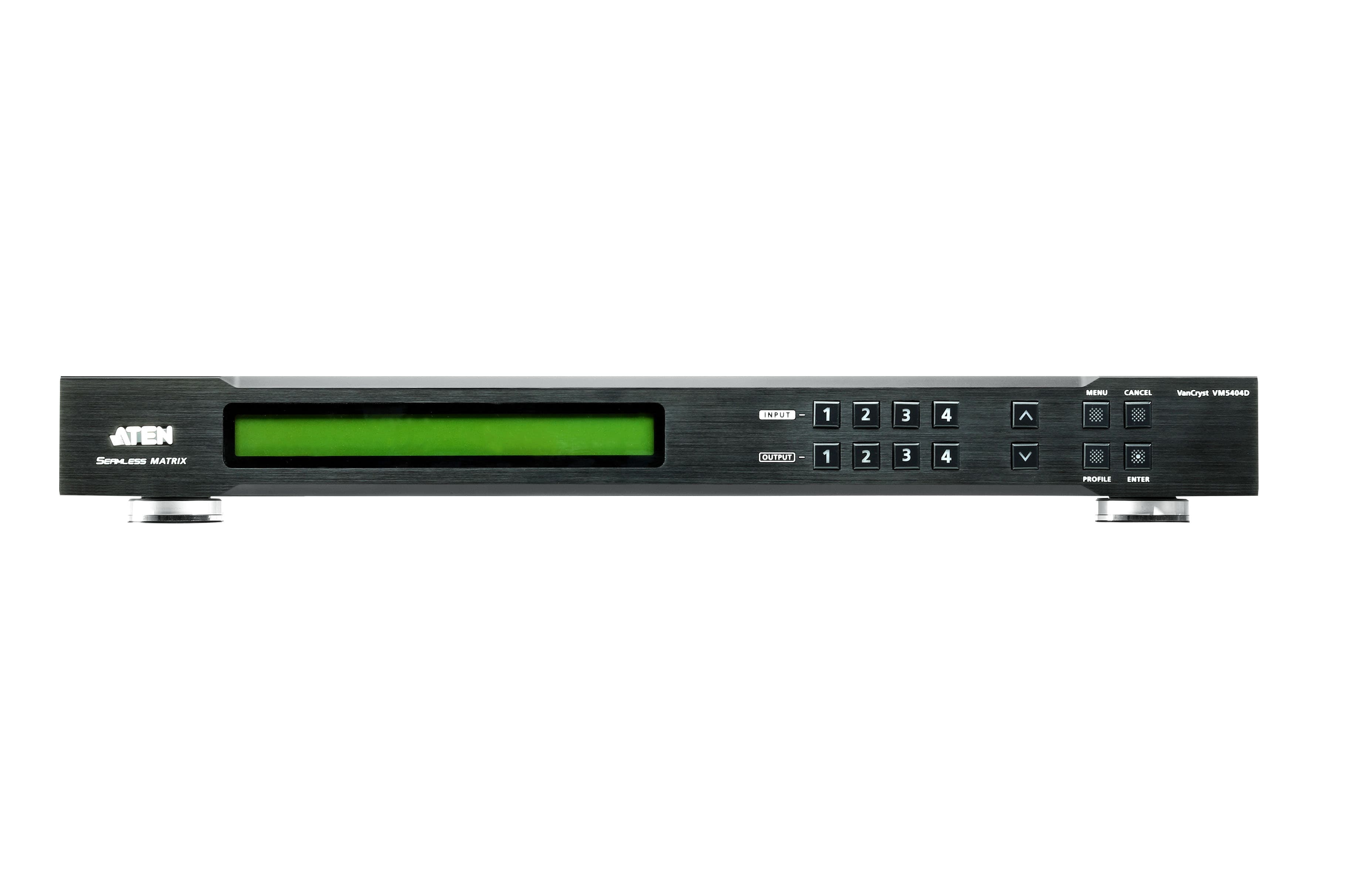

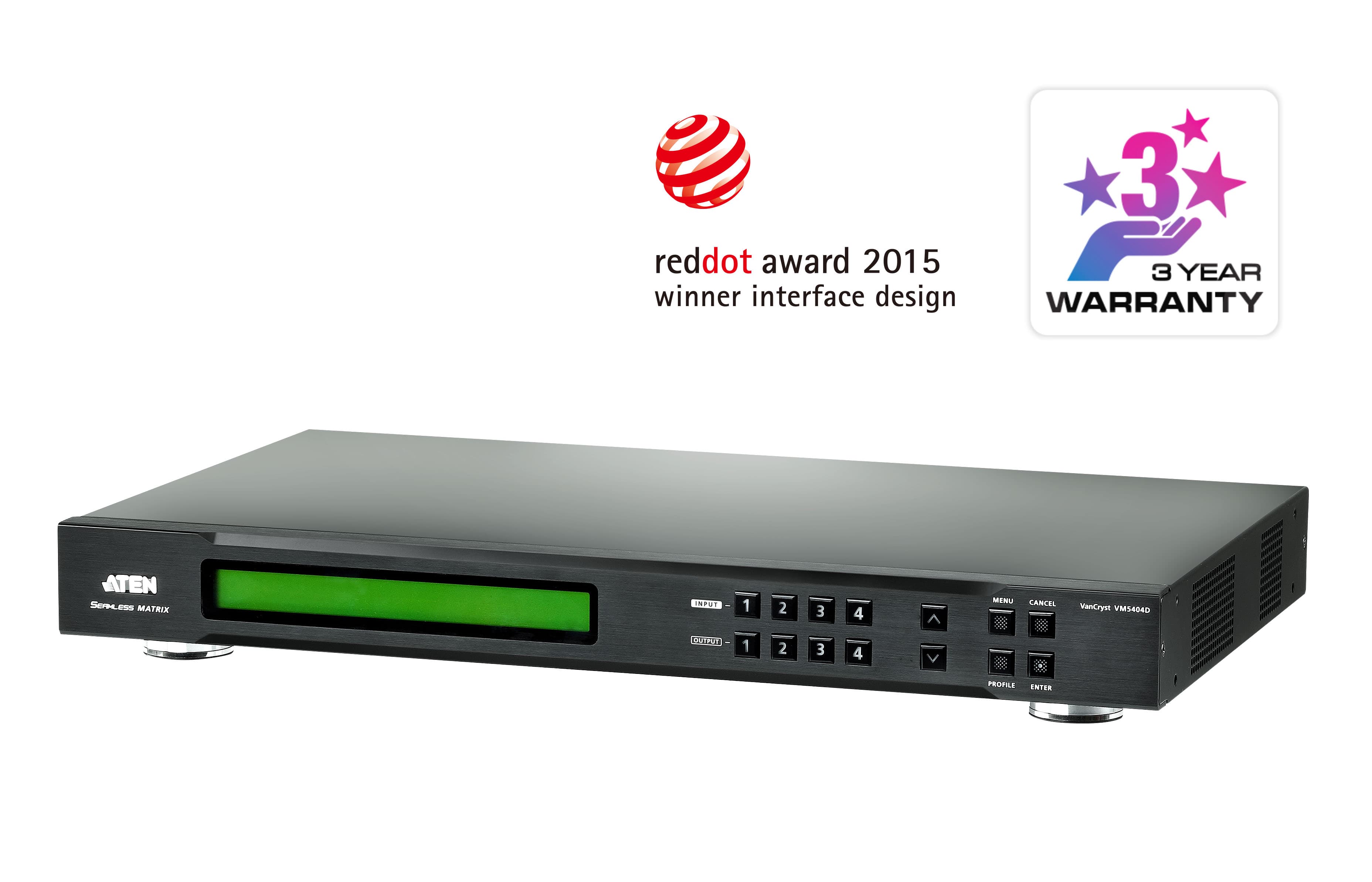

4 x 4 DVI Matrix Switch with Scaler
VM5404DСнет от производство
Матричен превключвател 4x4 за DVI със скалер, предназначен за контролни центрове. Управлява се с бутони на предния панел, IR дистанционно или през приложението ATEN Video Matrix Control.
Характеристики
- 4 x 4 DVI I/O connections
- Configuration and Control via pushbuttons / IR Remote Control
- View and control via ATEN Video Matrix Control App in a swift and agile way
- System Operation via bi-directional RS-232 serial controller / Browser Graphical User Interface (GUI) / Telnet
- Extends IR transmission via IR extension cable
- Built-in Scaler on each output port converts input resolutions into the display’s native resolution, supports scaling 1920 x 1200 resolutions up or down
- Seamless Switch™ – ATEN FPGA design unifies video formats to provide continuous video streams, real-time switching and stable signal transmissions *
- Video Wall – features up to 8 video wall profiles for custom screen layouts via point-n-click web GUI *
- EDID Expert – configures optimum EDID settings for smooth power-up, high-quality display and use of the best resolution across different screen
- Firmware Upgradeable
- Rack Mountable (1U Design) Note: 1. If Seamless Switch is enabled, the video output will not display 3D, Deep Color, or interlace (i.e., 1080i) resolution features. To use these features, you must disable Seamless Switch. 2. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.
Видео вход
- Интерфейси
- 4 x DVI-D Female (White)
- Импеданс
- 100 Ω
- Макс. разстояние
- 1.8 m
Видео изход
- Интерфейси
- 4 x DVI-D Female (White)
- Импеданс
- 100 Ω
Видео
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDCP 1.4 Compatible
- Макс. резолюция
- Up to 1920 x 1200
- Макс. разстояние
- Up to 5m
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bit: 1, Parity: No, Flow Control: No
- IR
- 1 x Mini Stereo Jack Female (Black)
- Ethernet
- 1 x RJ-45 Female (Black)
- EDID настройки
- EDID Mode: Default / Port 1/ Remix / Customized
Конектори
- Захранване
- 1 x 3-Prong AC Socket
Захранване
- Макс. входна мощност
- 100-240VAC; 50-60Hz; 1.0A
- Консумация
- AC110V:34.1W:160BTU/h AC220V:34.4W:161BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 3.50 kg ( 7.71 lb )
- Размери (Д x Ш x В)
- 43.24 x 25.98 x 4.40 cm (17.02 x 10.23 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
