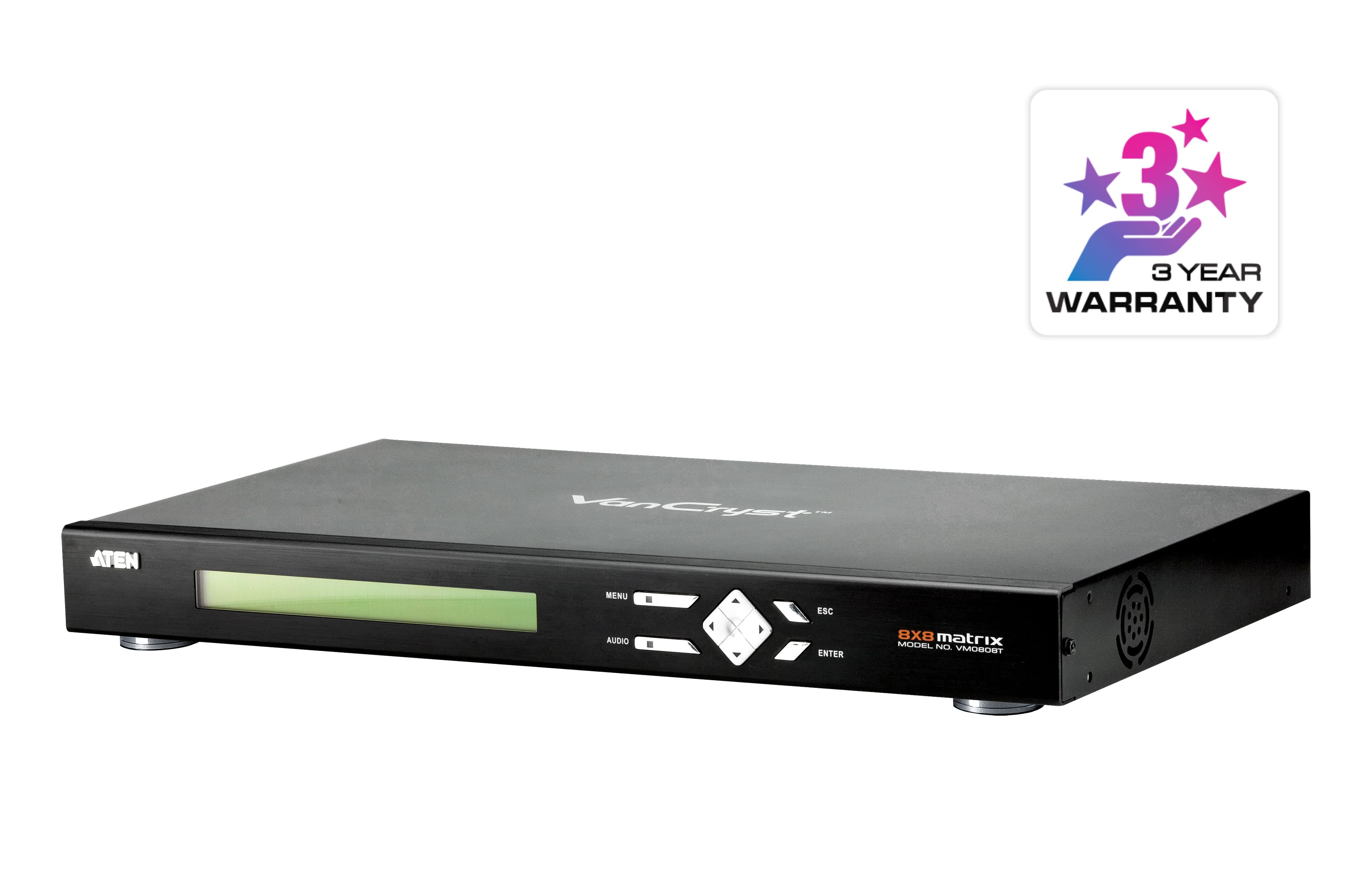

8x8 Cat 5 VGA/Audio Matrix Switch
VM0808TСнет от производство
Матричен превключвател 8x8 за VGA и аудио по Cat 5, използва се с удължителите VE500/VE300. Пренася сигнала до 300 m при разделителна способност до 1920 x 1200.
Характеристики

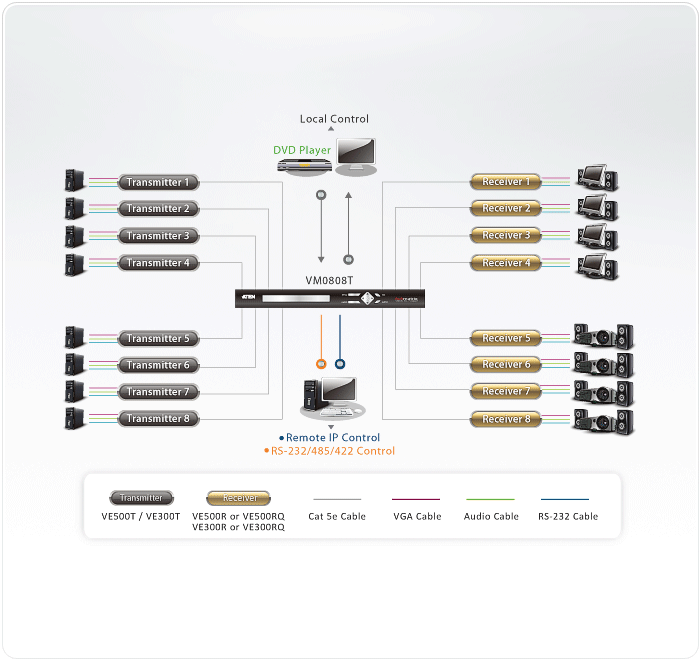

- Connects any of 8 Cat 5 A/V inputs to any of 8 Cat 5 A/V outputs in combination with ATEN VE500/VE300 A/V Over Cat 5 Extender system
- Long signal range – supports up to 300 meters between VE500T/VE300T transmitters and VE500R/VE500RQ/ VE300R/VE300RQ receivers
- Easily switch between multiple sources and multiple displays

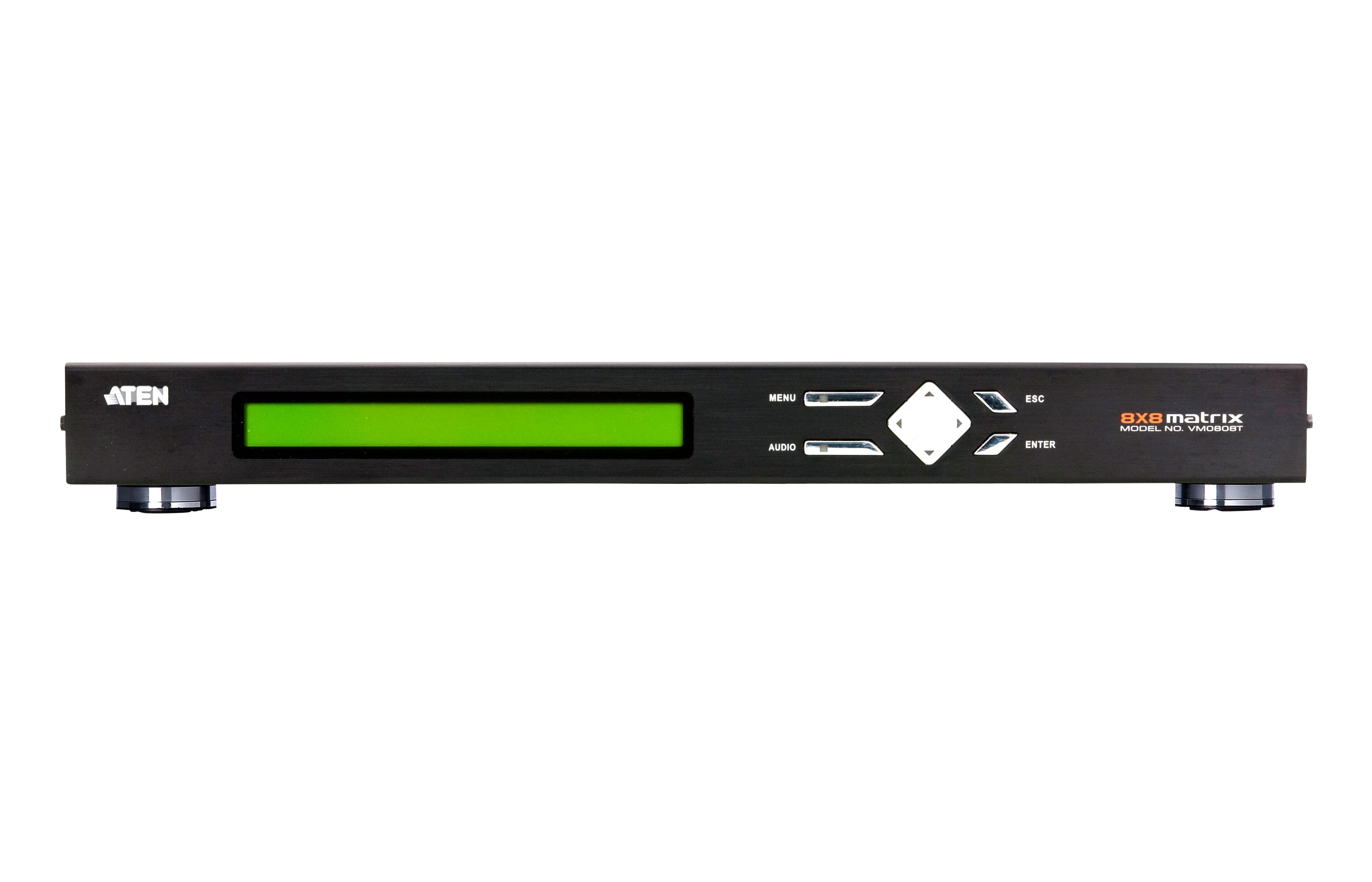

- Local Operation: • Front panel LCD display and pushbuttons • Serial controller
- Remote Operation: • Browser Graphical User Interface (GUI) • Telnet
- Supports additional local input and local display – provides an extra input / output source
- Built-in bi-directional RS-232 serial port for high-end system control
- Supports Video Quality – up to 1920 x 1200@60Hz; DDC2B
- Supports stereo and balanced audio
- Automatic and adjustable video and audio quality
- Independent switching of audio and video sources – any audio source can be connected to any video source for output flexibility
- Firmware upgradeable
- Rack Mountable * Note: The VM0808T AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

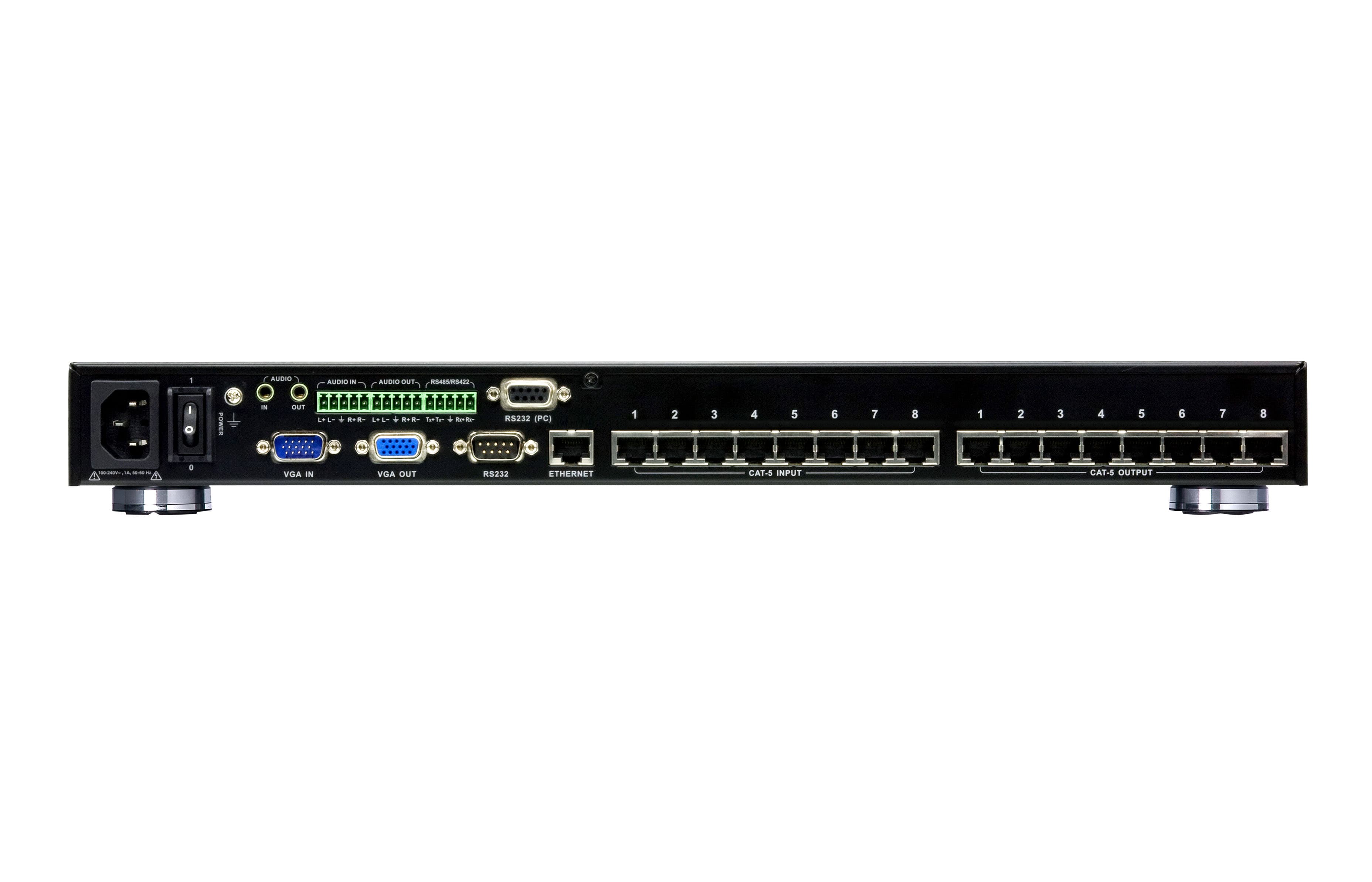

Видео вход
- Интерфейси
- 8 x RJ-45 Female
- Импеданс
- 100 Ω
Видео изход
- Интерфейси
- 8 x RJ-45 Female
- Импеданс
- 100 Ω
Видео
- Макс. честотна лента
- 500 MHz
- Макс. резолюция
- Up to 1920 x 1200 (Depends on connected receiver)
- Макс. разстояние
- Up to 300 m (Depends on connected receiver) *The maximum transmission distance between the transmitter and the receiver is 300 m.
Аудио
- Вход
- Balanced: 1 x Captive Screw Connector, 5 Pole Stereo: 1 x Mini Stereo Jack Female (Green)
- Изход
- Balanced: 1 x Captive Screw Connector, 5 Pole Stereo: 1 x Mini Stereo Jack Female (Green)
Управление
- RS-232
- Connector:1 x DB-9 Female (Black); 1 x DB-9 Male (Black) Serial Control Pin Configurations: Male: Pin2 = Rx, Pin 3 = Tx, Pin 5 = Gnd Female: Pin2 = Tx, Pin 3 = Rx, Pin 5 = Gnd Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, Parity: No, Flow Control: No
- RS-485/RS-422
- Connector: 1 x Captive Screw Connector, 5 Pole
- Ethernet
- 1 x RJ-45 Female
Конектори
- Захранване
- 1 x 3-prong AC socket
Захранване
- Макс. входна мощност
- 100-240 VAC~:50-60 Hz; 1.0A
- Консумация
- AC110V:14.4W:68BTU/h AC220V:15.4W:68BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 3.50 kg ( 7.71 lb )
- Размери (Д x Ш x В)
- 43.24 x 26.30 x 4.40 cm (17.02 x 10.35 x 1.73 in.)
- Брой в кашон
- 1 pc
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
