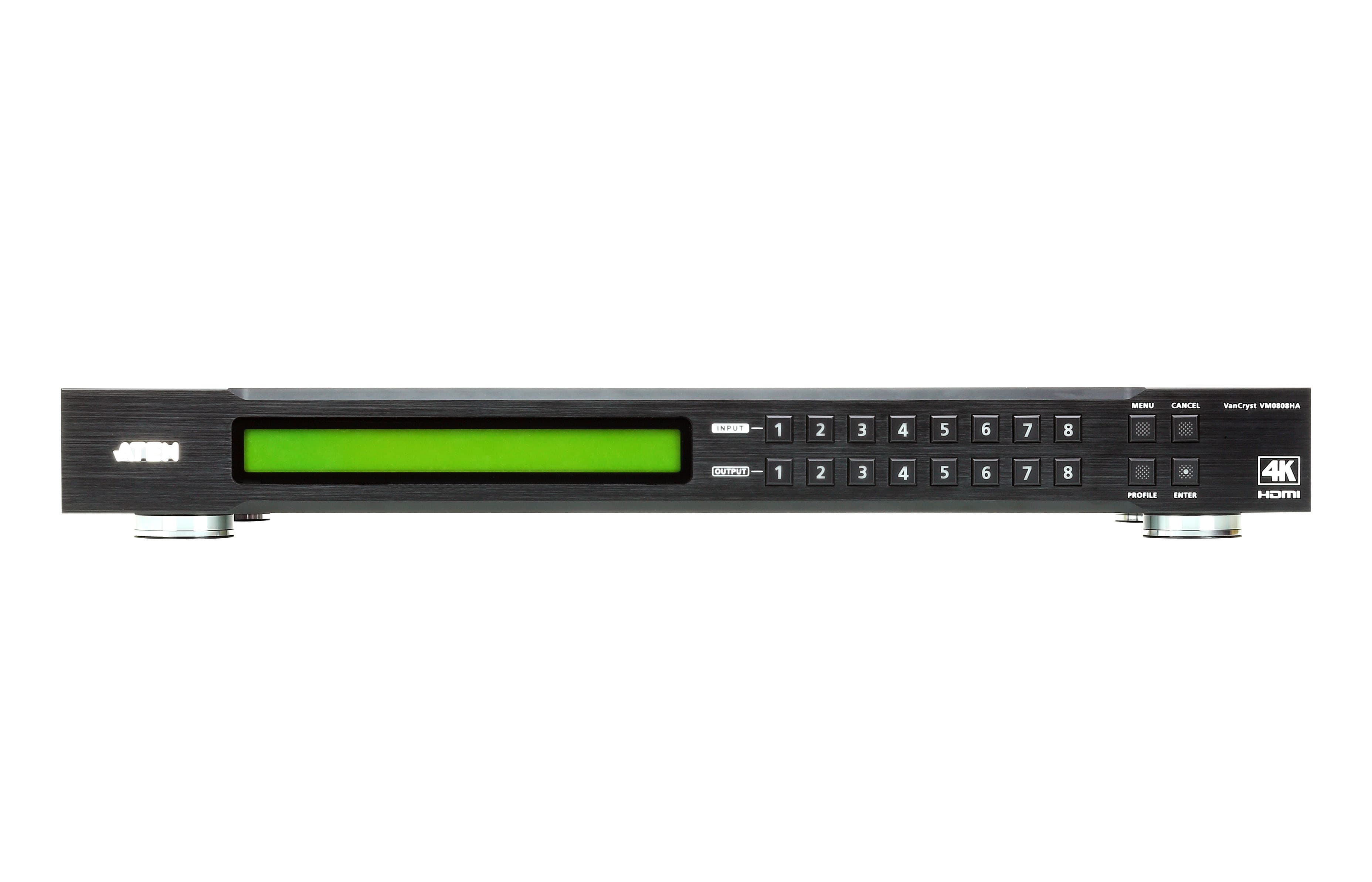

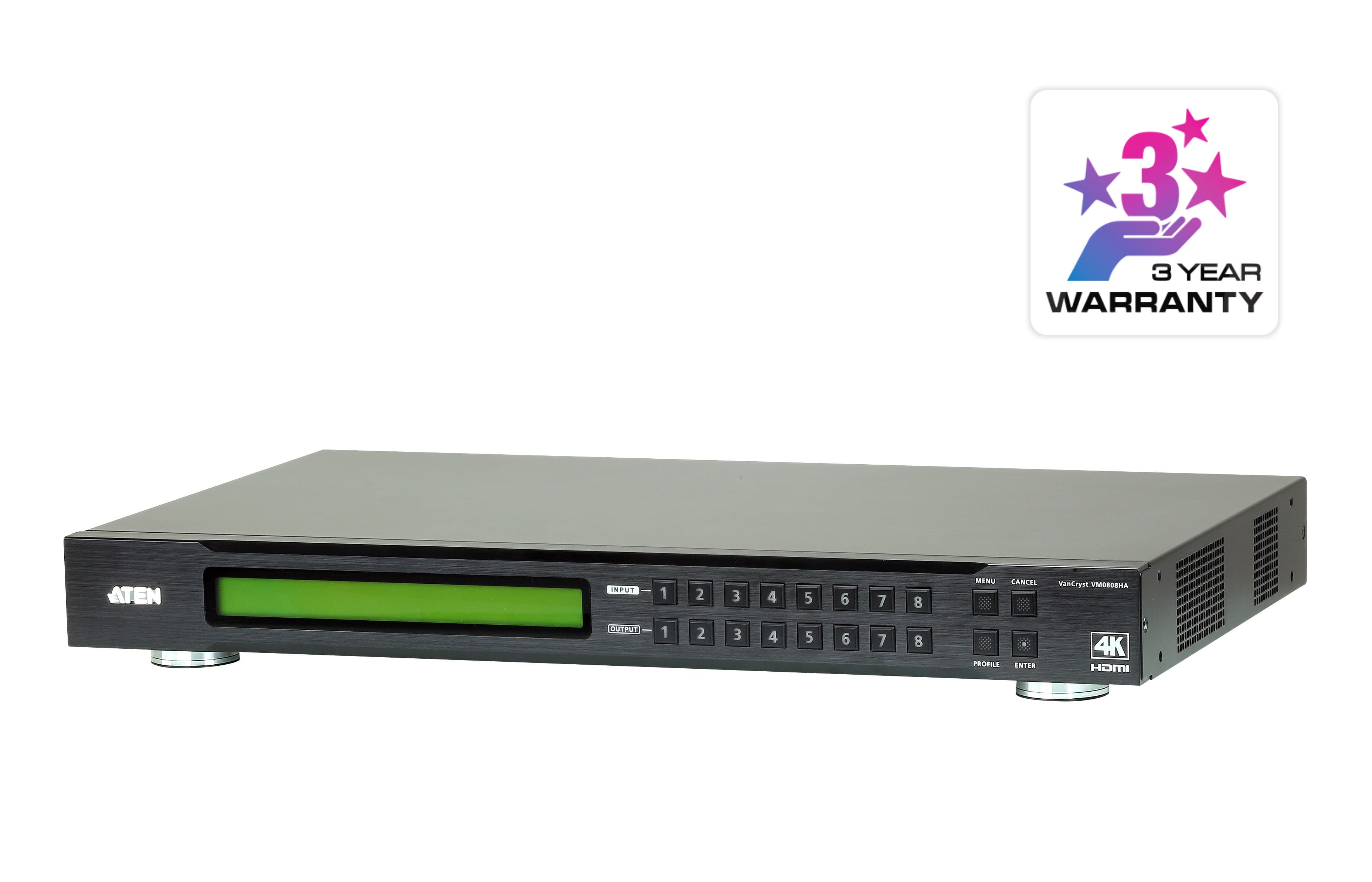

8x8 4K HDMI Matrix Switch
VM0808HAСнет от производство
Матричен комутатор, който подава всеки от 8 HDMI източника към всеки от 8 дисплея при 4K до 4096x2160. Управлява се от преден панел, IR дистанционно, RS-232 и Ethernet, а EDID Expert съгласува резолюциите.
Характеристики
- Connects any of 8 HDMI sources to any of 8 HDMI displays
- Supports 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
- EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens

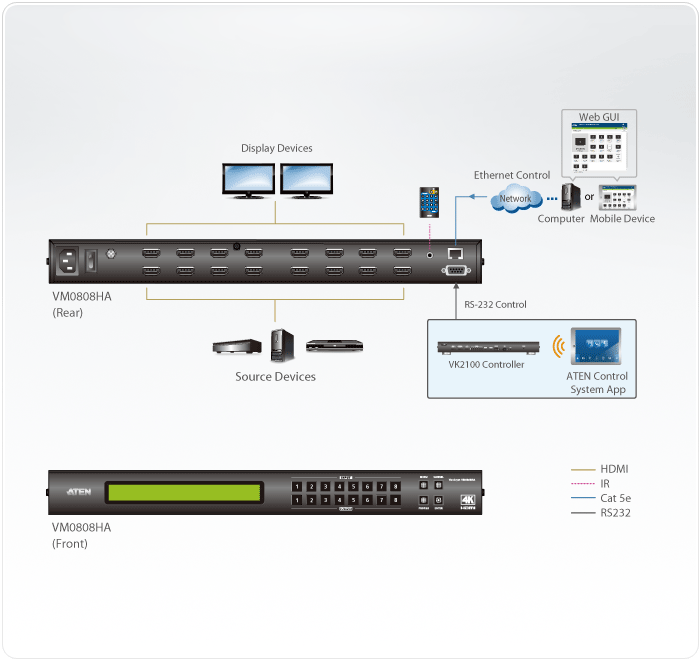

- Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Ethernet connections (Web GUI)
- View and control via ATEN Video Matrix Control App in a swift and agile way
- Supports Dolby True HD and DTS HD Master audio
- Signaling rates up to 3.4 Gbits for flawless 4K output
- HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
- Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections
- ESD protection for HDMI
- Firmware upgradeable
- Rack Mountable (1U design)
Видео вход
- Интерфейси
- 8 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 5 m
Видео изход
- Интерфейси
- 8 x HDMI Type A Female (Black)
- Макс. разстояние
- 15 m
- Импеданс
- 100 Ω
Видео
- Макс. пикселна честота
- 340 MHz
- Макс. резолюция
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
- Макс. скорост на данните
- 10.2 Gbps (3.4 Gbps Per Lane)
- Съответствие
- HDMI (3D, 4K, Deep Color) HDCP 2.2 Compatible Consumer Electronics Control (CEC)
- Макс. разстояние
- Up to 15 m
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- IR
- 1 x Mini Stereo Jack Female (Black)
- Ethernet
- 1 x RJ-45 Female
- EDID настройки
- EDID Mode: Default / Port 1 / Remix / Customized (EDID Wizard Support)
Работна среда
- Работна температура
- 0-40°C
- Влажност
- 0 - 80% RH, Non-Condensing
- Температура на съхранение
- -20 - 60°C
Физически характеристики
- Тегло
- 3.86 kg ( 8.5 lb )
- Корпус
- Metal
- Размери (Д x Ш x В)
- 43.24 x 26.23 x 4.40 cm (17.02 x 10.33 x 1.73 in.)

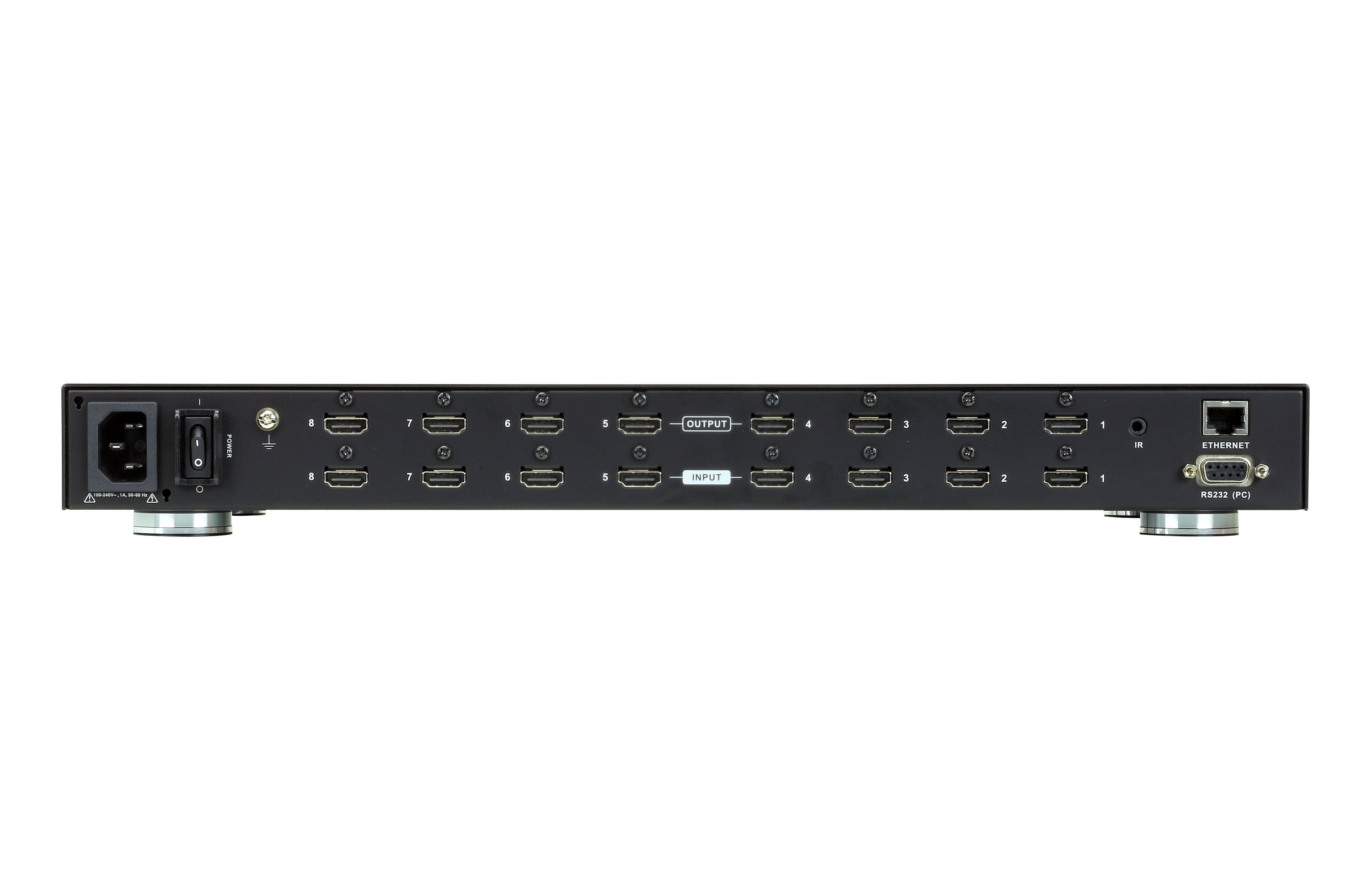

Конектори
- Захранване
- 1 x 3-Prong AC Socket
- Брой в кашон
- 1 pc
- Консумация
- AC110V:24W:113BTU/h AC220V:24.4W:114BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Захранване
- Макс. входна мощност
- 100-240 VAC; 50-60 Hz; 1.0A
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
Подобни продукти
2L-7D01H
1 m High Speed HDMI™ Cable with Ethernet (True 4K)
2L-7D02H-1
2 m High Speed HDMI™ Cable with Ethernet (True 4K)
2L-7D03H
3 m High Speed HDMI™ Cable with Ethernet (True 4K)
2L-7D05H
5m High Speed HDMI™ Cable with Ethernet
2L-7D05H-1
5 m High Speed HDMI™ Cable with Ethernet (True 4K)
2L-7D10H
10 m High Speed HDMI™ Cable with Ethernet
2L-7D15H
15 m High Speed HDMI™ Cable with Ethernet
2L-7D20H
20 m High Speed HDMI™ Cable with Ethernet
2L-7DA3H
0.3 m High Speed HDMI™ Cable with Ethernet (True 4K)
2L-7DA6H
0.6 m High Speed HDMI™ Cable with Ethernet (True 4K)
ATEN UNIZON

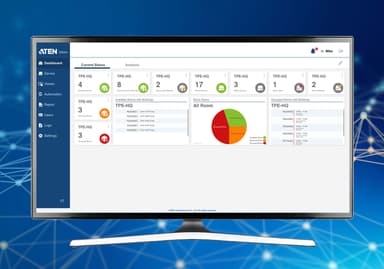

Global AV Management Platform
