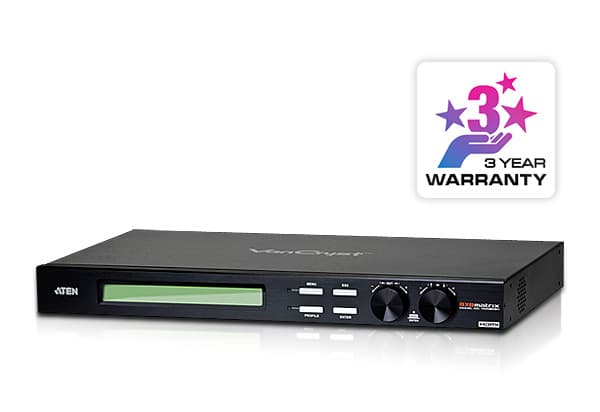

8x8 HDMI Matrix Switch
VM0808HСнет от производство
Матричен HDMI превключвател 8x8 — насочва всеки от 8 източника към всеки от 8 дисплея; предаване до 20 m, съвместим с HDCP и 3D.
Характеристики

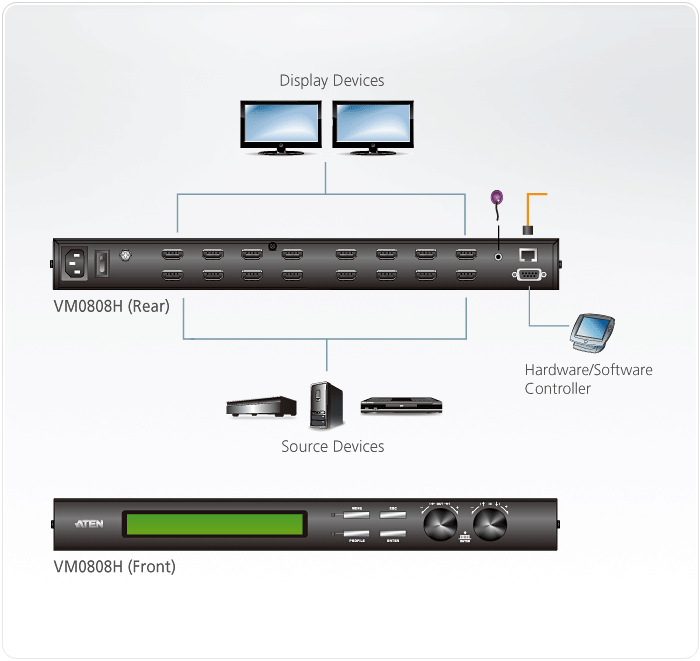

- Connects any of 8 HDMI sources to any of 8 HDMI displays
- Long Distance Transmission – supports up to 20 meters (24 AWG)
- HDMI (3D, Deep Color) and HDCP compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- Easily switch between multiple sources and multiple displays
- Front Panel Configuration: • Front panel LCD display • Tuner Dials and Pushbuttons • IR Remote Control
- System Operation: • Serial controller • Browser Graphical User Interface (GUI)
- Superior video quality – HDTV resolution of 480p, 720p, 1080i, and 1080p (1920 x 1080), VGA, SVGA, SXGA, UXGA and WUXGA (1920 x 1200)
- Features EDID Expert technology: • EDID Library with 14 default EDID configurations • Built-in EDID Mode selection • Copies a display's EDID to selected source devices
- ESD protection for HDMI
- Supports Dolby True HD and DTS HD Master audio
- Signaling rates up to 2.25 Gbits in support of 1080p display
- Feature EDID Expert technology to set up different confi gurations via different EDID modes
- Power on Detection – If an HDMI sources is powered off, the VM0808H can automatically switch to the next powered-on source
- Firmware upgradeable
- Rack Mountable * Note: The VM0808H AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

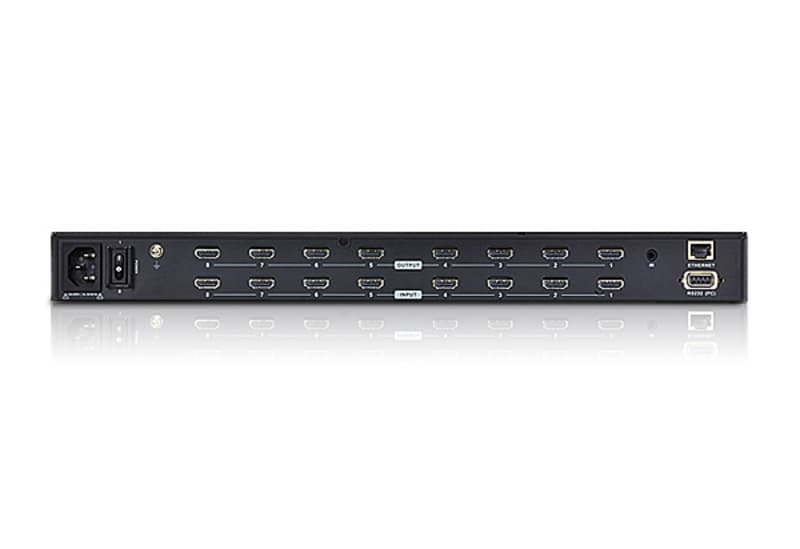

Видео вход
- Интерфейси
- 8 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 1.8 m
Видео изход
- Интерфейси
- 8 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 15 m
Видео
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC)
- Макс. резолюция
- Up to 1080p
- Макс. разстояние
- Up to 15 m
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- IR
- 1 x Mini Stereo Jack Female (Black)
- EDID настройки
- EDID Mode: Default / Port1 / Remix
Конектори
- Захранване
- 1 x 3-Prong AC Socket
Захранване
- Макс. входна мощност
- 100-240 VAC; 50-60 Hz; 1.0A
- Консумация
- 120 VAC, 32W; 230 VAC, 34W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 4.01 kg ( 8.83 lb )
- Размери (Д x Ш x В)
- 43.24 x 27.12 x 4.40 cm (17.02 x 10.68 x 1.73 in.)
- Брой в кашон
- 1 pc
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
