8x8 VGA/Audio Matrix Switch
VM0808Снет от производство

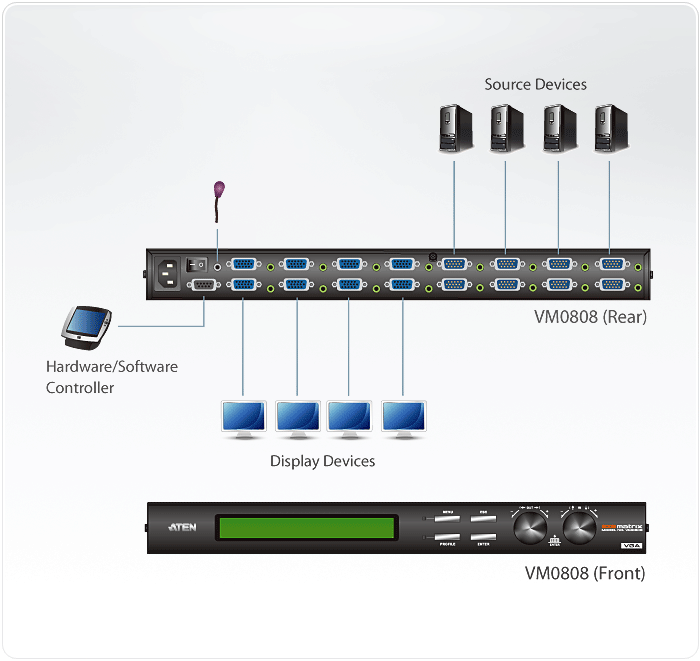

Матричен превключвател 8x8 за VGA и аудио — комутира осем източника към осем монитора или проектора едновременно, с обхват на сигнала до 30 m.
Характеристики
- Connects any of 8 VGA Video+Audio inputs to any of 8 VGA Video+ Audio outputs
- Long signal range – supports up to 30 meters
- Easily switch between multiple sources and multiple displays
- Easy Operation: 1. Front panel LCD display, Tuner Dials and pushbuttons 2. Profile pushbutton for fast switching 3. RS-232 Serial controller * 4. IR Remote Control
- Superior video quality – up to 1920 x 1440; VGA, SVGA, SXGA, UXGA, and WUXGA (1920 x 1200)
- Features EDID expert technology to set up different video configurations via different EDID modes
- Supports up to 500 MHz bandwidth
- Supports stereo audio
- Independent switching of audio and video sources – each input can be independently connected to any or all outputs for flexibility
- Power On Detection – If one of the video sources is powered off the VM0808 automatically switches to the next powered-on source
- Cascade additional VM0808 units up to three levels
- Rack Mountable
- All metal casing * Note: The VM0808 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
Видео вход
- Интерфейси
- 8 x HDB-15 Male (Blue)
- Импеданс
- 75 Ω
- Макс. разстояние
- 1.8 m
Видео изход
- Интерфейси
- 8 x HDB-15 Female (Blue)
- Импеданс
- 75 Ω
- Макс. разстояние
- 30 m
Видео
- Макс. честотна лента
- 500 MHz
- Макс. резолюция
- Up to 1920 x 1440
- Макс. разстояние
- Up to 30 m
Аудио
- Вход
- 8 x Mini Stereo Jack Female (Green)
- Изход
- 8 x Mini Stereo Jack Female (Green)
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- IR
- 1 x Mini Stereo Jack Female (Black)
- EDID настройки
- EDID Mode: Default / Port1 / Remix / Auto
Конектори
- Захранване
- 1 x 3-Prong AC Socket
- Консумация
- AC110V:9.2W:43BTU/h AC220V:8.7W:41BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 2.48 kg ( 5.46 lb )
- Размери (Д x Ш x В)
- 43.72 x 16.78 x 4.40 cm (17.21 x 6.61 x 1.73 in.)
- Брой в кашон
- 1 pc
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
