Приемник за HDMI видео по IP при 1080p@60Hz, до 100 m по Cat 5e/6 точка-точка. Двата RJ-45 порта позволяват верижно свързване при разпределяне на сигнала към много дисплеи.
Характеристики
- Delivers visually lossless high-quality video up to 1080p @ 60 Hz
- Ensures stunning quality video using ATEN advanced video lossless compression technology
- EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
- Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage
- Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations
- Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications
- Mix and match the latest 4K displays and 1080p screens. The built-in scaler automatically scales up incoming video signal to match the maximum resolution of the connected display devices*
- Integrated solution – Compatible with ATEN Control System, allowing users to directly operate VE8900R via CLI Telnet or RS-232 protocol
- Effortless operation – One click to effectively operate VE Manager, TV, projector, source player, and related equipments via touch panel and keypad
- Offers an user-friendly scheduling management function for users to pre-plan the display schedule
- Provides robust and intuitive scheduling management options to help users to manage all events in the calendar to as detailed as to setting events to minute intervals
- Integrates all VE89 units to arrange the profile by grouping individual receiver or video wall
- Multiple profiles can be arranged to play in any order over a selected period of time
- Simple configuration that requires no extensive IT experience or extra learning
- Effortlessly switches among input sources via top panel pushbuttons
- Simple Access – Without typing IP address on Chrome browser, users are allowed to directly link to VE Manager via one click on “Find My VE” Chrome based free tool
- Connects multiple displays through a single port to utilize every port of the network switch and maximize their value
- Easily expandable – cabling and system deployment is easy with no huge network switches and fewer cables needed
- Perfect for large-scale deployment covering hundreds of meters, such as hotel facilities, airports, university campuses, stations, shopping malls, and exhibition centers * Depending on your network architecture, we recommend daisy chaining up to 30 units. Please contact ATEN representatives for more details.
- Supports up to 8 x 8 video wall (64 displays)*
- Supports horizontal or vertical (90° and 270° rotation) display orientation
- Easily switches layout profiles, preview and drag-and-drop video sources via the intuitive web GUI *Depends on your network architecture, please contact ATEN representatives for more details.
- audio stream can be extracted from the HDMI stream and delivered as a separate audio signal
- Multiple control methods – the system can be managed via Ethernet or top-panel pushbuttons
- USB Connectivity – USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, flash drive, printer, and other USB peripherals*
- Bi-directional IR Channel – IR transmission is processed one way at a time
- RS-232 Channel – bi-directional RS-232 serial port allows for connection of peripherals such as touch screens and bar code scanners Note: *Each VE8900T transmitter can be controlled by a total of 4 USB touch screens installed to VE8900R receivers. Please refer to the FAQ link below on how to select network switches and network switch information collected by ATEN Customer Service Division, where the collected information includes customer's feedback from their actual experience in using and installing the product(s). https://eservice.aten.com/eServiceCx/Common/FAQ/view.do?id=6276
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 3 m (2L-7D03H)
Видео
- Макс. скорост на данните
- Average: 150 ~ 500Mbps
- Съответствие
- HDMI HDCP Compatible
- Макс. резолюция / разстояние
- Up to 1080p@100m (Cat 5e/6, point to point)

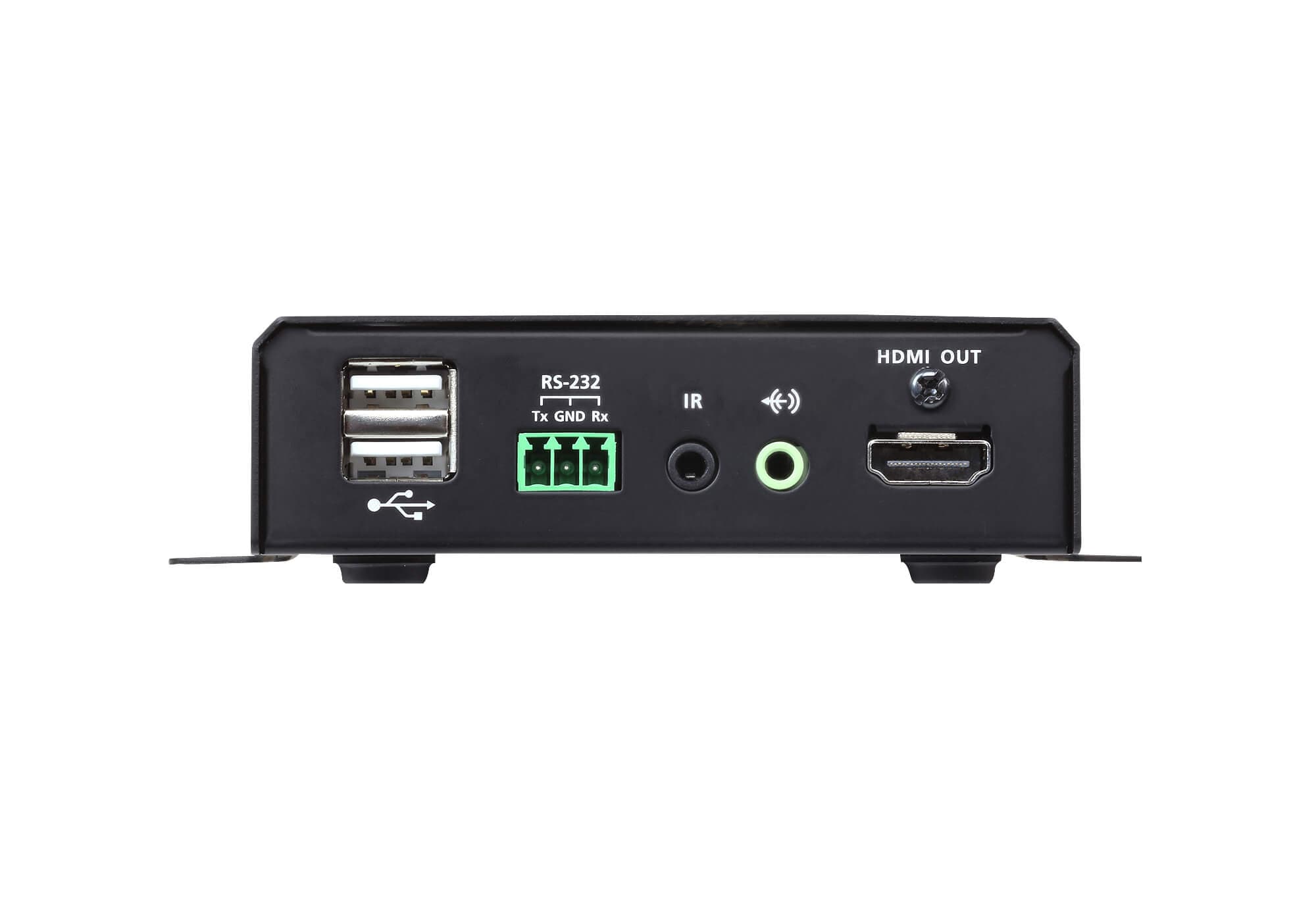

Аудио
- Изход
- 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green)

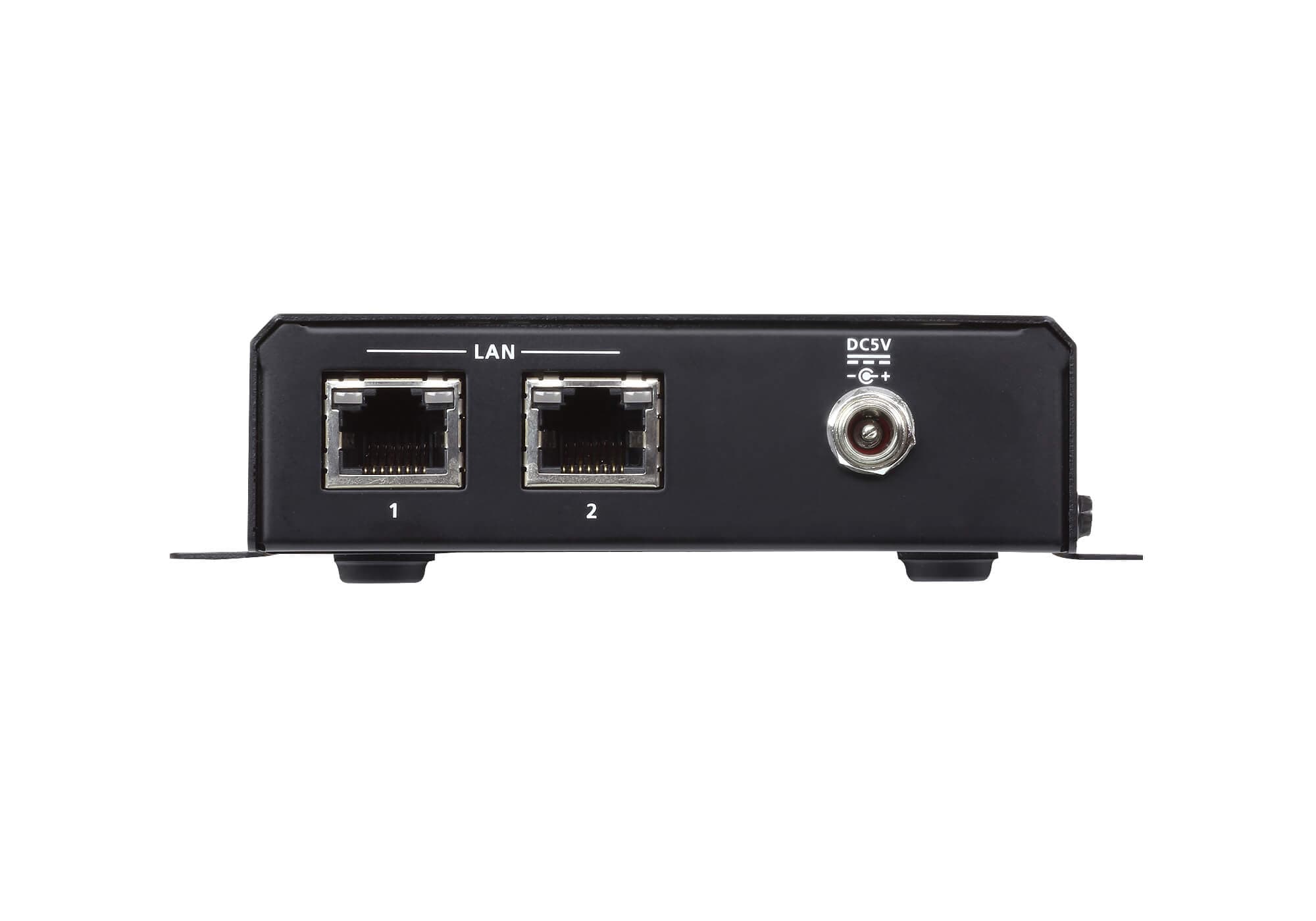

Конектори
- Между устройства
- 2 x RJ-45 Female
- Захранване
- 1 x DC Jack (Black) with locking
Управление
- IR
- 1 x Mini Stereo Jack Female (Black)
- RS-232
- Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
- USB
- 2 x USB Type A Female (Black)
Бутони
- Избор на ID номер
- 3 x Push buttons
- Консумация
- DC5V:4.28W:41BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.49 kg ( 1.08 lb )
- Размери (Д x Ш x В) със скоба
- 14.02 x 12.30 x 3.06 cm (5.52 x 4.84 x 1.2 in.)
- Размери (Д x Ш x В) без скоба
- 13.60 x 10.10 x 2.96 cm (5.35 x 3.98 x 1.17 in.)
- Входни резолюции
- 640x480p @ 59.94/60Hz (4:3)
- 720x480p @ 59.94/60/119.88/120/239.76/240Hz (4:3)/(16:9)
- 720x576p @ 50/200Hz (4:3)/(16:9)
- 1280x720p @ 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120 Hz (16:9)
- 720x576p @ 100Hz (16:9)
- 1280x720p @ 29.97/30/50/59.94/60/100/119.88/120Hz
- 1440x480p @ 59.94/60Hz (4:3)/(16:9)
- 1920x1080i @ 50/59.94/60/100/119.88/120Hz (16:9)
- 1440x576p @ 50Hz (4:3)/(16:9)
- 1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120Hz (16:9)
- (2880)x480p @ 59.94/60Hz (4:3)/(16:9)
- 720 (1440)x576i @ 50/100/200Hz (4:3)/(16:9)
- 1680x720p @ 23.98/24/25/29.97/30/50/ 59.94/ 60/100/119.88/120Hz
- 720 (1440)x480i @ 59.94/60Hz (4:3)/(16:9)
- 2560x1080p @ 23.98/ 24/25/29.97/30/50/59.94/60Hz
- 720 (1440)x288p @ 50Hz (4:3)/(16:9)
