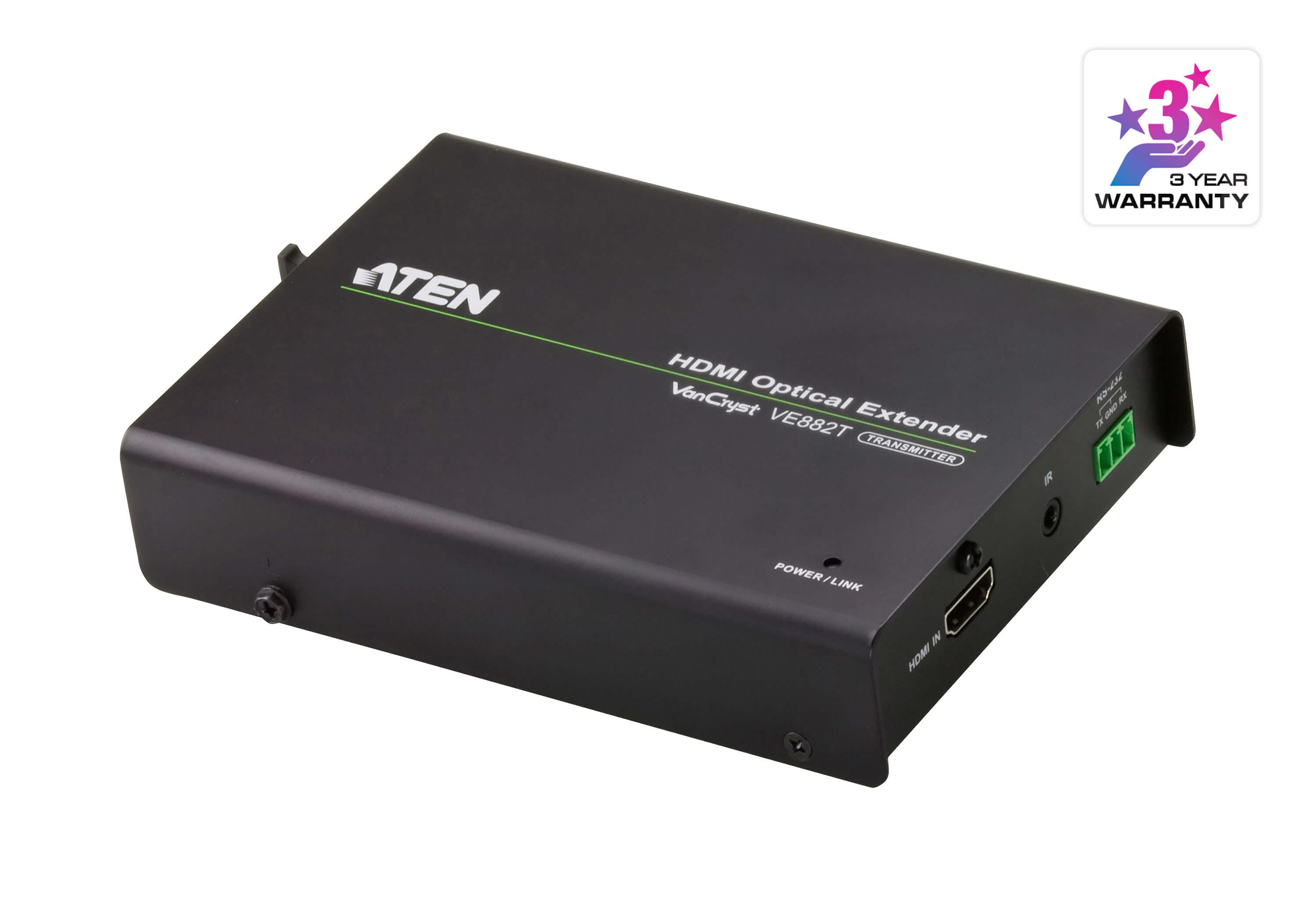

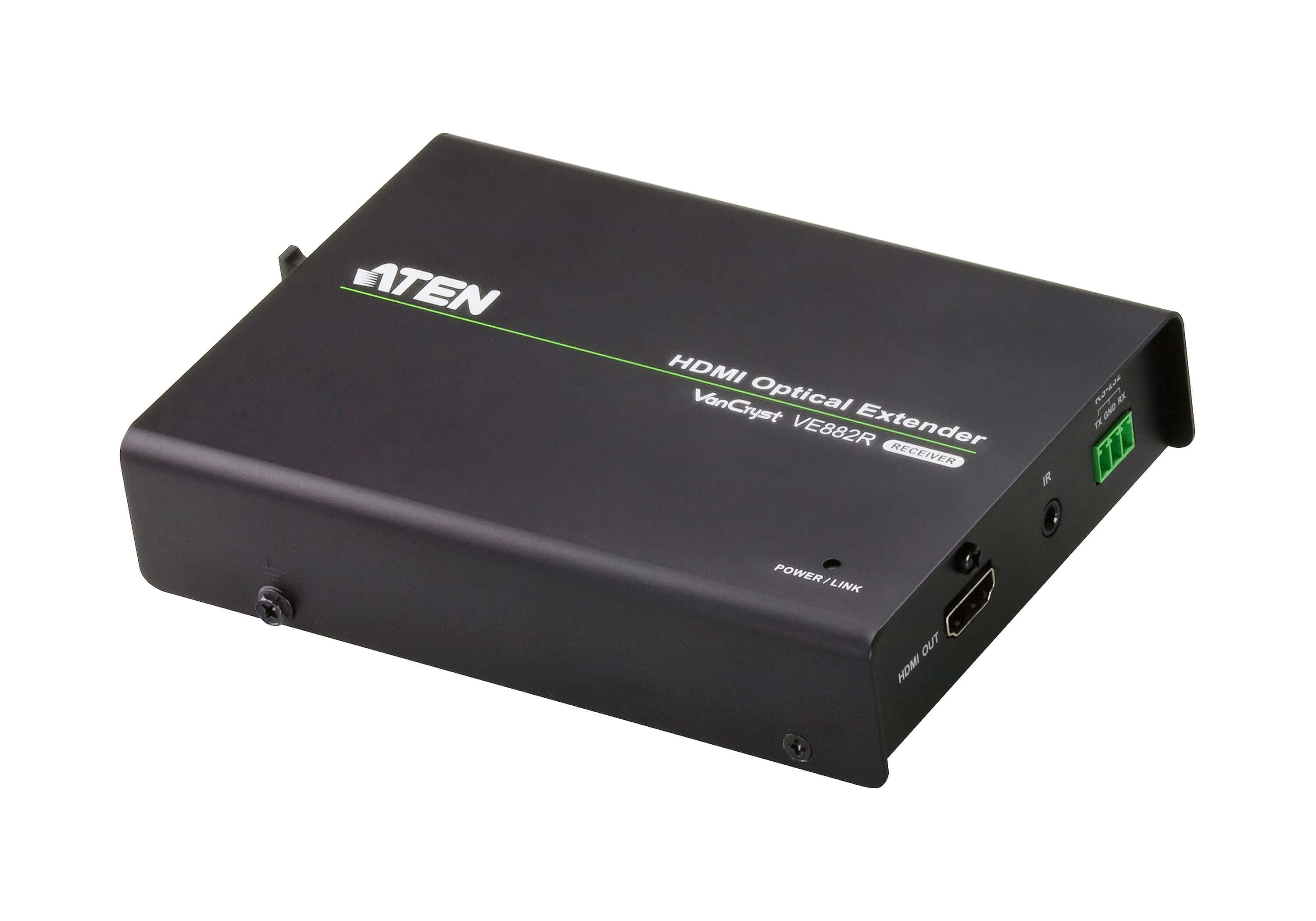

Оптичен HDMI удължител — пренася HDMI, IR и RS-232 по един оптичен кабел на разстояние до 600 m при 1080p. Поддържа 3D и Deep Color, HDCP съвместим.
Характеристики
- Extends the transmission range of HDMI, IR and RS-232 signals using one fiber optic cable
- Very long distance transmission – up to 600m
- HDMI (3D, Deep Color), HDCP compatible – signaling rates up to 3.125 Gbits
- Superior video quality – up to 1080p@60Hz
- Supports full frequency IR signal from 30KHz to 60KHz (The IR receiver cable included with the package only supports 30 KHz to 56 KHz)

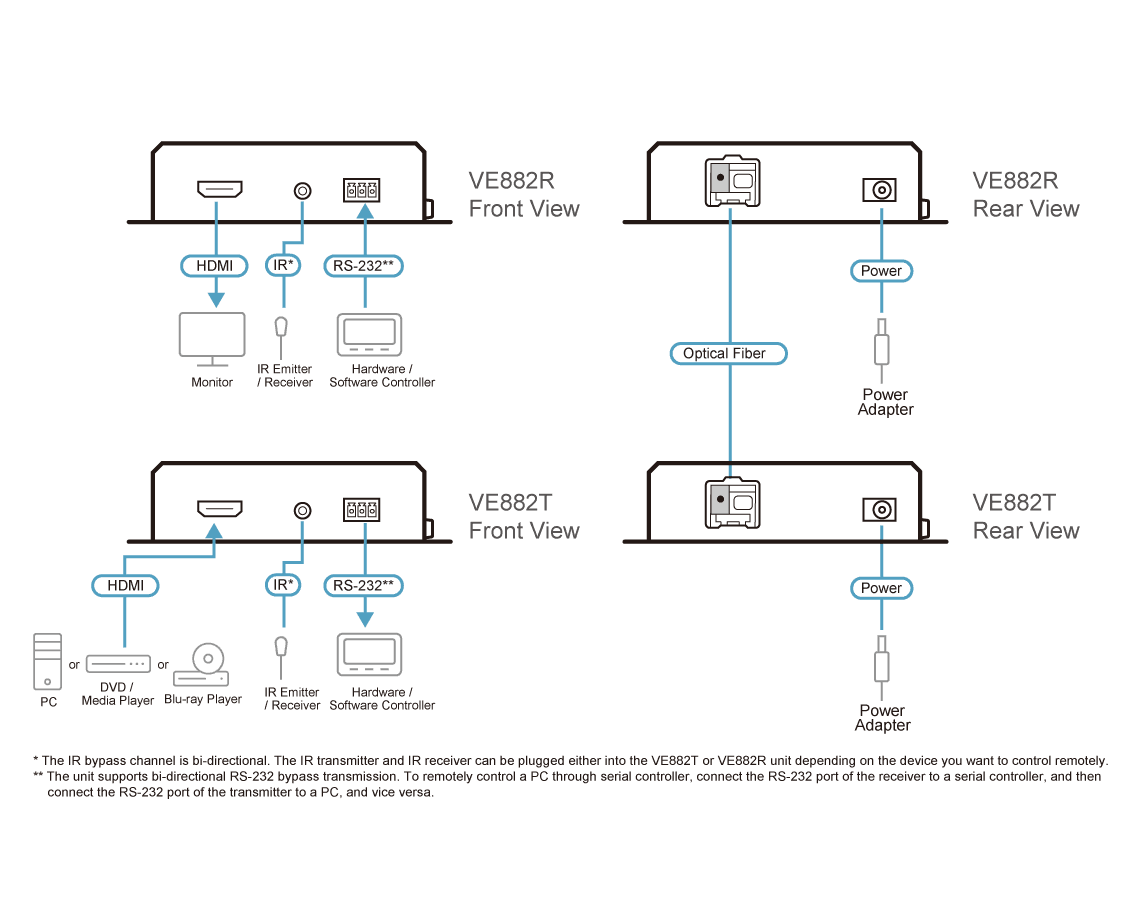

- Uses one fiber optic cable to connect the local and remote units
- Supports wide screen formats
- Built-in 8KV/15KV ESD protection
- Features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc.
- Supports bi-directional IR signal transmission, one way at a time
- Rack-mountable
- Hot-pluggable
Видео вход
- Интерфейси
- N/A
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- N/A
- Импеданс
- 100 Ω
- Макс. разстояние
- N/A
- Макс. разстояние
- 3 m
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Интерфейси
- N/A
- Импеданс
- 100 Ω
- Импеданс
- N/A
- Макс. разстояние
- 3 m
- Макс. разстояние
- N/A
Видео
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDMI (3D, Deep Color) HDCP 1.4 Compatible
- Съответствие
- HDMI (3D, Deep Color) HDCP 1.4 Compatible
- Макс. резолюция
- Up to 1080p
- Макс. резолюция
- Up to 1080p
- Макс. разстояние
- 1 x SFP Module (*Note) 600m @ Single mode (SM) fiber 300m @ OM3 Multi mode (MM) filber
- Макс. разстояние
- 1 x SFP Module (*Note) 600m @ Single mode (SM) fiber 300m @ OM3 Multi mode (MM) filber
Аудио
- Вход
- N/A
- Вход
- 1 x HDMI Type A Female (Black)
- Изход
- 1 x HDMI Type A Female (Black)
- Изход
- N/A

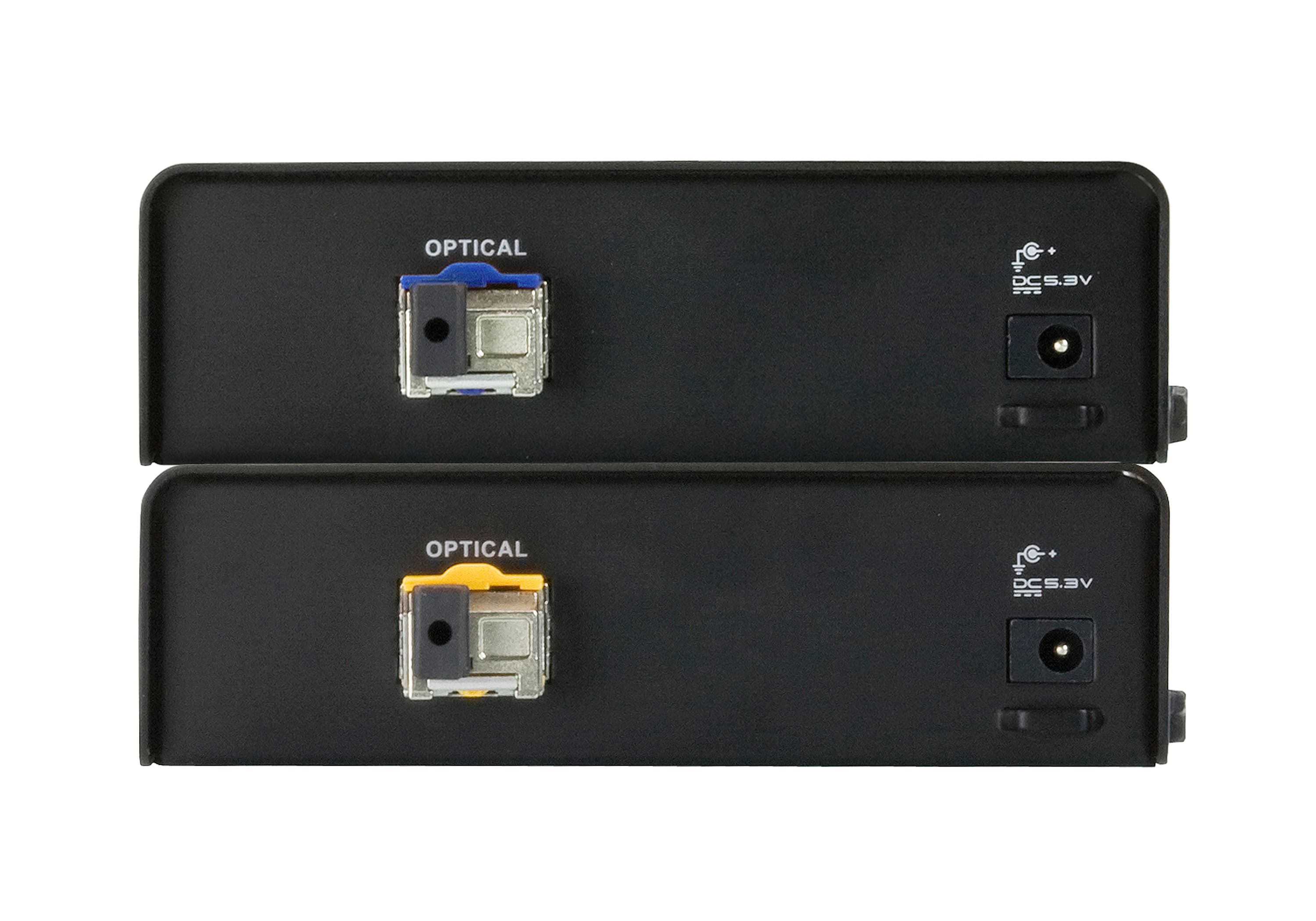

Конектори
- Между устройства
- 1 x bi-directional SFP (LC)
- Между устройства
- 1 x bi-directional SFP (LC)
- Захранване
- 1 x DC Jack
- Захранване
- 1 x DC Jack

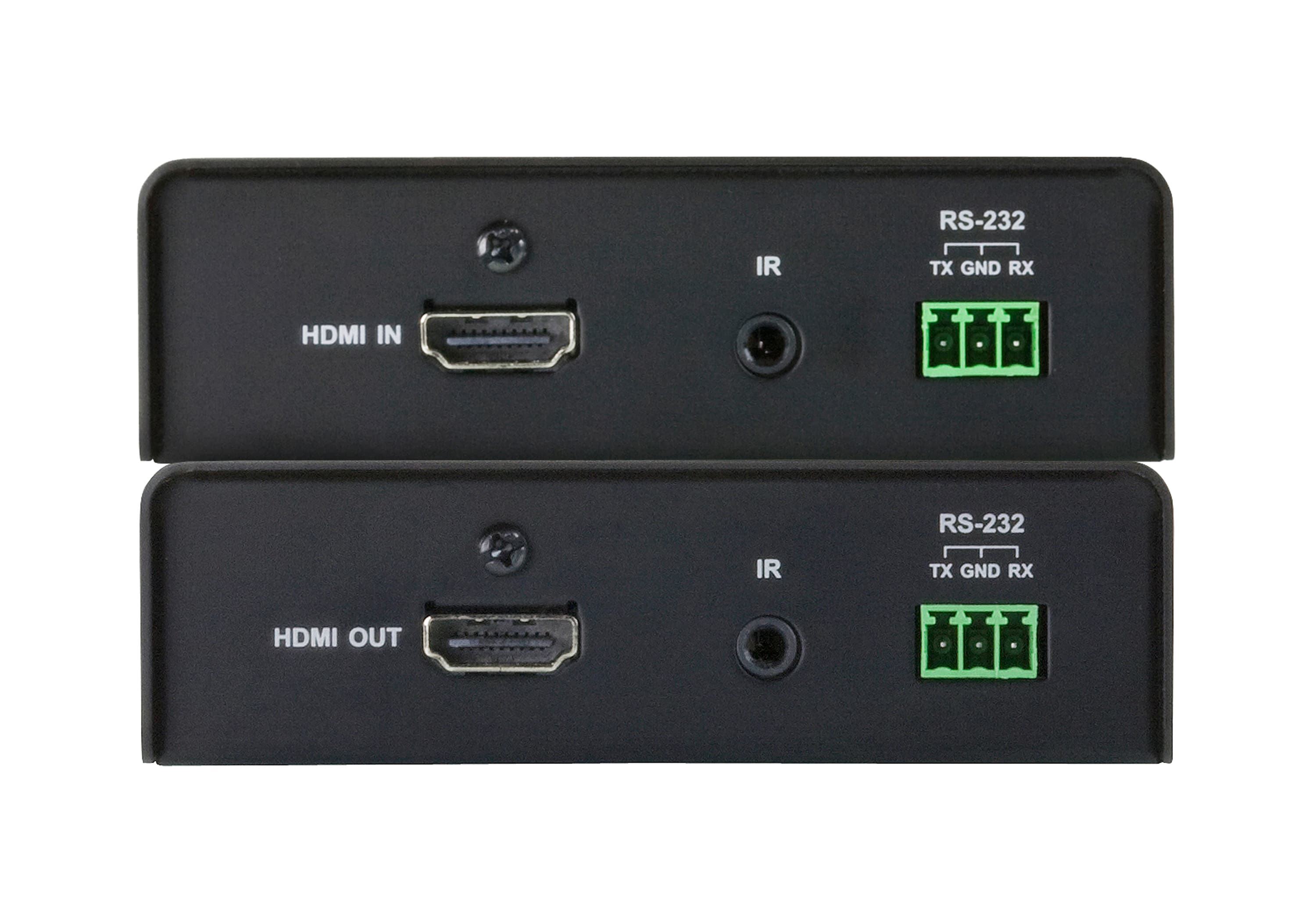

Управление
- IR канал
- 1 x Mini Stereo Jack Female (Black); 30~56 KHz full range transmission
- IR канал
- 1 x Mini Stereo Jack Female (Black); 30~56 KHz full range transmission
- RS-232 канал
- 1 x Terminal Block, 3 pole (Green)
- RS-232 канал
- 1 x Terminal Block, 3 pole (Green)
- Консумация
- DC5.3V:4.69W:22BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5.3V:5.80W:27BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Работна температура
- 0-40°C
- Температура на съхранение
- -20 - 60°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.44 kg ( 0.97 lb )
- Тегло
- 0.44 kg ( 0.97 lb )
- Размери (Д x Ш x В)
- 14.17 x 10.30 x 3.00 cm (5.58 x 4.06 x 1.18 in.)
- Размери (Д x Ш x В)
- 14.17 x 10.30 x 3.00 cm (5.58 x 4.06 x 1.18 in.)
- Брой в кашон
- 5 pcs
- Брой в кашон
- 5 pcs
- Забележка
- 1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fi ber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. 2. It is recommended that you use a Single Mode optical fi ber cable that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifi cations. 3. The VE882 supports OM3 optical fiber which can extend the transmission distance up to 300 meters
- Забележка
- 1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fi ber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. 2. It is recommended that you use a Single Mode optical fi ber cable that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifi cations. 3. The VE882 supports OM3 optical fiber which can extend the transmission distance up to 300 meters
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
- Входни резолюции
- 640 x 480 @ 60 Hz
- Входни резолюции
- 1366 x 768 @ 60 Hz
- 720 x 480 @ 60 Hz
- 1440 x 900 @ 60 Hz
- 800 x 600 @ 60 Hz
- 1600 x 1200 @ 60 Hz
- 1024 x 768 @ 60 Hz
- 1680 x 1050 @ 60 Hz
- 1280 x 720 @ 60 Hz
- 1920 x 1080 @ 50/60 Hz
- 1280 x 800 @ 60 Hz
- 1920 x 1200 @ 60 Hz
- 1280 x 1024 @ 60 Hz
