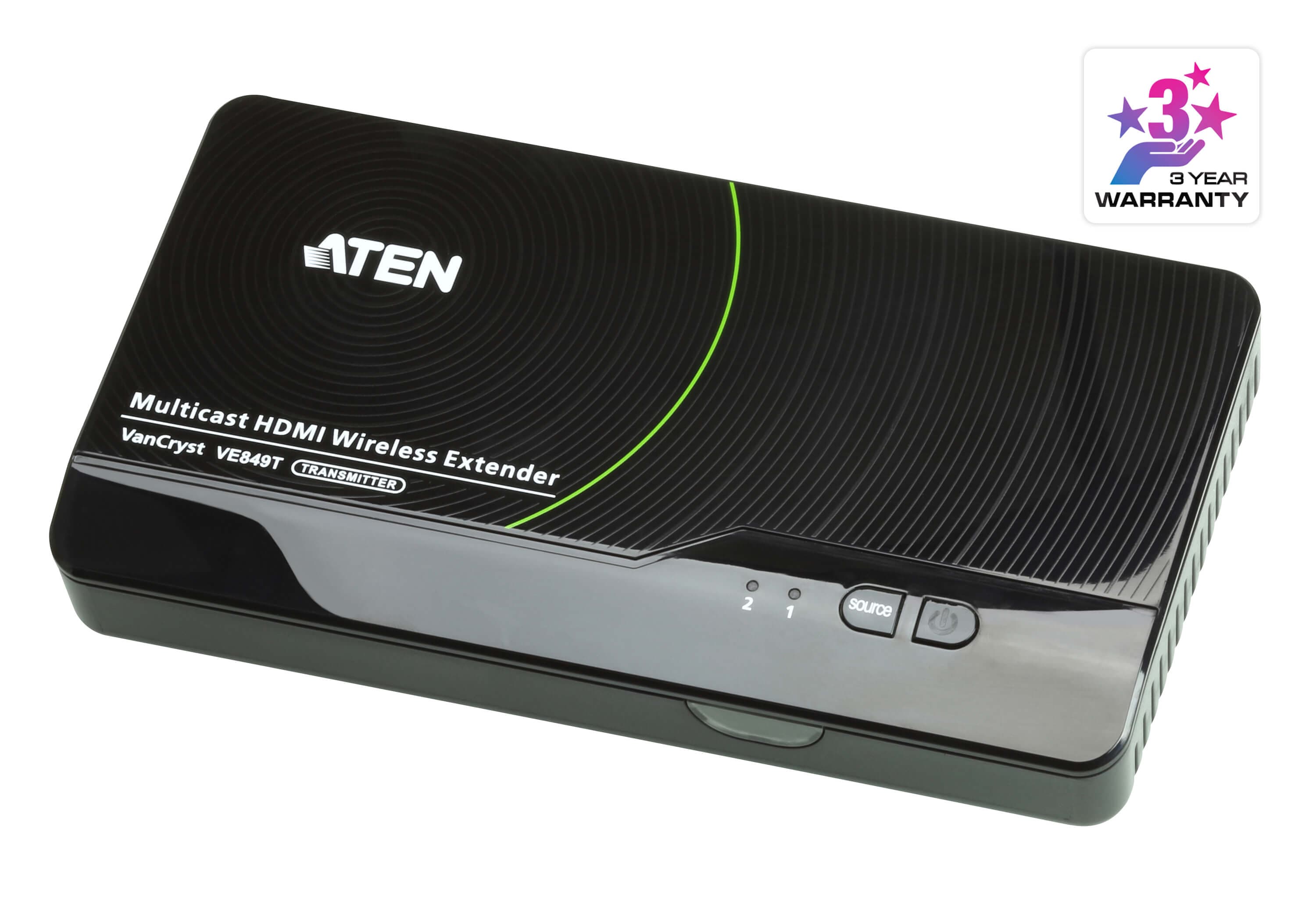

Multicast HDMI Wireless Transmitter (1080p@30m)
VE849TСнет от производство
Безжичен HDMI предавател за разстояния до 30 m при 1080p, работи с до 4 приемника VE849R. Има 2 HDMI входа и локален HDMI изход.
Характеристики
- Connect 2 HDMI inputs to 5 HDMI outputs (1 local + 4 remote) via wireless extension*
- Wirelessly extend four HDMI displays up to 30m* from the HDMI source
- Connect and transmit wireless video content from your Blu-ray DVD player, media players, or other HDMI device wirelessly
- Multicast signal - 1 transmitter streams HDMI transmissions to 4 receivers simultaneously
- Supports Dynamic Frequency Selection (DFS) - greatly reduces Wi-Fi signal interference for improved transmission quality and stability
- Wireless 3D supported
- Wireless Full HD (1080p) and 5.1 channel Dolby with AC3 and DTS digital audio
- Superior video quality: 480p, 720p, 1080i, and 1080p (24 / 30 / 60fps)
- Keeps home theater electronic devices neatly out-of-sight
- Built-in IR receiver with IR blaster cable allows control of remote source devices
- WHDI™ Technology - Low latency <1ms
- HDCP compatible
- No software or driver installation needed * Distance may vary depending on the actual environment; solid objects such as steel, concrete, or brick may cause interference and shorten the transmission distance
Видео вход
- Интерфейси
- 2 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 3 m
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 3 m
Видео
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDMI (3D) HDCP Compatible
- Макс. резолюция / разстояние
- Up to 1080p@30m (Line of Sight) *
Аудио
- Вход
- 2 x HDMI Type A Female (Black)
- Изход
- 1 x HDMI Type A Female (Black)
Управление
- IR
- 1 x 2.5mm Mini Stereo Jack Female (Black)
Конектори
- Захранване
- 1 x DC Jack
- Консумация
- DC5V:10W:42BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.21 kg ( 0.46 lb )
- Размери (Д x Ш x В)
- 18.00 x 9.50 x 3.00 cm (7.09 x 3.74 x 1.18 in.)
- Брой в кашон
- 5 pcs
- Забележка
- * Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
