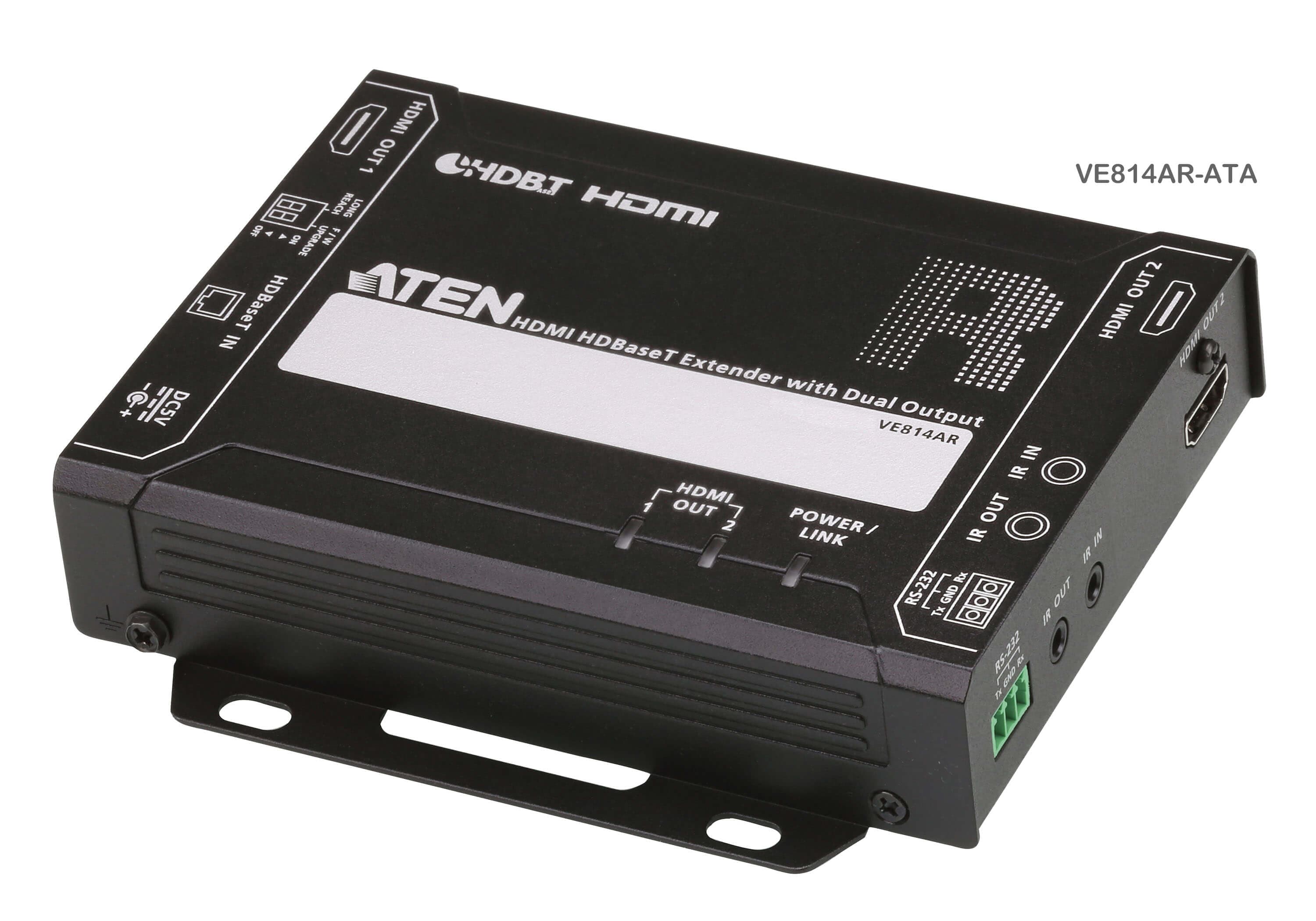

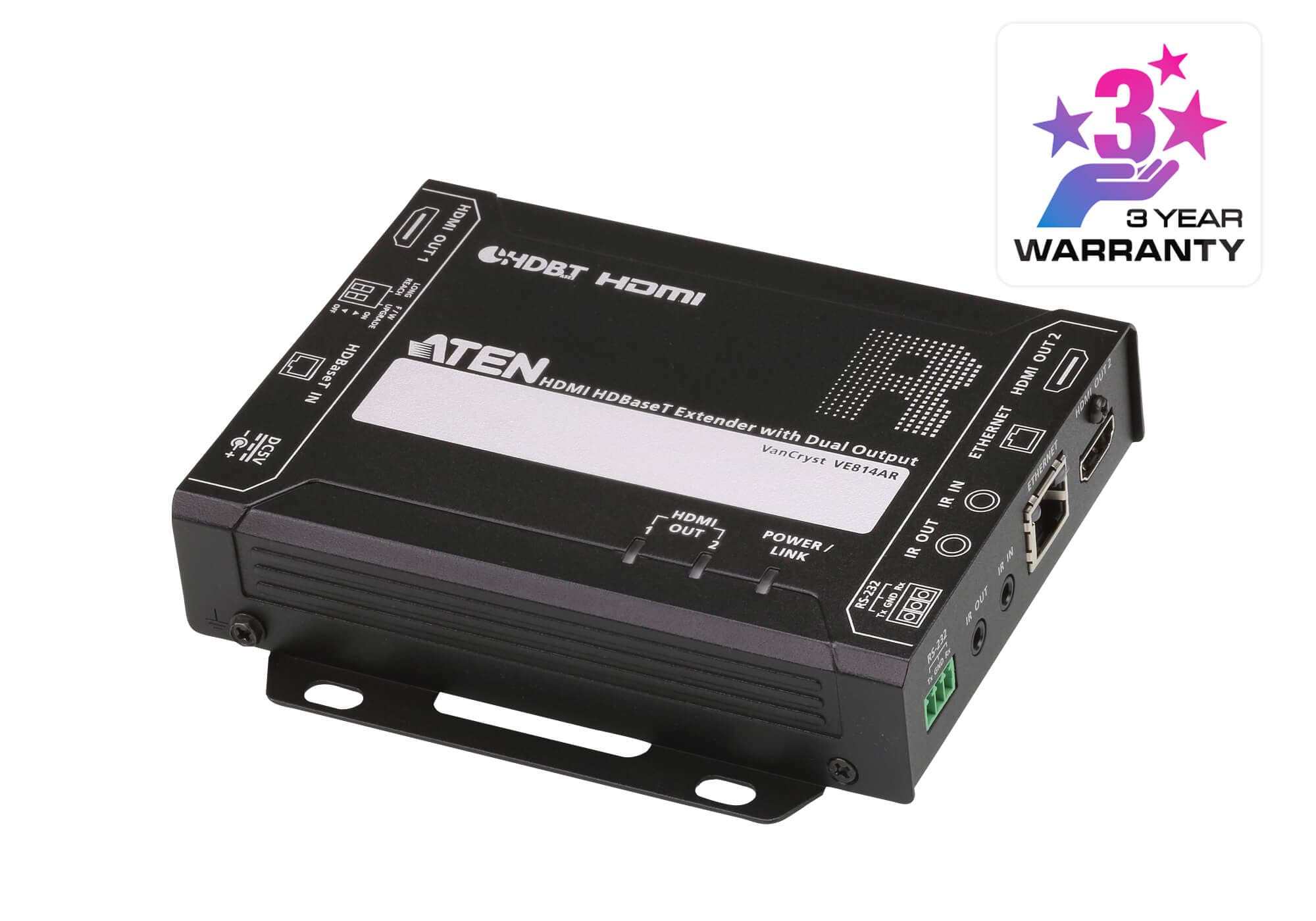

HDMI HDBaseT Receiver with Dual Output (4K@100m) (HDBaseT Class A)
VE814AR
HDBaseT приемник с два HDMI изхода — възстановява 4K сигнал, пренесен до 100 m по един Cat 5e/6/6a кабел; 1080p достига 150 m в режим Long Reach. Разполага с Ethernet pass-through порт.
Характеристики

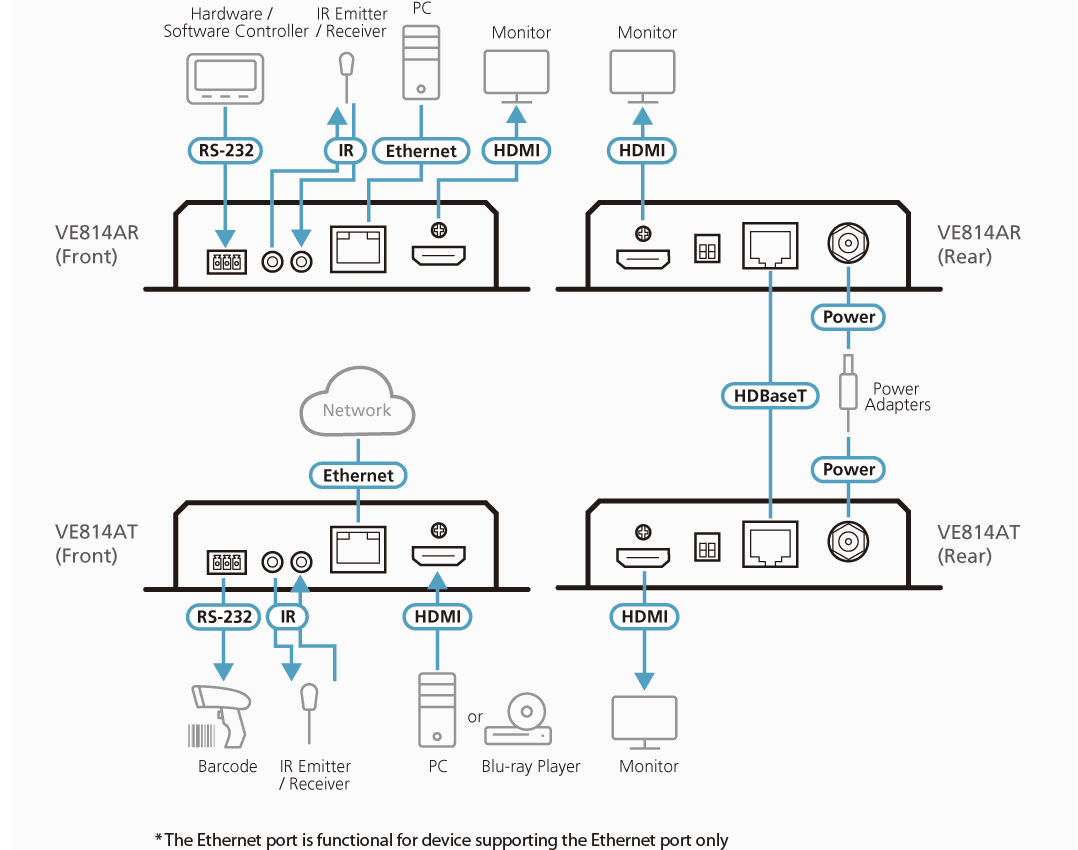

- Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
- Superior video quality: • 4K up to 100 m • 1080p up to 150 m when in HDBaseT Long Reach Mode
- Extends Ethernet communication using the Ethernet pass-through port*
- Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
- ATEN EDID Technology -- when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output
- RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Supports wide screen format
- Built-in 8 kV/15 kV ESD protection
- Plug-and-play
- Rack-mountable Note: The function is supported by VE814A-AT only.
Видео изход
- Интерфейси
- 2 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 3 m
Видео
- Макс. скорост на данните
- 10.2Gbps (3.4Gbps per lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
- Макс. резолюция / разстояние
- Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Аудио
- Изход
- 2 x HDMI Type A Female (Black)
Конектори
- Между устройства
- 1 x RJ-45 Female
- Захранване
- 1 x DC Jack (Black) with locking

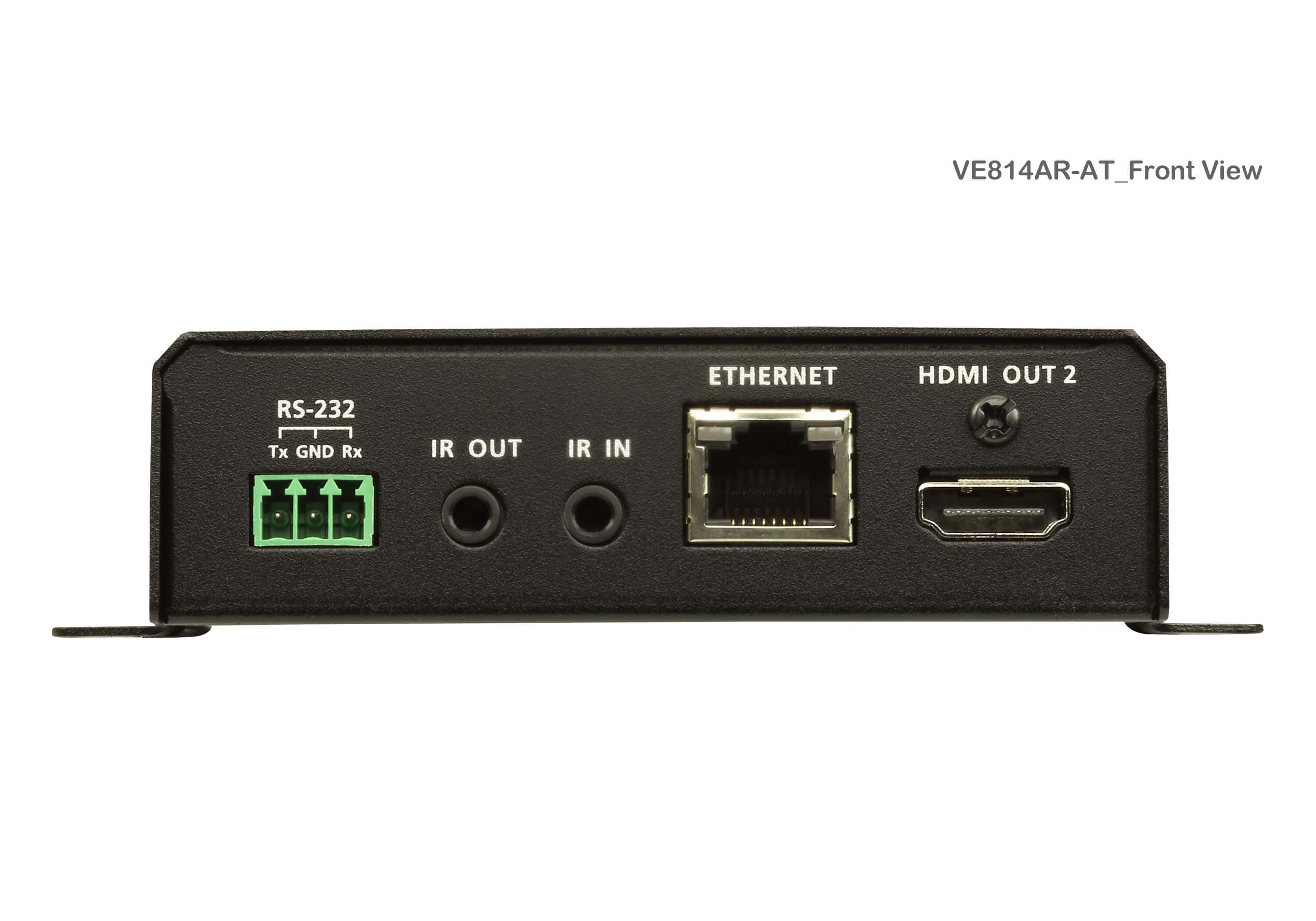

Управление
- RS-232
- Connector: 1 x Terminal Block, 3 pole Baud Rate: 57600, Data Bits:8, Stop Bits:1, no parity and flow control
- IR
- 2 x Mini Stereo Jack Female (Black)
- Ethernet
- 1 x RJ-45 Female Note: The RJ-45 ports is functional for device supporting the Ethernet port only

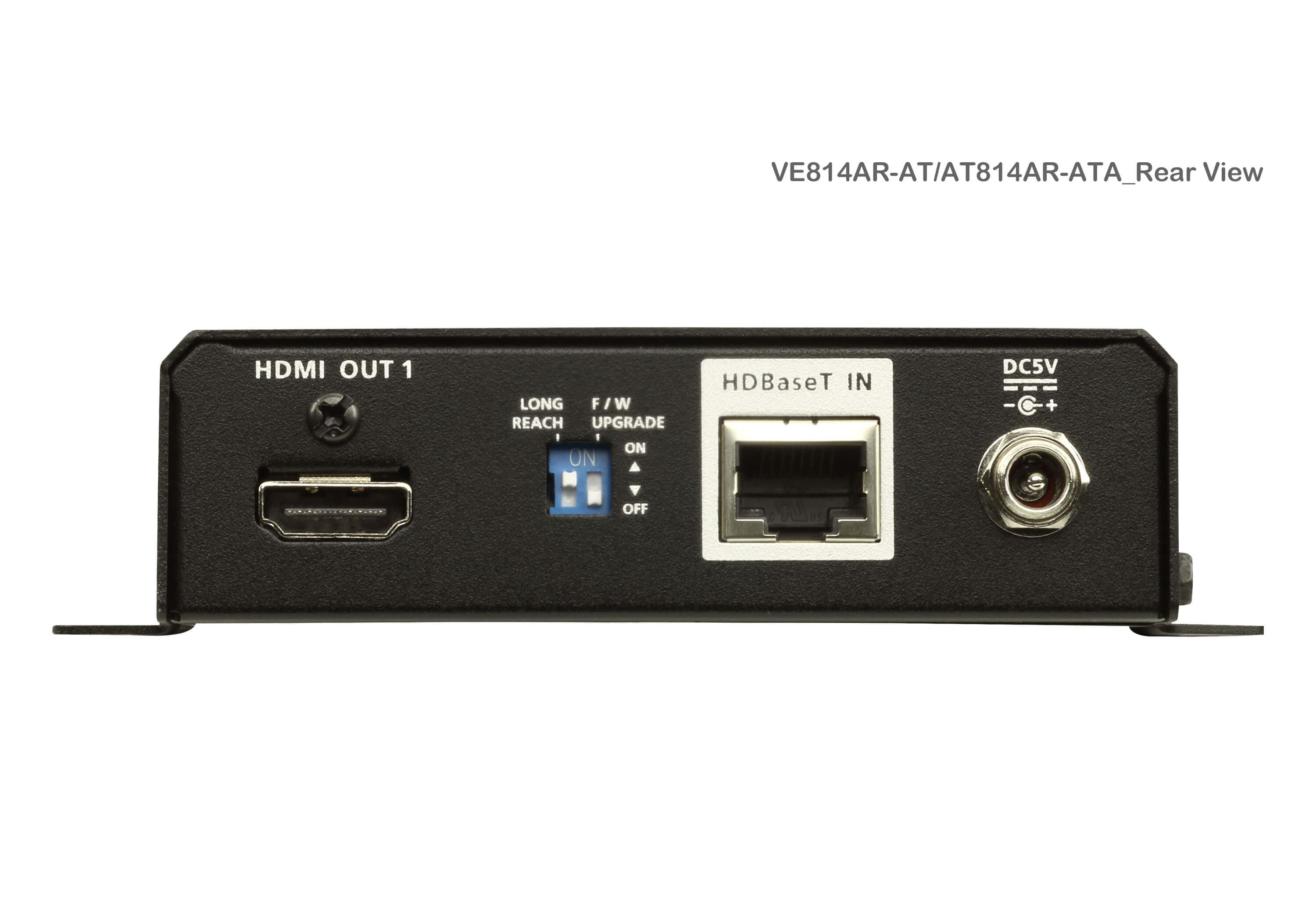

Бутони и превключватели
- Превключвател Long Reach
- 1 x Slide Switch - ON/OFF
- Обновяване на фърмуера
- 1 x Slide Switch - ON/OFF
- Консумация
- DC5V:7.87W:37BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.47 kg ( 1.04 lb )
- Размери (Д x Ш x В) със скоба
- 14.02 x 12.30 x 3.00 cm (5.52 x 4.84 x 1.18 in.)
- Размери (Д x Ш x В) без скоба
- 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.)
- Забележка

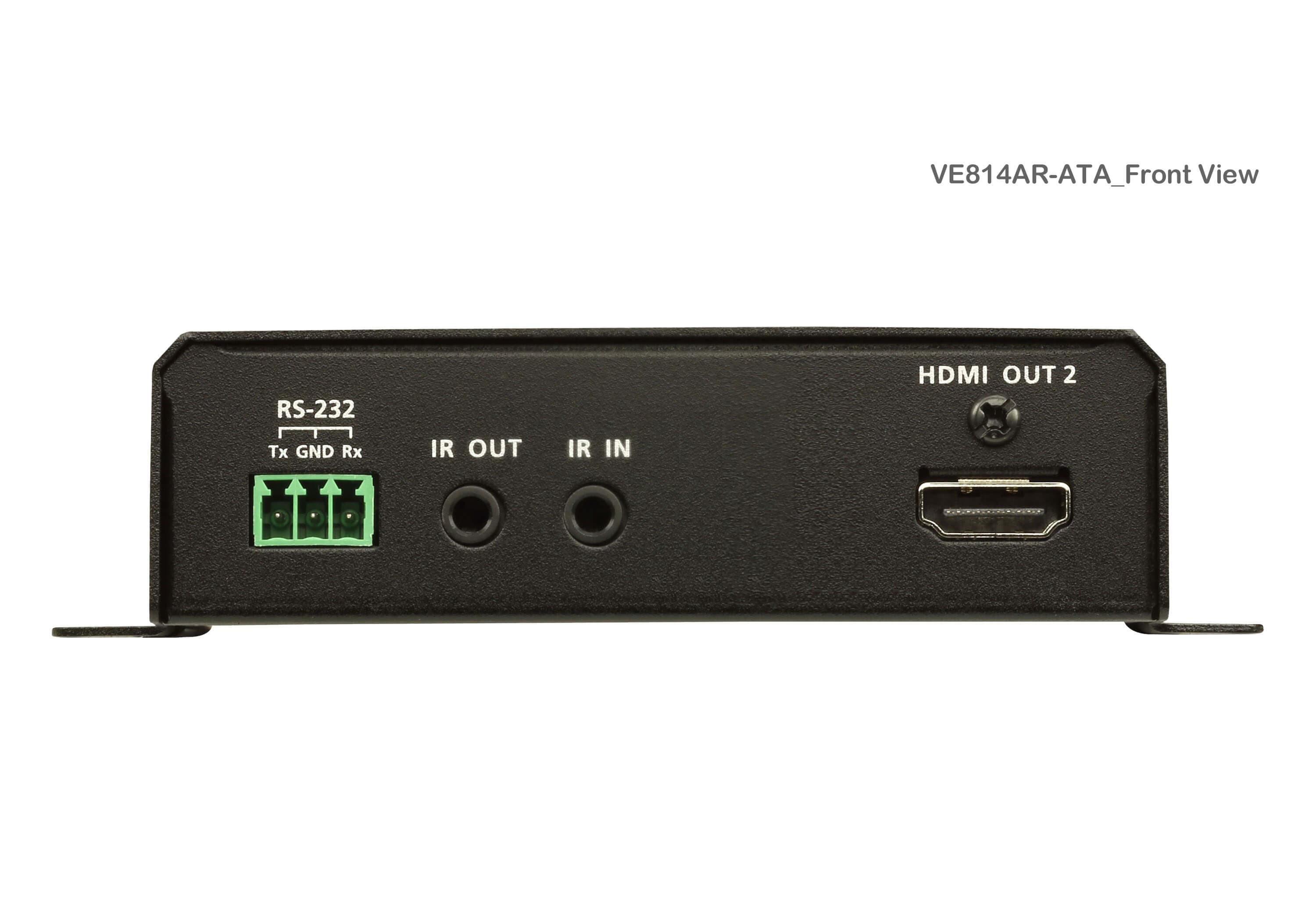

- The VE814AR-AT supports Ethernet function and the VE814AR-ATA does not.
