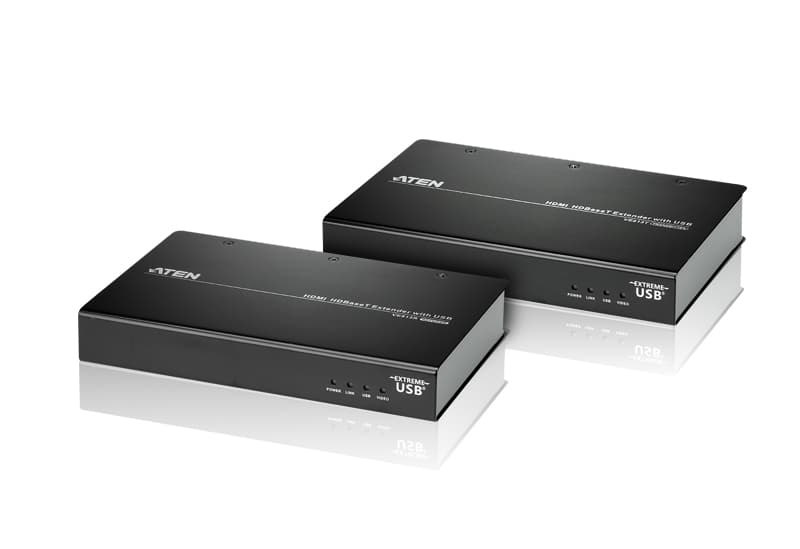

HDMI/USB HDBaseT Extender (4K@100m) (HDBaseT Class A)

Name: HDMI/USB HDBaseT Extender (4K@100m) (HDBaseT Class A)
Brand: ATEN
SKU: VE813

VE813Снет от производство

Удължител за HDMI и USB 2.0 по HDBaseT — пренася 4K до 70 m по Cat 5e/6 и до 100 m по Cat 6a.

Характеристики

Extends HDMI signals up to 100 m
Superior video quality - up to 4K@70m (Cat 5e/6) / 100m (cat 6a/ATEN 2L-2910 Cat 6)
Anti-jamming – resists signal interference during high quality video transmissions using HDBaseT technology
Supports Dolby True HD and DTS HD Master Audio
ExtremeUSB ® - supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
Supports USB 1.1 web cameras
USB 2.0 Support* – connects devices such as keyboard, mouse, flash drive, printer, touch panel and other USB devices which require moderate amounts of bandwidth
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Works with all major operating systems: Windows®, OS X®, and Linux®
Rack-mountable * Note: The VE813 supports a maximum combined USB transfer rate of 30 Mbps for attached USB devices.

Макс. скорост на данните: 10.2 Gbps (3.4 Gbps Per Lane)
Макс. скорост на данните: 10.2 Gbps (3.4 Gbps Per Lane)
Макс. пикселна честота: Up to 340 MHz
Макс. пикселна честота: Up to 340 MHz
Съответствие: HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
Съответствие: HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
Макс. резолюция / разстояние: Up to 4K@70m (Cat 5e/6) / 100m (cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Макс. резолюция / разстояние: Up to 4K@70m (Cat 5e/6) / 100m (cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Захранване: 1 x DC Jack
Захранване: 1 x DC Jack
Консумация: DC5V:5.75WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: DC5V:5.75WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Корпус: Metal
Тегло: 0.62 kg ( 1.37 lb )
Тегло: 0.61 kg ( 1.34 lb )
Размери (Д x Ш x В): 18.20 x 11.61 x 2.87 cm (7.17 x 4.57 x 1.13 in.)
Размери (Д x Ш x В): 18.20 x 11.61 x 2.87 cm (7.17 x 4.57 x 1.13 in.)
Брой в кашон: 5 pcs
Брой в кашон: 5 pcs
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
