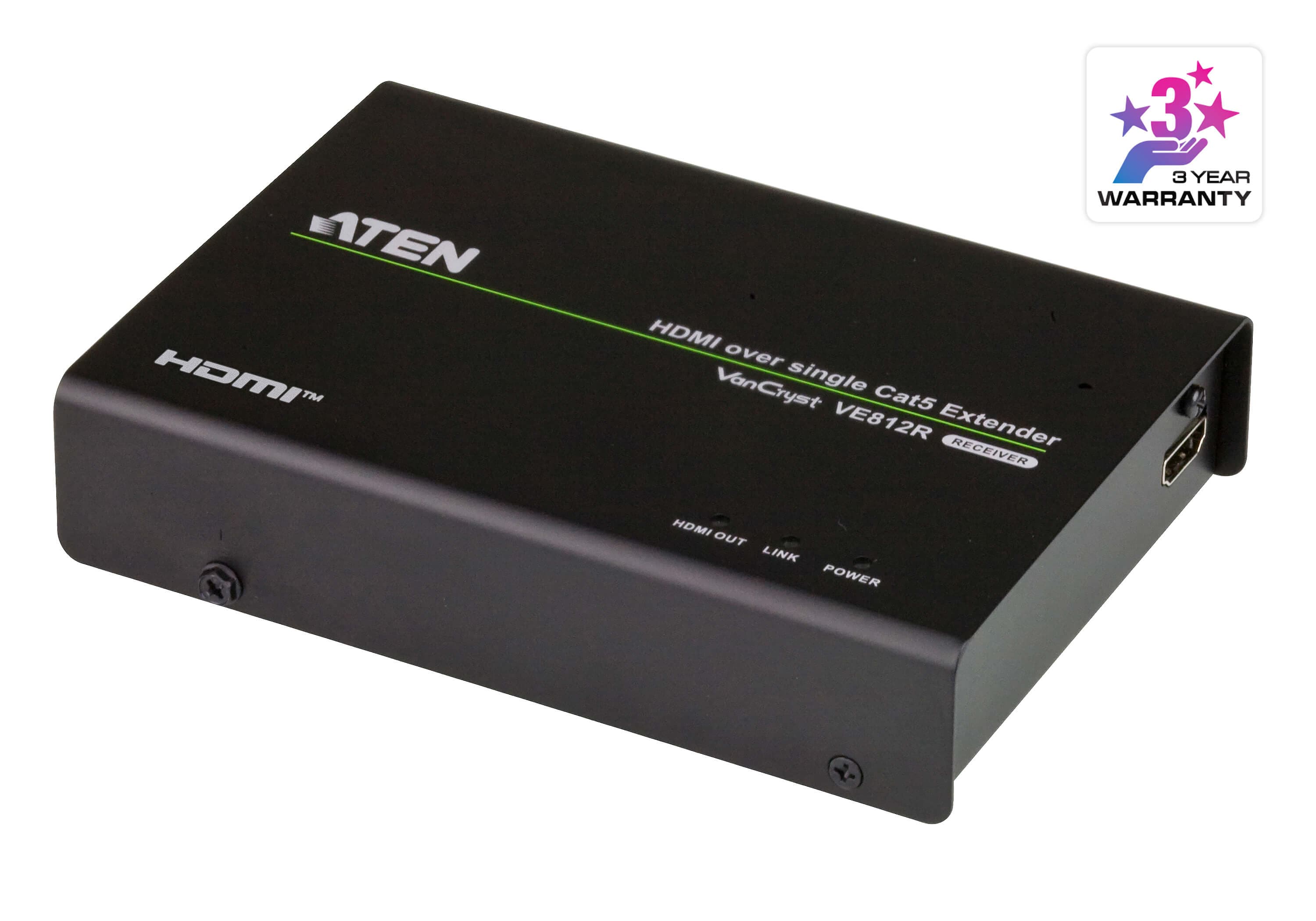

HDMI HDBaseT Receiver (4K@100m) (HDBaseT Class A)

Name: HDMI HDBaseT Receiver (4K@100m) (HDBaseT Class A)
Brand: ATEN
SKU: VE812R

VE812R

HDBaseT приемник за HDMI — свързва се с предавател по един Cat 5e кабел и пренася сигнала до 100 m. Поддържа 4K, 3D, Deep Color; HDCP съвместим.

Характеристики

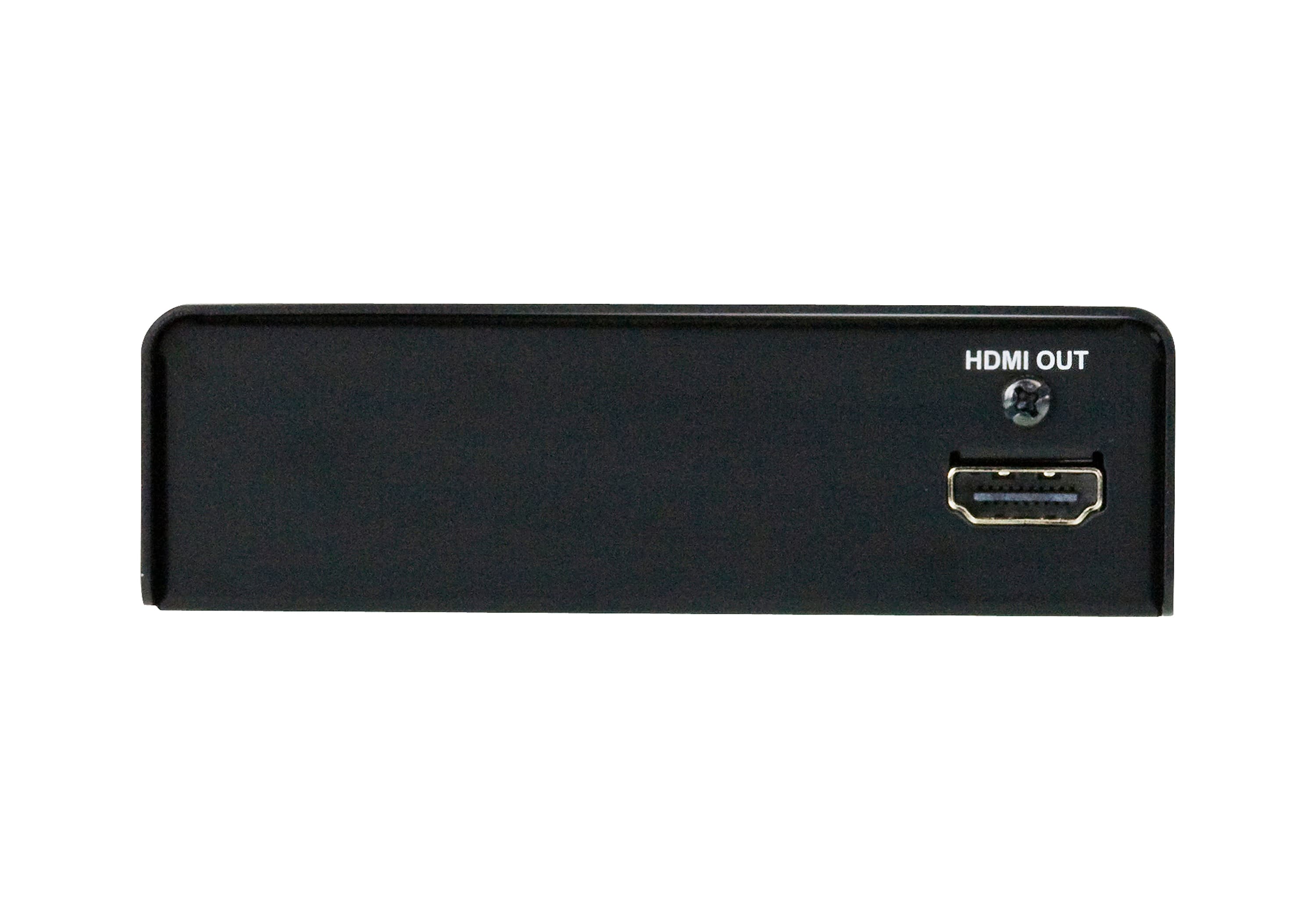

Extends the distance between HDMI source and HDMI display
Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
HDMI (3D, Deep Color, 4k); HDCP Compatible
Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
Long distance transmission - up to 100m
Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
Supports up to 340MHz bandwidth for high performance video
Supports Dolby True HD and DTS HD Master Audio
Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV) Note: The images are for reference only. The printing on the device may differ due to product enhancement.

Макс. скорост на данните: 10.2 Gbps (3.4 Gbps Per Lane)
Макс. пикселна честота: Up to 340 MHz
Съответствие: HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
Макс. резолюция / разстояние: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

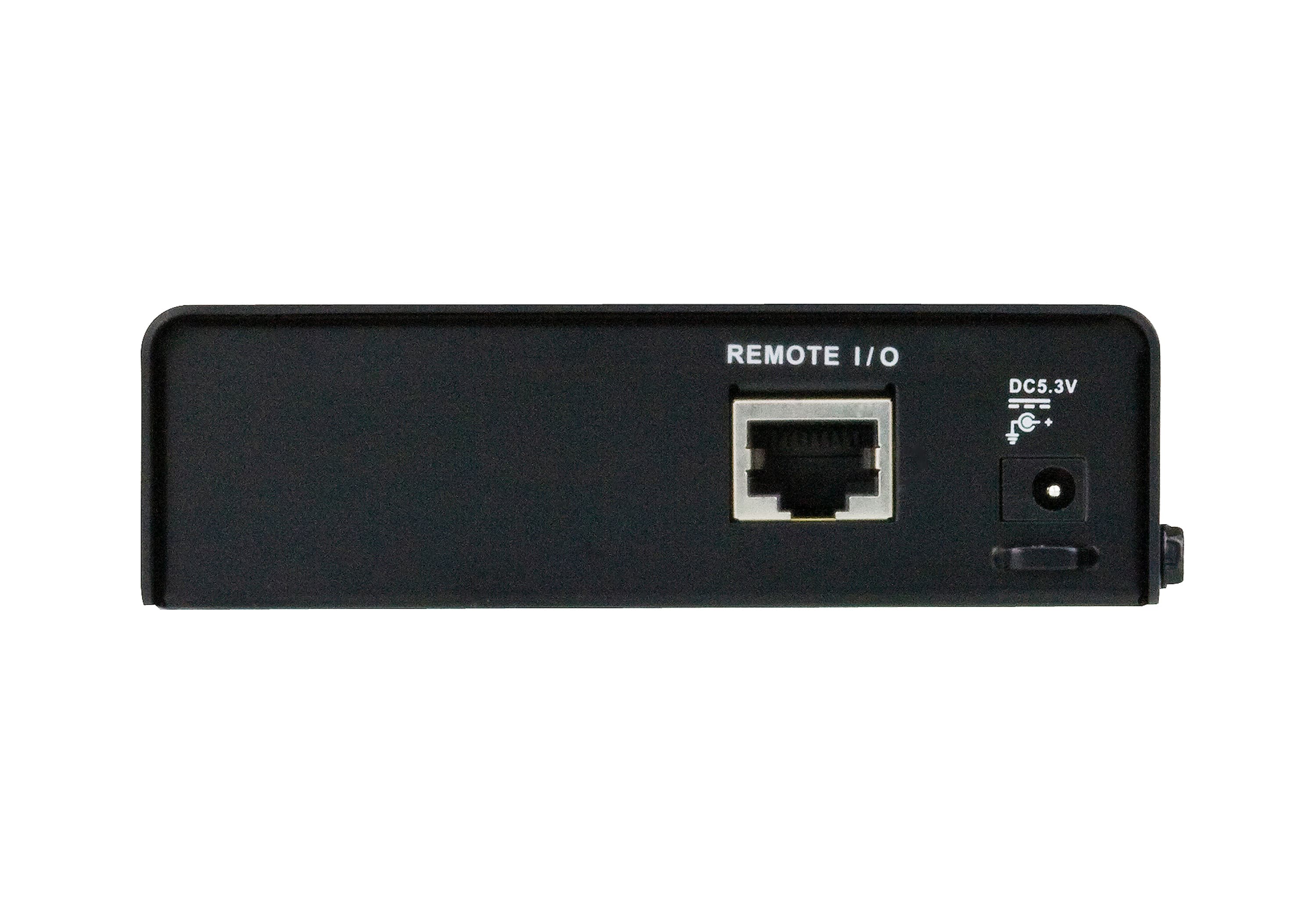

Захранване: 1 x DC Jack
Консумация: DC5.3V:5.06W:24BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Тегло: 0.41 kg ( 0.9 lb )
Размери (Д x Ш x В): 14.17 x 10.30 x 3.00 cm (5.58 x 4.06 x 1.18 in.)
Брой в кашон: 5 pcs
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
