HDMI/IR Cat 5 Extender (1080p@40m)
VE810Снет от производство
Удължител за HDMI и IR сигнали по два Cat 5e кабела — дисплеят може да е до 60 m от източника, при 1080p до 40 m.
Характеристики
- Connects the local and the remote units via Cat 5e cables
- HDMI (3D, Deep Color); HDCP compliant
- Superior video quality – up 1920 x 1080 at distance up to 40 m

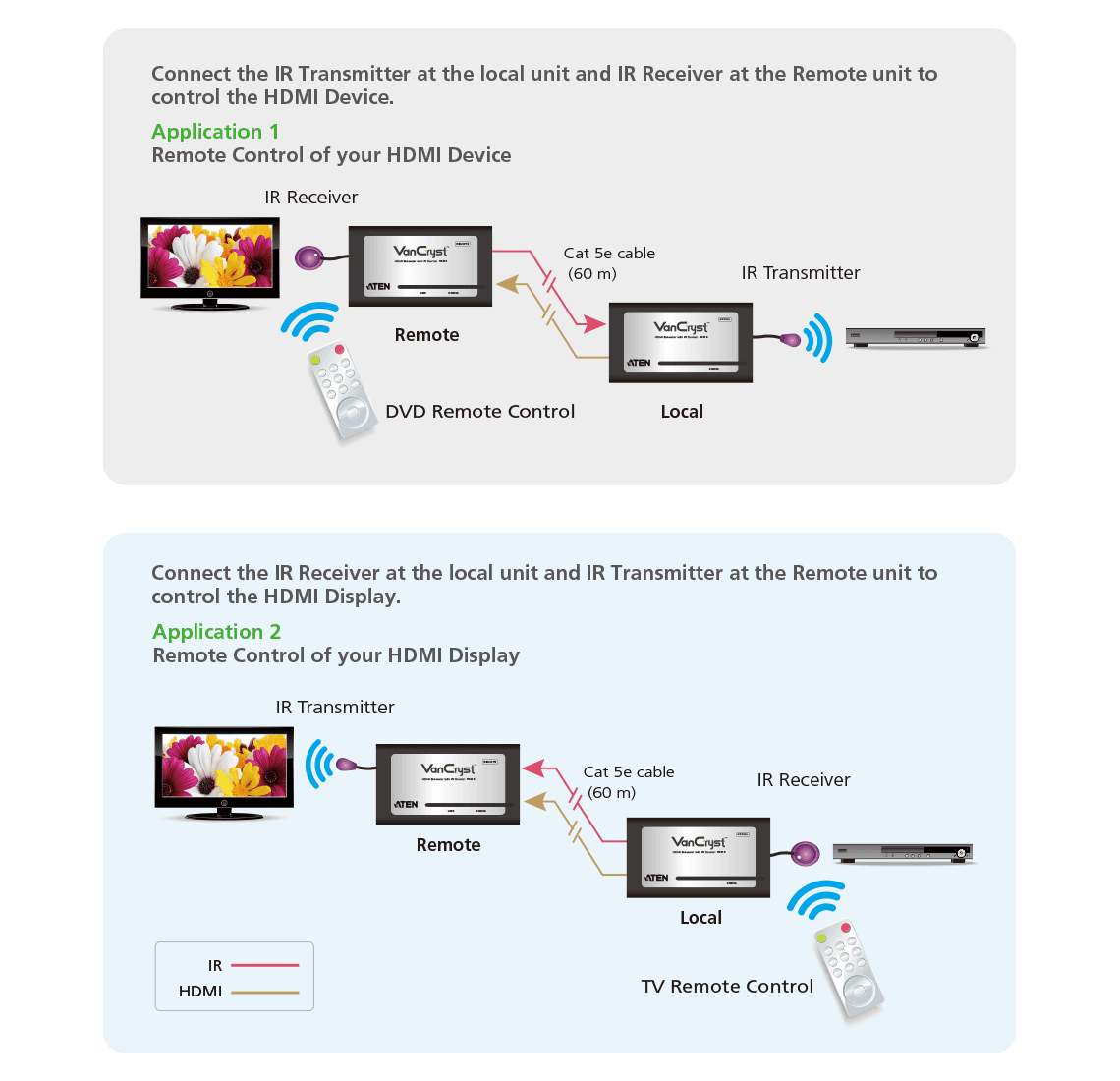

- Bi- directional IR channel for IR signal control on remote unit; IR transmission is processed one direction at a time

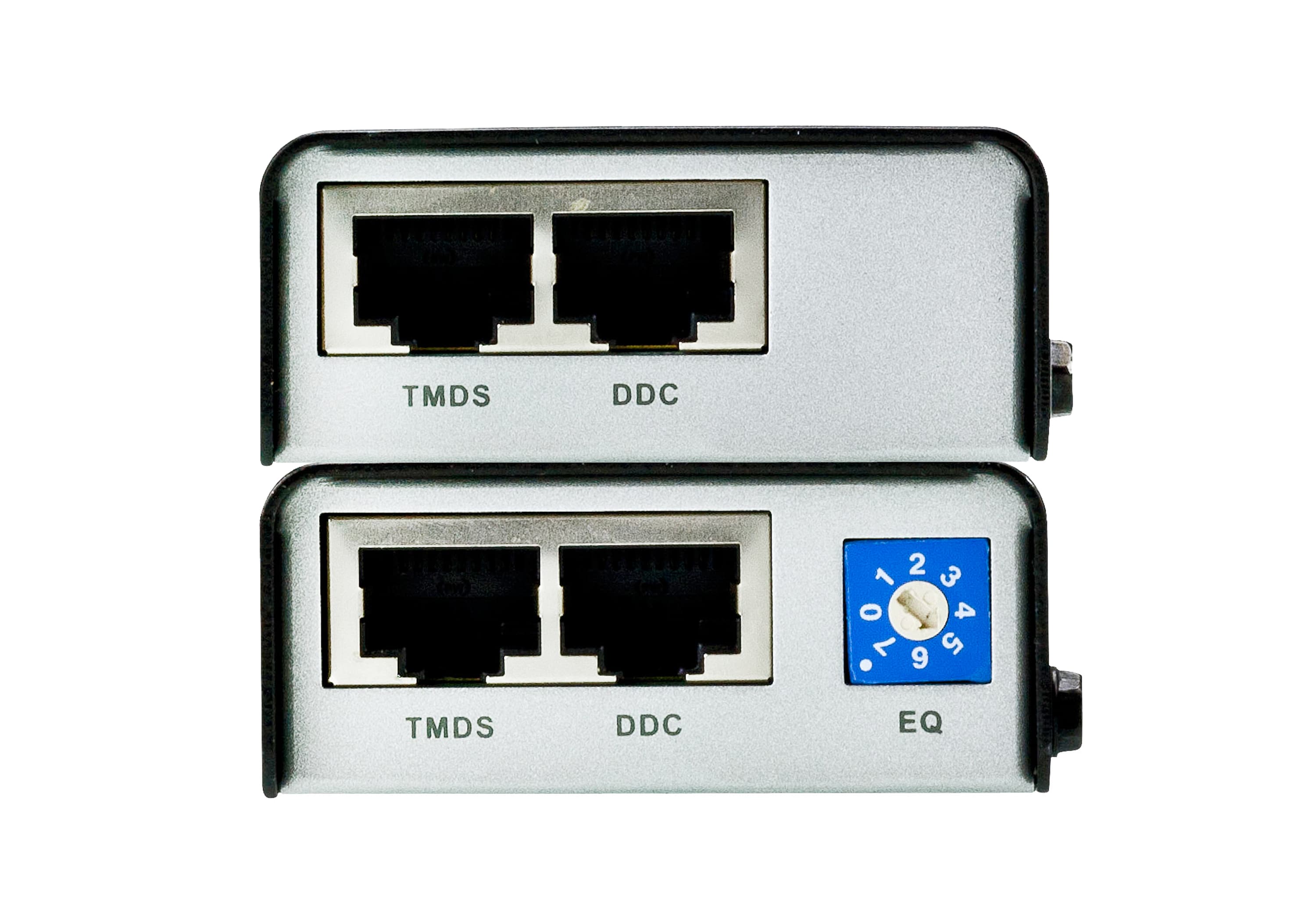

- 8 segment equalization adjustment switch optimizes display quality
- Supports Dolby True HD and DTS HD Master Audio
- DDC compatible
- Compatible with all ATEN HDMI switches and splitters
- Non-Powered (only require one power adapter)
- Rack-mountable

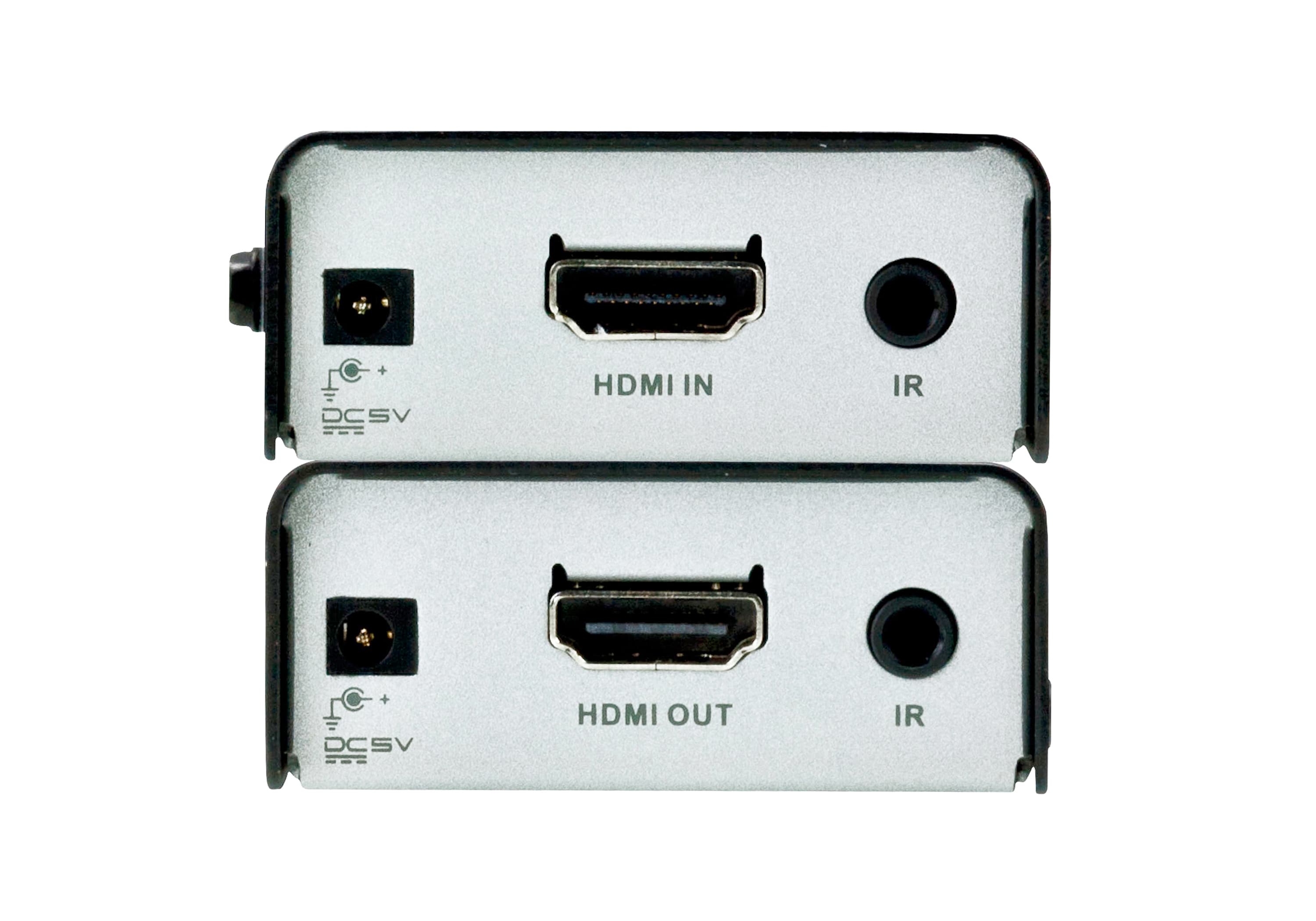

Видео вход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Интерфейси
- N/A
- Импеданс
- 100 Ω
- Импеданс
- N/A
- Макс. разстояние
- 3 m
- Макс. разстояние
- N/A
Видео изход
- Интерфейси
- N/A
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- N/A
- Импеданс
- 100 Ω
- Макс. разстояние
- N/A
- Макс. разстояние
- 3 m
Видео
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDMI (3D, Deep Color) HDCP Compatible
- Съответствие
- HDMI (3D, Deep Color) HDCP Compatible
- Макс. резолюция / разстояние
- Up to 1080p@40m; 1080i@60m
- Макс. резолюция / разстояние
- Up to 1080p@40m; 1080i@60m
Аудио
- Вход
- 1 x HDMI Type A Female (Black)
- Вход
- N/A
- Изход
- N/A
- Изход
- 1 x HDMI Type A Female (Black)
Управление
- IR
- 1 x Mini Stereo Jack Female (Black)
- IR
- 1 x Mini Stereo Jack Female (Black)
Конектори
- Захранване
- 1 x DC Jack
- Захранване
- 1 x DC Jack
- Консумация
- DC5V:2.41W:11BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5V:1.06W:5BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.16 kg ( 0.35 lb )
- Тегло
- 0.16 kg ( 0.35 lb )
- Размери (Д x Ш x В)
- 9.00 x 5.74 x 2.40 cm (3.54 x 2.26 x 0.94 in.)
- Размери (Д x Ш x В)
- 9.00 x 5.74 x 2.40 cm (3.54 x 2.26 x 0.94 in.)
- Брой в кашон
- 20 pcs
- Брой в кашон
- 20 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
