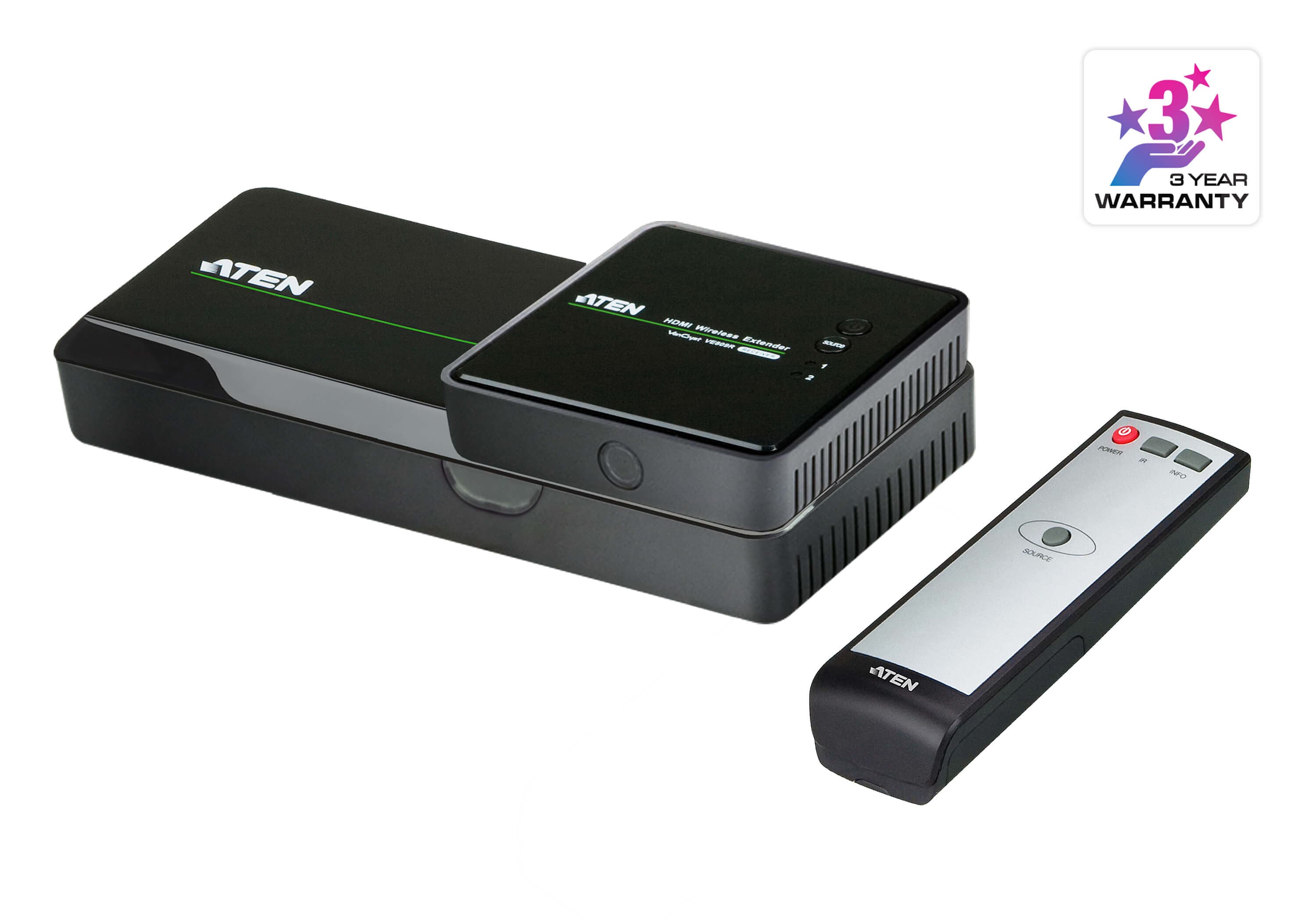

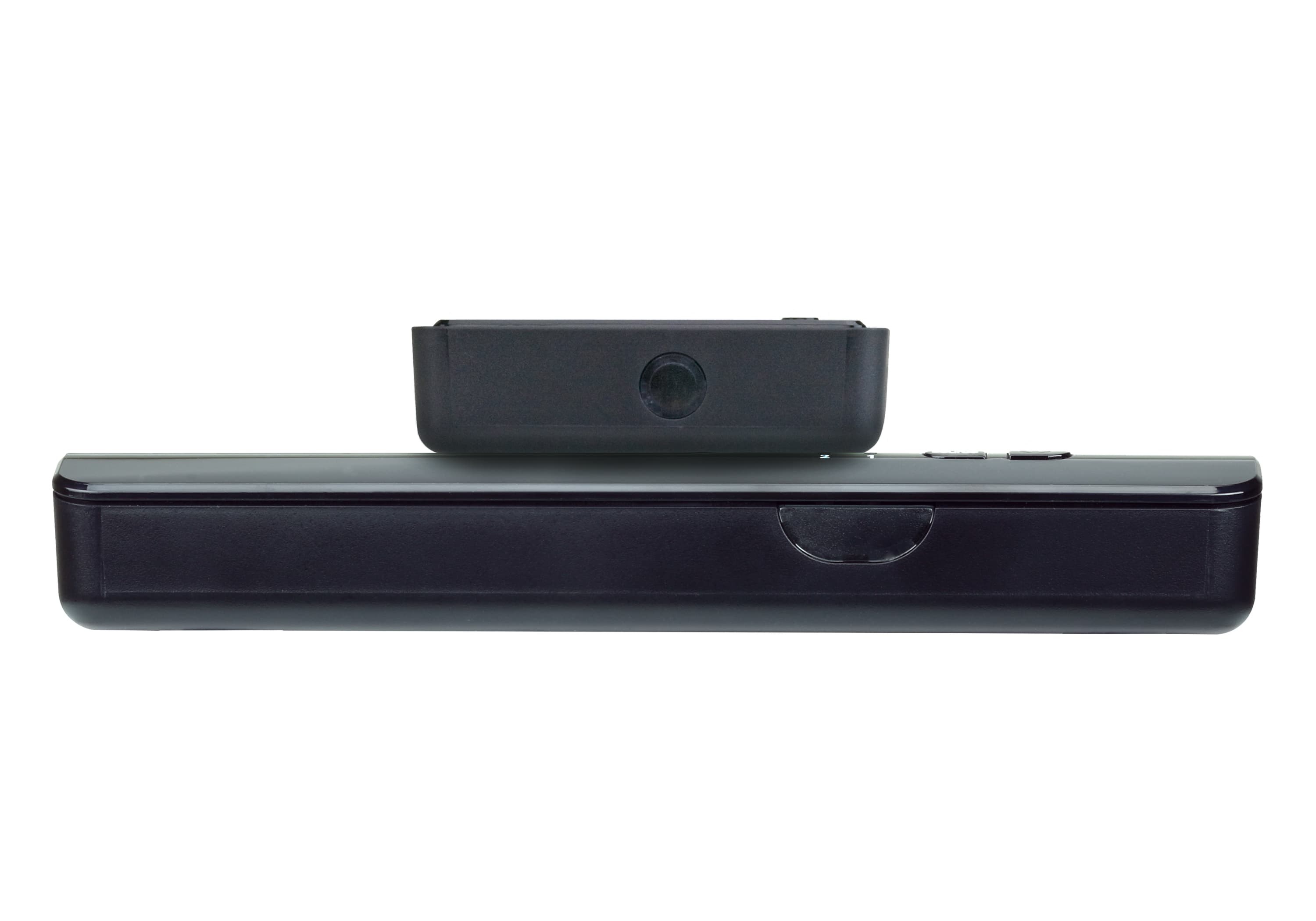

HDMI Wireless Extender (1080p@30m)
VE809Снет от производство
Безжичен HDMI удължител — изнася дисплея до 30 m от източника с некомпресирано 1080p. Свързва два HDMI източника и може да подава картина към два телевизора едновременно.
Характеристики
- Wirelessly extend an HDMI display up to 30 m from the HDMI source*

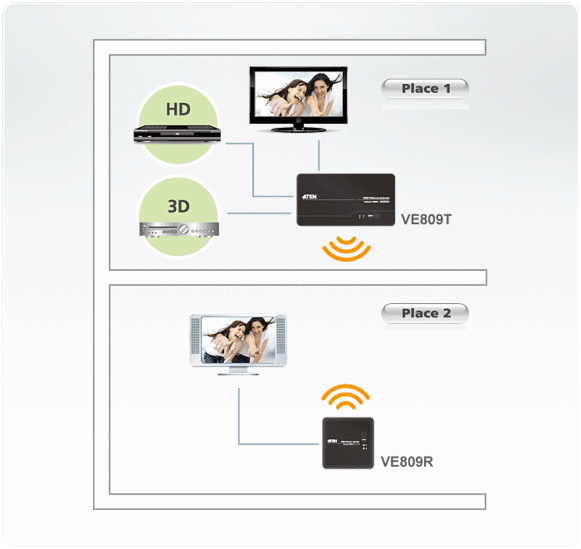

- Setup two HDTVs and view HD content on two HDTVs simultaneously*
- Uncompressed full HD 1080p video wireless transmission
- Connect and transmit wireless video content from your Bluray DVD player, HD Cable box or other HDMI device wirelessly
- Wireless 3D Supported
- Wireless HD in Full 1080p
- Supports audio formats – digital audio LPCM 7.1 channels, Dolby Digital and DTS Digital 5.1 channels
- Superior video quality – 480p, 720p, 1080i and 1080p
- Keep home theater electronic devices neatly out-of-sight
- Built-in IR receiver allows control of source devices from the remote side
- No software or driver installation needed
- HDCP compatible
- Based on WHDI™ Technology – Low latency < 1ms * Distance may vary depending on environment; solid objects such as steel, concrete and brick may view shorter distances.
Видео вход
- Интерфейси
- N/A
- Интерфейси
- 2 x HDMI Type A Female (Black)
- Импеданс
- N/A
- Импеданс
- 100 Ω
- Макс. разстояние
- N/A
- Макс. разстояние
- 3 m
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Импеданс
- 100 Ω
- Макс. разстояние
- 3 m
- Макс. разстояние
- 3 m
Видео
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDMI (3D) HDCP Compatible
- Съответствие
- HDMI (3D) HDCP Compatible
- Макс. резолюция / разстояние
- Up to 1080p@30m
- Макс. резолюция / разстояние
- Up to 1080p@30m
Аудио
- Вход
- N/A
- Вход
- 2 x HDMI Type A Female (Black)
- Изход
- 1 x HDMI Type A Female (Black)
- Изход
- 1 x HDMI Type A Female (Black)
- Консумация
- DC5V:6.58W:31BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5V:7.84W:37BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Plastic
- Корпус
- Plastic
- Тегло
- 0.12 kg ( 0.28 lb )
- Тегло
- 0.20 kg ( 0.45 lb )
- Размери (Д x Ш x В)
- 9.50 x 9.50 x 3.15 cm (3.74 x 3.74 x 1.24 in.)
- Размери (Д x Ш x В)
- 18.20 x 9.65 x 3.15 cm (7.17 x 3.8 x 1.24 in.)
- Брой в кашон
- 5 pcs
- Брой в кашон
- 5 pcs
Управление
- IR
- 1 x 2.5mm Mini Stereo Jack Female (Black)
- IR
- 1 x 2.5mm Mini Stereo Jack Female (Black)

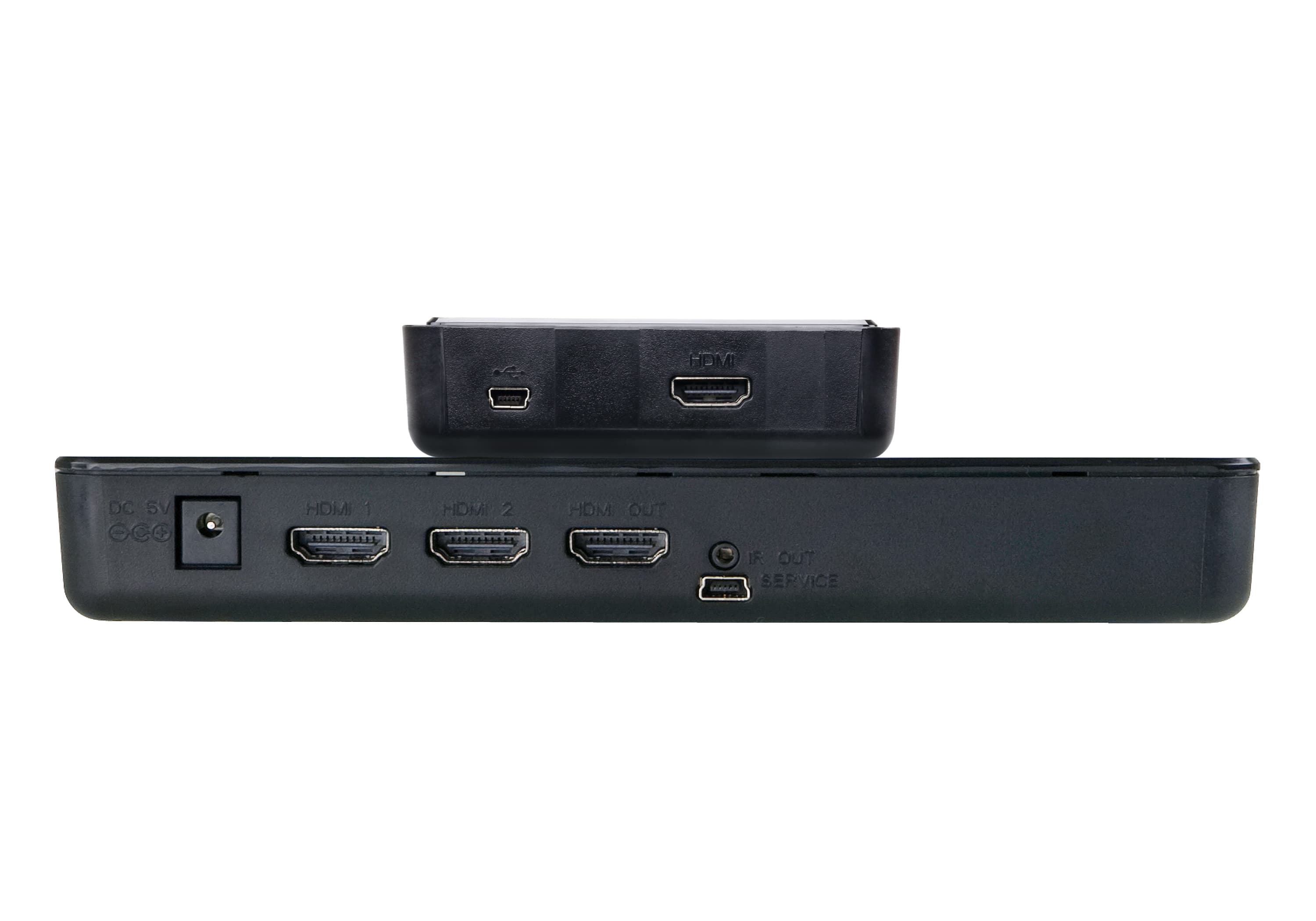

Конектори
- Захранване
- 1 x DC Jack (Mini USB)
- Захранване
- 1 x DC Jack
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
