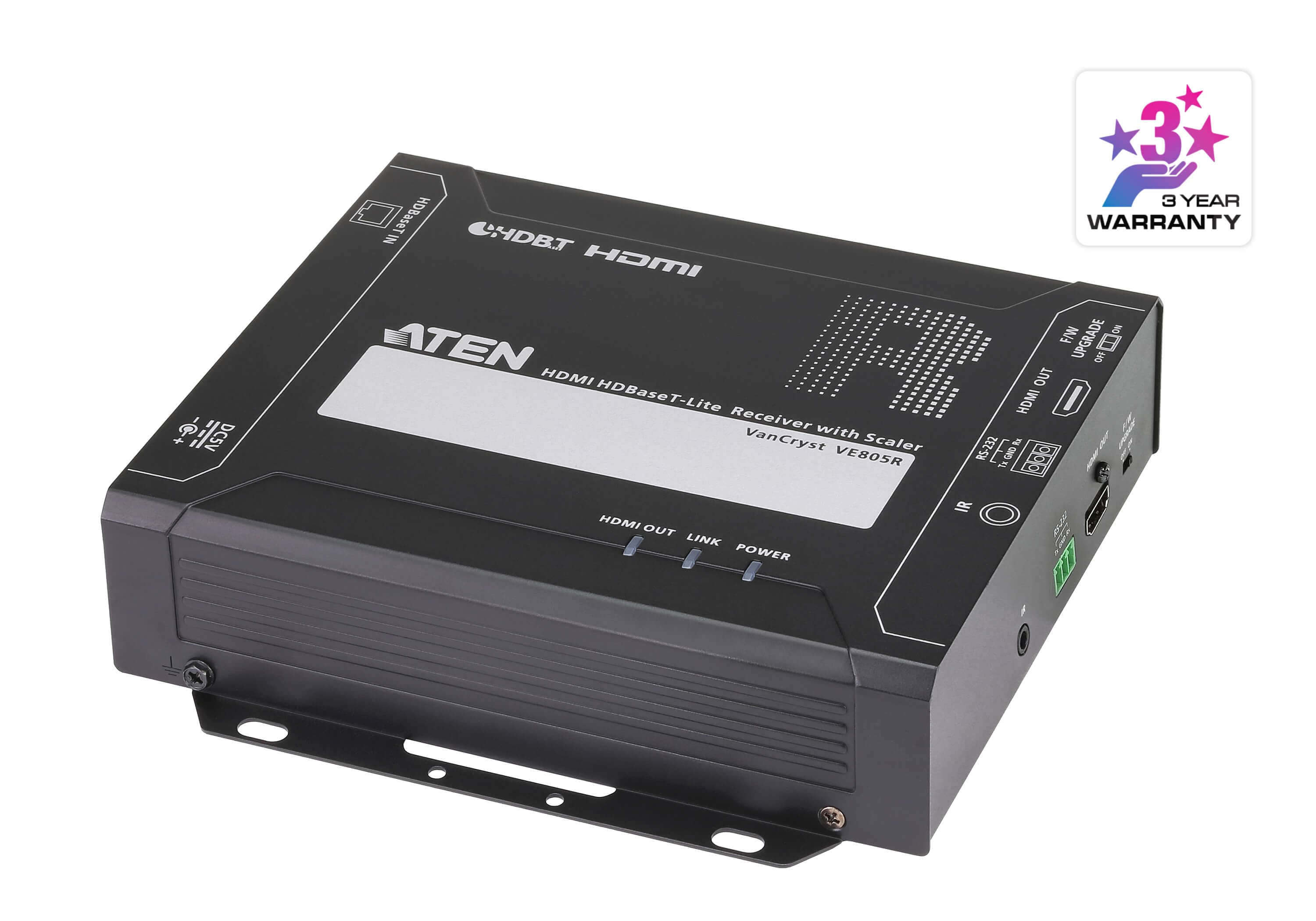

HDMI HDBaseT-Lite Receiver with Scaler (1080p@70m) (HDBaseT Class B)

Name: HDMI HDBaseT-Lite Receiver with Scaler (1080p@70m) (HDBaseT Class B)
Brand: ATEN
SKU: VE805R

VE805R

Заяви оферта Datasheet PDF Бърз старт CAD чертеж

HDBaseT-Lite приемник със скалер — свързва HDBaseT изход, например от VM8514, към HDMI дисплей на разстояние до 70 m при 1080p. Има двупосочен RS-232 канал за серийни устройства.

Характеристики

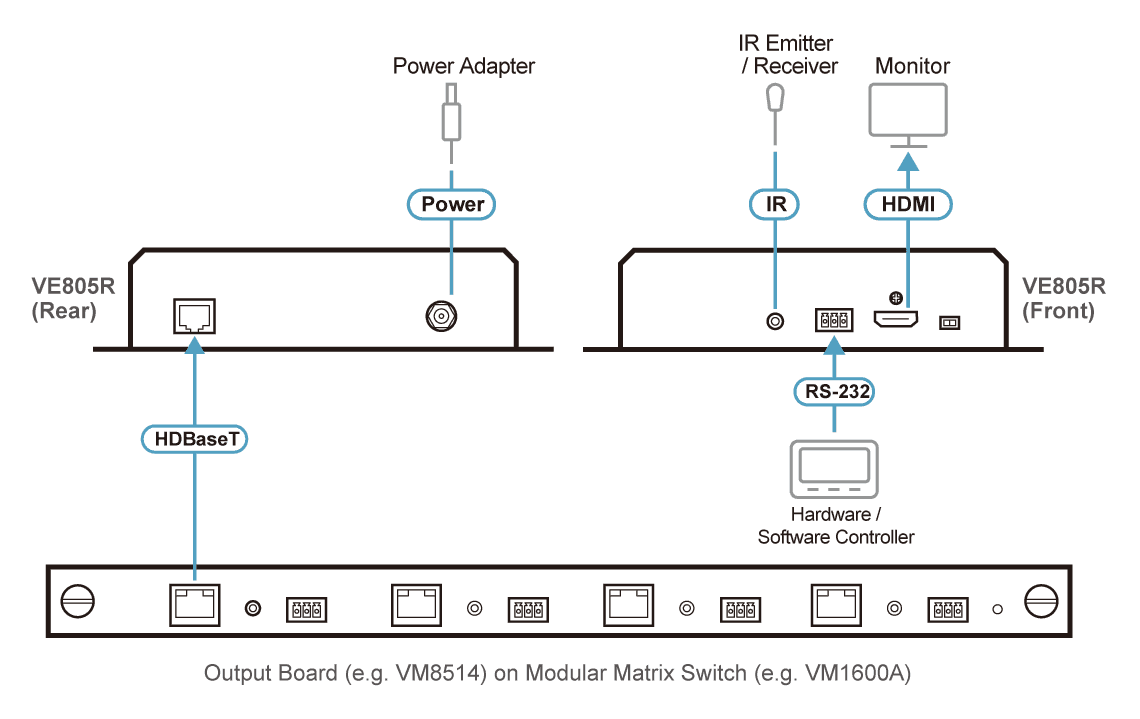

HDBaseT connectivity – extends the connection between the VM8514 HDBaseT outputs and an HDMI display over a long distance via single Cat 5e/6/6a cable
HDBaseT Anti-jamming – resists signal interference during high quality video transmissions using HDBaseT technology
Bi-directional RS-232 channel1 – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Scaler – features a scaling function to integrate a video wall seamlessly with various output formats
Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions2
Video Wall – features configurable Video Wall profiles available for custom screen layouts via simple point-n-click web GUI2
Bi-directional IR channel – IR transmission is processed one direction at a time3
Rack-mountable Note: 1. Bi-directional RS-232 channel only available when VE805R is used with the VM8514. 2. The Seamless SwitchTM and Video Wall functions are available when the VE805R is used with the VM8514. 3. Supports full frequency IR signals from 30KHz to 60KHz; however the IR receiver cable included with the package only supports 30KHz to 56 KHz.

Видео вход

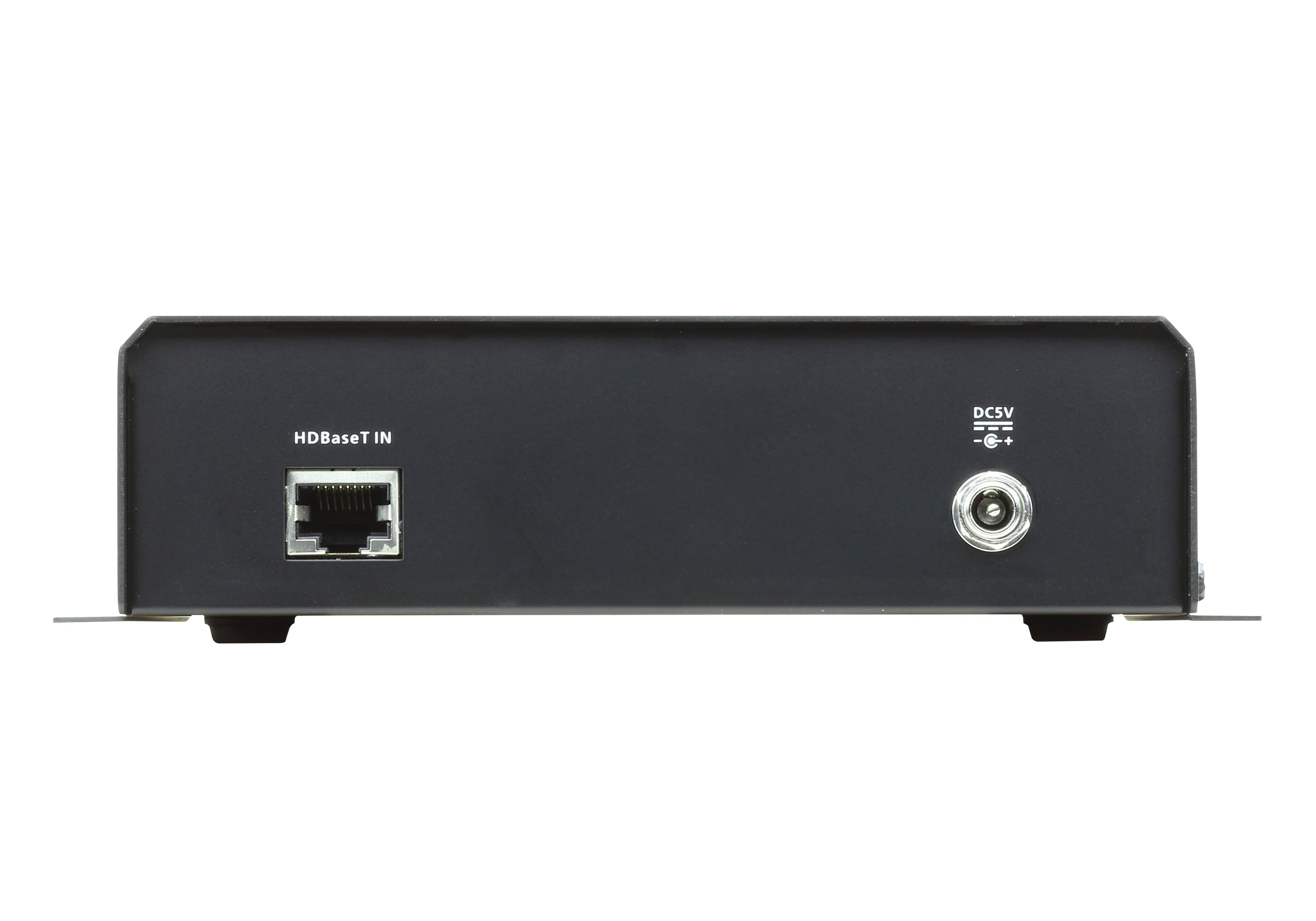

Интерфейси: 1 x RJ-45 Female (Silver)
Импеданс: 100 Ω

Видео изход

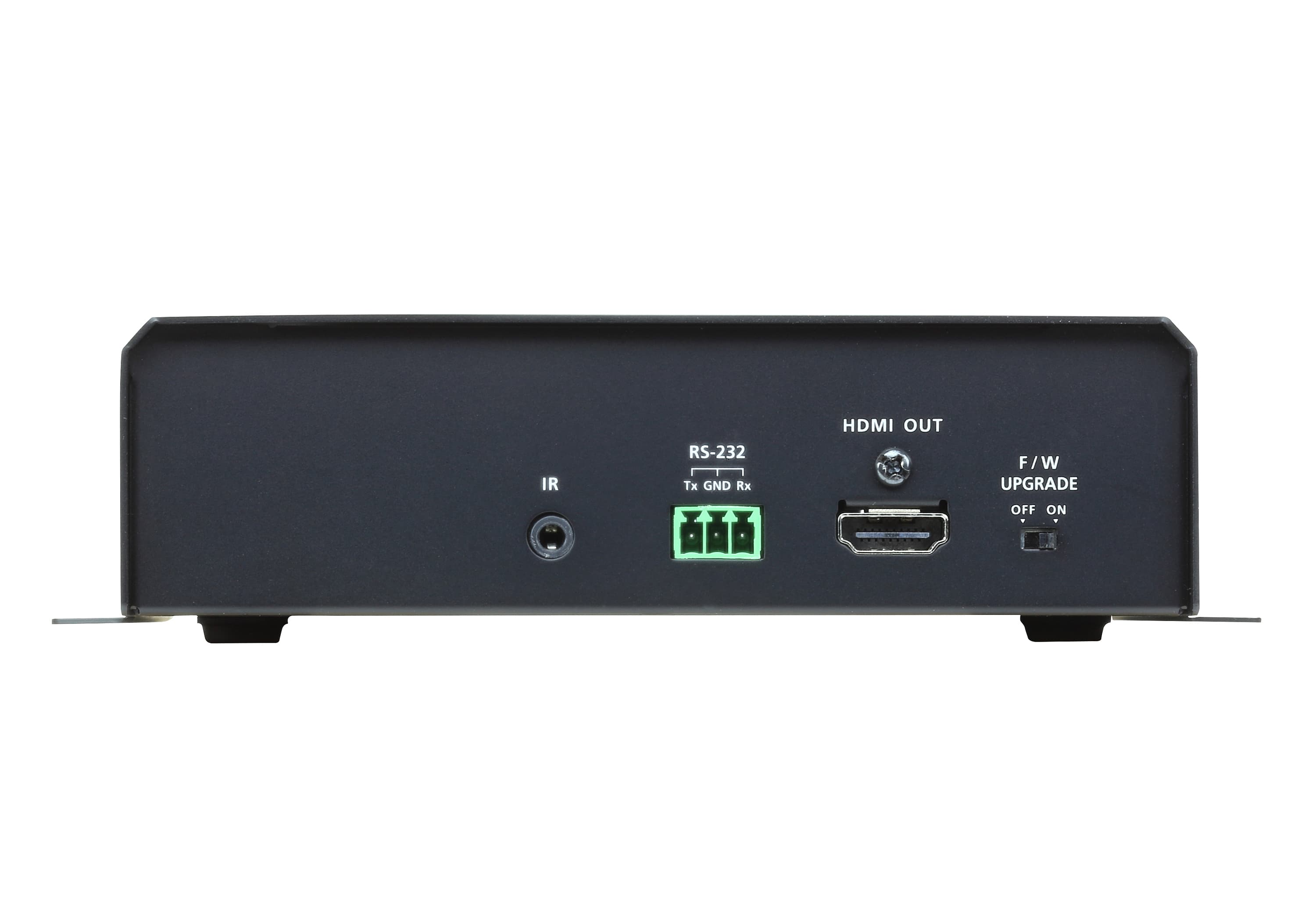

Интерфейси: 1 x HDMI Type A Female (Black)
Импеданс: 100 Ω
Макс. разстояние: 3 m

Видео

Макс. скорост на данните: 6.75 Gpbs (2.25 Gbps per lane)
Макс. пикселна честота: 225 MHz
Съответствие: HDMI (3D, Deep Color) HDCP 1.4 Compatible HDBaseT Compatible
Макс. резолюция / разстояние: Up to 1080p @60m (Cat 5e/6); 70m (Cat 6a)

Управление

RS-232: 1 x Captive Screw Connector, 3 Pole
IR: 1 x Mini Stereo Jack Female (Black)

Конектори

Захранване: 1 x DC Jack (Sliver)

Бутони и превключватели

Обновяване на фърмуера: 1 x Slide Switch
Консумация: DC5V:8.36W:39BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 50°C
Температура на съхранение: -20 - 60°C
Влажност: 0 - 80% RH, Non-Condensing

Физически характеристики

Корпус: Metal
Тегло: 0.81 kg ( 1.78 lb )
Размери (Д x Ш x В): 17.74 x 16.92 x 4.20 cm (6.98 x 6.66 x 1.65 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
