Удължител за HDMI и USB по два Cat 5e кабела — пренася 1080p до 40 m и 1080i до 60 m от източника.
Характеристики

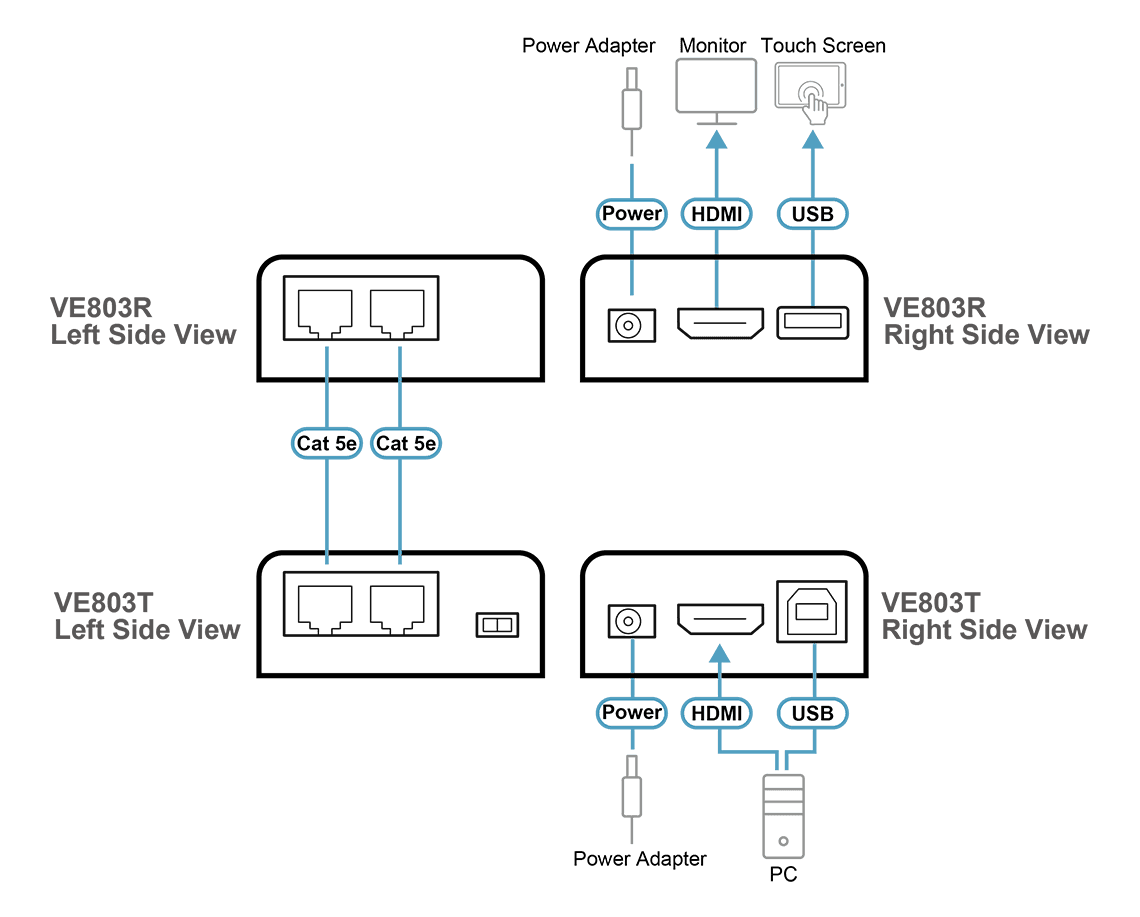

- Uses two Cat 5e cables to connect the local and the remote units
- Extends 1080p by 40m; extend 1080i by 60m
- Superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920 x 1080), VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
- Supports USB touch panel

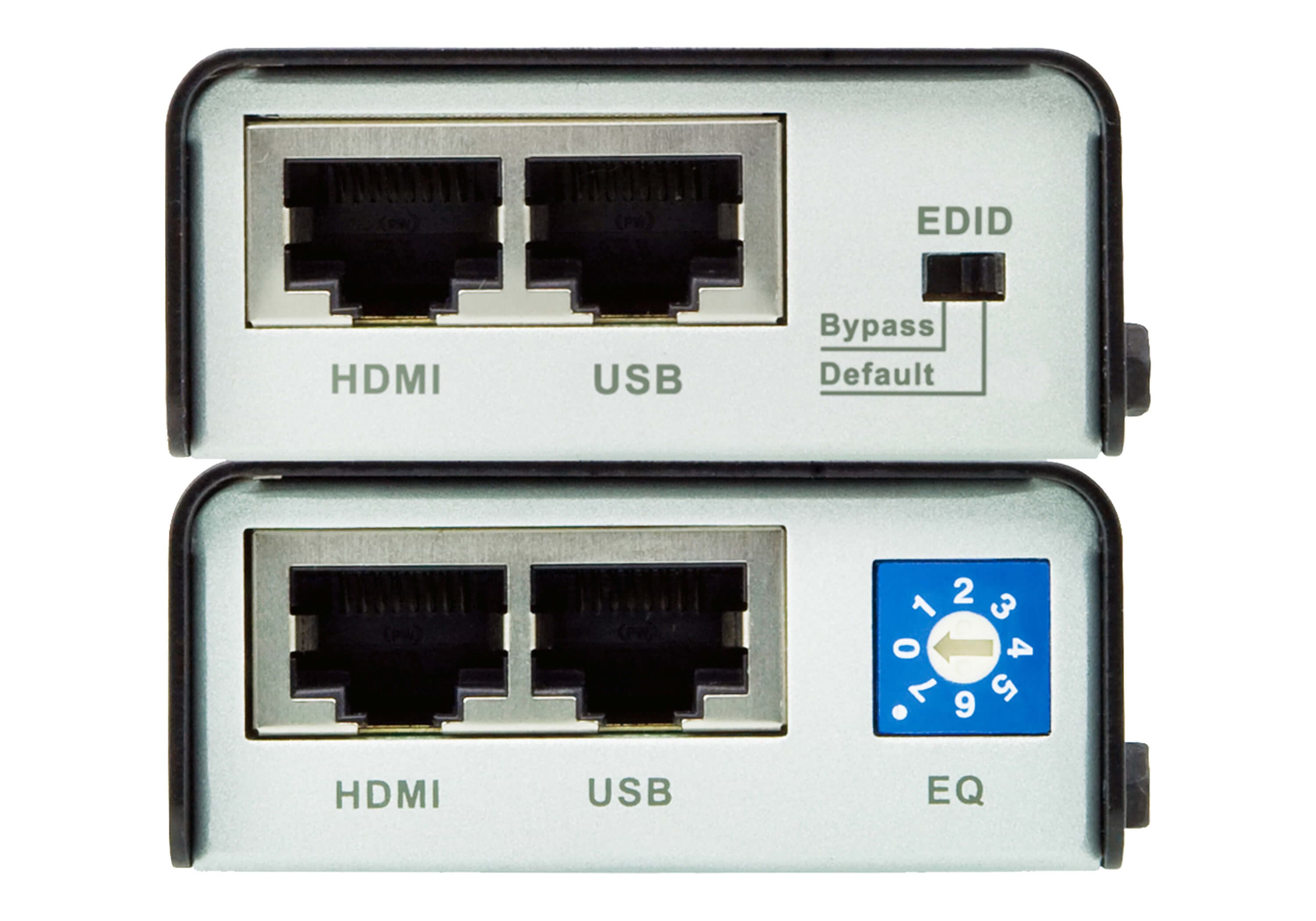

- 8 segment equalization adjustment switch optimizes display quality
- Support Dolby True HD and DTS HD Master Audio
- Built-in 8KV/15KV ESD protection
- Transparent USB Support – supports all USB 2.0 full speed device (up to 12 Mbps)
- Supports wide screen formats
- HDMI (3D, Deep Color); HDCP compatible – signaling rates up to 2.25Gbits
- Powered local unit via USB cable

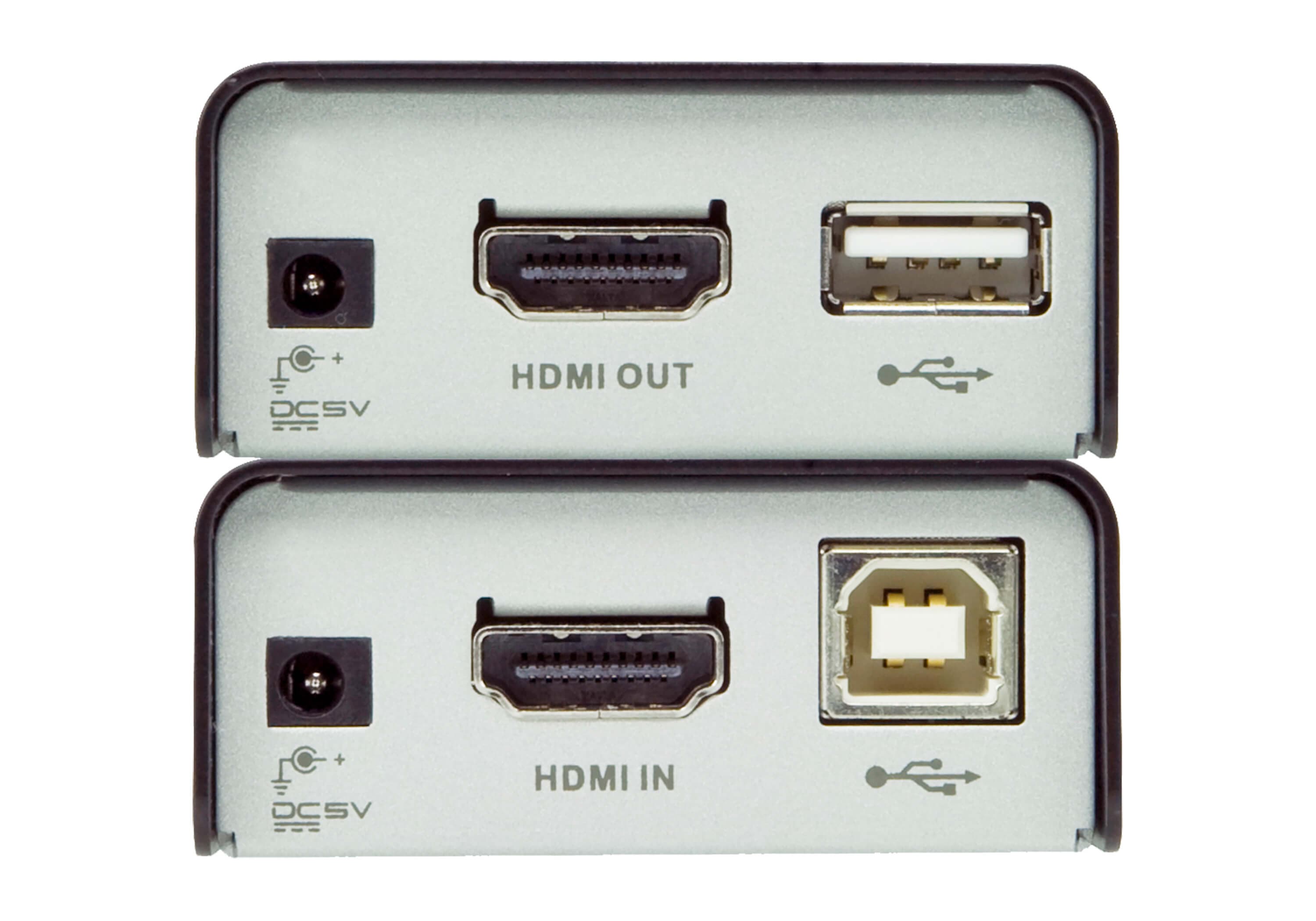

Видео вход
- Интерфейси
- N/A
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- N/A
- Импеданс
- 100 Ω
- Макс. разстояние
- N/A
- Макс. разстояние
- 3 m
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Интерфейси
- N/A
- Импеданс
- 100 Ω
- Импеданс
- N/A
- Макс. разстояние
- 3 m
- Макс. разстояние
- N/A
Видео
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDMI (3D, Deep Color) HDCP Compatible
- Съответствие
- HDMI (3D, Deep Color) HDCP Compatible
- Макс. резолюция / разстояние
- Up to 1080p@40m; 1080i@60m
- Макс. резолюция / разстояние
- Up to 1080p@40m; 1080i@60m
Аудио
- Вход
- N/A
- Вход
- 1 x HDMI Type A Female (Black)
- Изход
- 1 x HDMI Type A Female (Black)
- Изход
- N/A
Управление
- USB
- 1 x USB Type A Female
- USB
- 1 x USB Type B Female
- EDID настройки
- EDID Mode: Default
- EDID настройки
- EDID Mode: Default
Конектори
- Захранване
- 1 x DC Jack
- Захранване
- 1 x DC Jack
- Консумация
- DC5V:0.75W:14BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5V:1.04W:16BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.16 kg ( 0.35 lb )
- Тегло
- 0.16 kg ( 0.35 lb )
- Размери (Д x Ш x В)
- 9.00 x 5.74 x 2.40 cm (3.54 x 2.26 x 0.94 in.)
- Размери (Д x Ш x В)
- 9.00 x 5.74 x 2.40 cm (3.54 x 2.26 x 0.94 in.)
- Брой в кашон
- 5 pcs
- Брой в кашон
- 5 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
