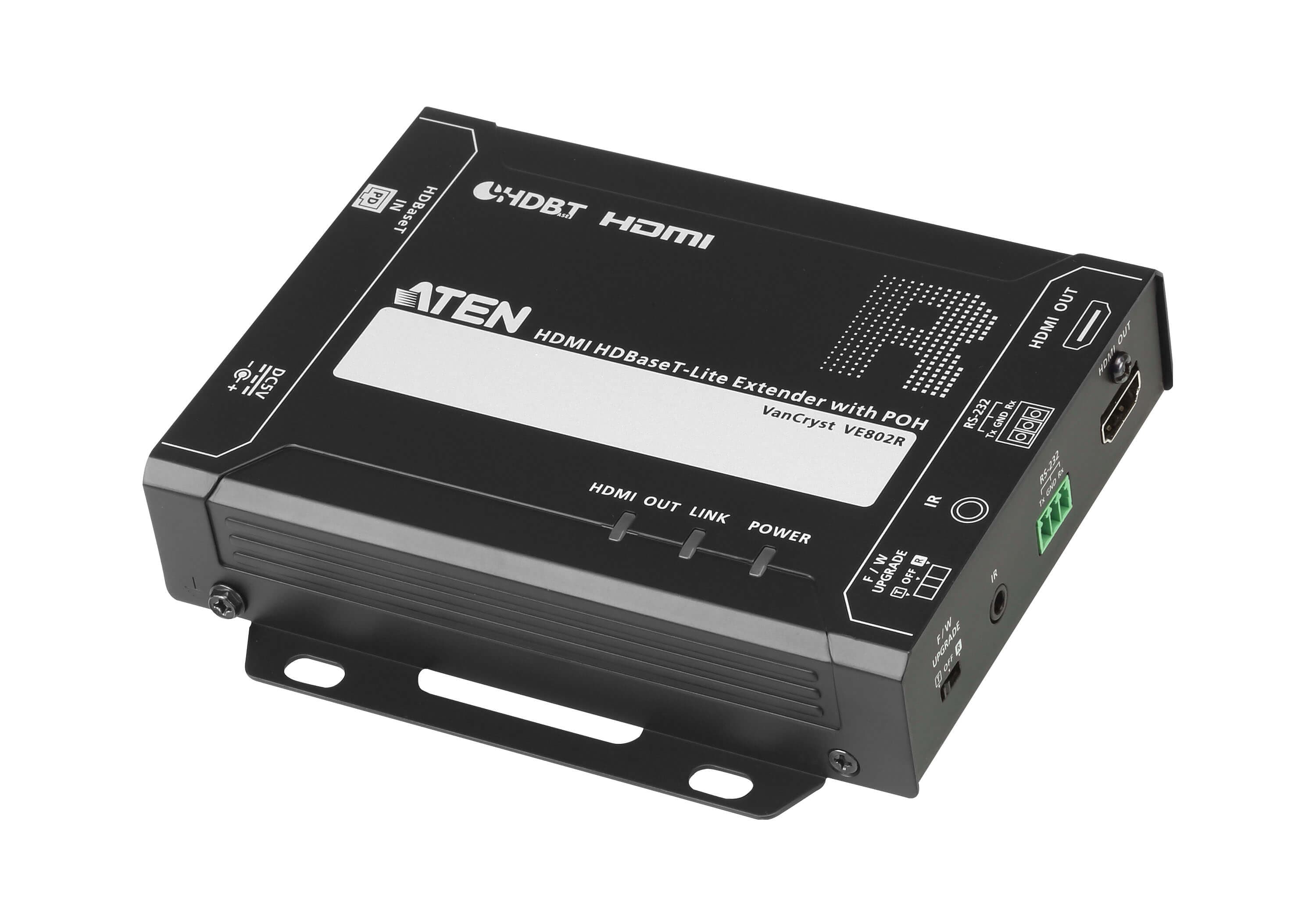

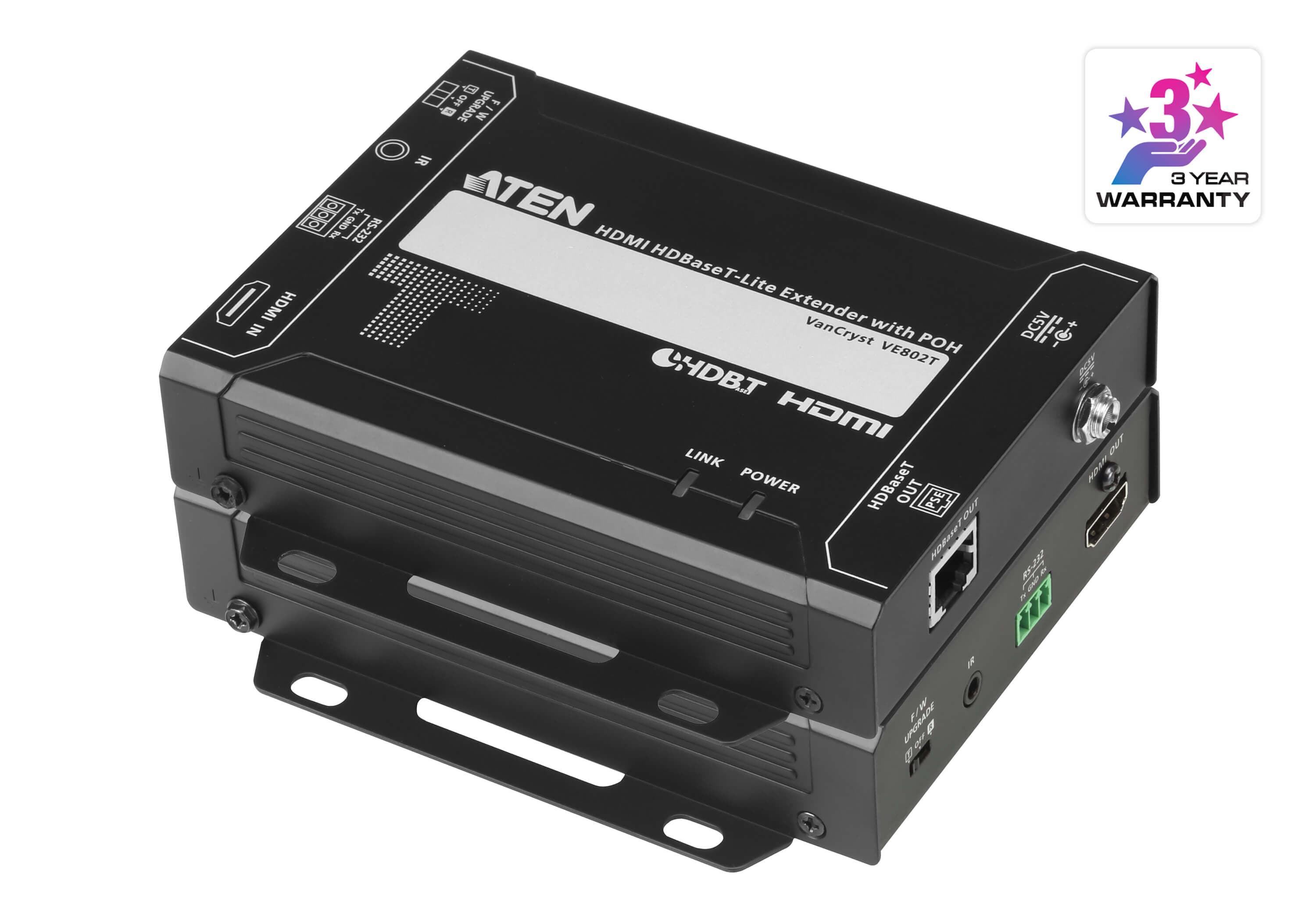

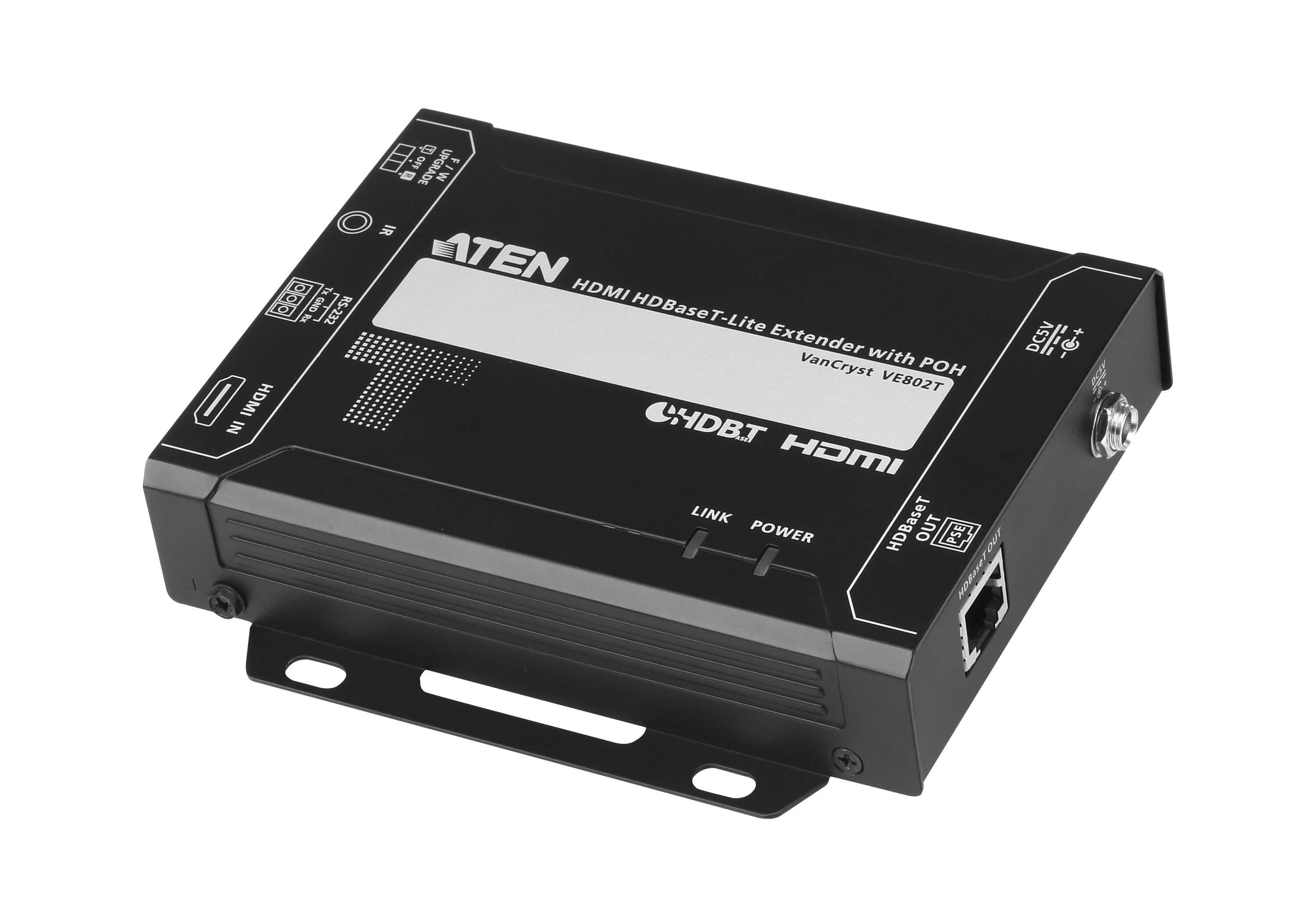

HDMI HDBaseT-Lite Extender with PoH (4K@40m) (HDBaseT Class B)

Name: HDMI HDBaseT-Lite Extender with PoH (4K@40m) (HDBaseT Class B)
Brand: ATEN
SKU: VE802

VE802

HDBaseT-Lite удължител за HDMI с PoH — до 70 m по един Cat 5e/6/6a кабел, 4K до 35 m (Cat 5e/6) или 40 m (Cat 6a), с passthrough на RS-232 и IR.

Характеристики

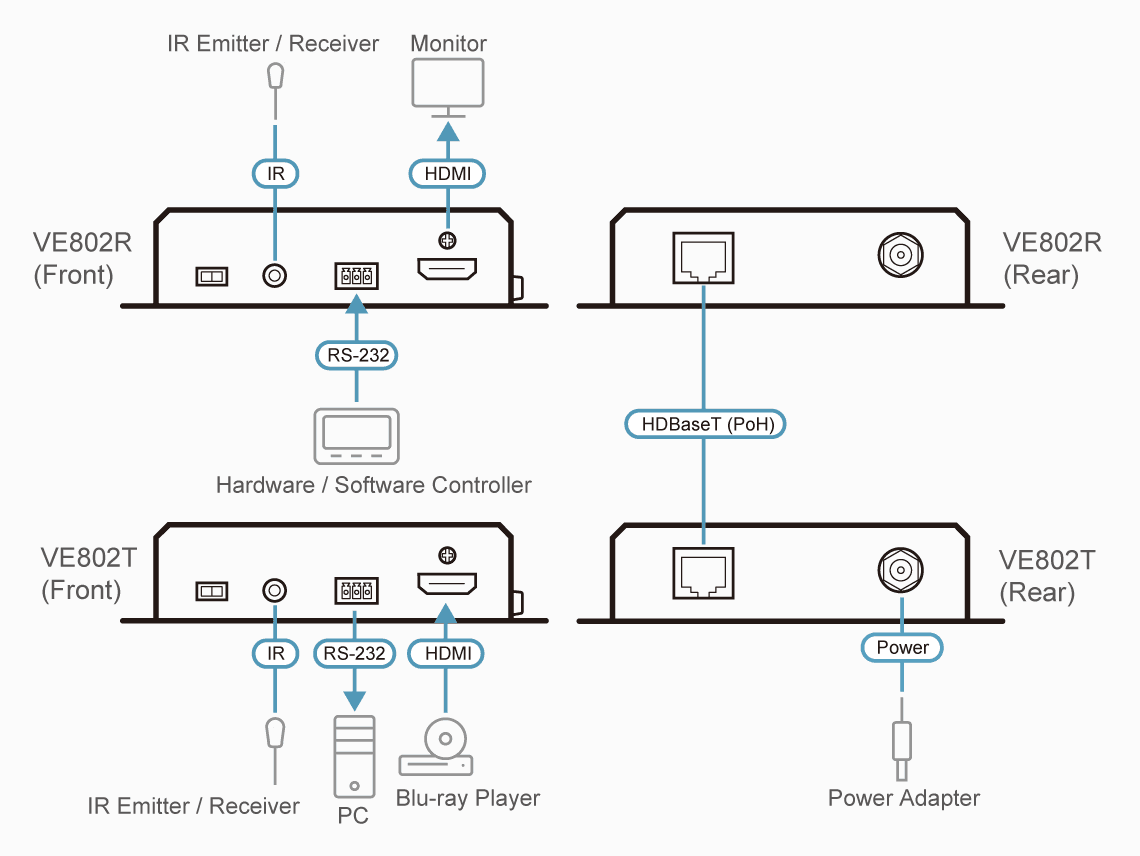

HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
PoH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Bi-directional IR channel – IR transmission is processed one direction at a time
Rack- Mountable

Макс. скорост на данните: 10.2Gbps (3.4Gbps per lane)
Макс. скорост на данните: 10.2Gbps (3.4Gbps per lane)
Макс. пикселна честота: 340 MHz
Макс. пикселна честота: 340 MHz
Съответствие: HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
Съответствие: HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
Макс. резолюция / разстояние: Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Макс. резолюция / разстояние: Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

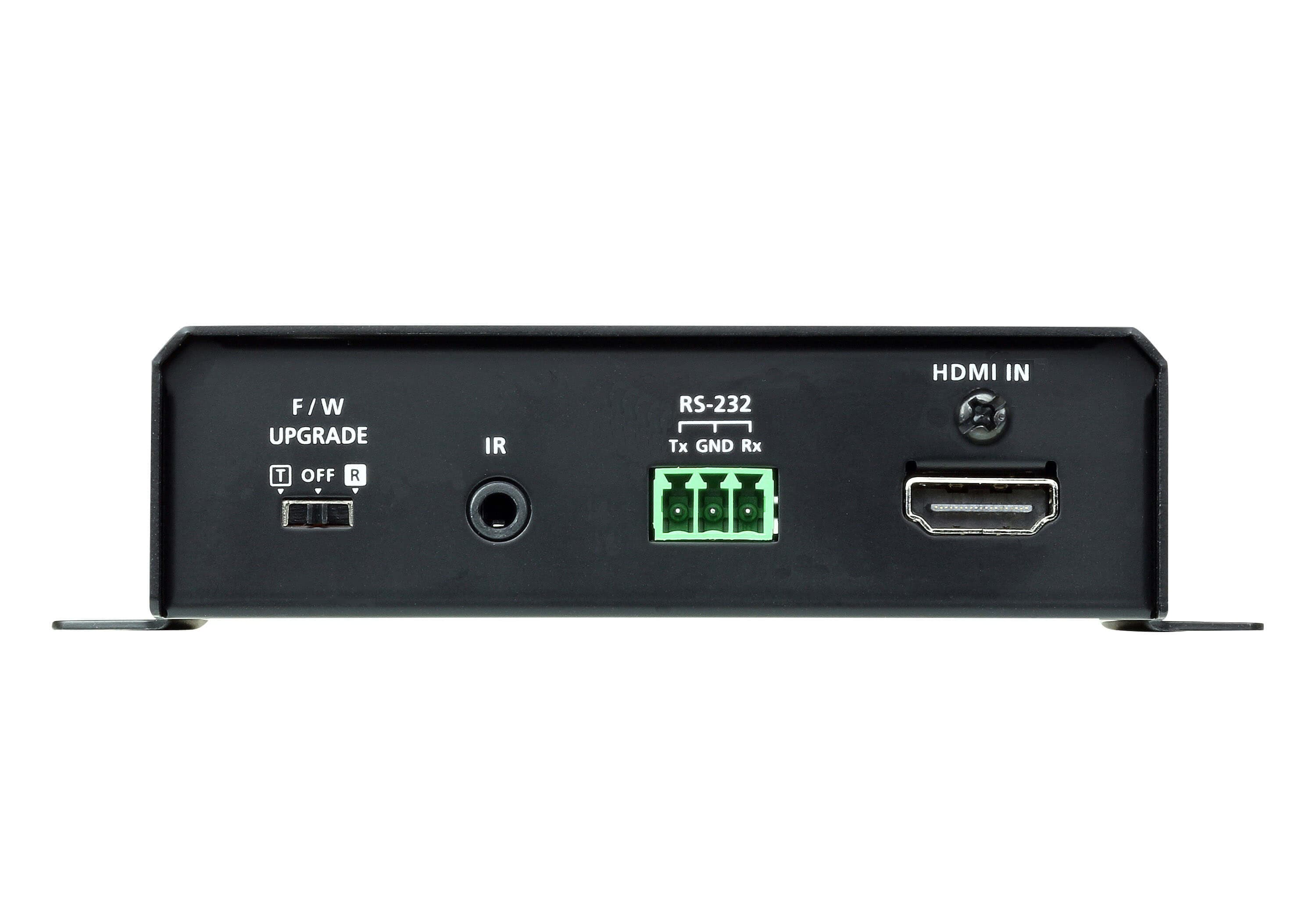

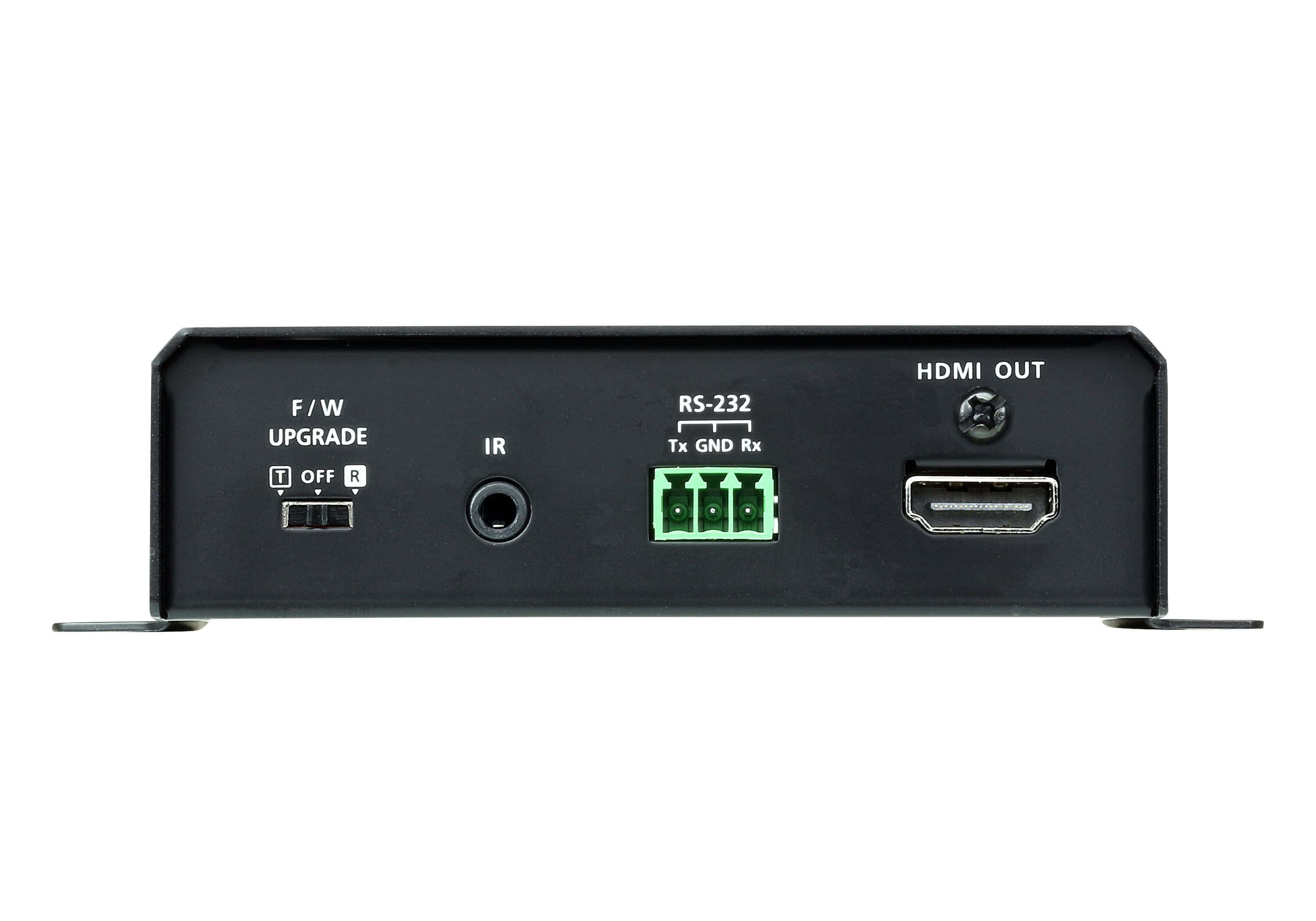

RS-232: Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
RS-232: Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
IR: 1 x Mini Stereo Jack Female (Black)
IR: 1 x Mini Stereo Jack Female (Black)

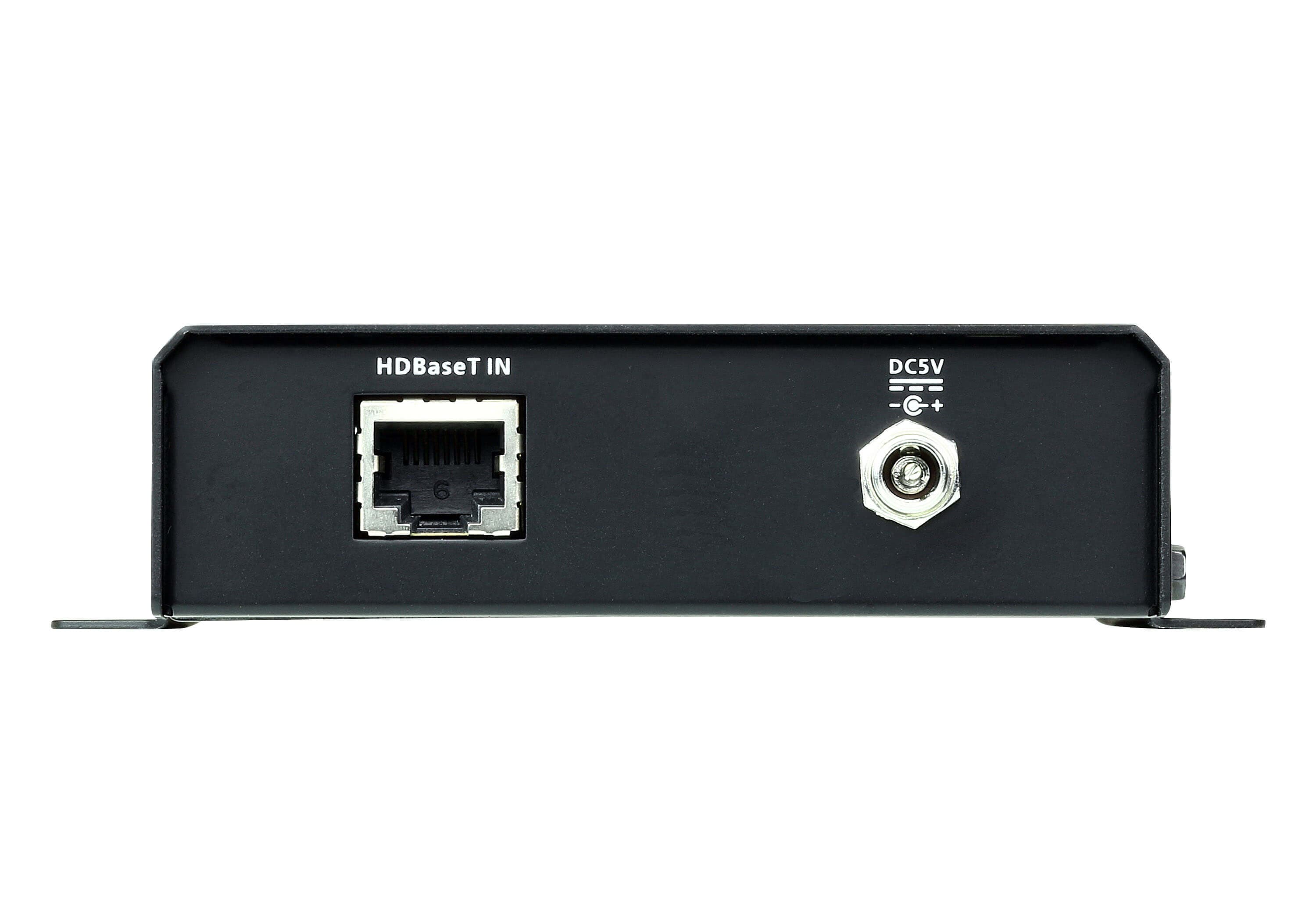

Захранване: 1 x DC Jack (Black) with locking or 1 x RJ-45 (Power Over HDBaseT, POH)
Захранване: 1 x DC Jack (Black) with locking

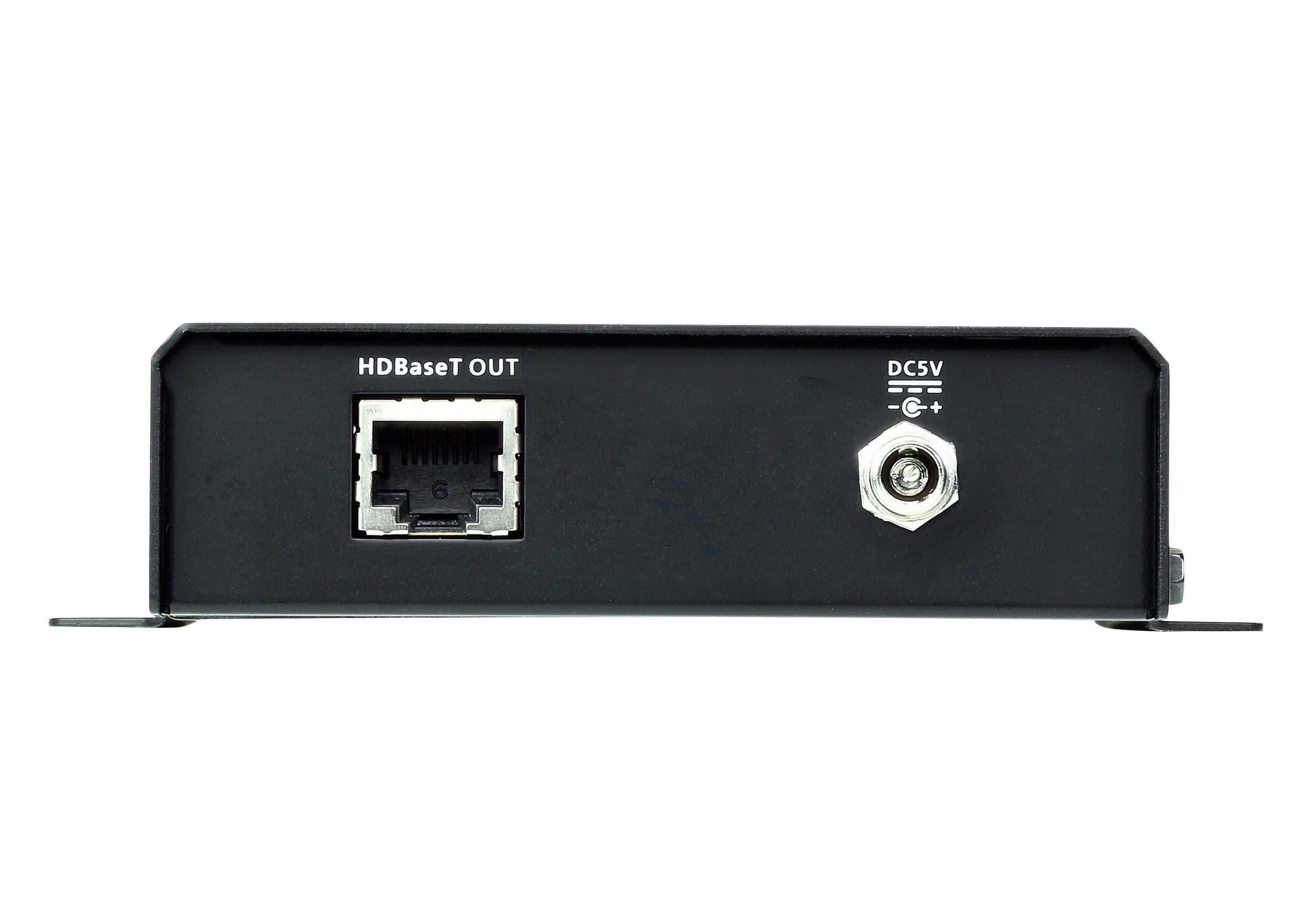

Между устройства: 1 x RJ-45 Female
Между устройства: 1 x RJ-45 Female
Консумация: DC5V:4.37W:20BTU POH:5.46W:25BTU Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: DC5V:2.7W:13BTU Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Корпус: Metal
Тегло: 0.46 kg ( 1.01 lb )
Тегло: 0.44 kg ( 0.97 lb )
Размери (Д x Ш x В) със скоба: 14.04 x 12.30 x 3.00 cm (5.53 x 4.84 x 1.18 in.)
Размери (Д x Ш x В) със скоба: 14.04 x 12.30 x 3.00 cm (5.53 x 4.84 x 1.18 in.)
Размери (Д x Ш x В) без скоба: 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.)
Размери (Д x Ш x В) без скоба: 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.)
