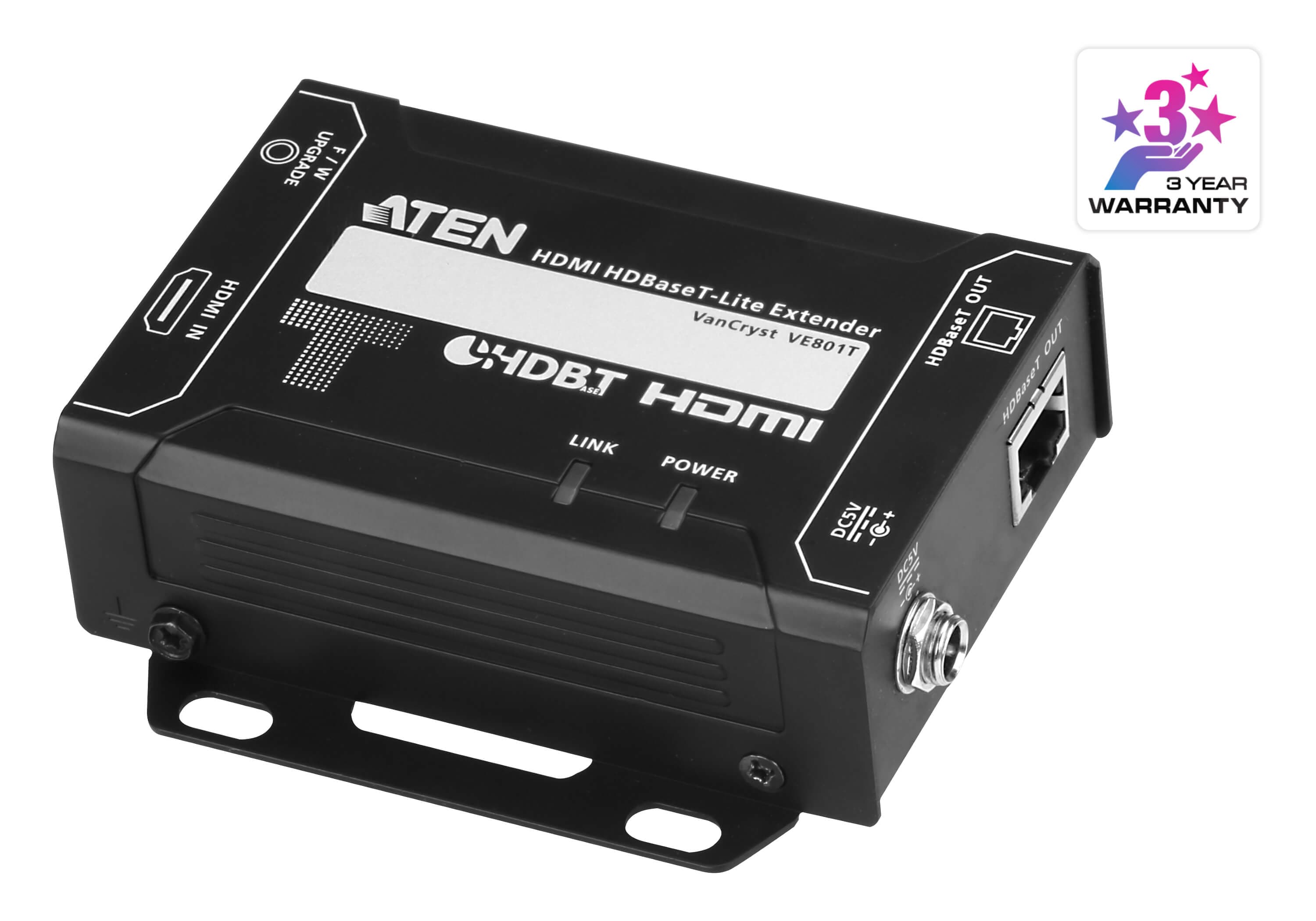

HDMI HDBaseT-Lite Transmitter (4K@40m) (HDBaseT Class B)
VE801T
HDBaseT-Lite предавател за HDMI — работи с HDBaseT приемници по един Cat 5e/6/6a кабел до 70 m; 4K до 35 m (Cat 5e/6) или 40 m (Cat 6a). HDCP 2.2.
Характеристики
- Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
- HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
- Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- Plug-and-play
- Rack-mountable

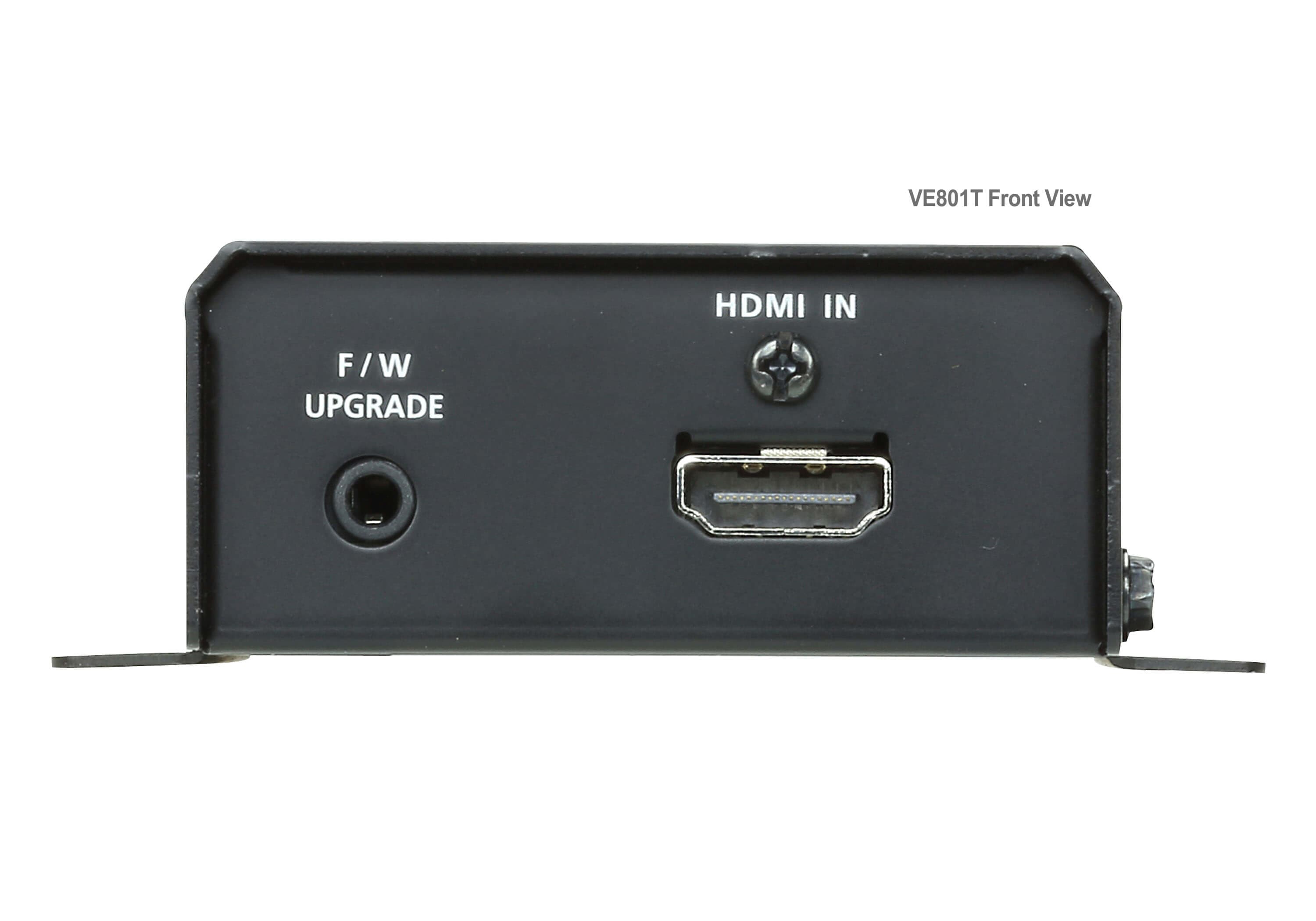

Видео вход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100Ω
- Макс. разстояние
- 3 m
Видео
- Макс. скорост на данните
- 10.2Gbps (3.4Gbps per lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
- Макс. резолюция / разстояние
- Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Аудио
- Вход
- 1 x HDMI Type A Female (Black)

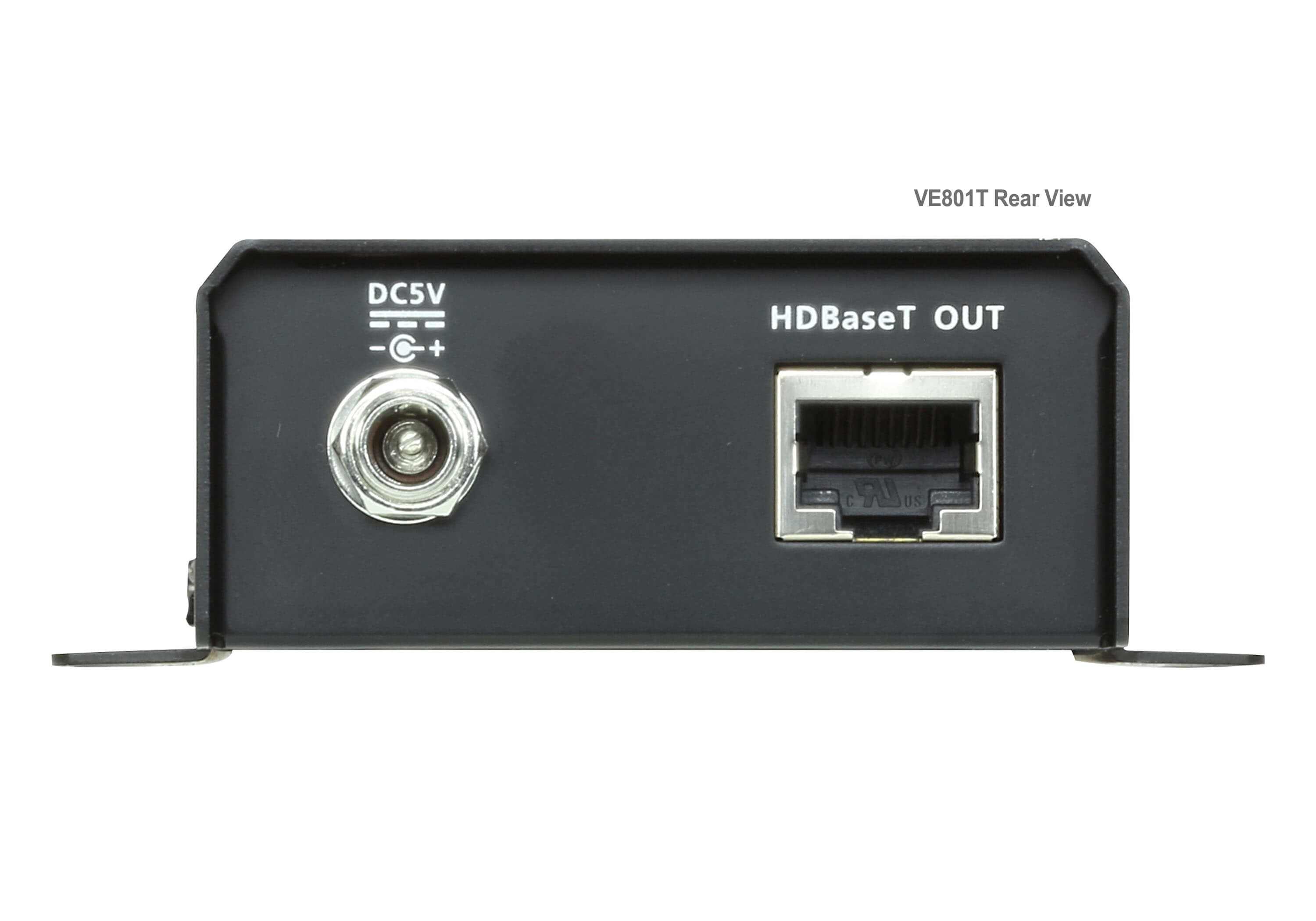

Конектори
- Захранване
- 1 x DC Jack (Black) with locking
- Между устройства
- 1 x RJ-45 Female
- Консумация
- DC5V:1.86W:9BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0% - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.24 kg ( 0.53 lb )
- Размери (Д x Ш x В) със скоба
- 9.86 x 8.70 x 3.00 cm (3.88 x 3.43 x 1.18 in.)
- Размери (Д x Ш x В) без скоба
- 9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.)
