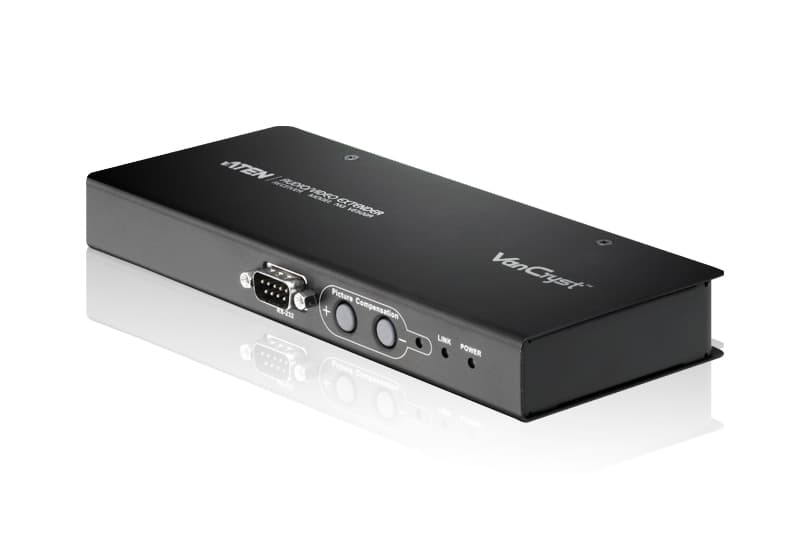

VGA/Audio/RS-232 Cat 5 Receiver with Auto Compensation (1280 x 1024@200m)
VE500RСнет от производство
Приемник за VGA, аудио и RS-232 по Cat 5 за връзка с матричните превключватели VM0808T/VM1616T; поддържа 1920x1200 на 30 m и 1280x1024 на 200 m.
Характеристики
- Long Distance Transmission up to 300 m
- Superior video quality •1920x1200 @60Hz (30 m); 1600x1200 @60Hz (150 m)
- Superior audio quality - balanced audio provides flawless long-distance transmission
- Adjustable gain control - manually adjust signal strength to compensate for distance
- Provides RS-232 channel
- Supports wide screen
- Rack Mountable
Видео изход
- Интерфейси
- 1 x HDB-15 Female (Blue)
- Импеданс
- 75 Ω
Видео
- Макс. честотна лента
- 300 MHz
- Макс. резолюция / разстояние
- 1920 x 1200@30m; 1280 x 1024@200m
Аудио изходи
- Интерфейси
- Balanced: 1 x Captive Screw Connector, 5 Pole (Green) Stereo: 1 x Mini Stereo Jack Female (Green)
Управление
- RS-232
- Connector: 1 x DB-9 Male (Black) Serial Control Pin Configurations: Pin2 = Rx, Pin 3=Tx, Pin 5= Gnd
Конектори
- Захранване
- 1 x DC Jack (Black)
- Консумация
- 5.3 VDC, 4.04W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.48 kg ( 1.06 lb )
- Размери (Д x Ш x В)
- 20.20 x 8.64 x 2.50 cm (7.95 x 3.4 x 0.98 in.)
- Брой в кашон
- 5 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
