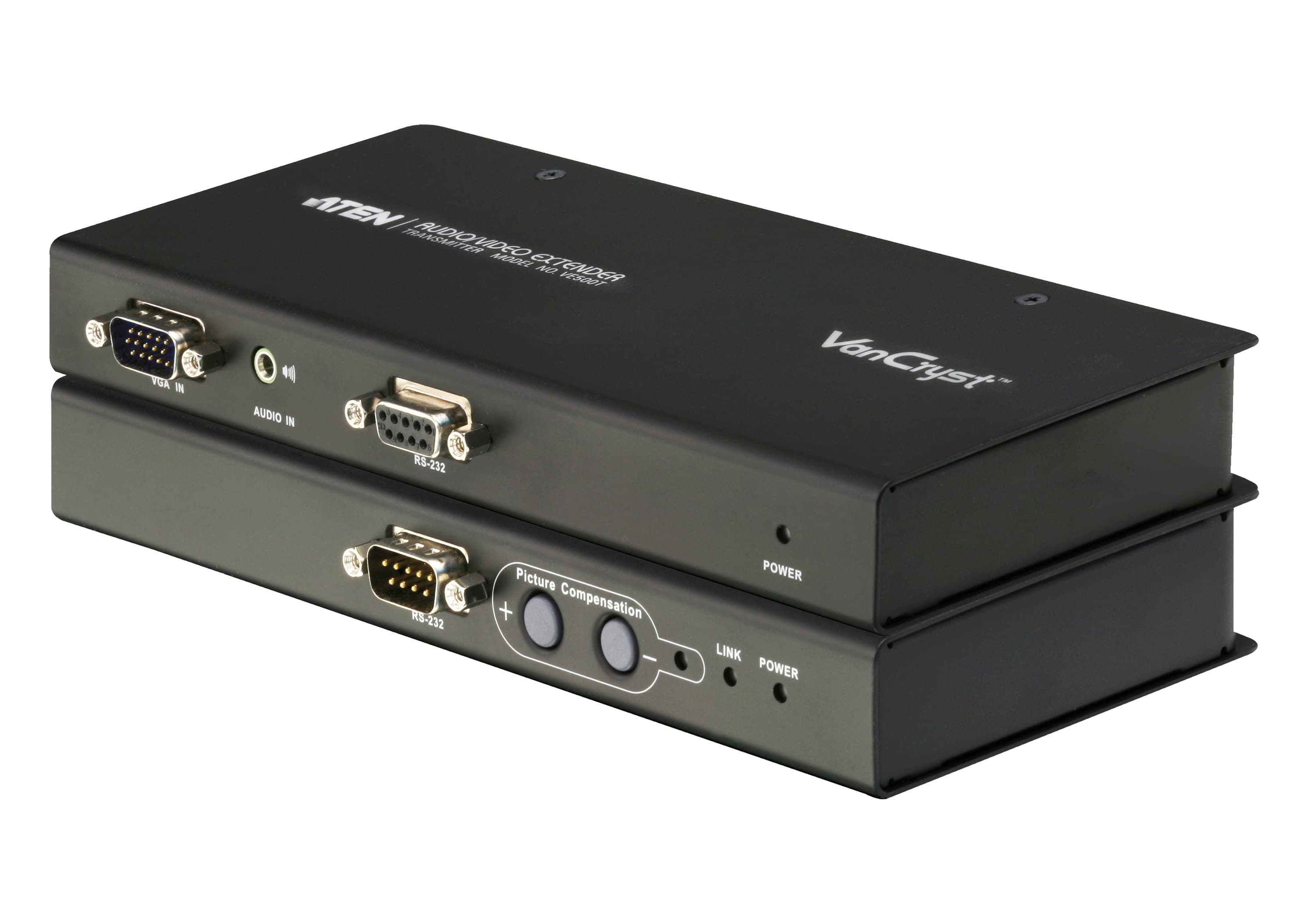

VGA/Audio/RS-232 Cat 5 Extender with Auto Compensation (1280 x 1024@300m (RQ))

Name: VGA/Audio/RS-232 Cat 5 Extender with Auto Compensation (1280 x 1024@300m (RQ))
Brand: ATEN
SKU: VE500

VE500Снет от производство

Заяви оферта Datasheet PDF Бърз старт CAD чертеж

Удължител за VGA, аудио и RS-232 по Cat 5e, проектиран за матричните превключватели VM0808T/VM1616T; предава сигнала до 300 m, а приемникът RQ добавя автоматично deskew изравняване на RGB сигналите.

Характеристики

Uses Cat 5e cable to connect the Transmitter and Receiver
Deskew Function (VE500RQ) - automatically synchronizes the time delay of RGB signals to compensate for distance
Long Distance Transmission up to 300 m
Superior video quality • VE500R: 1920x1200 @60Hz (30 m); 1600x1200 @60Hz (150 m) • VE500RQ: 1920x1200 @60Hz (150 m); 1280x1024 @60Hz (300 m)
Superior audio quality - balanced audio provides flawless long-distance transmission
Adjustable gain control - manually adjust signal strength to compensate for distance
Supports one local and one remote displays
Provides RS-232 channel
Supports wide screen
Rack Mountable

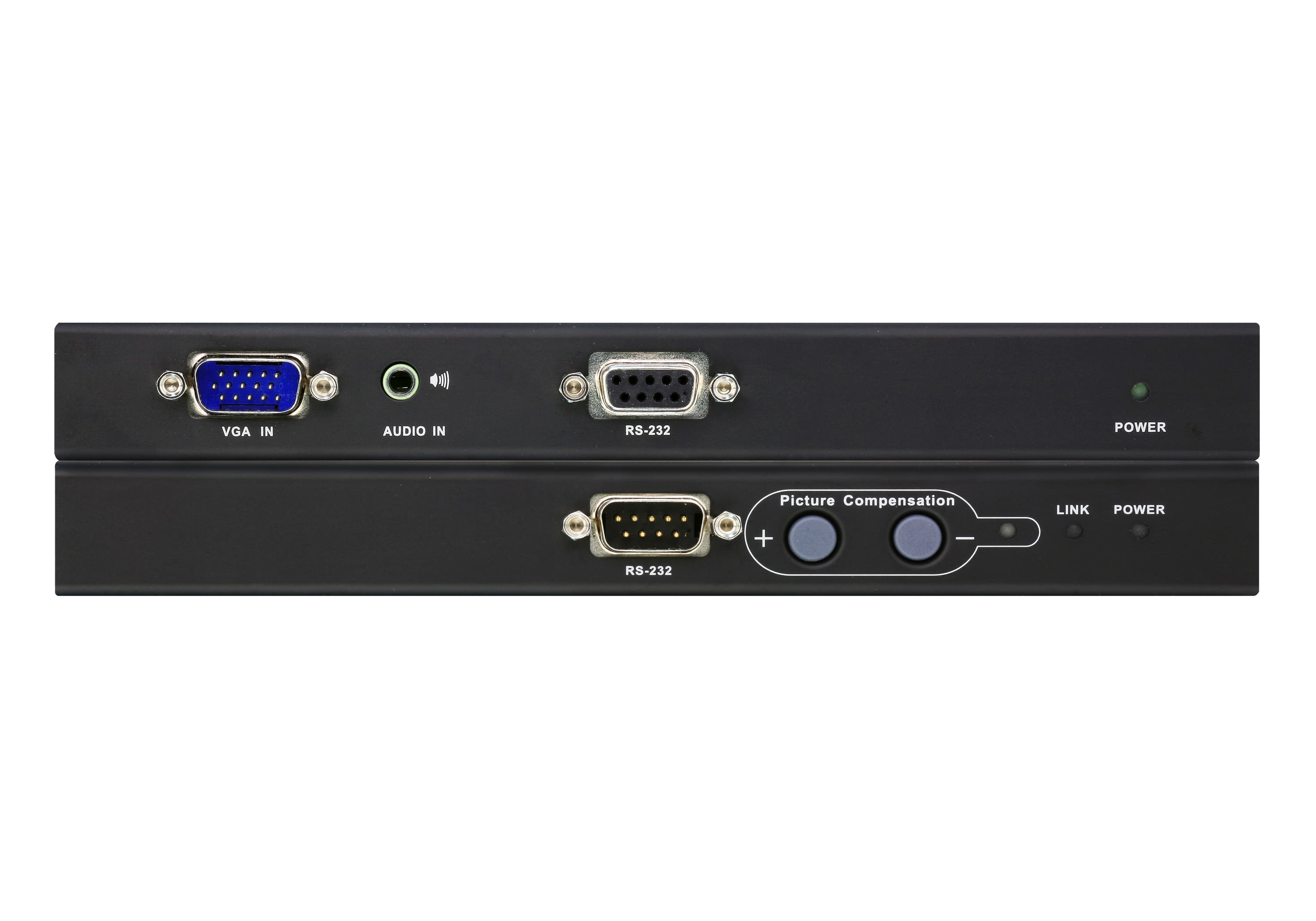

Видео вход

Интерфейси: VE500T: 1 x HDB-15 Male (Blue)
Импеданс: 75 Ω
Макс. разстояние: 1.8 m

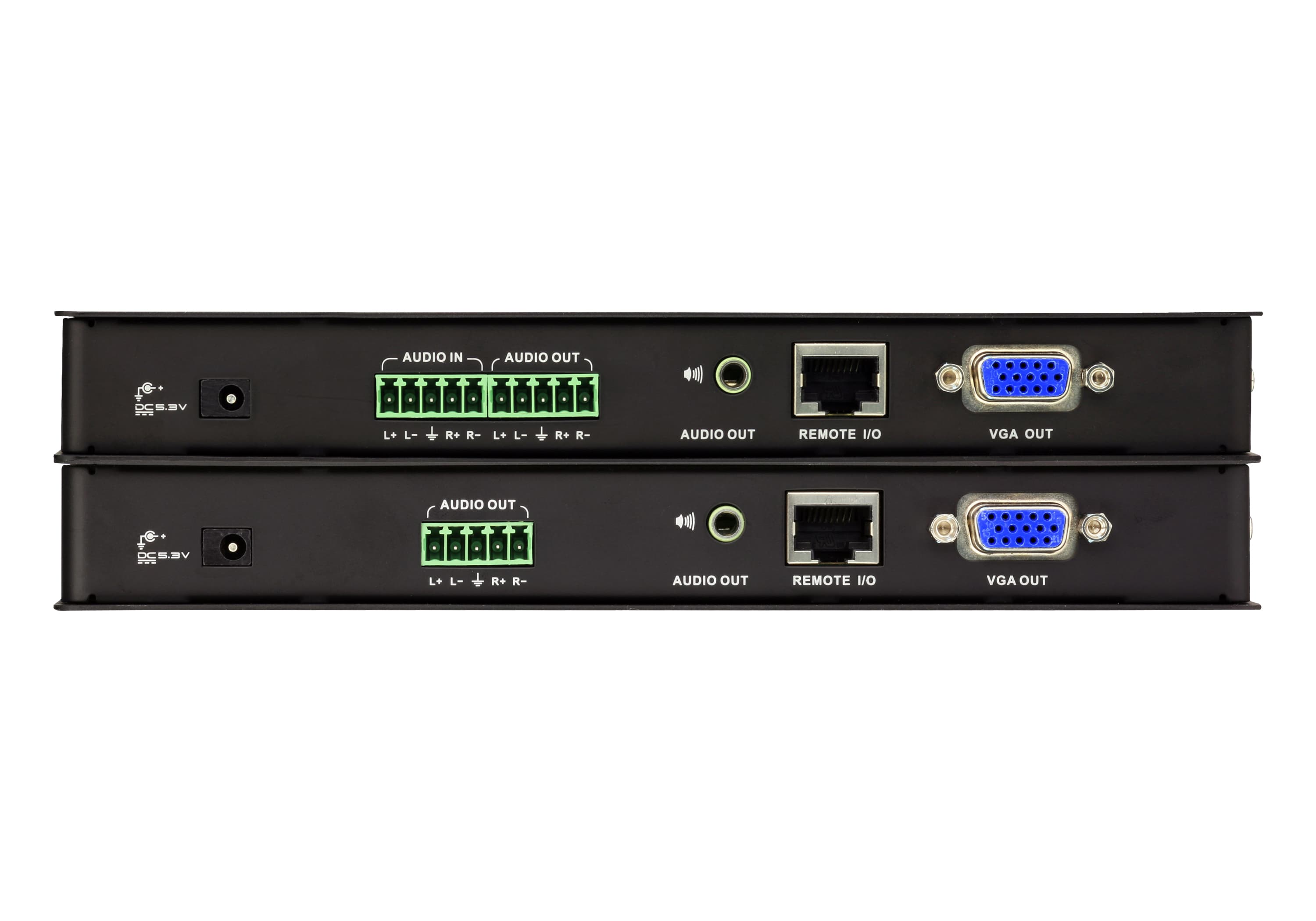

Видео изход

Интерфейси: VE500R/RQ: 1 x HDB-15 Female (Blue)
Импеданс: 75 Ω

Видео

Макс. честотна лента: 300 MHz
Макс. резолюция / разстояние: VE500R: 1920 x 1200@30m; 1280 x 1024@200m VE500RQ: 1920 x 1200@150m; 1280 x 1024@300m

Balanced: 1 x Captive Screw Connector, 5 Pole (Green) Stereo: 1 x Mini Stereo Jack Female (Green)

Изход: Balanced: 1 x Captive Screw Connector, 5 Pole (Green) Stereo: 1 x Mini Stereo Jack Female (Green)

Управление

RS-232: Connector: VE500T: 1 x DB-9 Female (Black); VE500R/VE500RQ: 1 x DB-9 Male (Black) Serial Control Pin Configurations: Female: Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd Male: Pin2 = Rx, Pin 3=Tx, Pin 5= Gnd

Конектори

Захранване: 1 x DC Jack (Black)
Консумация: VE500T: 5.3 VDC, 2.98W VE500R: 5.3 VDC, 4.04W VE500RQ: 5.3 VDC, 5.63W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
