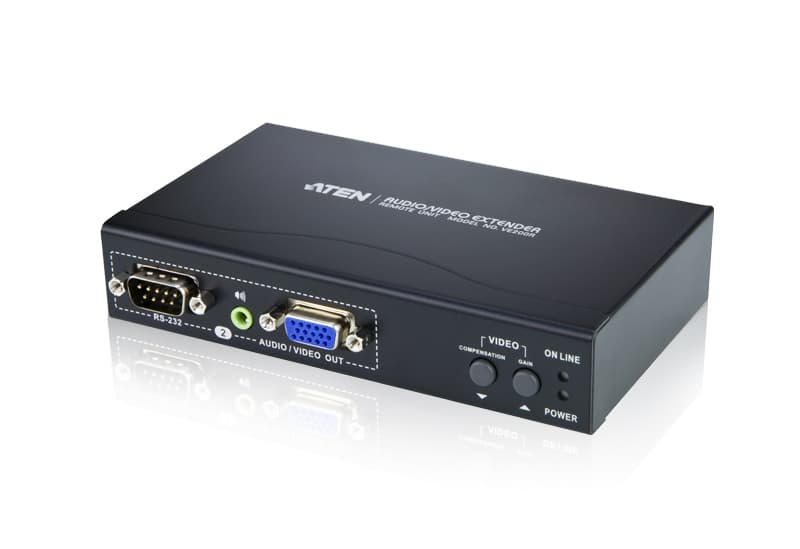

VGA/Audio/RS-232 Cat 5 Receiver with Dual Output (1280 x 1024@200m)
VE200RСнет от производство

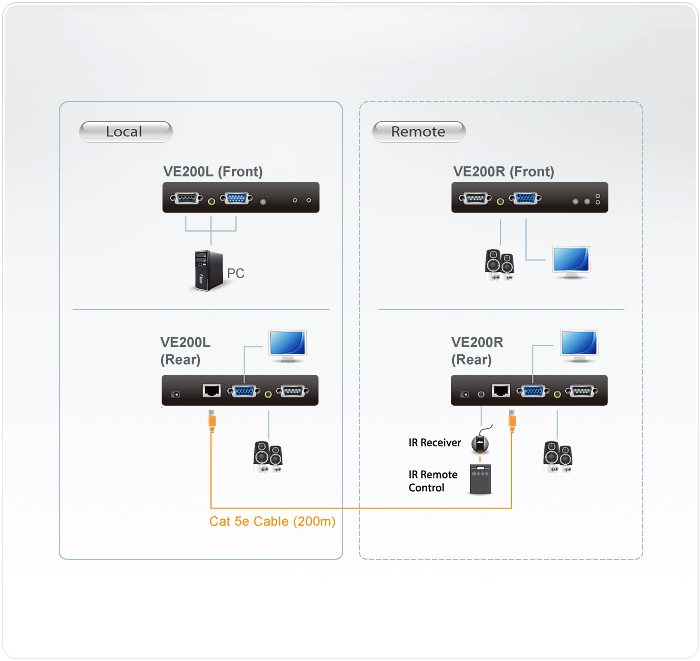

Приемник за VGA, аудио и RS-232 по Cat 5e към сплитери VS1504/VS1508; има два изхода за дисплей и достига до 200 m, с 1920x1200 на 30 m.
Характеристики
- Transmission distance up to 200 m*
- High-quality video – up to 1920x1200@60Hz at 30 m, 1600x1200@60Hz at 150 m, 1280x1024@60Hz at 200 m
- Audio and serial enabled

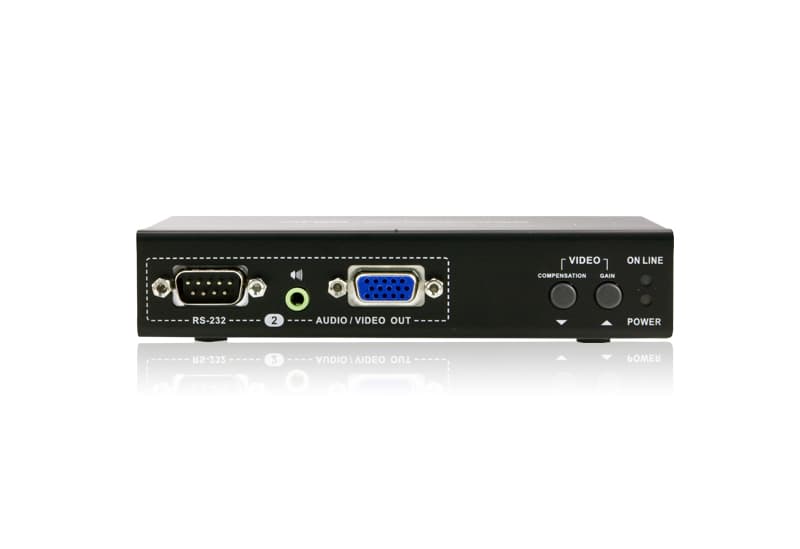

- Supports dual outputs
- Two gain control modes for sharpest picture quality
- Video gain and compensation adjustable via OSD
- IR receiver for quick and easy video quality adjustment
- IR remote control for screen on/off and video adjustment at remote site
- Automatic and adjustable gain control – adjust signal strength to compensate for distance
- Provide a RS-232 channel for selection**
- Follows VESA FDMI mount standard
- Supports DDC for the local monitor
- Supports VGA, SVGA, XGA, SXGA, UXGA, WUXGA and multisync monitors *1. When combined in an installation with ATEN's VB552 (VGA Over Cat5 Repeater + Audio) can extend distance up to 450 m 2. VE200R can also be combined in an installation with the ATEN's Media Distribution Solution. For further details, please go to our website www.aten.com ** Only one RS-232 channel can be selected at a time

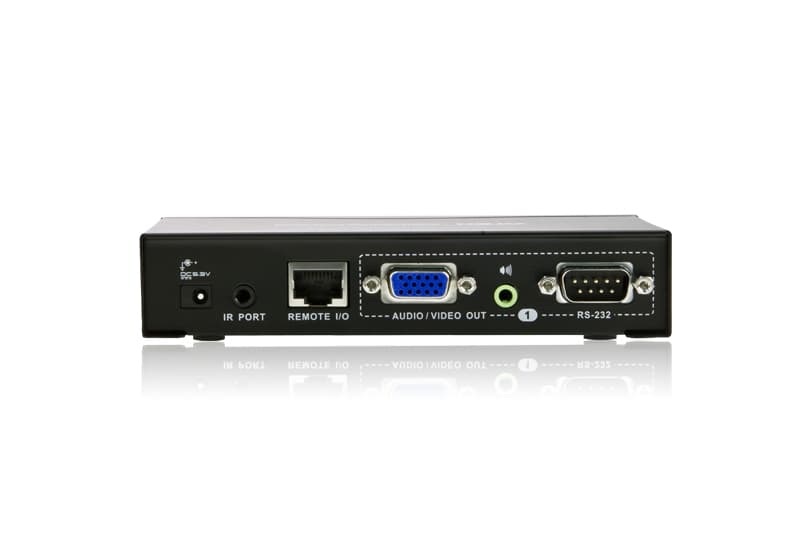

Видео изход
- Интерфейси
- 2 x HDB-15 Female (Blue)
- Импеданс
- 75 Ω
Видео
- Макс. честотна лента
- 300 MHz
- Макс. резолюция / разстояние
- Up to 1920 x 1200@30m; 1600 x 1200@150m
Аудио изходи
- Интерфейси
- 2 x Mini Stereo Jack Female (Green)
Управление
- RS-232
- 2 x DB-9 Male (Black)
Конектори
- Захранване
- 1 x DC Jack (Black)
- Консумация
- DC5.3V:3.65W:17BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.35 kg ( 0.77 lb )
- Размери (Д x Ш x В)
- 13.90 x 8.80 x 2.86 cm (5.47 x 3.46 x 1.13 in.)
- Брой в кашон
- 5 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
