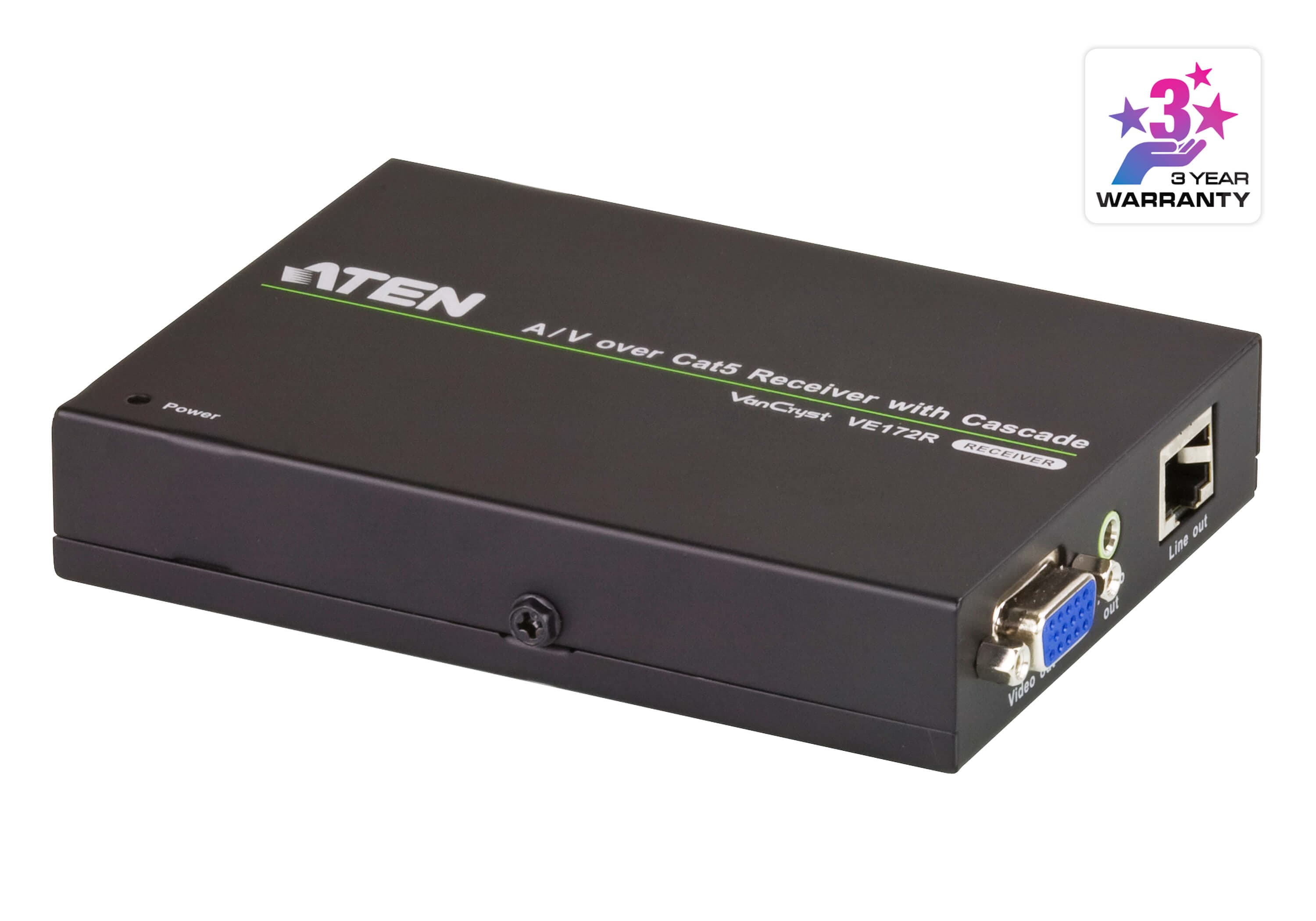

VGA/Audio Cat 5 Receiver with Cascade (1280 x 1024@150m)
VE172R
Приемник за VGA и аудио по Cat 5e с каскадно свързване до 10 нива — разстояние до 150 m (1280 x 1024). Съвместим с VE170T, VS1204T и VS1208T.
Характеристики
- Uses Cat 5e cable to connect the transmitter and receiver uints

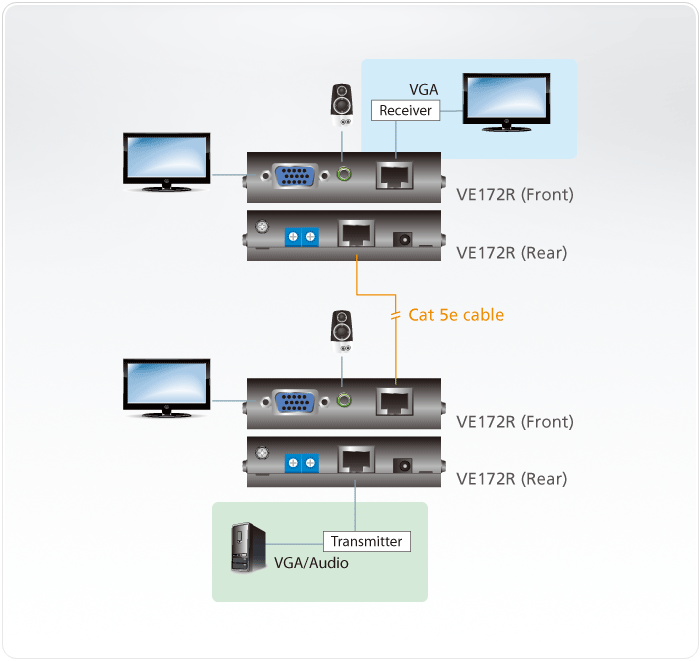

- Cascadable up to 10 levels
- Long distance transmission up to 150m
- Superior video quality – 1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (100 m); 1280x1024@ 60Hz (150 m)
- Audio enabled (mono)

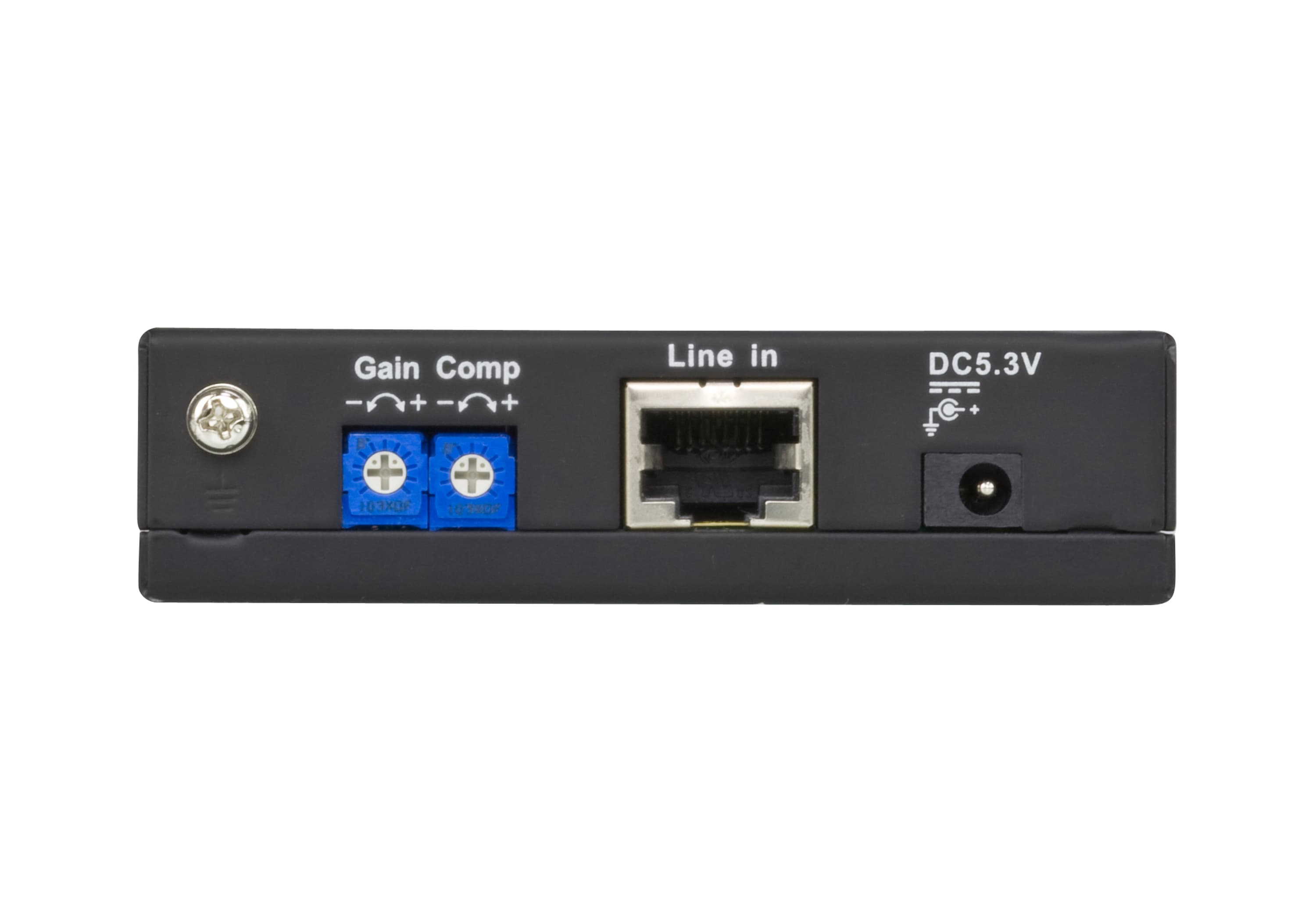

- Adjustable gain/compensation control – manually adjusts signal strength to compensate for distance
- Built-in 8KV/15KV ESD protection
- Rack-mountable
- Complies with VESA FDMI mount standard

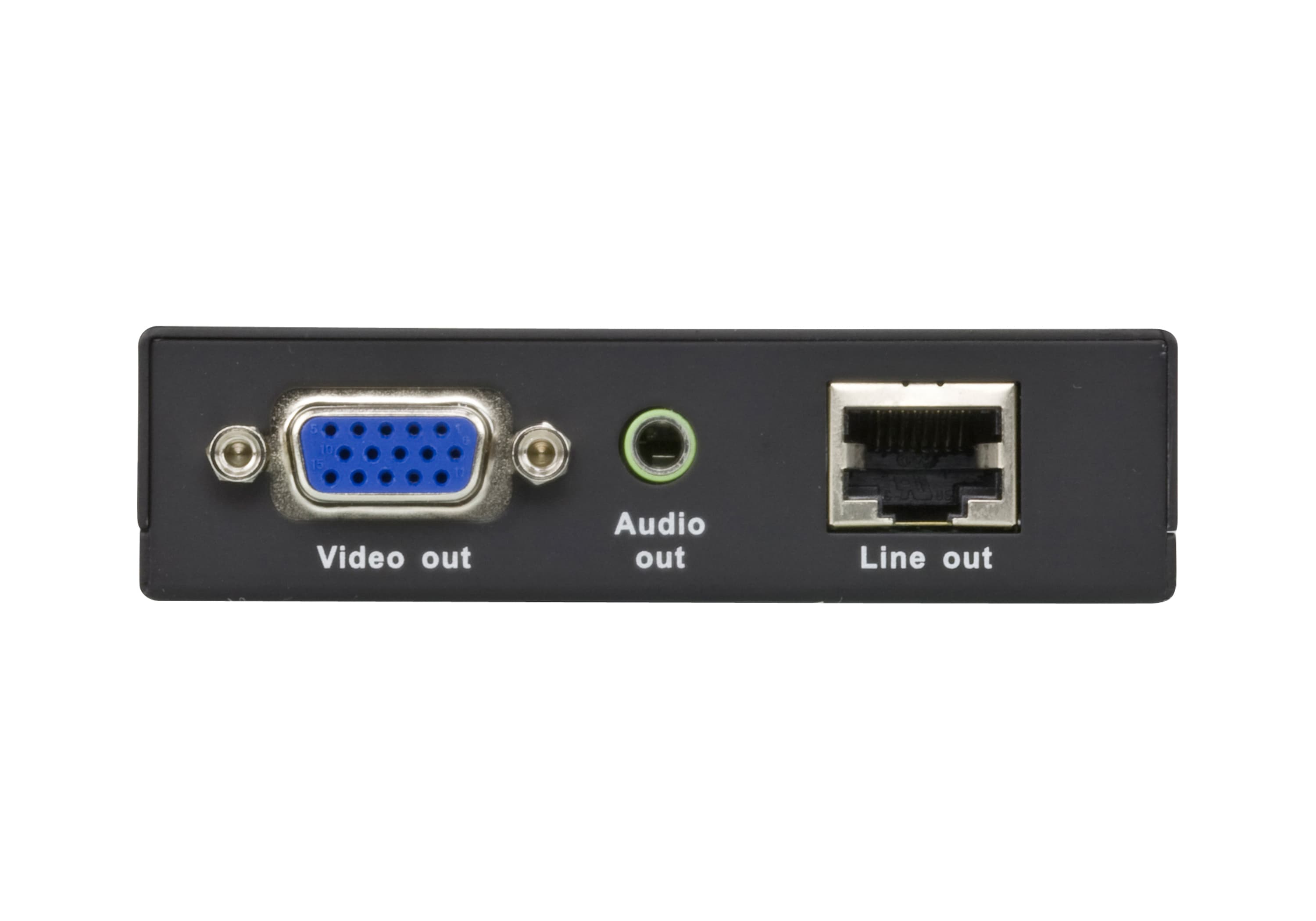

Видео изход
- Интерфейси
- 1 x HDB-15 Female (Blue)
- Импеданс
- 75 Ω
Видео
- Макс. честотна лента
- 300 MHz
- Макс. резолюция / разстояние
- Up to 1920 x 1200@30m; 1280 x 1024@150m
Аудио изходи
- Интерфейси
- 1 x Mini Stereo Jack Female (Green)
Конектори
- Захранване
- 1 x DC Jack (Black)
- Консумация
- DC5.3V:2.29W:11BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.24 kg ( 0.53 lb )
- Размери (Д x Ш x В)
- 12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.)
- Брой в кашон
- 5 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
