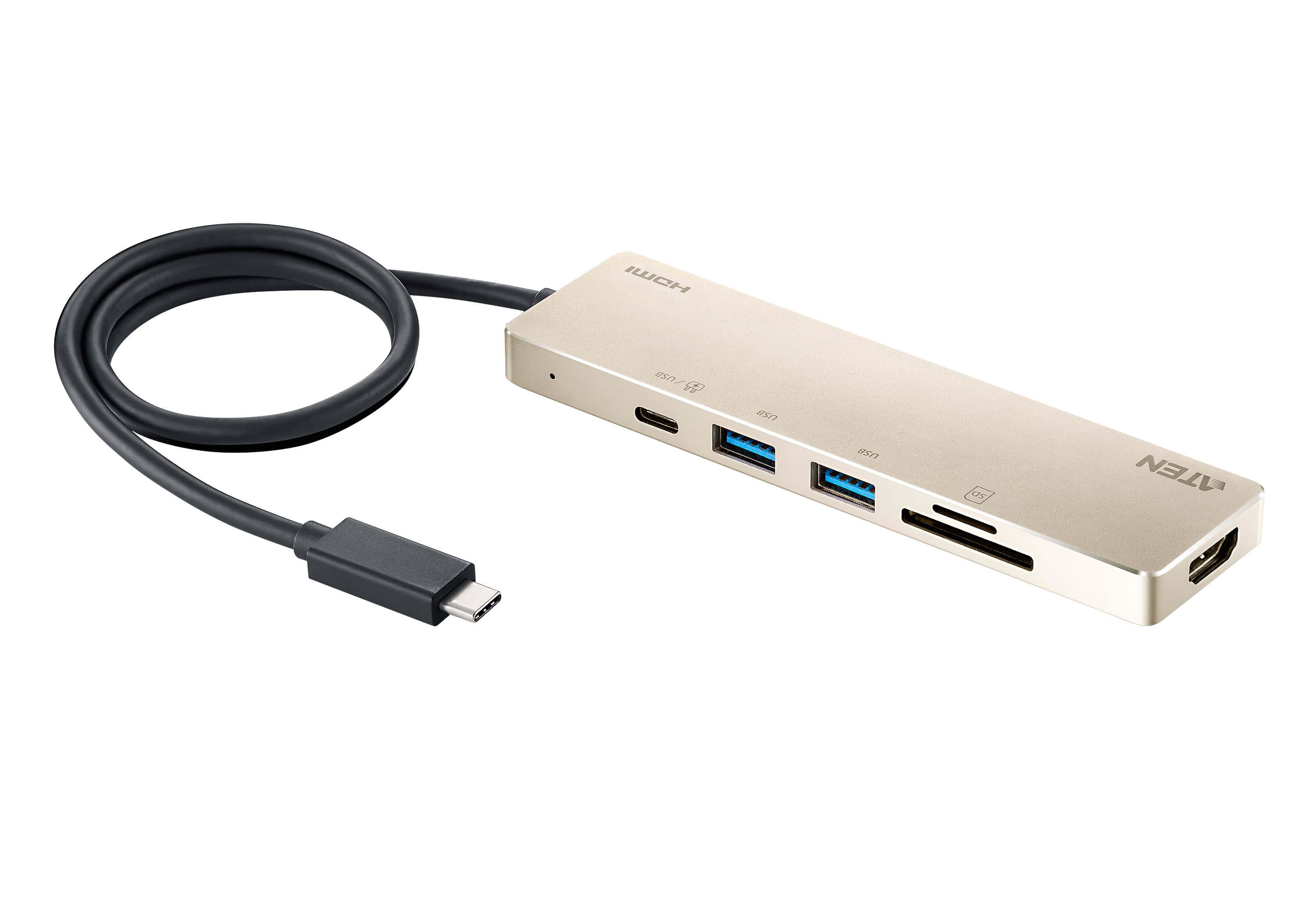

USB-C Multiport Mini Dock with Power Pass-Through
UH3239Снет от производство
Мини докинг станция 6-в-1 за USB-C лаптоп: HDMI изход до 4K (3840 x 2160 @ 30Hz), четец за SD/MicroSD карти, 2 x USB 3.2 Gen 1 порта и PD зареждане до 60W.
Характеристики

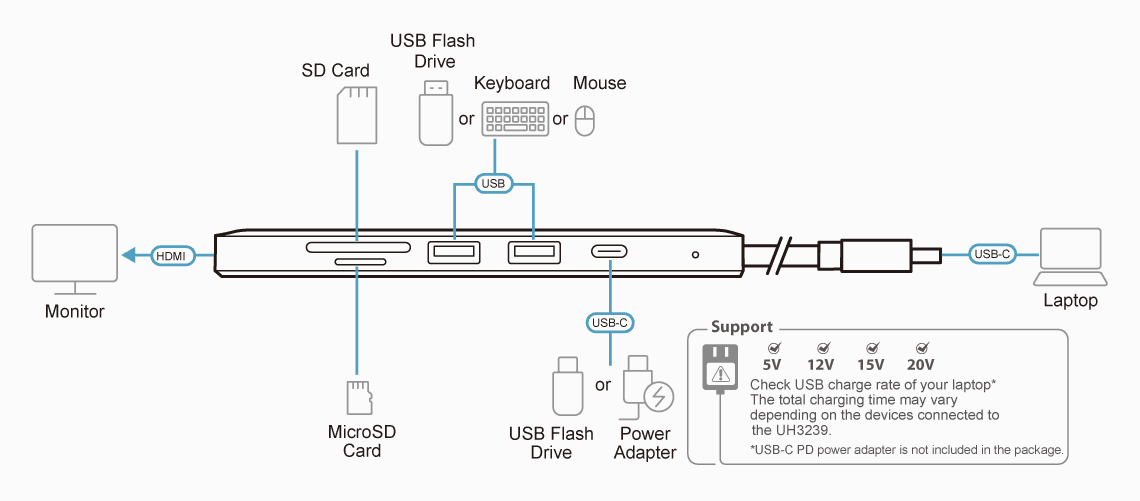

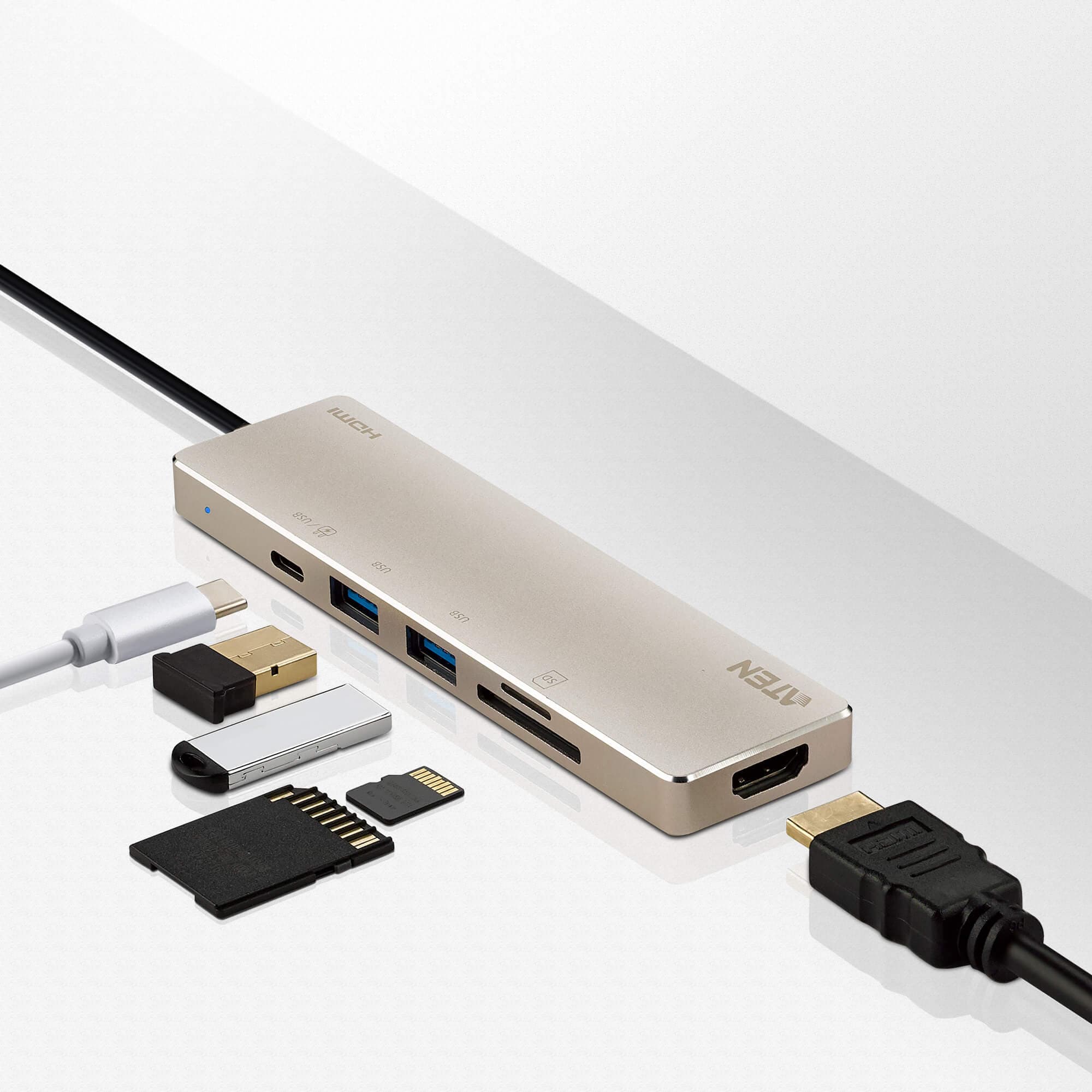

- 6-in-1 multi-function dock that includes 1x HDMI, 1x SD / Micro SD card reader, 1x USB-C PD port and 2x USB 3.2 Gen 1 Type-A ports
- Supports USB PD 2.0 for laptop charging up to 60W via USB-C PD power adapter – power profiles include 5V, 12V, 15V, 20V

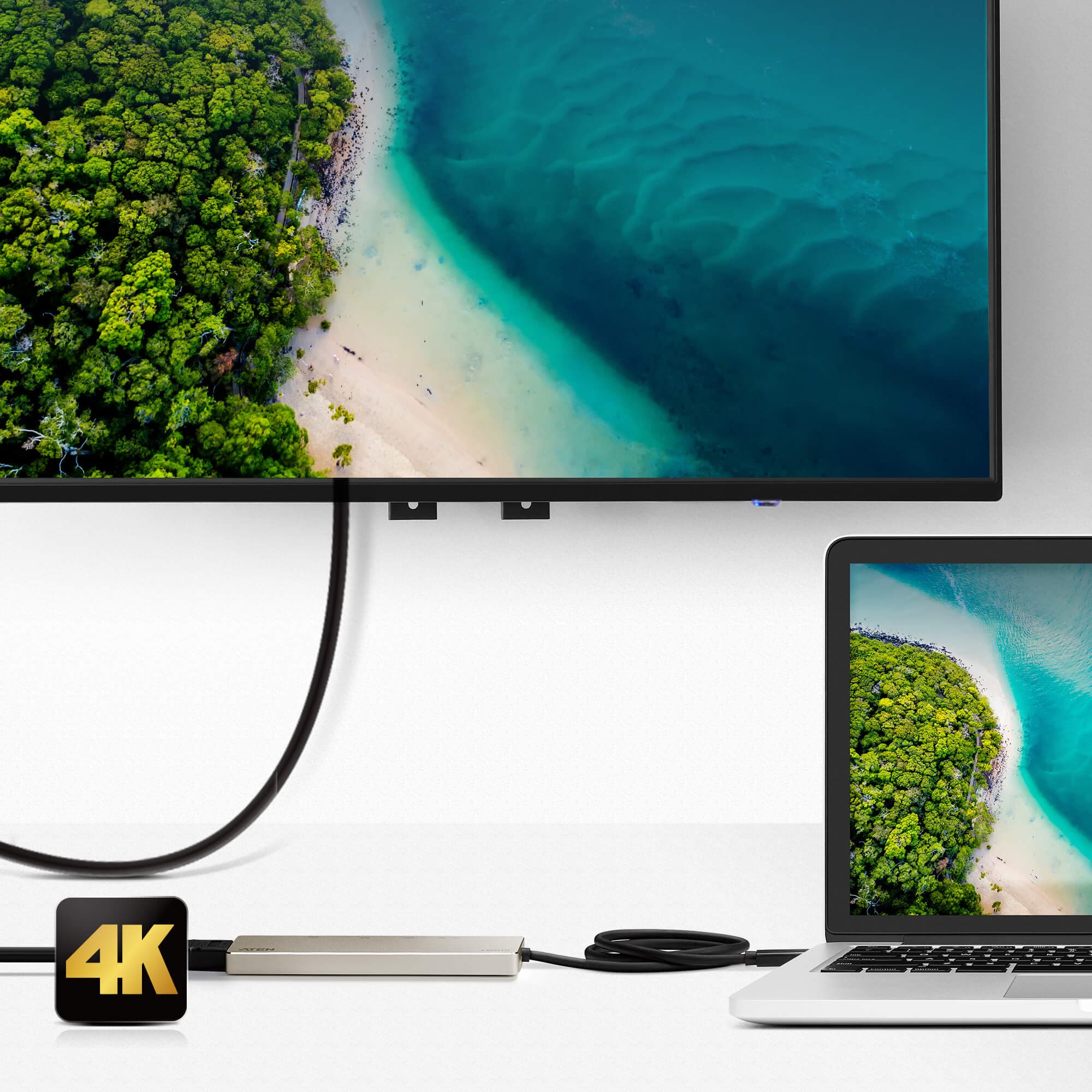

- Supports resolutions up to 4K (3840 x 2160 @ 30Hz) for superior video distribution
- Plug and Play – no drivers needed
- Works with all major operating systems: Windows®, macOS X and iPadOS
- Compatible with Thunderbolt™ 3 (USB-C)
- Apple M1 chip compatible
Спецификация
- Връзки към компютри
- 1
- Дължина на кабела
- 55cm
Конектори
- Компютър
- USB 3.2 Gen1 Type-C Male Cable
- Устройство

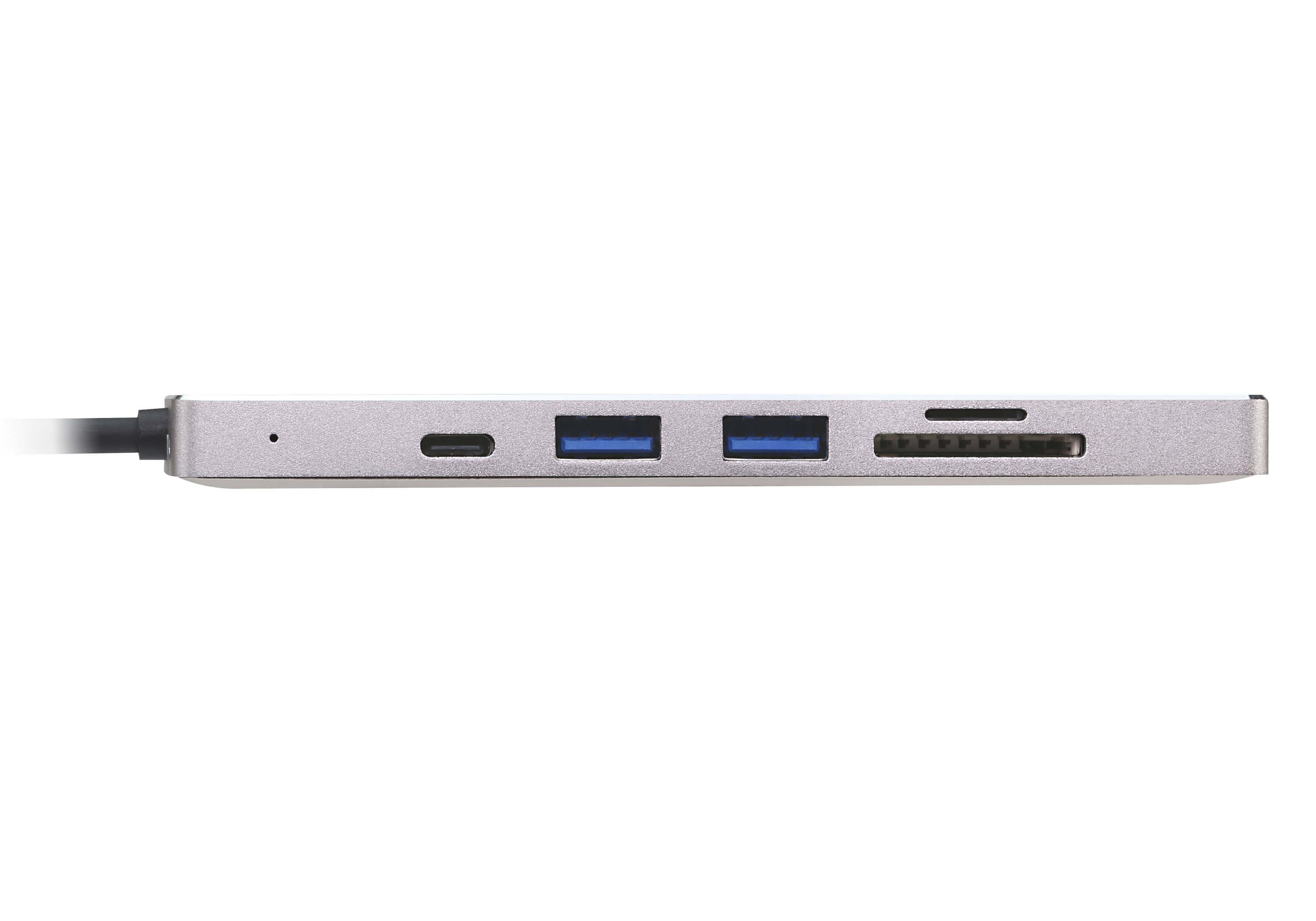

- 2 x USB 3.2 Gen 1 Type-A female (Max. output 5V, 4.5W for each)* 1 x USB 3.2 Gen 1 Type-C female (Max. output 5V, 12W)* * 2 x USB-A and 1 x USB-C ports share total 5V, 12W when UH3239 powered by PC via USB-C. (@5V,3A bus-powered)
- Захранване
- 1 x USB Type-C Female (supports USB 3.2 Gen1 Type-C Port data transfer) Support Power Delivery 2.0 for laptop charging up to 60W, power profiles include 5V, 12V, 15V, 20V (additional USB-C power adapter needed)
- Видео изход

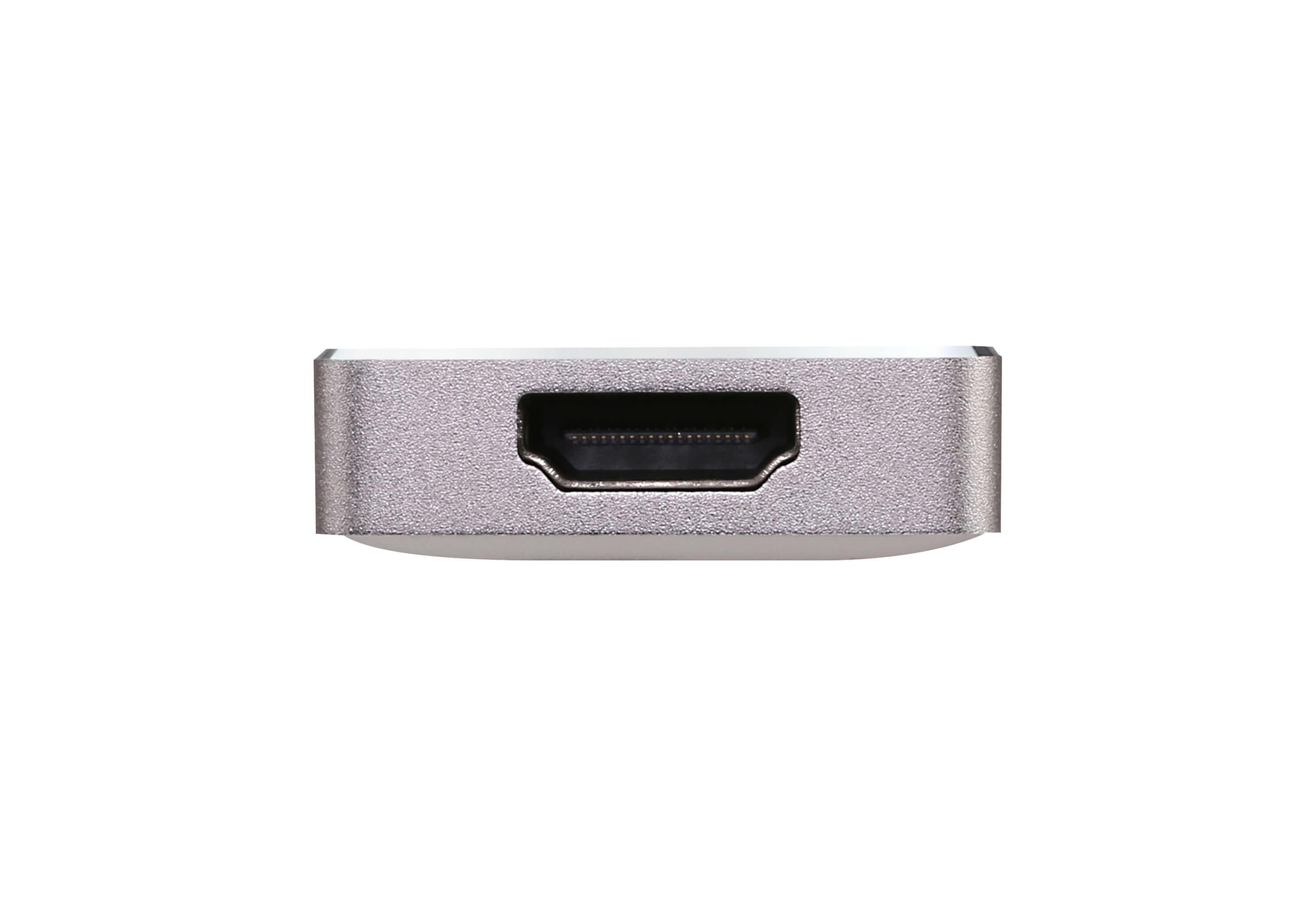

- 1 x HDMI Female (Black)
Производителност
- Flash памет
- Supports SD V1.0/ v1.1/ v2.0/ V3.01 and V5.0 SD (Capacity up to 2GB) SDHC (Capacity up to 32GB) SDXC (Capacity up to 2TB)
- Видео резолюция
- 3840 x 2160@30Hz
- Консумация
- DC5V:15WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Системни изисквания
- Windows 10 or later, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html Mac OS X 10.12 or later, USB-C enabled computer iPadOS 13.1 or later, iPad Pro (USB-C)
Работна среда
- Работна температура
- 0 – 40°C
- Температура на съхранение
- -20 – 60°C
- Влажност
- 0 – 80% RH, Non-condensing
Физически характеристики
- Корпус
- Aluminum
- Тегло
- 0.07 kg ( 0.17 lb )
- Размери (Д x Ш x В)
- 13.30 x 3.60 x 1.10 cm (5.24 x 1.42 x 0.43 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
