Пътна докинг станция 5-в-1 за USB-C лаптоп: HDMI изход до 4K@60Hz, два USB Type-A порта, аудио жак и USB-C вход със зареждане до 92W през Power Delivery 3.0.
Характеристики

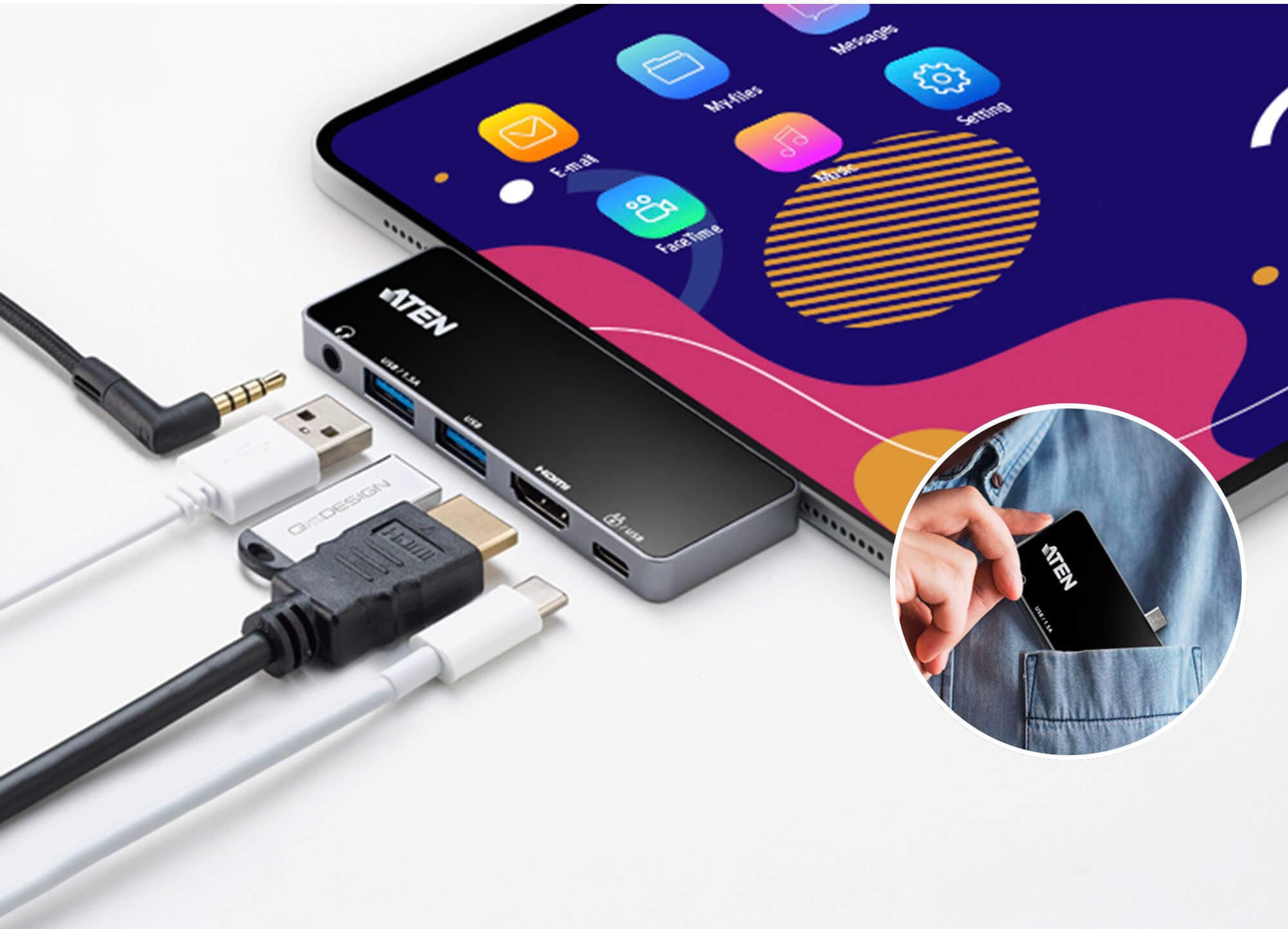

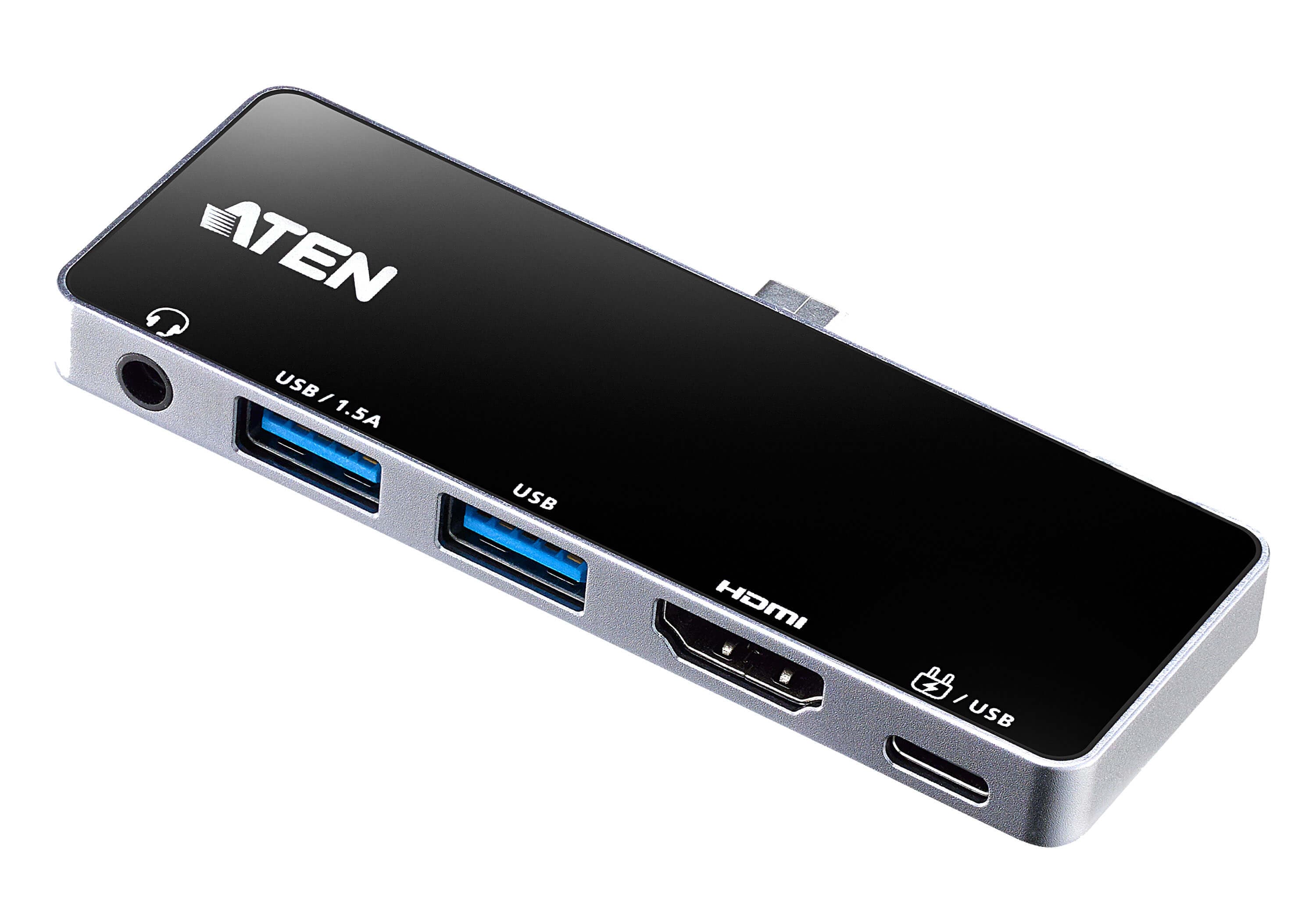

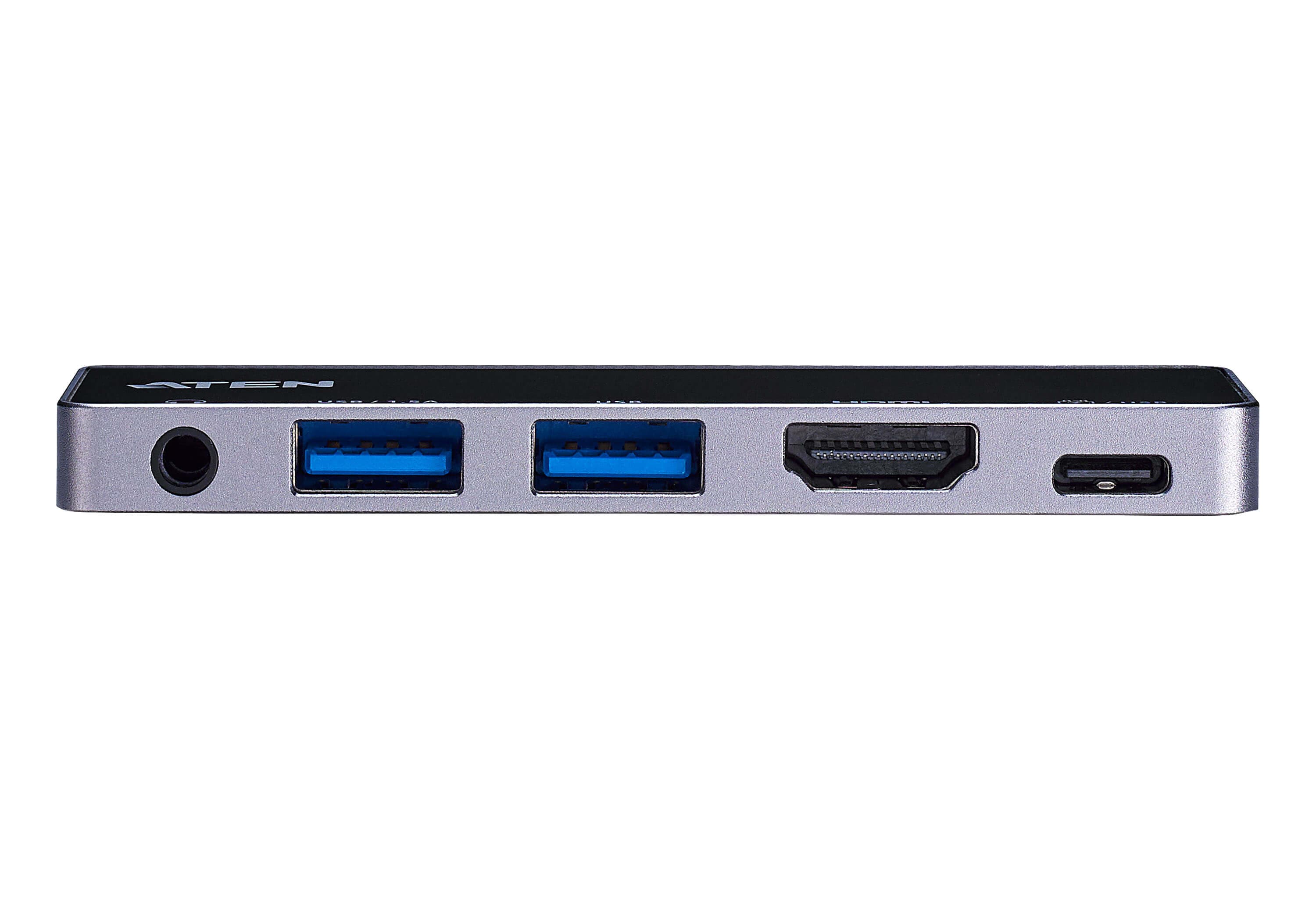

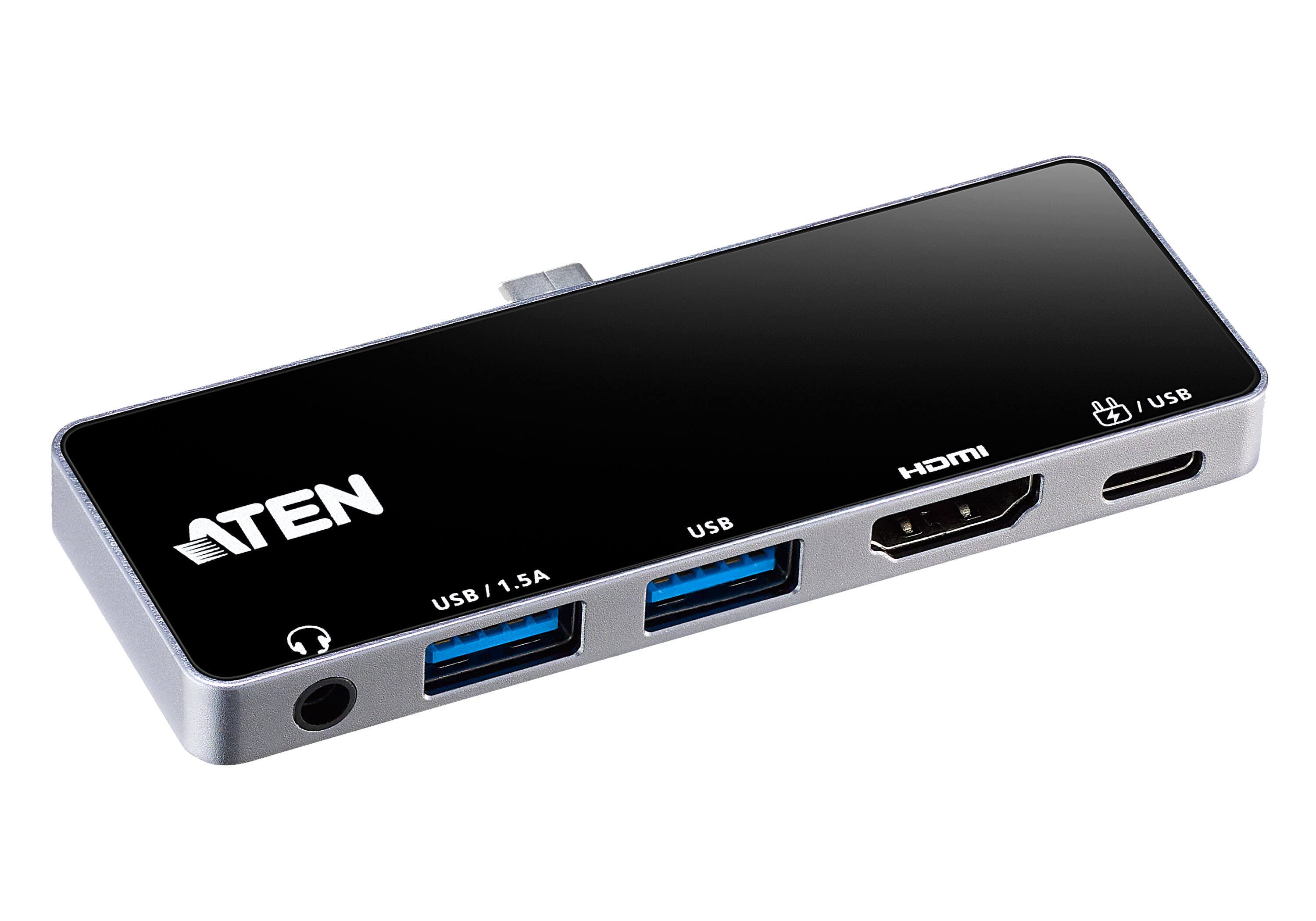

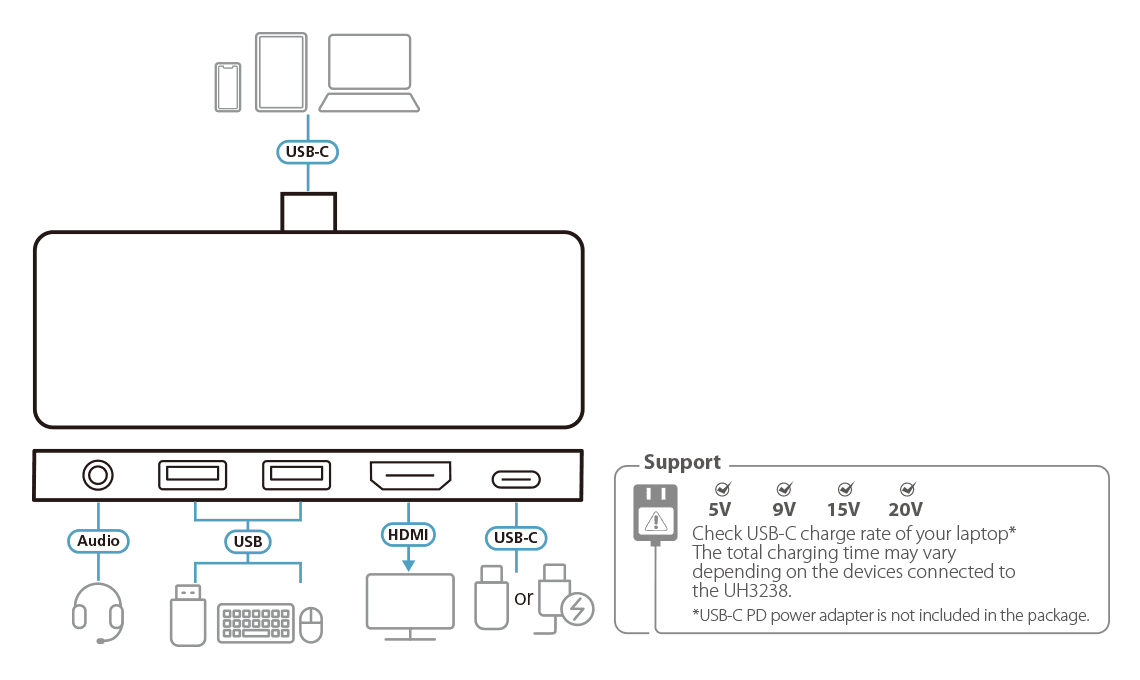

- 5-in-1 travel dock that includes one audio port, two USB Type-A ports, one HDMI port, and one USB-C DC in port
- Supports USB PD 3.0 for charging up to 92W via USB-C PD power adapter – power profiles include 5V, 9V, 15V, 20V
- Supports DP 1.4 Alt mode with up to 4K (3840 x 2160) @ 60Hz for superior video output
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
- Plug and Play – no drivers needed

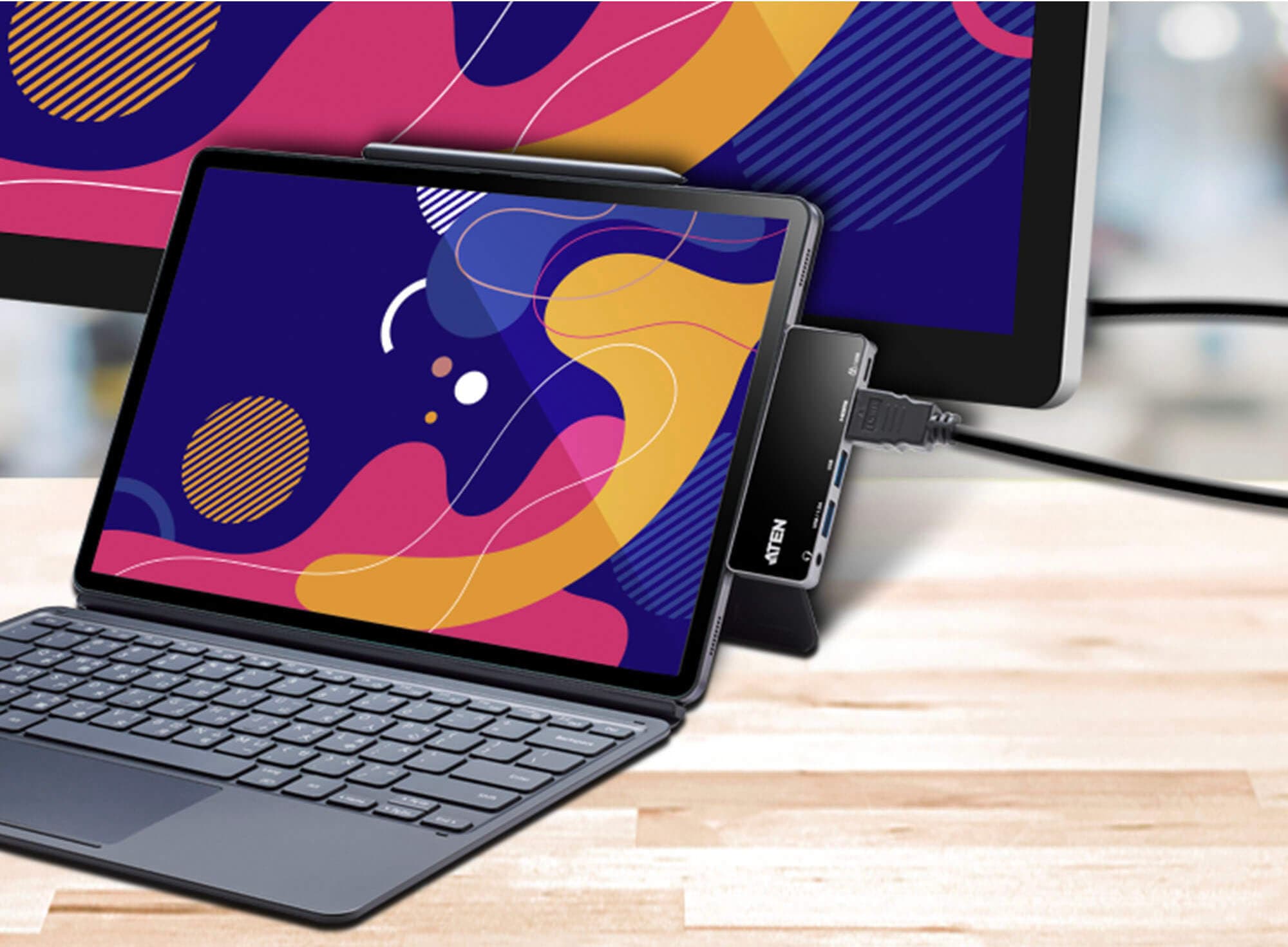

- Works with all major operating systems: Windows®, macOS X, iPad Pro (USB-C), and Android
- Compatible with Thunderbolt™3 (USB-C)
- Compact, lightweight design for mobile workstation
- Apple M1 chip compatible
Спецификация
- Връзки към компютри
- 1
Конектори
- Компютър

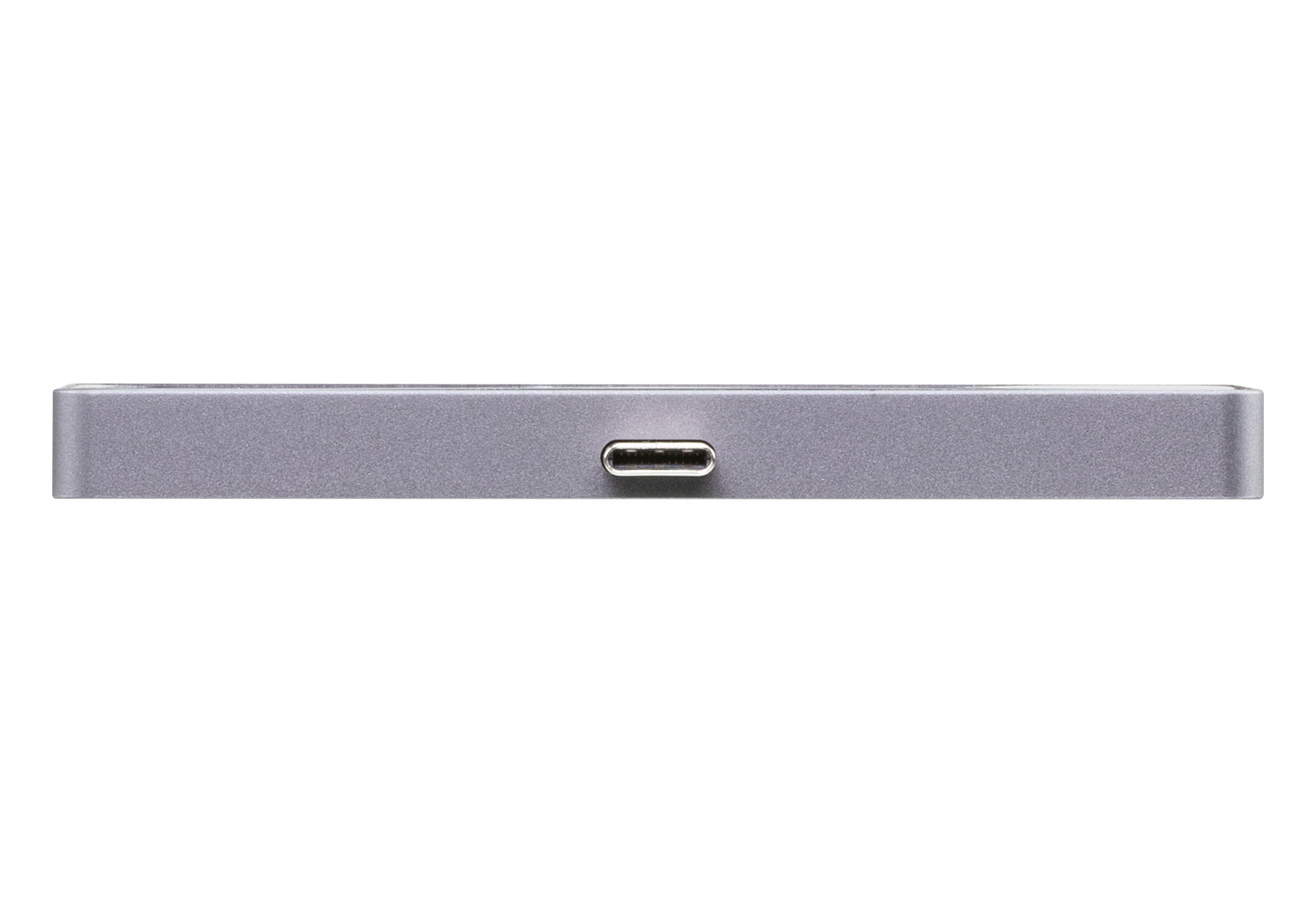

- USB 3.2 Gen 1 Type-C
- Устройство
- 1 x USB 3.2 Gen 1 Type-A female supports BC 1.2 (Max. output 5V, 7.5W)* 1 x USB 3.2 Gen 1 Type-A female (Max. output 5V, 4.5W)* 1 x USB 3.2 Gen 1 Type-C female (Max. output 5V, 12.5W)* *a. 2 x USB-A ports share total 5V, 9W when UH3238 powered by external USB-C PD power adapter *b. 2 x USB-A and 1 x USB-C ports share total 5V, 7.5W when UH3238 powered by iPad via USB-C . *c. 2 x USB-A and 1 x USB-C ports share total 5V, 12.5W when UH3238 powered by PC via USB-C. (@5V,3A bus-powered)
- Видео изход
- 1 x HDMI Female (Black)
- Аудио

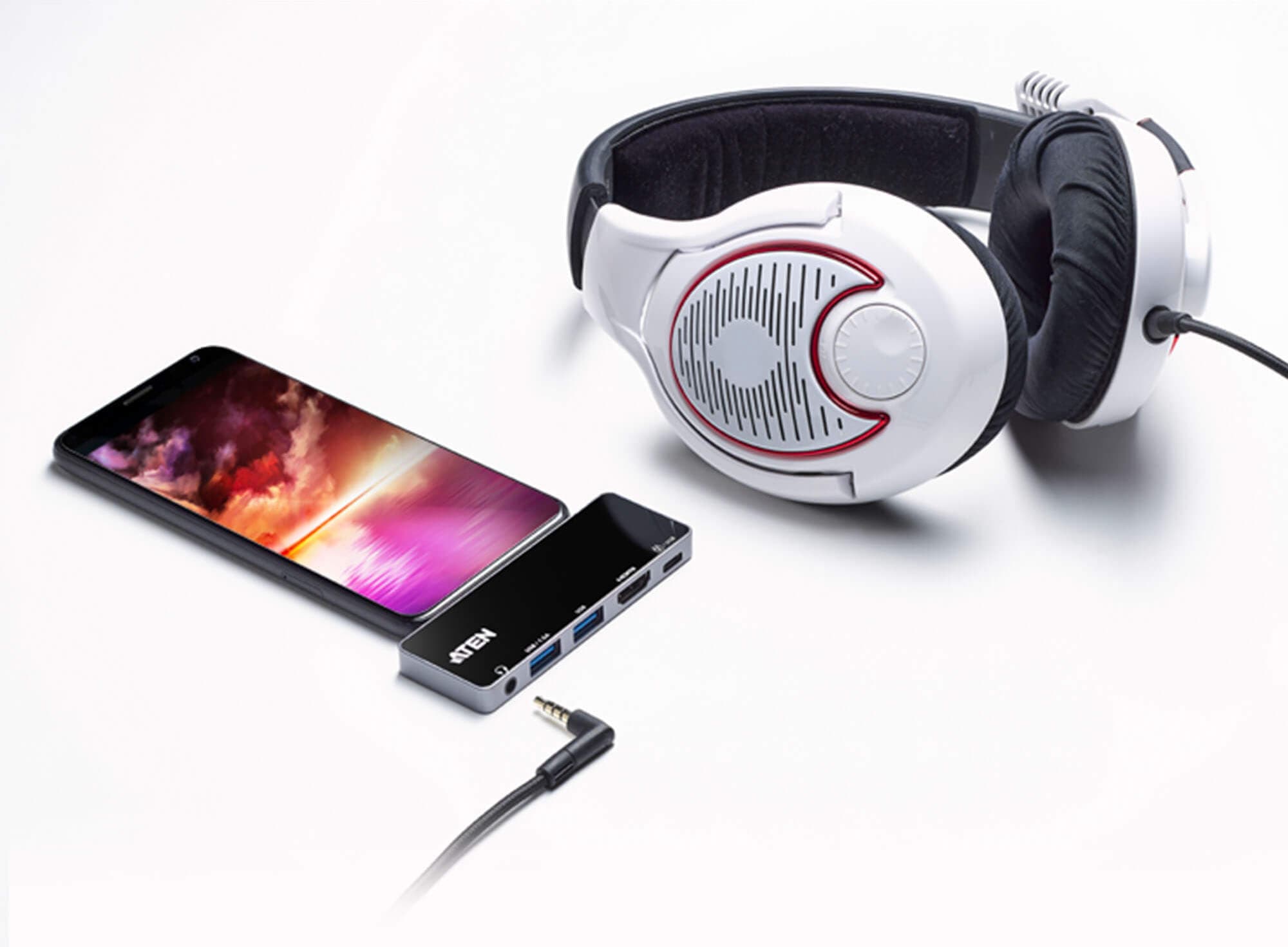

- 1 x 3.5mm stereo 4-pole microphone and headphone jack
- Захранване

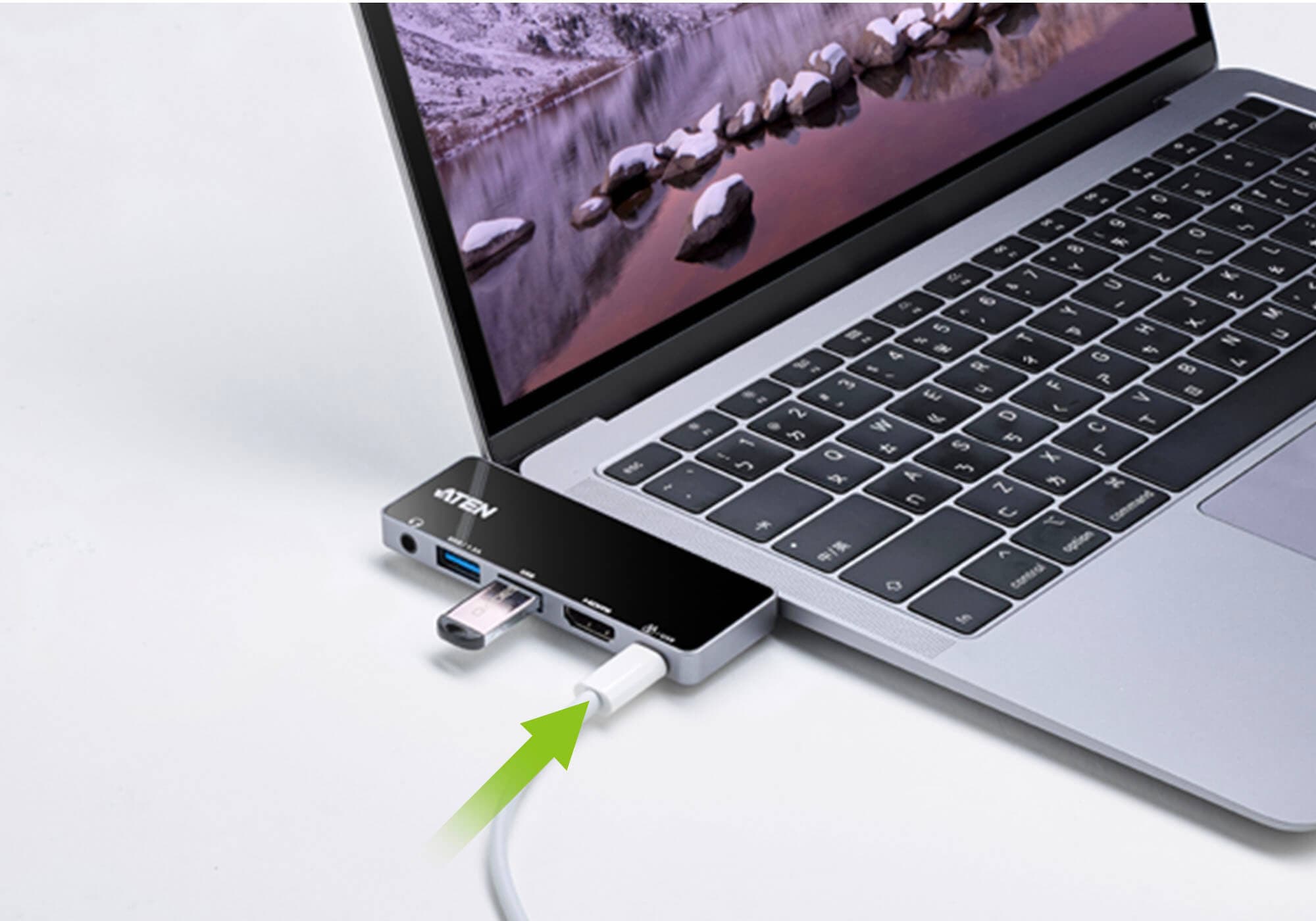

- 1 x USB Type-C Female (supports USB 3.2 Gen 1 Data transfer)* *Support Power Delivery 3.0 for laptop charging up to 92W, power profiles include 5V, 9V, 15V, 20V (additional USB-C PD power adapter needed)
- Видео резолюция
- 3840 x 2160@60Hz* * To get max bandwidth, upstream should support standard DP1.4 Alt mode with DSC3:1 and HBR3. When connecting a DP1.2 Alt mode supported upstream, the max resolution of HDMI is 4k@30Hz due to bandwidth limitation
- Консумация
- DC5V:8WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Системни изисквания
- Windows 10 or above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html macOS 10.12 or later, USB-C enabled computer iPadOS 13.1 or later, iPad (USB-C) iOS 17.0 or later, iPhone (USB-C) Android 8.0 or later, USB-C enabled Smartphone with DP Alt Mode
Работна среда
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Aluminum
- Тегло
- 0.04 kg ( 0.1 lb )
- Размери (Д x Ш x В)
- 9.00 x 3.20 x 0.82 cm (3.54 x 1.26 x 0.32 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
