Мини док: през един USB-C кабел добавя HDMI или VGA изход, Gigabit Ethernet и USB 3.1 Gen 1 порт с 5 Gbps; извежда 4K (3840 x 2160 @ 30 Hz) по HDMI.
Характеристики

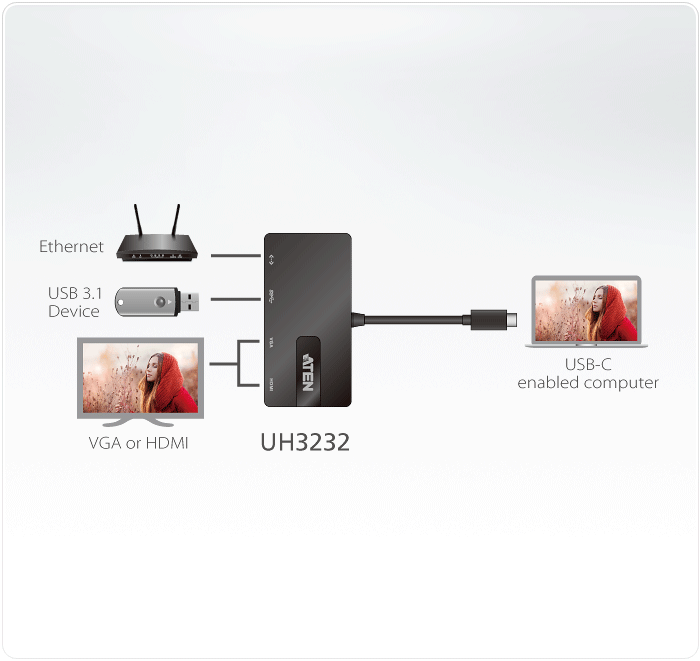

- Connects a USB-C or Thunderbolt™ 3 computer to an HDMI/VGA, Ethernet and USB Type-A port via single cable
- USB 3.1 Gen 1 port with data transfer rates up to 5 Gbps
- Ethernet Gigabit LAN port
- Supports HDMI 1.4b with 4K (3840 x 2160 @ 30 Hz) resolutions; or VGA with 2K (2048 x 1152 @ 60 Hz) resolutions
- Lightweight design – for easy transport
- Works with all major operating systems: Windows®, OS X®, and i-Pad Pro* *Support iPad Pro video output and USB keyboard only
Спецификация
- Връзки към компютри
- 1
Конектори
- Компютър
- 1 x USB-C Male (Black)
- Устройство
- 1 x USB 3.1 Gen1 Type A Female (Blue)
- Видео изход
- 1 x HDMI Female (Black) 1 x VGA Female (Black)
- LAN портове
- 1 x Gigabit Ethernet Female (Black)
- Видео резолюция
- Single View: * VGA - 2048*1152@60 or HDMI - 3840*2160@30 *With Intel 7th-Generation Core Processor (Kaby Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html For video output to work through a USB-C port, device with DP Alt Mode support is required.
- Консумация
- DC5V:7.87WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.07 kg ( 0.15 lb )
- Размери (Д x Ш x В)
- 15.88 x 10.80 x 1.52 cm (6.25 x 4.25 x 0.6 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
