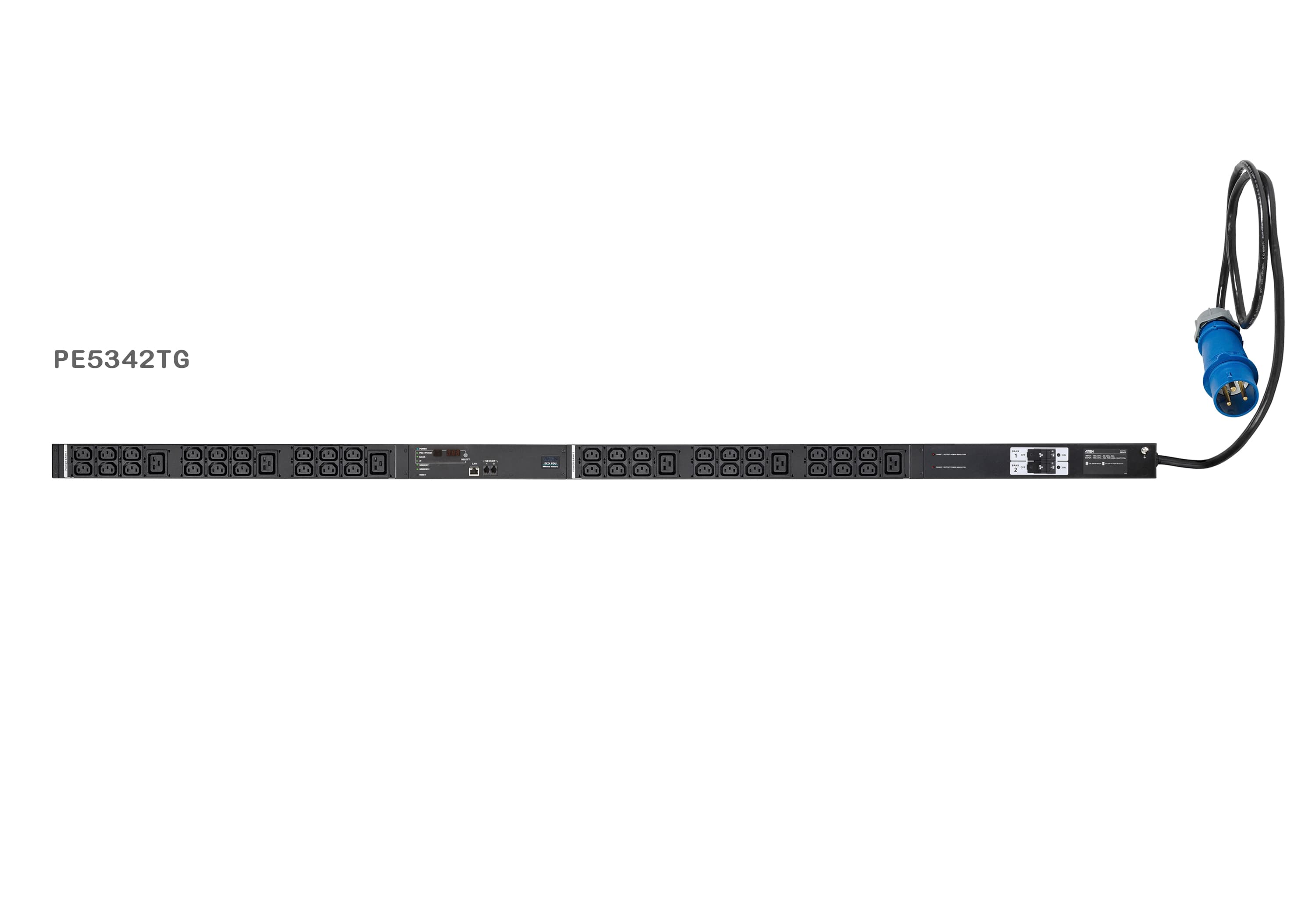

32A 42-Outlet Metered Thin Form Factor eco PDU

Name: 32A 42-Outlet Metered Thin Form Factor eco PDU
Brand: ATEN
SKU: PE5342TG

PE5342TG

Тънък PDU с 42 изхода (36 x C13 и 6 x C19) и измерване на консумацията. Вход 32A през IEC 60309, до 7360 VA; ширина 56 mm, вграден Ethernet порт.

Характеристики

Thin form factor design with 56 mm width
Built-in 10/100 Mbps Ethernet port
Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3
2-level account and password security, IP/MAC filters, SSL 128-bit data encryption, RADIUS
Supports eco DC software and browser access via IE, Firefox, Chrome, Safari and more
Bank level power metering and monitoring
Environment monitoring via external sensors for rack temperature and humidity readings and alerts
Real-time aggregate current, voltage and power and power dissipation displayed in a browser-based UI
Space saving 0U rack mount design with rear mounting
Lok-U-Plug & EZ-Lok – easily secures power cable to PDU eco DC Energy Management Software *
Automatic discovery of all PE devices within the same intranet
Remote real-time power measurement and monitoring
Real-time environment sensor monitoring
Plotting/monitoring of all PE devices
Exceed threshold alert through SMTP and System log
Power analysis report * eco DC is designed to work with NRGence™ eco PDUs, and is bundled with all PE series packages.

Номинално входно напрежение: 100 – 240 VAC
Макс. входен ток: 32A(Max)
Входна честота: 50-60 Hz
Входна връзка: IEC 60309 32A
Входна мощност: 7360 VA(Max)
Тип на изхода: Total: 36 x IEC320 C13 + 6 x IEC320 C19 Bank1: Outlet 1 – 21; 18 x C13 + 3 x C19 Bank2: Outlet 22 – 42; 18 x C13 + 3 x C19
Номинално изходно напрежение: 100 – 240 VAC
Макс. изходен ток (извод): C13: 10A(Max) C19: 16A(Max)
Макс. изходен ток (група): 16A(Max)
Макс. изходен ток (общо): 32A(Max)
Прекъсвачи: 2 x 16A Slim Breaker
Измерване: Bank Level Current, Voltage, VA , PF and kWh Monitoring
Превключване на изводите: None
Портове за сензори: 2
Точност на измерването: Voltage Range: 100VAC ~ 250VAC +/-1% Power Range: 100W ~ Maximum Capacity +/- 2% Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%

EMC сертификация: CE, Others by Request
Сертификация за безопасност: CE-LVD, Others by Request
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
