30A/32A 24-Outlet Metered eco PDU
PE5324Снет от производство
PDU с измерване и 24 изхода — 21 x C13 и 3 x C19 — в 0U формат; вход 100–240 VAC до 32A, обща мощност 7360 VA.
Характеристики
- Power Distribution
- Space saving 0U rack mount design with rear mounting
- IEC or NEMA outlet models
- 3 x 7-segment front panel LED shows Current / IP Address for PDU / Bank
- Remote users can monitor PDU/Bank status via web pages on their browsers
- Safe shutdown support
- Separate power for the unit´s own power and its power outlets – the user interface is still accessible even when an overload condition trips the devices´ circuit breaker Remote Access
- Network Protocols: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, auto sense, Ping, Telnet
- eco PDU Power Management software – eco Sensors
- Supports SNMP Manager V1, V2 & V3 Operation
- Easy setup and operation via a browser-based user interface
- Multibrowser support (IE, Mozilla, Firefox, Chrome, Safari, Opera, Netscape)
- RTC support to keep the timer running during times of no power
- Up to 8 user accounts and 1 administrator account Management
- Power status measurement at the PDU/Bank level
- LED indicators for current and IP address at the PDU device and/or Bank levels
- Real-time aggregate current, voltage, and power and power dissipation displayed in a browser-based UI for monitoring at the bank level

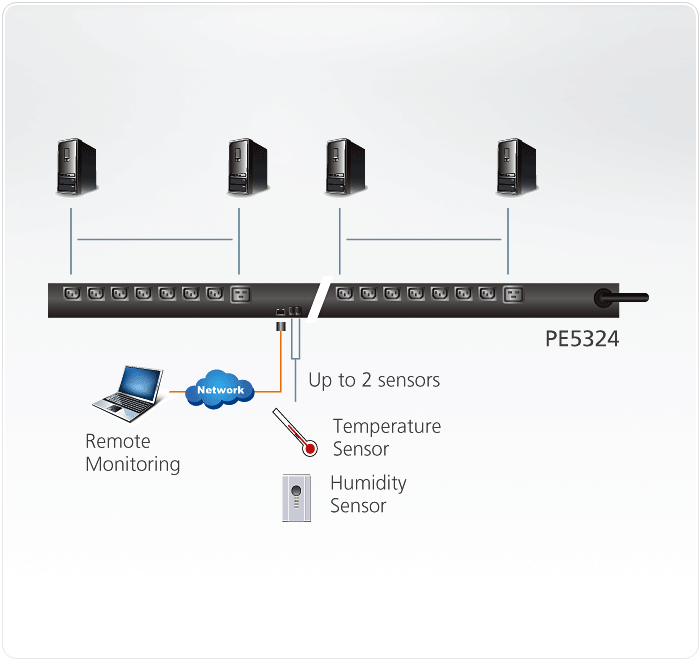

- Environment monitoring – supports external temperature / humidity / Differential Pressure sensors for rack environment monitoring
- Current and voltage threshold setting
- Naming support for outlets
- Event logging and syslog support
- Upgradeable firmware
- Multilanguage support: English, Traditional Chinese, Simplified Chinese, Japanese, German, Italian, Spanish, French, Russian Security
- Two-level password security
- Strong security features include strong password protection and advanced encryption technologies – 128 bit SSL
- Remote authentication support: RADIUS eco Sensors Energy Management Software*
- Automatic discovery of all PE devices within the same intranet
- Remote real-time power measurement and monitoring
- Remote real-time environment sensor monitoring
- Plotting/Monitoring of all PE devices
- Exceed threshold alert through SMTP and System log
- Power Analysis Report *eco Sensors is designed to work with NRGence™ PDUs, and is bundled with all PE series packages
Електрически характеристики
- Номинално входно напрежение
- 100 – 240 VAC
- Макс. входен ток
- 32A(Max)
- Входна честота
- 50-60 Hz
- Входна връзка
- For G Plug : IEC 60309 32A
- Входна мощност
- 7360 VA(Max)
- Тип на изхода
- Total: 21 x IEC320 C13 + 3 x IEC320 C19 Bank1-1: Outlet 1 – 8; 7 x C13 + 1 x C19 Bank1-2: Outlet 9 – 16; 7 x C13 + 1 x C19 Bank2: Outlet 17 – 24; 7 x C13 + 1 x C19
- Номинално изходно напрежение
- 100 – 240 VAC
- Макс. изходен ток (извод)
- C13: 10A(Max) C19: 16A(Max)
- Макс. изходен ток (група)
- 16A(Max)
- Макс. изходен ток (общо)
- 32A(Max)
- Прекъсвачи
- 2 x 16A UL489 Breaker
- Измерване
- Bank Level Current, Voltage, VA , PF and kWh Monitoring
- Превключване на изводите
- None
- Портове за сензори
- 2
- Точност на измерването
- Voltage Range: 100VAC ~ 250VAC +/-1% Power Range: 100W ~ Maximum Capacity +/- 2% Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Физически характеристики
- Размери (Д x Ш x В)
- 177.50 x 6.60 x 4.40 cm (69.88 x 2.6 x 1.73 in.)
- Тегло
- 5.82 kg ( 12.82 lb )
- Дължина на захранващия кабел
- 1.6 m
Работна среда
- Температура (работна / съхранение)
- 0–40°C / -20–60°C
- Влажност (работна и при съхранение)
- 0–80% RH, Non-Condensing
Съответствие
- EMC сертификация
- CE, C-Tick, Others by Request
- Сертификация за безопасност
- TUV-CB, GOST, Others by Request
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
