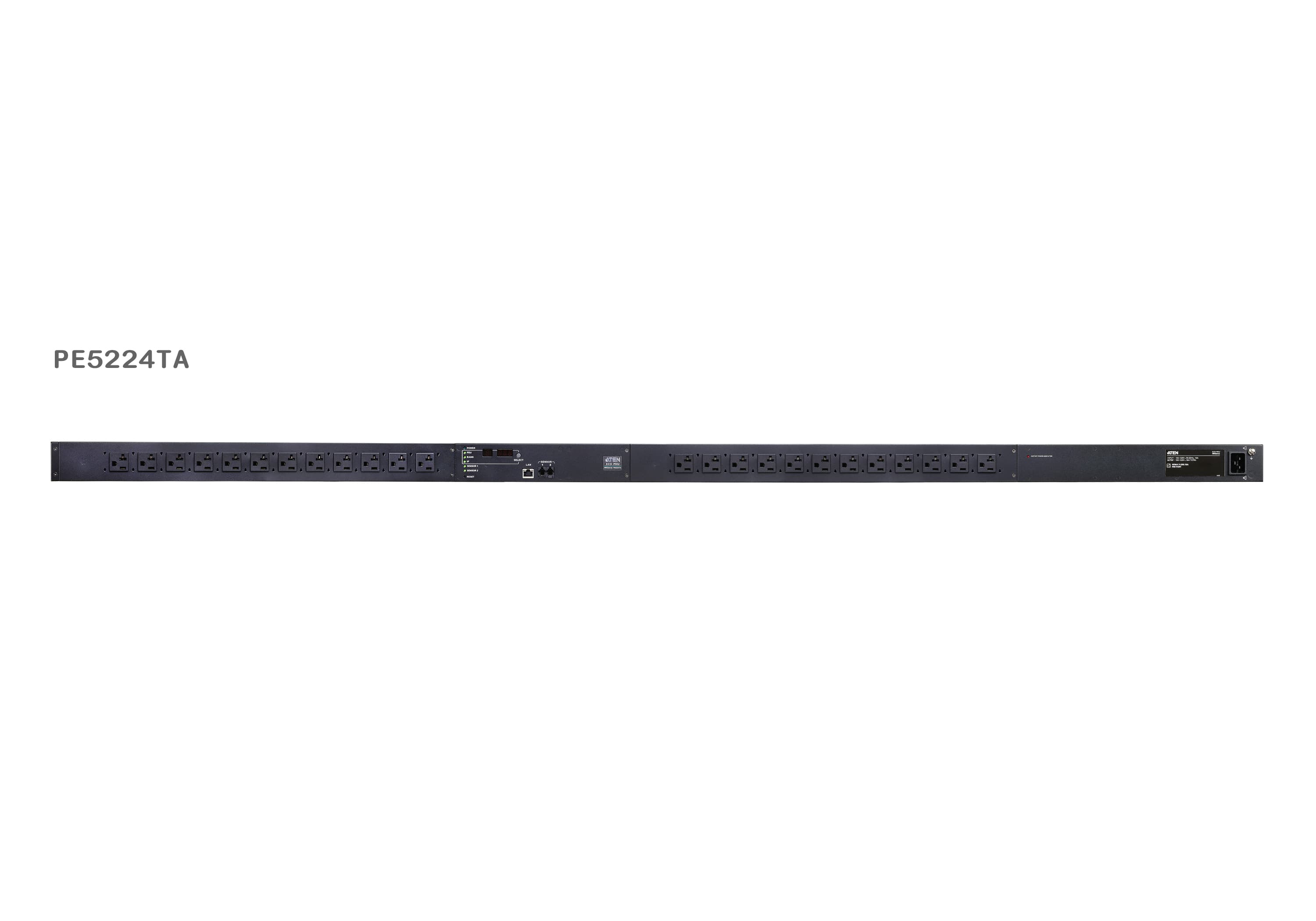

20A 24-Outlet eco PDU (Thin Form Factor eco PDU)
PE5224TA
eco PDU с 24 извода NEMA 5-20R, вход 20A (2400VA) и тънък корпус с ширина 56 mm. Вграденият 10/100 Mbps Ethernet порт дава отдалечен достъп по HTTP, Telnet и SNMP.
Характеристики
- Thin form factor design with 56 mm width
- Built-in 10/100 Mbps Ethernet port
- Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3
- 2-level account and password security
- IP/MAC filters, SSL 128-bit data encryption and RADIUS for remote authentication
- Supports eco DC Energy Management Software
- Browser access via IE, Firefox, Chrome, Safari and more
- Bank level power metering and monitoring

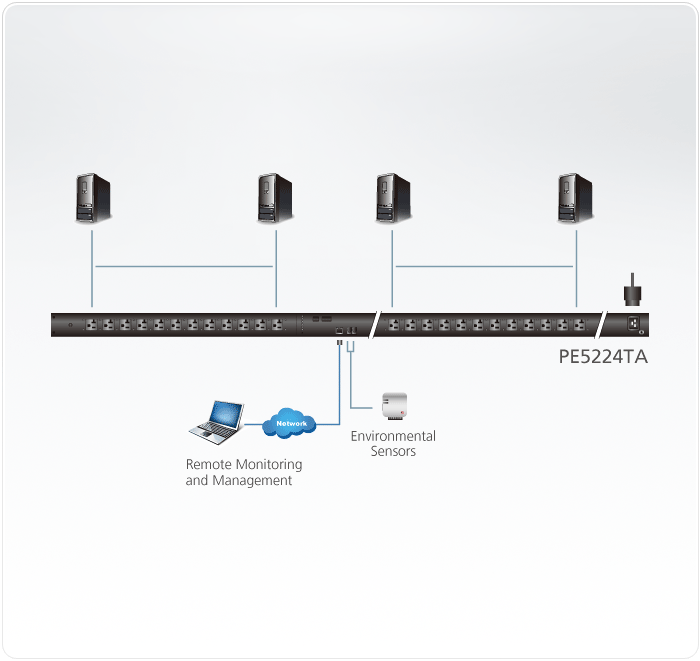

- Environment monitoring via external sensors for rack temperature and humidity readings with threshold alerts
- Real-time aggregate current, voltage, power, and aggregate power dissipation displayed in a browser-based UI
- Space saving 0U rack mount design with rear mounting
- Lok-U-Plug and EZ-Lok Holders – easily secures power cables to the PDU eco DC Energy Management Software*
- Automatic discovery of all ATEN PDUs within the same intranet
- Remote real-time power measurement and monitoring of PDUs
- Real-time environment monitoring via sensors
- Plotting and monitoring of all ATEN PDU devices
- Exceed threshold alerts through real-time monitoring, SMTP and System log
- Power analysis reports * eco DC is designed to work with NRGence™ eco PDUs, and is bundled with all PE series packages.
Електрически характеристики
- Номинално входно напрежение
- 100 – 120 VAC
- Макс. входен ток
- 20A(Max)
- Входна честота
- 50-60 Hz
- Входна връзка
- NEMA 5-20P
- Входна мощност
- 2400 VA(Max)
- Тип на изхода
- Total: 24 x NEMA 5-20R Bank1-1: Outlet 1 – 12; 12 x NEMA 5-20R Bank1-2: Outlet 13 – 24; 12 x NEMA 5-20R
- Номинално изходно напрежение
- 100 – 120 VAC
- Макс. изходен ток (извод)
- NEMA 5-20R: 20A(Max)
- Макс. изходен ток (група)
- 20A(Max)
- Макс. изходен ток (общо)
- 20A(Max)
- Измерване
- Bank Level Current, Voltage, VA , PF and kWh Monitoring
- Превключване на изводите
- None
- Портове за сензори
- 2
- Точност на измерването
- Voltage Range: 100VAC ~ 250VAC +/-1% Power Range: 100W ~ Maximum Capacity +/- 2% Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Физически характеристики
- Размери (Д x Ш x В)
- 177.50 x 5.60 x 4.80 cm (69.88 x 2.2 x 1.89 in.)
- Тегло
- 3.93 kg ( 8.66 lb )
- Дължина на захранващия кабел
- 3 m
Работна среда
- Температура (работна / съхранение)
- 0–50°C / -20–60°C
- Влажност (работна и при съхранение)
- 0–80% RH, Non-Condensing
Съответствие
- EMC сертификация
- FCC, J55022, Others by Request
- Сертификация за безопасност
- PSE, Others by Request
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
