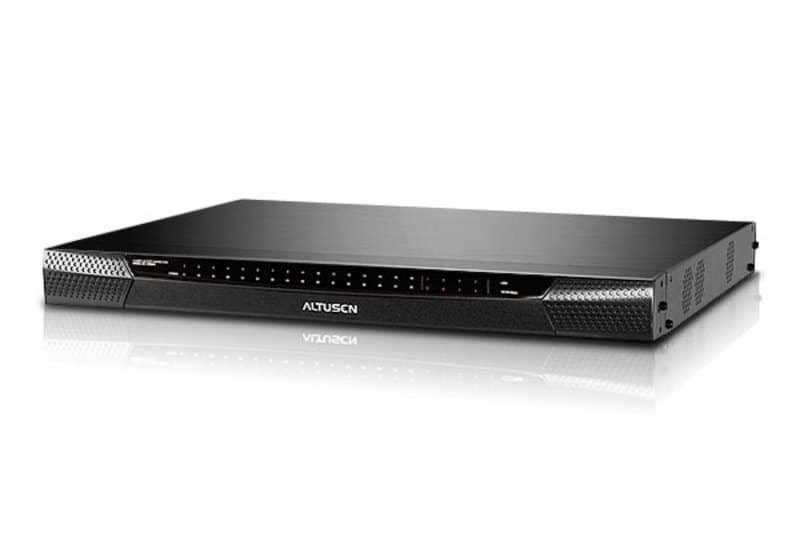

8-Console 32-Port Cat 5 Matrix KVM Switch with Daisy-Chain Port
KM0832Снет от производство
Матричен KVM превключвател: 8 конзоли независимо и едновременно управляват 32 директно свързани сървъра. С каскадиране на три нива обхваща до 8000 сървъра.
Характеристики
- Eight consoles independently and simultaneously control up to 32 directly connected servers
- Saves valuable time - backup and restore settings when changing root stations

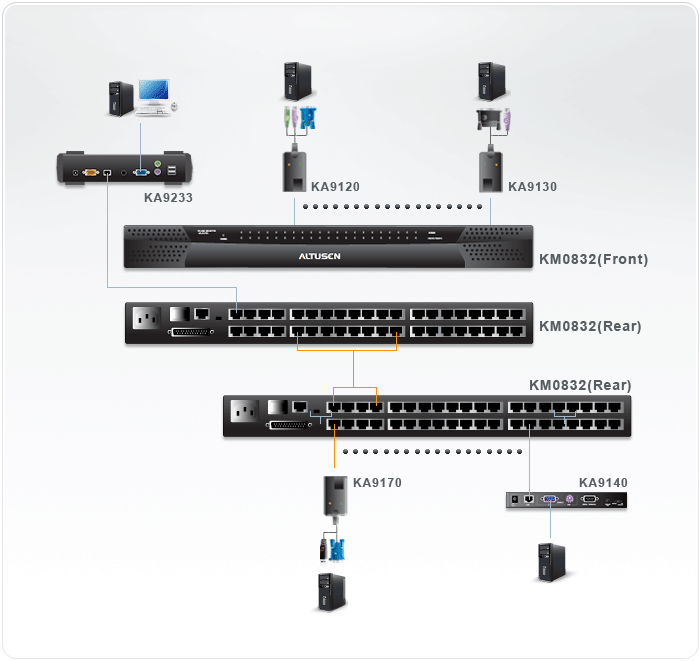

- Cascades three levels to support up to 8,000 servers*
- Daisy chain up to 7 additional KM0432 or KM0216 stations* in root KM0832**
- Supports up to 1024 user accounts
- Supports up to 256 group accounts
- Additional user port on front panel for easy system maintenance
- Detachable front panel for easy access to front and rear of unit
- Multiplatform support: PC, Mac, Sun, and Serial
- Console conversion - any type of console can control any type of server; mixed combinations (PS/2 & USB) supported on both the console and server sides
- No software required - convenient computer selection via intuitive hotkey combinations or On Screen Display (OSD) menus
- Auto Scan feature for monitoring user-selected servers
- Supports three-level user access control (Super Administrator, Administrator, and User)
- Superior video quality - 1024 x 768 @ 60Hz for up to 300m; 1920 x 1440 @ 60Hz (distance depends on installation environment)*
- Auto Signal Compensation (ASC) assures optimum video resolution for distances up to 300m between servers and consoles - no DIP switch setting required
- Free lifetime flash firmware upgrades
- Auto-sensing of station's position on daisy chain installations - OSD and front panel LED indicates station's position
- Port names are automatically reconfigured when the station sequence is changed
- Multiplatform support:Windows 2000/XP/Vista, Linux, Mac, Unix, SUN and FreeBSD.
- For more information about KVMs which can connect to KM0832, see Compatible KVM Table *The supported extension distance, video quality, cascaded levels, and number of supported daisy-chained units may differ, depending on your installation environment. **When daisy chaining KM0432/KM0216 Matrix KVM Switches, KVM Ports 1-4 on the first-level KM0832 are held in reserve; avoid connecting computers and cascaded KVM switches to these KVM ports.
Връзки към компютри
- Директно
- 32
- Максимум
- 8000 (via Cascade)
- Конзолни връзки
- 8
- Избор на порт
- OSD, Hotkey

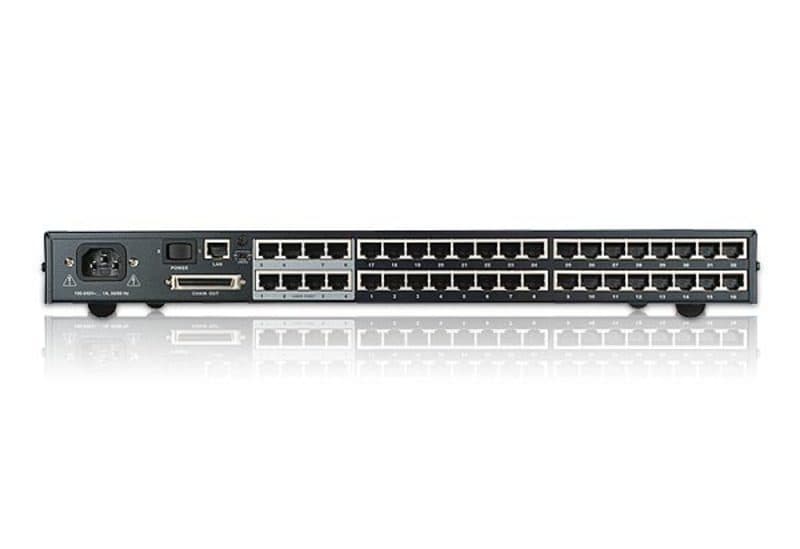

Конектори
- Конзолни портове
- 8 x RJ-45 Female (Black)
- KVM портове
- 32 x RJ-45 Female (Black)
- Daisy Chain портове
- 1 x HPDB-50 Female (Black)
- Конфигурация
- 1 x RJ-45 Female (Black)
- Поддръжка
- 1 x RJ-45 Female (Black)
- Захранване
- 1 x 3 Prong AC Socket
Бутони и превключватели
- Нулиране
- 1 x Semi-recessed Pushbutton
- Захранване
- 1 x Rocker
- Обновяване на фърмуера
- 1 x Slide
- Потребителски порт 1
- 1 x Slide
Индикатори
- Онлайн (конзолен порт)
- 8 (Green)
- Онлайн / избран (KVM порт)
- 32 Dual Colored (Green/Red)
- Захранване
- 1 (Blue)
Емулация
- Клавиатура / мишка
- PS/2; USB (PC, Sun, Mac); Serial
- Видео
- 1024x768@60Hz (300m)
- Интервал на сканиране
- 1~255 seconds
- Макс. входна мощност
- 100~240 V AC; 50/60Hz; 1A
- Консумация
- 120V / 19W ; 230V / 20W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50˚C
- Температура на съхранение
- -20 - 60˚C
- Влажност
- 0~80% RH, NC
Физически характеристики
- Корпус
- Metal
- Тегло
- 4.90 kg
- Размери (Д x Ш x В)
- 43.36 x 38.00 x 4.40 cm
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
