1-Local/Remote Shared Access 8-Port Multi-Interface Cat 5 Dual Rail LCD KVM over IP switch

Name: 1-Local/Remote Shared Access 8-Port Multi-Interface Cat 5 Dual Rail LCD KVM over IP switch
Brand: ATEN
SKU: KL1508AI

KL1508AI

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

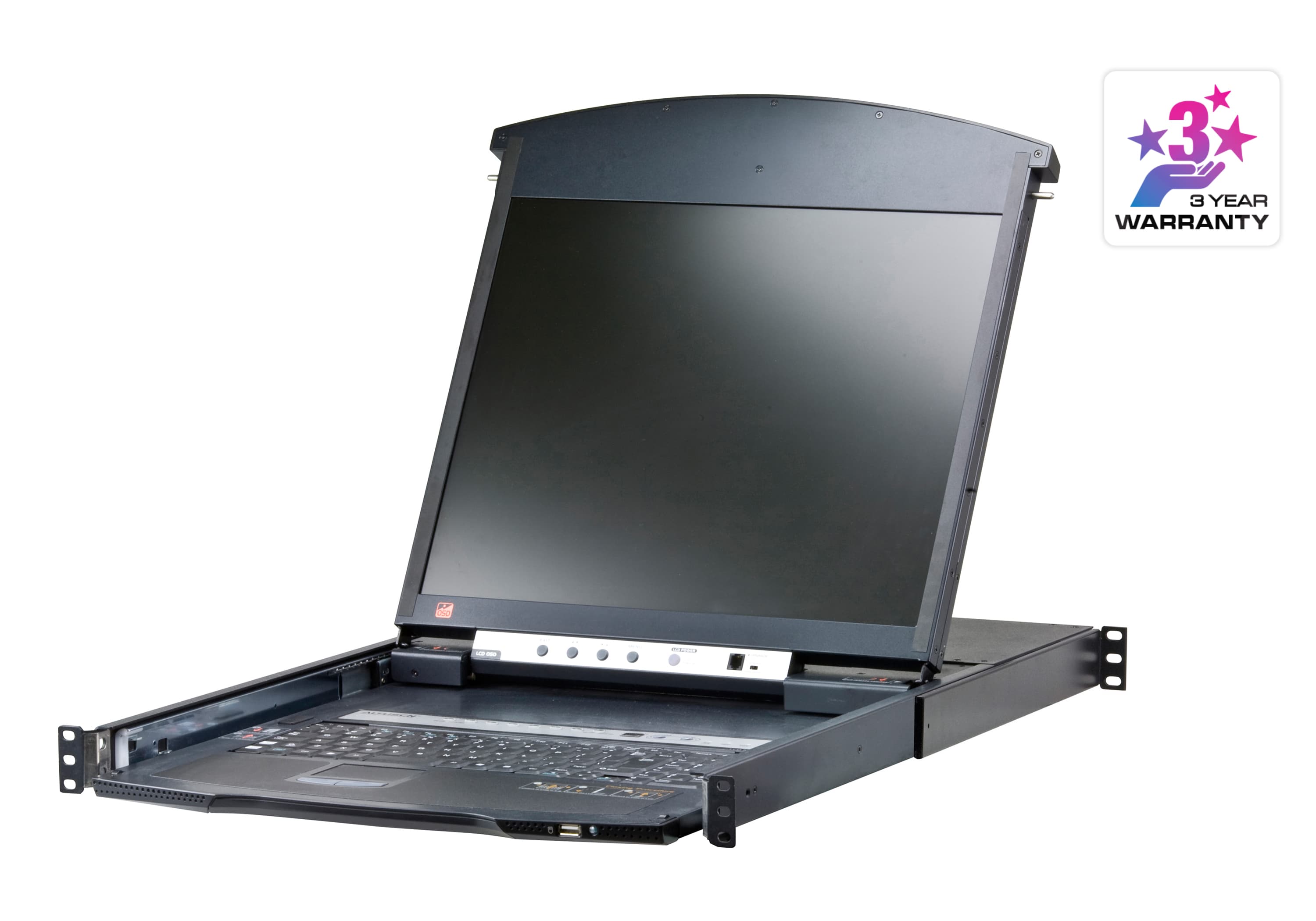

KVM over IP превключвател с вградена изтегляща се 17- или 19-инчова LCD конзола — достъп до 8 компютъра по Cat 5, локално и от 1 отдалечен потребител.

Характеристики

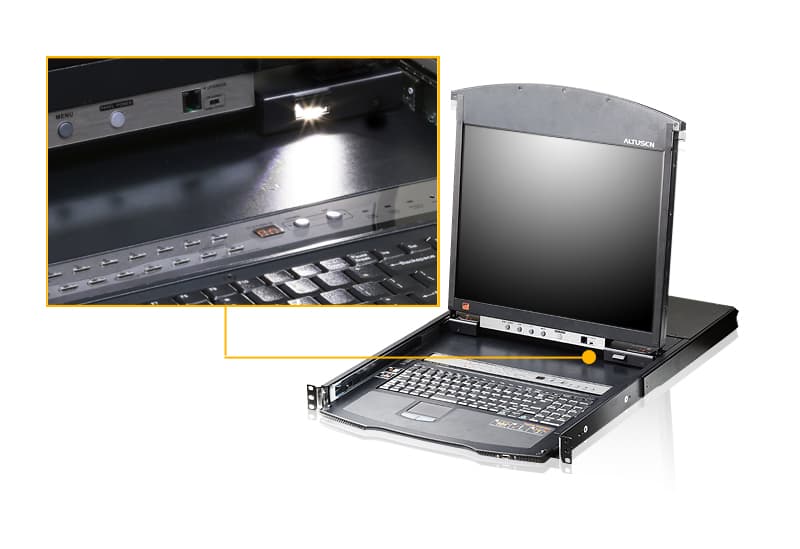

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with 17¨ or 19¨ LED-backlit LCD monitor in a Dual Rail housing
A single console controls up to 8 computers
Daisy chain up to 15 additional KVM switches to control up to 128 computers1
One bus for remote KVM over IP access
Space-saving RJ-45 connectors and Cat 5e/6 cabling
KVM adapters designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
Extra console port – manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
Multiplatform support: PC, Mac, Sun and Serial
Supports external USB mouse
Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
Dual Rail – LCD monitor slides independently of the keyboard/touchpad
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Console lock – enables the console drawer to remain securely locked away in position when not in use
LCD power button helps save energy and prolong displays´ life
Superior Video Quality – supports input video resolutions up to 1920 x 1200 @ 60Hz2 up to 30 meters, 1600 x 1200 @ 60Hz up to 40 meters, and 1280 x 1024 @ 75Hz up to 50 meters
Optional rack mount kits available including easy installation options Note: 1. Compatible KVM switches: KH1508A / KH1516A, ACS1208A, CS1708A / CS1716A 2. With KVM Adapter KA71xx or KA75xx series; please check the product label to ensure it's the FHD version Management
Up to 64 user accounts
Up to 32 concurrent logins
End session feature – administrators can terminate any running session
Adapter ID – stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch
Port Share Mode allows multiple users to gain access to a server simultaneously
Remote power control for attached Power Over the NET™ devices
Integration with ATEN CC2000 Management software
Event logging and Windows-based Log Server support
Local Log Event
Firmware upgradeable
IPv6 capable Easy-to-Use Interface
Easy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and Browser-based GUI
Local Console, Browser, and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Edge
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
Panel Array Mode™
Keyboard broadcast* – keyboard input can be duplicated on all the attached servers Note: Local Console only Advanced Security
Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent Keyboard/Mouse and video data encryption
IP/MAC Filter support for enhanced security protection
Configurable user and group permissions for server access and control Virtual Remote Desktop
Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full-screen or sizable and scalable Virtual Remote Desktop
Message board feature allows logged in users to communicate with each other
Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
On-screen keyboard with multi language support
BIOS-level access
Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese and Turkish More information about "Easy Rack Mounting"...

Конзолни връзки

Локално: 1 (Share Remote Bus)
Локално: 1 (Share Remote Bus)
Отдалечено: 1
Отдалечено: 1

Връзки към компютри

Директно: 8
Директно: 8
Максимум: 128 (via Daisy-chain)
Максимум: 128 (via Daisy-chain)
Избор на порт: OSD, Hotkey, Pushbuttons
Избор на порт: OSD, Hotkey, Pushbuttons

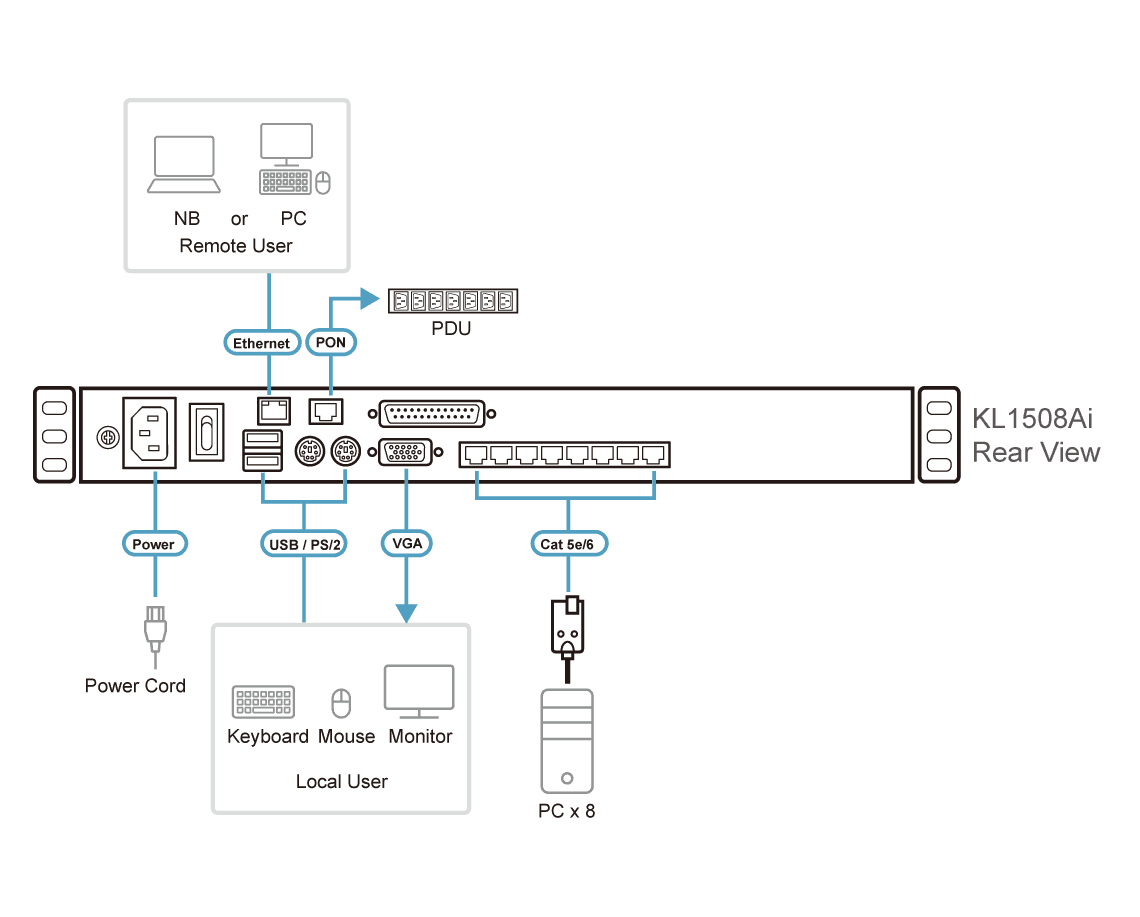

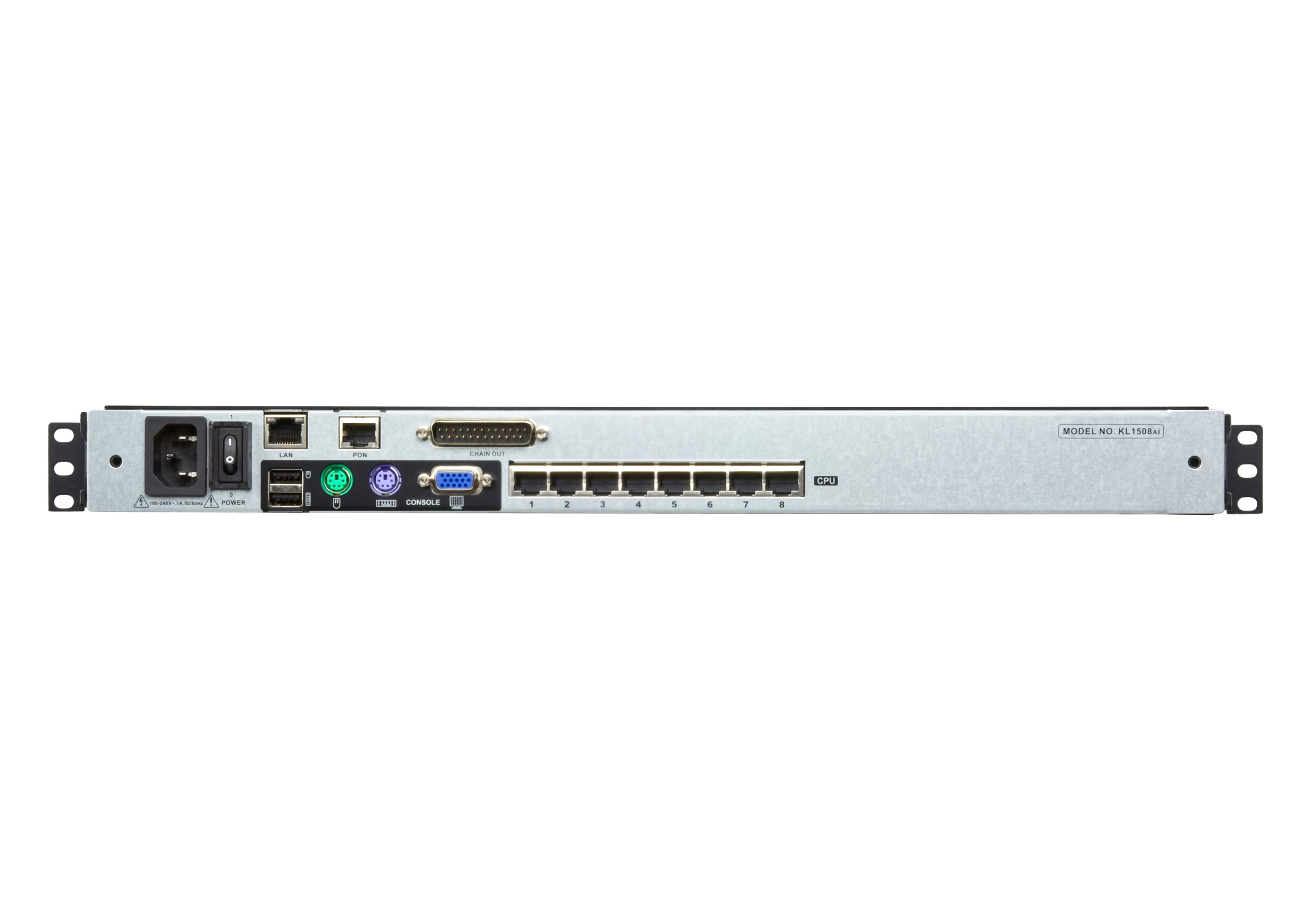

Конектори

Конзолни портове: 2 x USB Type-A Female (White) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x HDB-15 Female (Blue)
Конзолни портове: 2 x USB Type-A Female (White) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x HDB-15 Female (Blue)
Външен порт за мишка: 1 x USB Type-A Female
Външен порт за мишка: 1 x USB Type-A Female
KVM портове: 8 x RJ-45 Female
KVM портове: 8 x RJ-45 Female
Daisy Chain портове: 1 x DB-25 Male
Daisy Chain портове: 1 x DB-25 Male
PON: 1 x RJ-45 Female
PON: 1 x RJ-45 Female
Обновяване на фърмуера: 1 x RJ-11 Female
Обновяване на фърмуера: 1 x RJ-11 Female
LAN портове: 1 x RJ-45 Female
LAN портове: 1 x RJ-45 Female
Захранване: 1 x IEC 60320/C14
Захранване: 1 x IEC 60320/C14

Бутони и превключватели

Избор на порт: 8 x Pushbutton
Избор на порт: 8 x Pushbutton
Избор на станция: 2 x Pushbutton
Избор на станция: 2 x Pushbutton
Нулиране: 1 x Semi-recessed Pushbutton
Нулиране: 1 x Semi-recessed Pushbutton
Обновяване на фърмуера: 1 x Slide
Обновяване на фърмуера: 1 x Slide
Захранване: 1 x Rocker
Захранване: 1 x Rocker
Захранване на дисплея: 1 x Pushbutton
Захранване на дисплея: 1 x Pushbutton
Настройка на дисплея: 4 x Pushbutton
Настройка на дисплея: 4 x Pushbutton

Индикатори

Онлайн: 8 (Green)
Онлайн: 8 (Green)
Избран: 8 (Orange)
Избран: 8 (Orange)
Избор на станция: 2 x 7 Segments (Orange)
Избор на станция: 2 x 7 Segments (Orange)
Връзка: 1 (Green)
Връзка: 1 (Green)
10/100/1000 Mbps: non-FHD:10/100 Mbps (Orange / Green) FHD:100/1000 Mbps (Orange / Green)
10/100/1000 Mbps: non-FHD:10/100 Mbps (Orange / Green) FHD:100/1000 Mbps (Orange / Green)
Захранване: 1 (Blue)
Захранване: 1 (Blue)
Захранване на дисплея: 1 (Orange)
Захранване на дисплея: 1 (Orange)
Заключване: 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
Заключване: 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)

Видео

Локално: 1600 x 1200 @ 60Hz (non-FHD version) 1920 x 1200 @ 60Hz (FHD version)
Локално: 1600 x 1200 @ 60Hz (non-FHD version) 1920 x 1200 @ 60Hz (FHD version)
Отдалечено: FHD: 1920 x 1200 @ 60Hz Non-FHD: 1600 x 1200 @ 60 Hz
Отдалечено: FHD: 1920 x 1200 @ 60Hz Non-FHD: 1600 x 1200 @ 60 Hz

Панел

LCD модул: 17" TFT-LCD
LCD модул: 19" TFT-LCD
Резолюция: 1280 x 1024 @ 75Hz
Резолюция: 1280 x 1024 @ 75Hz
Стъпка на пикселите: 0.264 mm x 0.264 mm
Стъпка на пикселите: 0.294 mm x 0.294 mm
Време за реакция: 5 ms
Време за реакция: 5 ms
Зрителен ъгъл: 170° (H), 160° (V)
Зрителен ъгъл: 170° (H), 160° (V)
Поддържани цветове: 16.7M colors
Поддържани цветове: 16.7M colors
Контраст: 1000:1
Контраст: 1000:1
Яркост: 250 cd/m²
Яркост: 250 cd/m²

Емулация

Клавиатура / мишка: PS/2; USB
Клавиатура / мишка: PS/2; USB
Интервал на сканиране: 1–255 sec.
Интервал на сканиране: 1–255 sec.
Макс. входна мощност: 100–240V AC, 50-60Hz, 1A
Макс. входна мощност: 100–240V AC, 50-60Hz, 1A
Консумация: AC110V:21.1W:110BTU/h AC220V:22.2W:115BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: AC110V:24.3W:125BTU/h AC220V:24.5W:126BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 40°C
Работна температура: 0 - 40°C
Температура на съхранение: -20 - 60°C
Температура на съхранение: -20 - 60°C
Влажност: 0–80% RH, Non-condensing
Влажност: 0–80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Корпус: Metal
Тегло: 15.23 kg ( 33.55 lb )
Тегло: 15.39 kg ( 33.9 lb )
Размери (Д x Ш x В): 48.00 x 70.12 x 4.40 cm (18.9 x 27.61 x 1.73 in.)
Размери (Д x Ш x В): 48.00 x 70.12 x 4.40 cm (18.9 x 27.61 x 1.73 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
