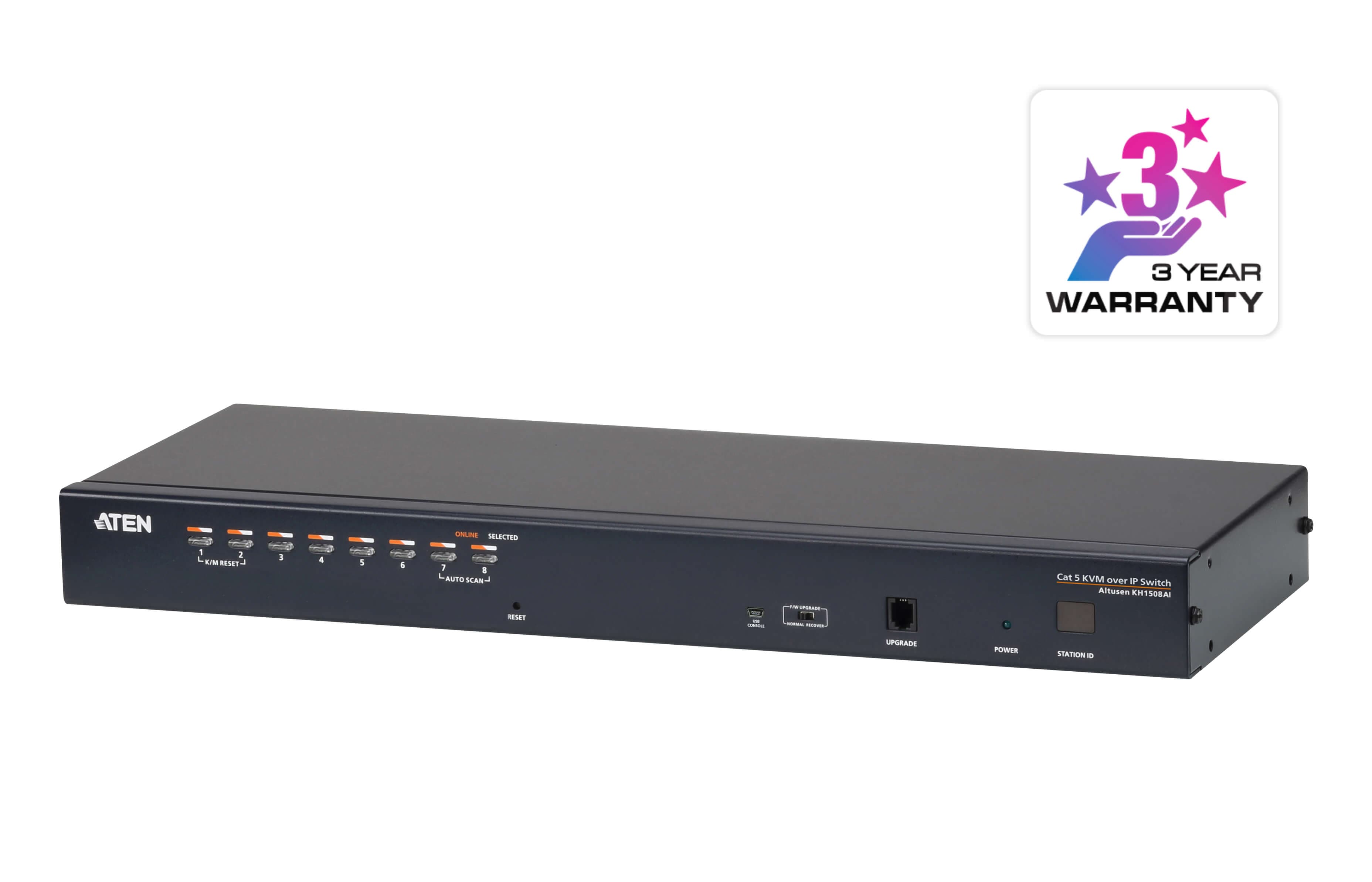

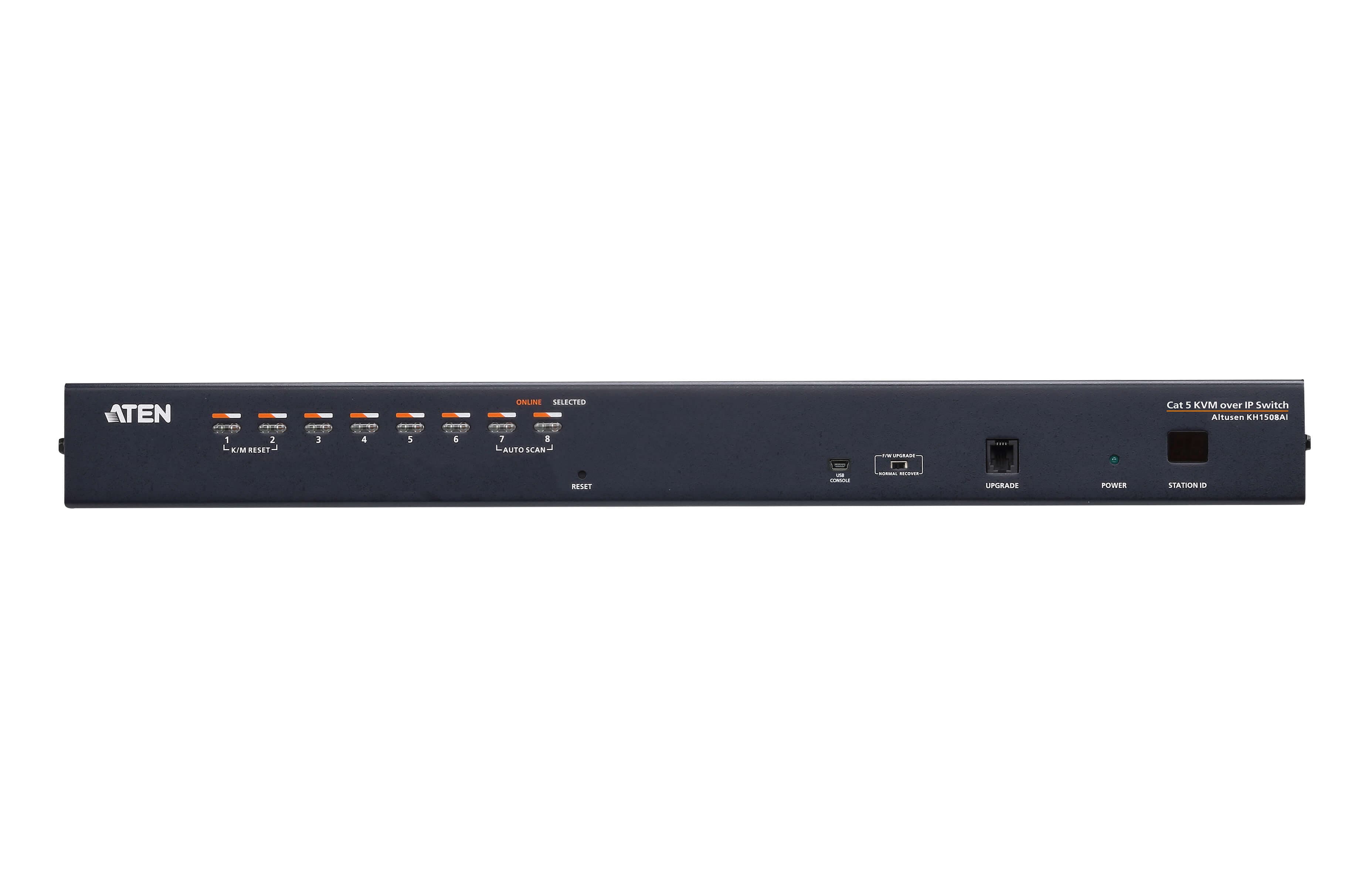

1-Local/Remote Shared Access 8-Port Multi-Interface Cat 5 KVM over IP Switch

KH1508AI
Заяви офертаDatasheet PDFРъководствоБърз стартCAD чертеж

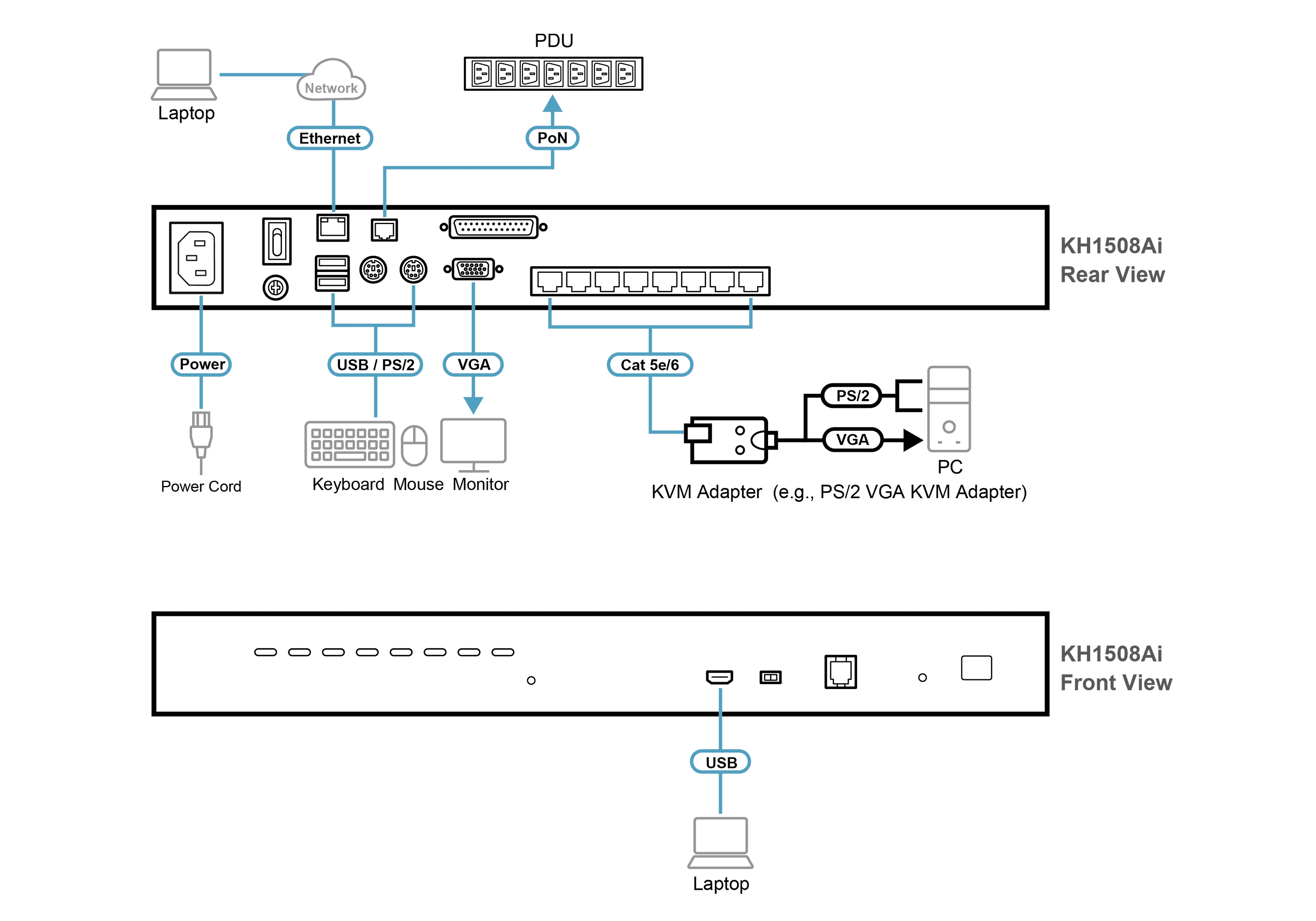

Cat 5 KVM over IP превключвател за 8 компютъра през RJ-45 в корпус 1U, с daisy-chain до 128. Локален и отдалечен достъп, USB порт за конзола от лаптоп.

Характеристики

  • Hardware
  • High port density – RJ-45 connectors for up to 8 ports in a 1U housing
  • A dedicated USB port directly connects to a laptop for easy Console operation
  • One bus for remote KVM over IP access
  • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
  • Local console provides PS/2 and USB keyboard and mouse support
  • Multiplatform support - Windows, Mac, Sun and Linux
  • Superior Video Quality – supports input video resolutions up to 1920 x 1200 @ 60 Hz* up to 30 meters, 1600 x 1200 @ 60 Hz up to 40 meters, and 1280 x 1024 @ 75 Hz up to 50 meters
  • Daisy-chain up to 15 additional units – control up to 128 computers from a single console Note: With KVM Adapter KA71xx or KA75xx series Management
  • Up to 64 user accounts
  • Up to 32 concurrent logins
  • End session feature – administrators can terminate running sessions
  • Event logging and Windows-based Log Server support
  • Local Log Event
  • Adapter ID – stores port information allowing administrators to relocate the servers to different ports, without having to reconfigure the adapters and switch
  • Port Shared Mode allows multiple users to gain access to a server simultaneously
  • Integration with ATEN CC2000 Management software
  • Power Over the NET™ integration for remote power control
  • Firmware upgradeable
  • IPv6 capable Easy-to-Use Interface
  • Local console, browser, and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity
  • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
  • Multi-browser support (IE, Firefox, Safari, Opera, Netscape)
  • Browser-based UI in Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
  • Panel Array Mode™
  • Keyboard broadcast – keyboard input can be duplicated on all the attached servers Advanced Security
  • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
  • Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
  • Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse and video data encryption
  • IP/MAC Filter for enhanced security protection
  • Configurable user and group permissions for server access and control Virtual Remote Desktop
  • Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
  • Full screen or scalable video display
  • Message Board for communication among remote users
  • Mouse DynaSync™ - automatically synchronizes the local and remote mouse movements
  • On-screen keyboard with multilanguage support
  • Exit Macros support
  • BIOS-level access

Връзки към компютри

Директно
8
Максимум
128 (via Daisy-chain)
Избор на порт
OSD; Hotkey; Pushbutton

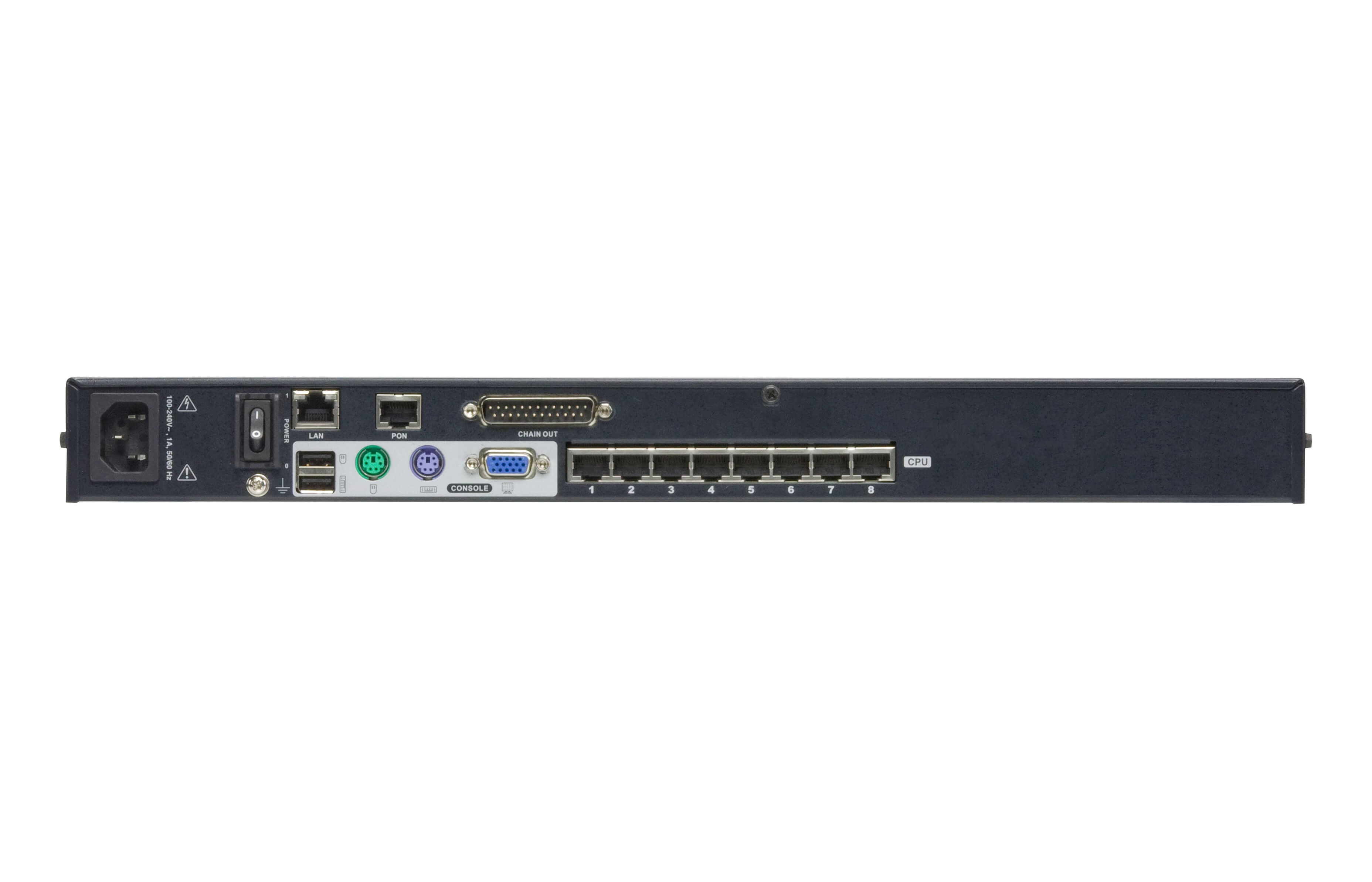

Конектори

Конзолни портове
2 x USB Type-A Female (White) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x HDB-15 Female (Blue)
KVM портове
8 x RJ-45 Female
Daisy Chain портове
1 x DB-25 Male
Захранване
1 x IEC 60320/C14
LAN портове
1 x RJ-45 Female
Обновяване на фърмуера
1 x RJ-11 Female
PON
1 X RJ-45 Female
Laptop USB Console (LUC) порт
1 x USB Mini-B Female

Бутони и превключватели

Нулиране
1 x Semi-recessed Pushbutton
Захранване
1 x Rocker
Избор на порт
8 x Pushbutton

Индикатори

Онлайн
8 (Green)
Избран
8 (Orange)
Захранване
1 (Blue)
ID на станция
1 x 2-digit 7-segment (Orange)
Връзка
1 (Orange)
10/100/1000 Mbps
non-FHD:10/100 Mbps (Orange / Green) FHD:100/1000 Mbps (Orange / Green)

Емулация

Клавиатура / мишка
PS/2; USB

Видео

Локално
1600 x 1200 @ 60Hz (non-FHD version) 1920 x 1200 @ 60Hz (FHD version)
Отдалечено
1600 x 1200 @ 60Hz (non-FHD version) 1920 x 1200 @ 60Hz (FHD version)
Интервал на сканиране
1–255 secs
Макс. входна мощност
100–240 VAC; 50/60 Hz; 1A
Консумация
AC110V:8.7W:49BTU/h AC220V:8.7W:49BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура
0 - 40°C
Температура на съхранение
-20 - 60°C
Влажност
0–80% RH; Non-condensing

Физически характеристики

Корпус
Metal
Тегло
2.68 kg ( 5.9 lb )
Размери (Д x Ш x В)
43.72 x 16.36 x 4.40 cm (17.21 x 6.44 x 1.73 in.)
Забележка
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
